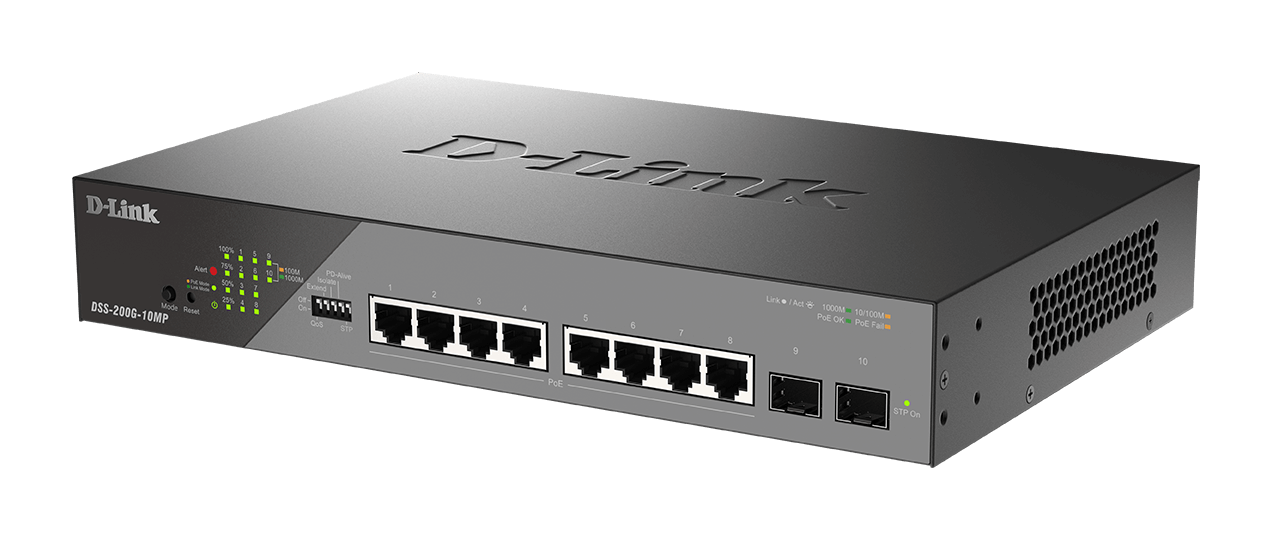

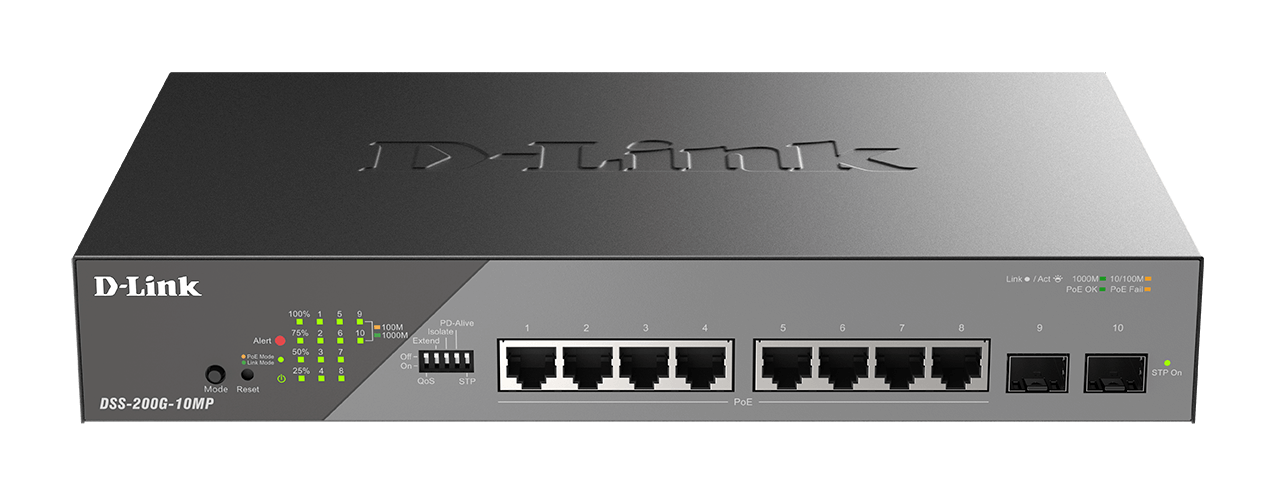

8-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch

DSS-200G-10MP

  • Product Status (Revision A1_v102): Live
  • High PoE budgets and support 802.3at, providing up to 30 watts per port
  • 6 kV surge protection on all PoE ports
  • Alarm Port and four-stage PoE usage indicator light
  • Fanless switch for noise concern environments
  • Surveillance traffic optimization
  • Auto-detect ONVIF devices
  • Built-in SNMP MIB
  • Surveillance VLAN
  • Easy deployment with automatic configuration

Download the datasheet.

Where to buy

Enjoy the Power of Next-Gen Surveillance Switch

Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.

Read More
dss 200g series product light

DSS-200G Series Comparison

DSS-200G-10MP
DSS-200G-10MP
DSS-200G-10MPP
DSS-200G-10MPP
DSS-200G-28MP
DSS-200G-28MP
DSS-200G-28MPP
DSS-200G-28MPP
Port Count
8*GE PoE + 2*GE SFP
8*GE PoE + 2*GE SFP
24*GE PoE + 4*GE Combo
24*GE PoE + 4*GE Combo
Dimension
11”
11”
19”
19”
Surge Protection
6KV Full port & Power Supply
6KV Full port & Power Supply
6KV Full port & Power Supply
6KV Full port & Power Supply
PoE power Budget
130 W
242 W
370 W
518 W
PoE Standard
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Smart Fan
Fanless
1
2
2
DIP switch
Working Modes x 4
Working Modes x 4
Working Modes x 4
Working Modes x 4
QoS (Port priority)
Ports 1-8
Ports 1-8
Ports 1-24
Ports 1-24
Isolate
Ports 1-8
Ports 1-8
Ports 1-24
Ports 1-24
PD-Alive
Ports 1-8
Ports 1-8
Ports 1-24
Ports 1-24

Acoustic
0 dB
Dimensions
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in)
FAN
Fanless
Humidity
Operating: 0% to 95% non-condensing

Storage: 0% to 95% non-condensing
Interfaces
2 x SFP 1000 Mbps

8 x 10/100/1000 Mbps PoE

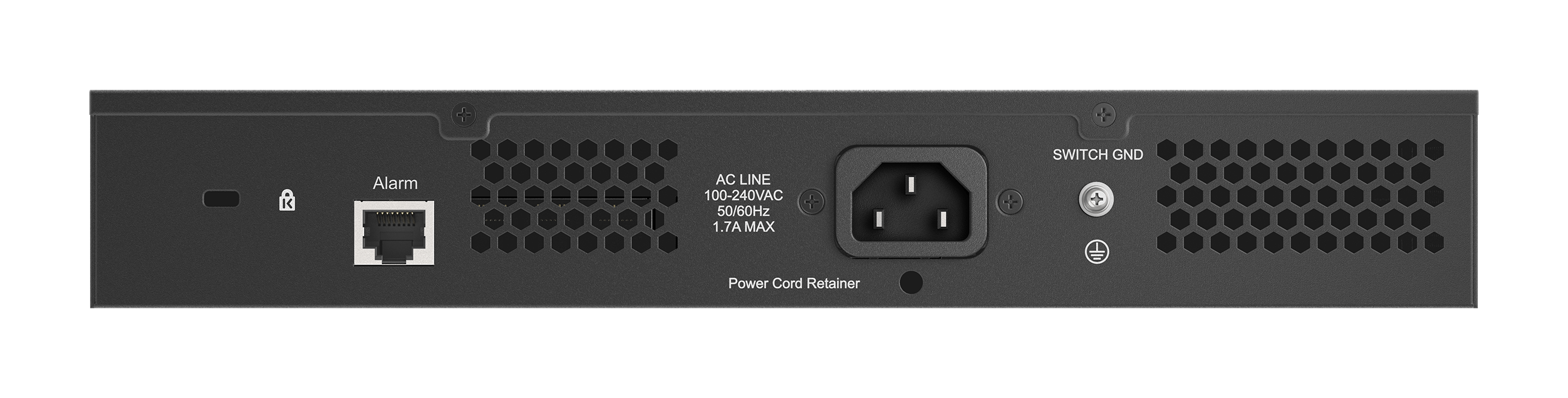

LEDs Alarm
Yes
LEDs Link/Active/Speed (per port)
Yes
LEDs Power (per device)
Yes
MAC Address Table Size
8K entries
Maximum Forwarding Rate
14.88 Mpps
Maximum Heat Dissipation
103.05 BTU/hr
Maximum Power Consumption
160.2 W (PoE on)

9.63 W (PoE off)
MTBF
345,045 hours
Packet Buffer Size
4.1Mbit
PoE Power Budget
130 W

30 W max. per PoE port
Power Input
100 to 240 V AC

50 to 60 Hz internal power supply
Standby Power Consumption
10.4 W
Switching Capacity
20 Gbps
Temperature
Operating: -5 to 50° C (23 to 122° F)

Storage: -40 to 70 °C (-40 to 158 °F)
Weight
1.55 kg (4.42 lbs)
