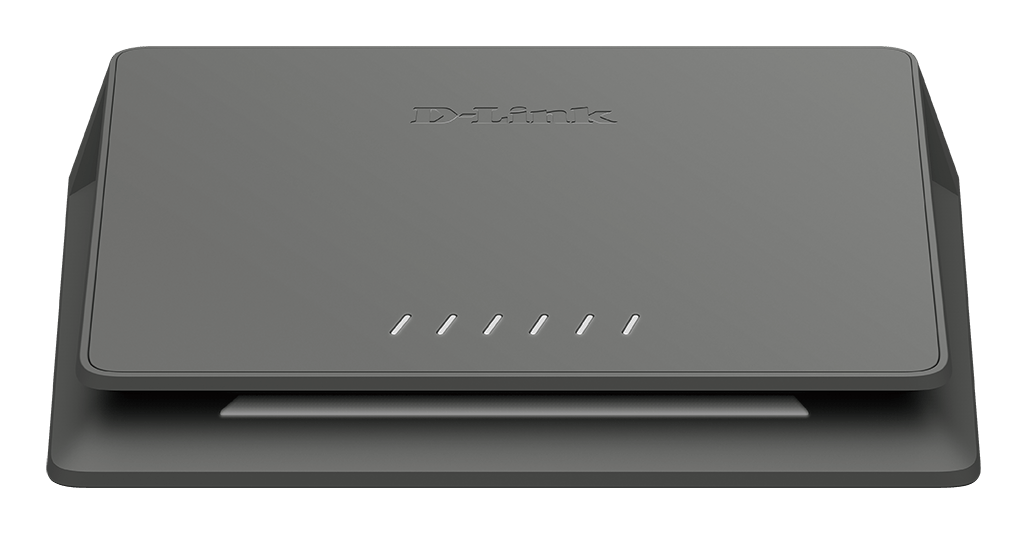

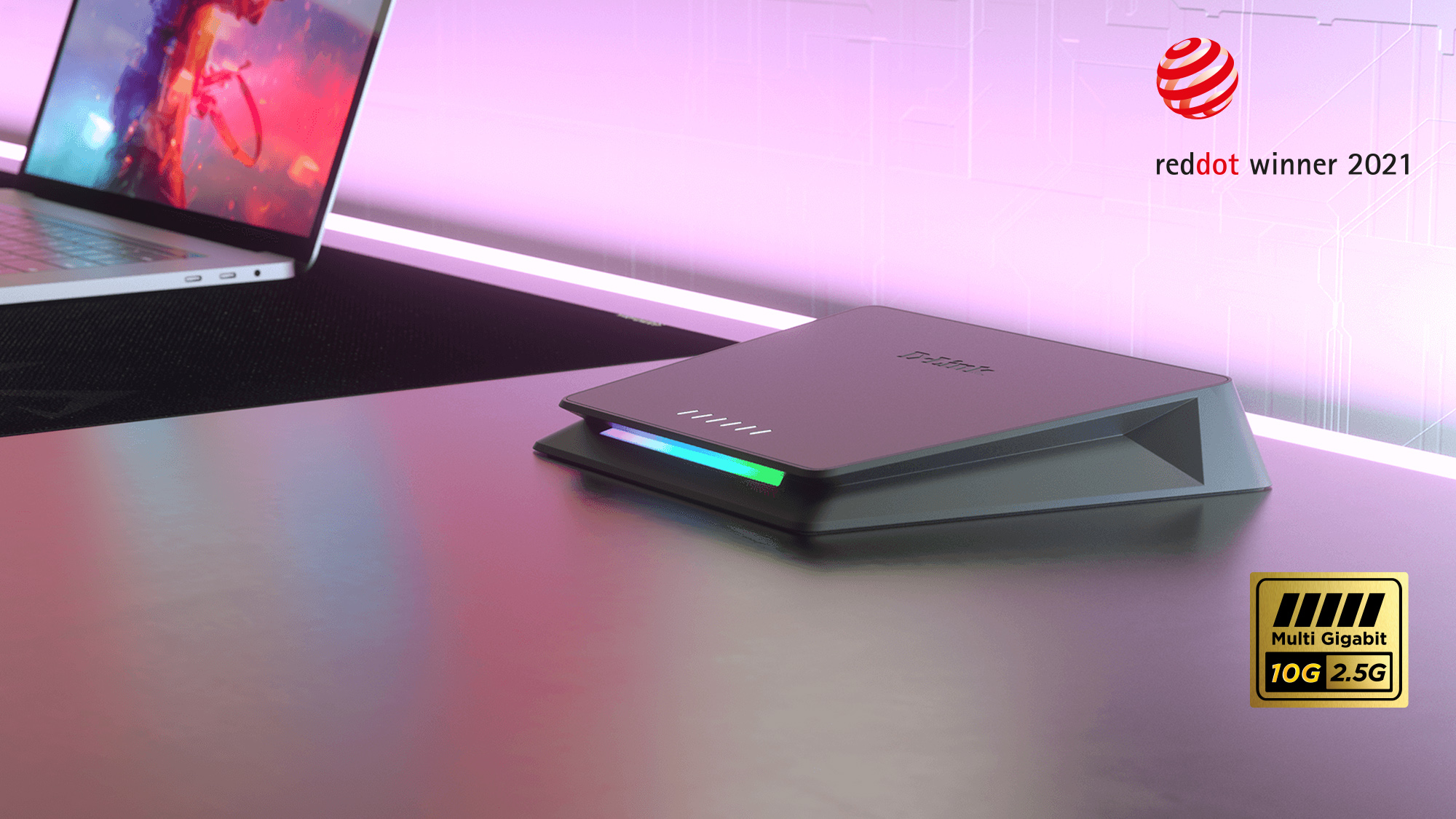

6-Port Multi-Gigabit Unmanaged Switch
DMS-106XT

Turbocharged multi-gig for work or play

  • 5 x 2.5 Gbps Ethernet Ports for unrestricted Wi-Fi 6 router or AP connections
  • 1 x 10 Gbps Ethernet port for uplink or NAS server connection
  • Smart Turbo Mode delivers Quality of Service (QoS) and port-based priority for uninterrupted online gaming and 4K streaming
  • Power efficiency design for low power consumption
  • LED conveniently indicates port speed status
  • Durable matte gray aluminum alloy casing
  • Fanless operation for enhanced reliability and soundless performance

  • 5 x 2.5 Gbps Ethernet Ports for unrestricted Wi-Fi 6 router or AP connections
  • 1 x 10 Gbps Ethernet port for uplink or NAS server connection
  • Smart Turbo Mode delivers Quality of Service (QoS) and port-based priority for uninterrupted online gaming and 4K streaming
  • Power efficiency design for low power consumption
  • LED conveniently indicates port speed status
  • Durable matte gray aluminum alloy casing
  • Fanless operation for enhanced reliability and soundless performance

Specifications

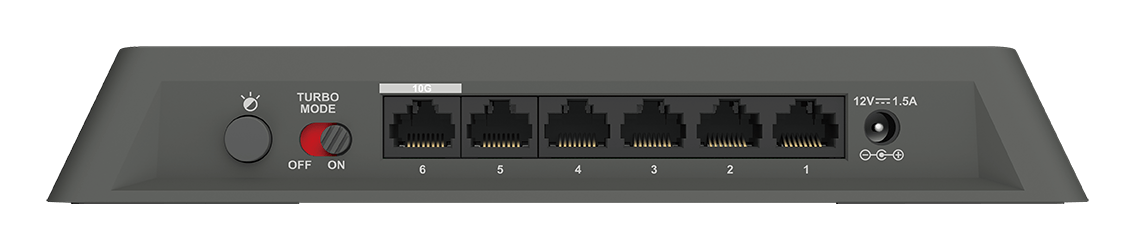

Interfaces 5 x 10/100/1000/2500Mbps ports, 1 x 10/100/1000/2500/5000/10000Mbps port
Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.3bz 2.5G/5G Base-T, IEEE 802.3an 10G Base-T
LED Per port: Link/Activity, Per device: Power
Switching Capacity 45 Gbps
Transmission Method Store-and-Forward
MAC Address Table 4K
Power Input DC 12V / 1.5A (100-240 V)
Maximum Power Consumption 10.6 W
Operating Temperature 0 - 40 °C (32 - 104 °F)
Storage Temperature -10 - 70 °C (14 - 158 °F)
Operating Humidity 10% - 95% RH
Storage Humidity 5% - 95% RH
Dimensions (L x W x H) 217 x 163 x 33 mm (8.54 x 6.42 x 1.30 in)
Weight 680 g
EMI CE, FCC, RCM, BSMI, VCCI, RoHS

Why You Want It

Turbo Mode

Activate Turbo Mode whenever you're ready for optimized performance

Plug & Play Plug and Play

Ready to perform right out of the box with no configuration required

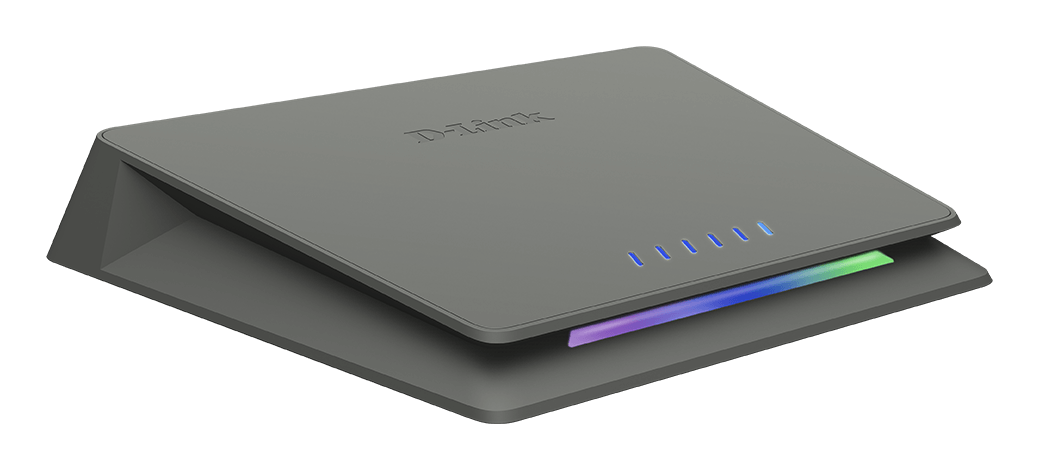

Multicolored LED

Multi-Colored LED light conveniently indicates Turbo Mode status

Silent Operation

Fanless design enhances reliability and is suitable for noise-free working environments

Metal Casing

Rugged aluminum alloy matte gray casing

Multi-Gigabit Multi-Gigabit

Multi-Gigabit ports for high data rate transmission

Power Efficiency

Designed for low power consumption

Quality of Service QoS Management

Quality of Service for uninterrupted connections

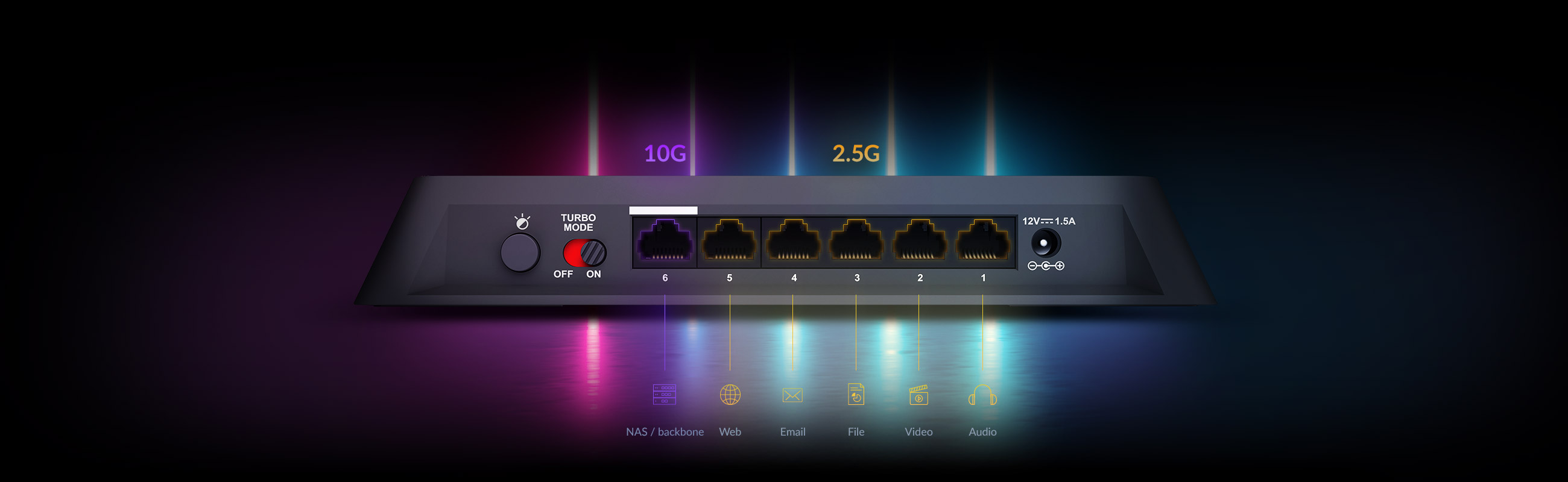

Ultra-Fast 10-Gigabit Connection for
Home or Office Applications

The DMS-106XT multi-gig switch features a 10-Gigabit port for high-bandwidth network uplink or access to a Network-Attached Storage (NAS) device, it's perfect for the multimedia design workplace or advanced home networking setup.

2.5-Gigabit Ports Ready for Wi-Fi 6 Connectivity

With five 2.5-Gigabit ports to connect all your high-speed devices, such as Wi-Fi 6 routers and access points, the DMS-106XT delivers unrestricted multi-Gigabit network access for your home or small business.

Learn More About Wi-Fi 6 >

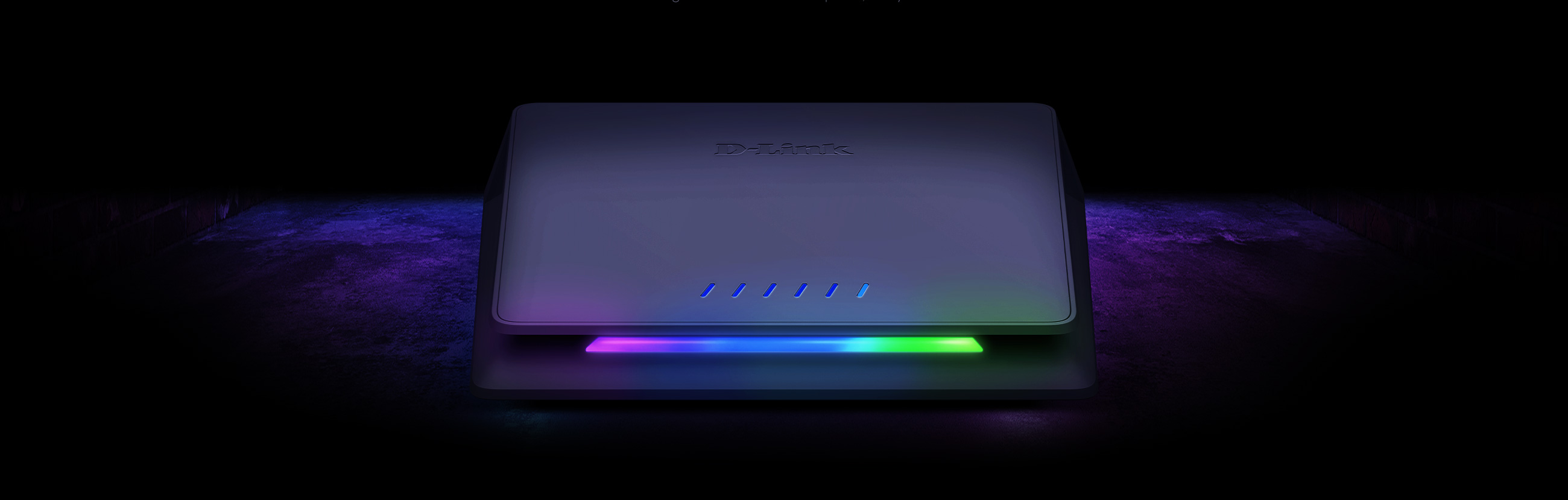

Turbocharge Your Network for
Optimized Performance

When you're ready for a turbo-charged network experience, simply activate Turbo Mode to keep your online gaming and 4K streaming running at maximum network speeds. Perfect for uninterrupted online entertainment every time.

Designed for Advanced Home or Small Office Networks

Fast enough to handle your large multimedia file transfers to and from the storage server with the 10-Gigabit port, and versatile enough to keep your Wi-Fi 6 router and AP communications unrestricted with 5 multi-Gigabit (2.5 Gbps) ports. What's more - the sleek aluminum alloy design and multi-colored LED light bar make the DMS-106XT a great addition to any modern home or workplace.

DMS-106XT - Designed for Advanced Home or Small Office Networks
