Route Layer 3 traffic between switches, even if they're segmented in VLANs.

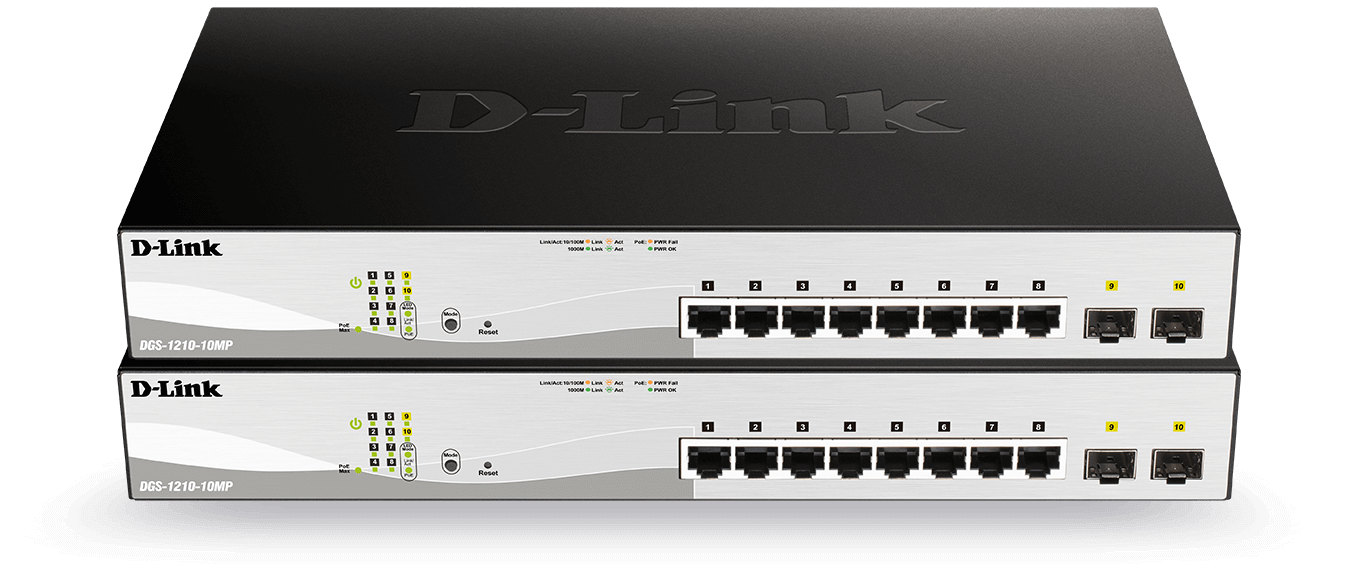

Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.

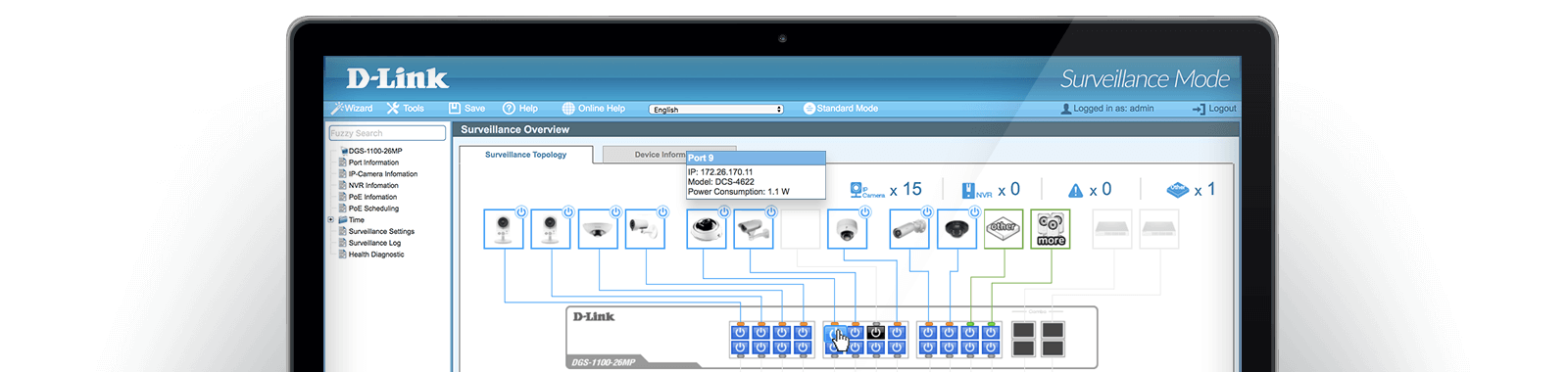

D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.
Up to 370 W PoE output per switch
Segment your network into VLANs.
Risk-free configuration testing.
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.

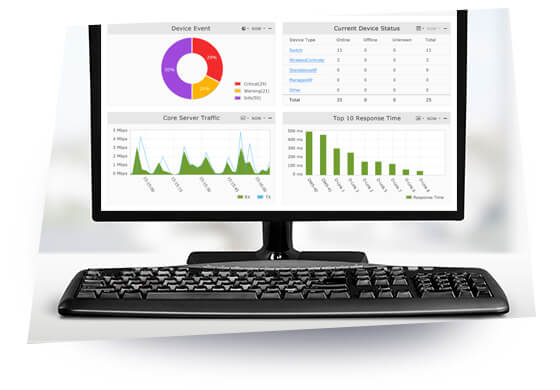

D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.
· 8 x 1000Base-T
· 2 x SFP
· Fanless
· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 65W PoE budget
· Fanless
· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 130W PoE budget
· Fanless
· 16 x 1000Base-T
· 4 x Combo
· Fanless
· 24 x 1000Base-T
· 2 x SFP
· Fanless
· 24 x 1000Base-T
· 4 x Combo
· Fanless
· 24 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 193W PoE budget
· 24 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 370W PoE budget
· 48 x 1000Base-T
· 4 x Combo
· Fanless
· 48 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 370W PoE budget
|
Layer
|
Layer 2 |
|---|---|
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Number of ports
|
5 to 14 ports 16 to 30 ports 48 to 54 ports |
|
Type of uplink ports
|
SFP Combo 1000BASE-T/SFP |
|
Switching capacity
|
20 Gbps 40 Gbps 104 Gbps |
|
PoE options
|
802.3at 802.3af |
|
Number of PoE ports
|
8 24 |
|
PoE power budget
|
See datasheet See datasheet |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form factor
|
Desktop Rackmountable |
|
MAC address
|
8K 16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP 802.1s MSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
256 |
|
Advanced VLAN
|
Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN |
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
ACL based on packet contents
|
Supported
|
|
Encryption protocol supported
|
SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
Type
|
Smart managed |
|
