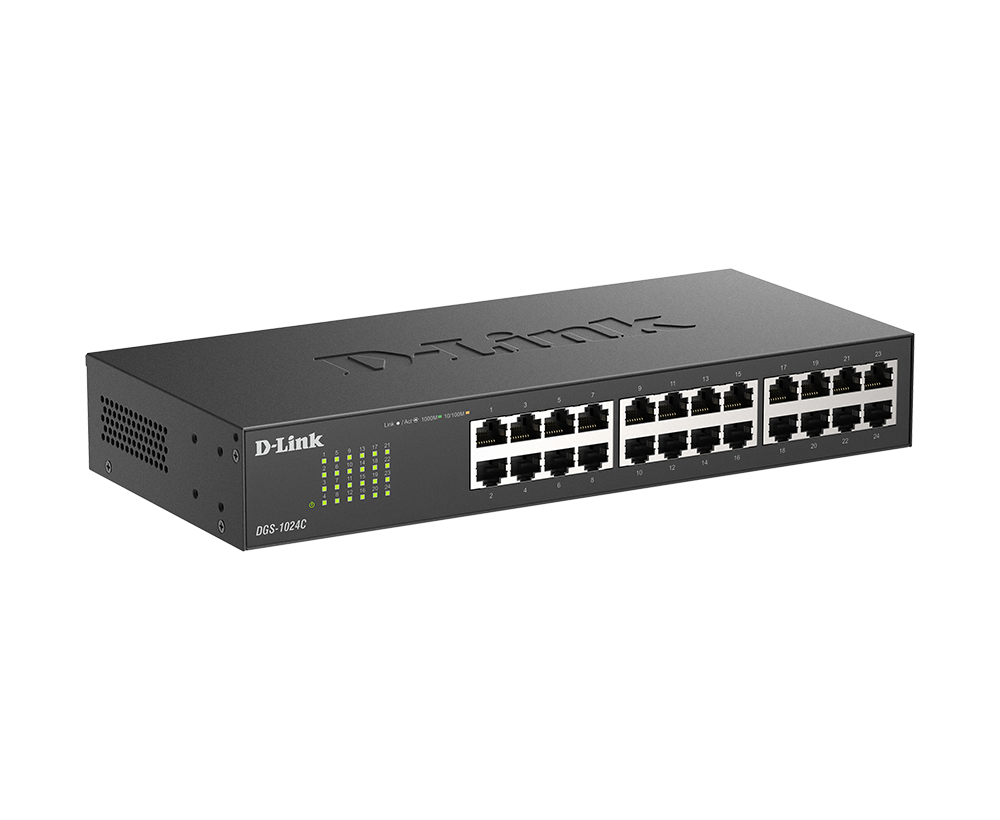

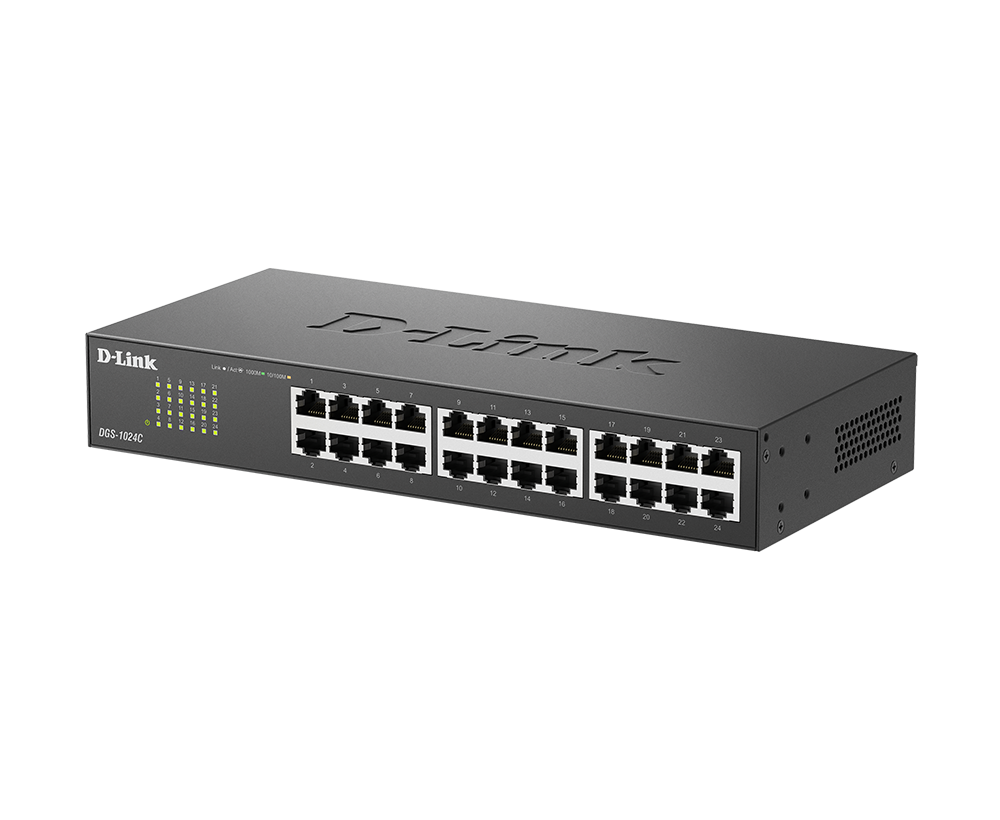

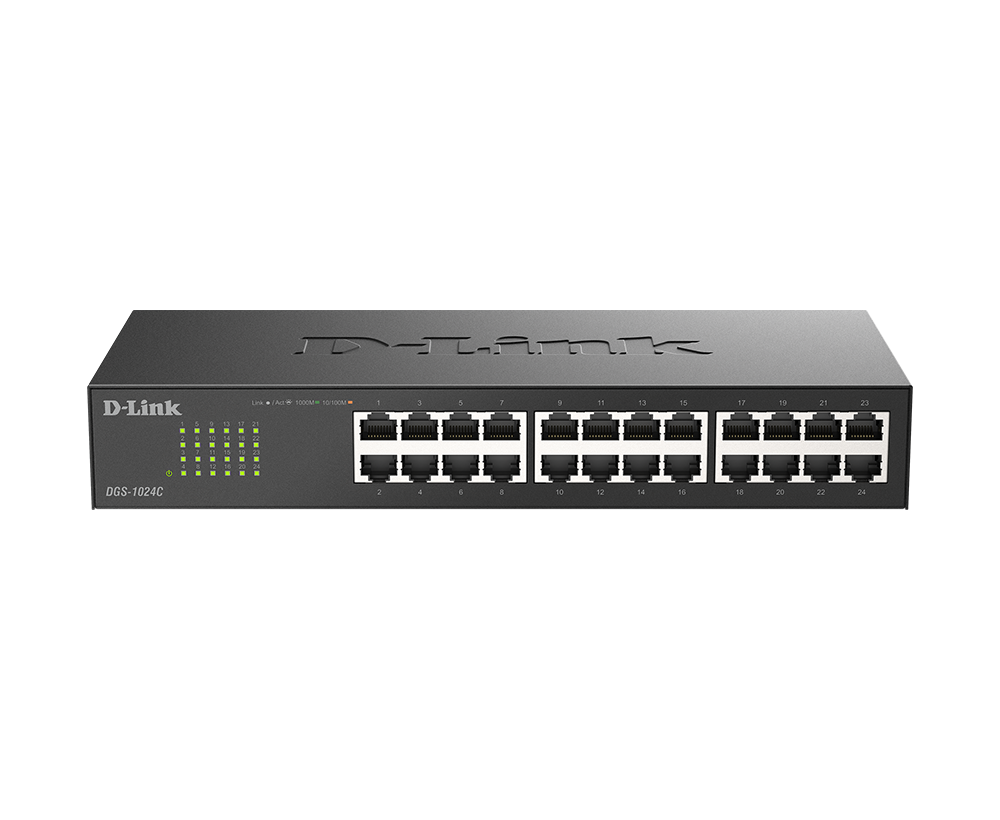

24-Port Gigabit Unmanaged Switch

DGS-1024C

  • Product Status (Revision A1_v100WW): Live
  • 24 Gigabit LAN ports for high-speed wired connections
  • Plug-and-play installation for convenience
  • Auto-negotation on all ports
  • Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
  • Full wire-speed data transmission
  • Energy-efficient design

Download the datasheet.

Where to buy

Fast Connectivity meets Energy Efficiency

The DGS-1024C lets you enjoy fast wired connectivity with 24 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.

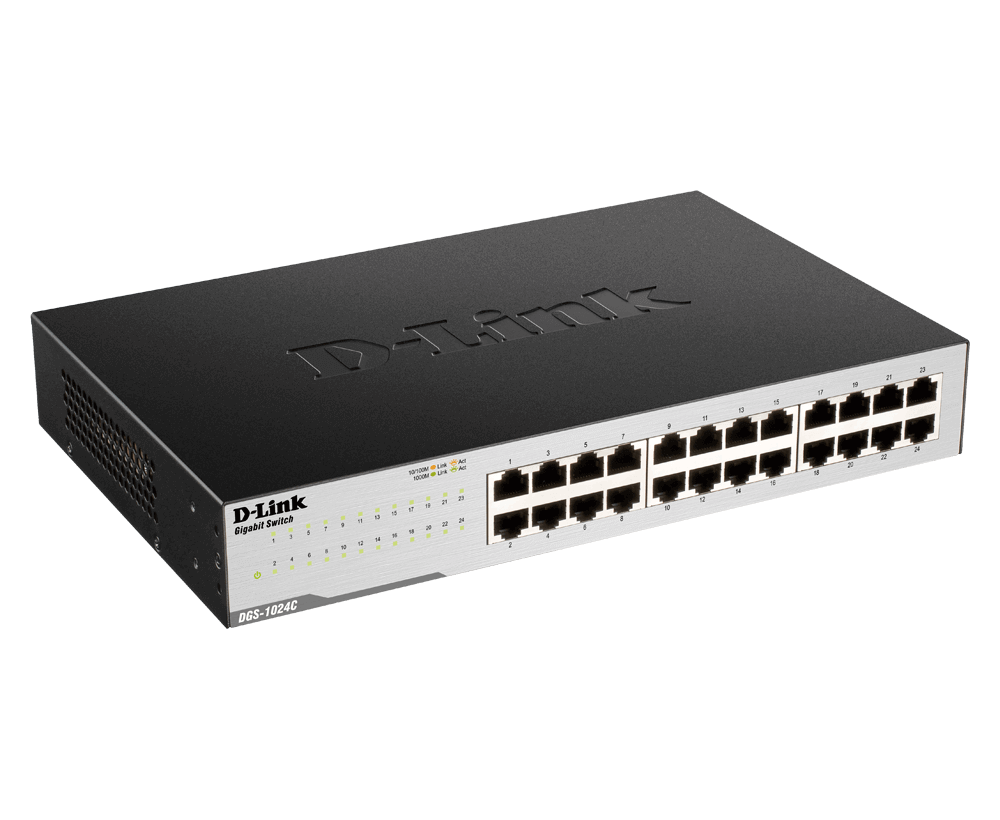

DGS1024CSide

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.


Conserve Energy

The DGS-1024C supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially.


Reliable Plug and Play Installation

The DGS-1024C is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.


Smooth Streaming

These switches support QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

interior004

Acoustic
0 dB
Comply with RoHS 6
Yes
Power Saving
By Cable Length

By Link Status
Control
802.3x Flow
Dimensions
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)
Energy Efficiency Ethernet (EEE)
Yes
FAN
Fanless
Head-of-line (HOL) Blocking Prevention
Yes
Humidity
Operating: 10% ~ 90% RH

Storage: 5% ~ 95% RH
Interfaces
120G CXP

24 x 1000Base-T

Auto MDI/MDIX
Jumbo Frame
9,216 Bytes
MAC Address Table Size
16000
Maximum Forwarding Rate
35.712 Mpps
Maximum Heat Dissipation
46.035 BTU/h
Maximum Power Consumption
13.5 watts
MTBF
247,291 hours
Packet Buffer Size
512KBytes
Power Input
AC:100 ~ 240 V
Standby Power Consumption
6.5 watts
Store & Forwarding Forwading
Yes
Switch intelligence
Unmanaged
Switching Capacity
48Gbps
Temperature
Operating: 0 ~ 40 °C

Storage: - 40 ~ 70 °C
Weight
1.14 kgs
