Description

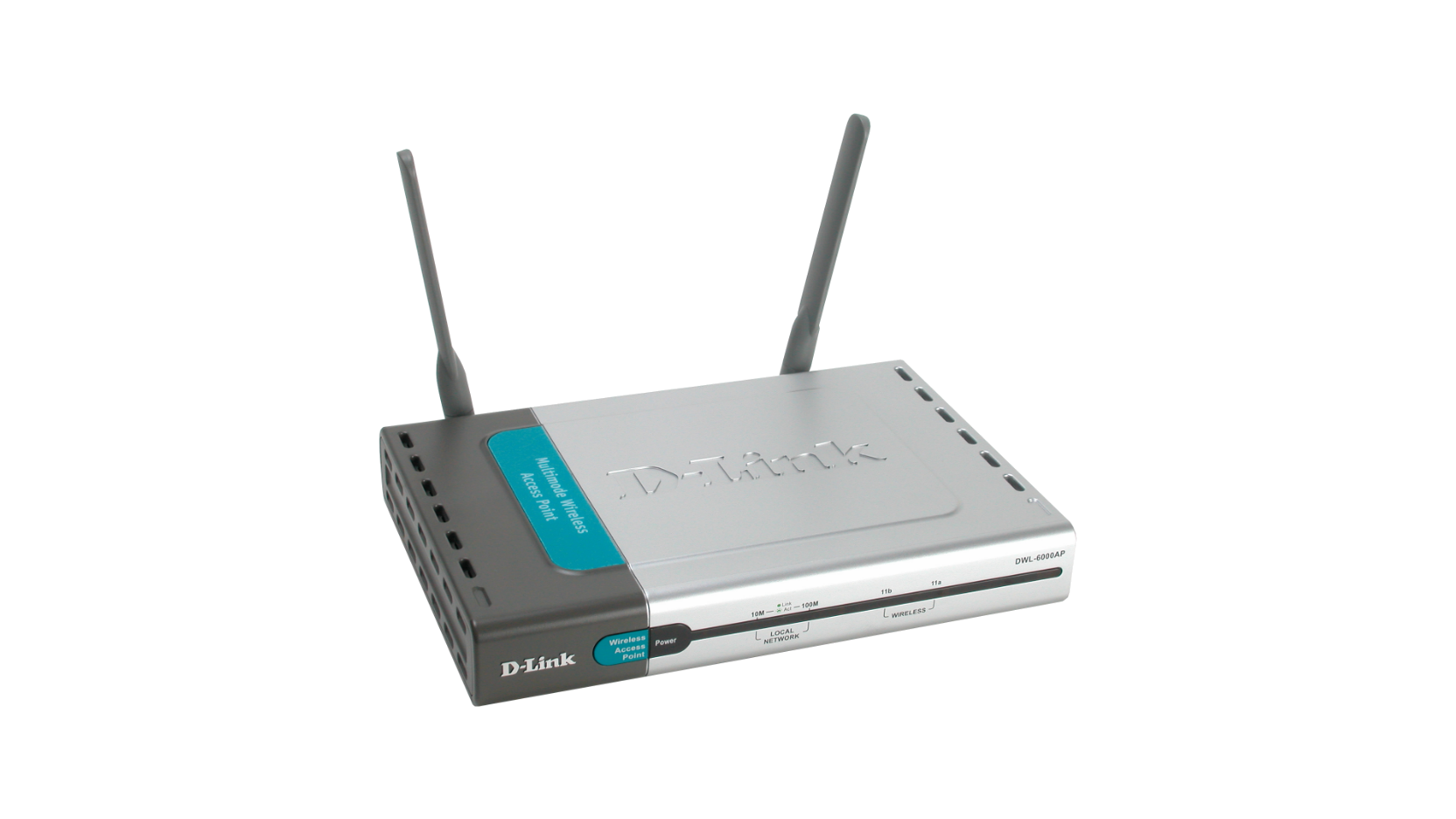

The D-Link AirPro DWL-6000AP Multimode Wireless Access Point simultaneously connects to both 802.11a and 802.11b wireless networks. With a total of eleven non-overlapping channels, the DWL-6000AP is the ideal solution for any network administrator who needs to expand the capacity of the wireless network and allow users on different frequencies to connect.
Featuring the latest dual-band technology in 2.4GHz and 5GHz, it is also a best-of-both-worlds solution for those operating wireless networks in public areas where the extra bandwidth can attract additional paying customers. This is especially applicable to wireless networks in high traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments.
At transfer rates of up to 72Mbps in the 5GHz frequency range and 22Mbps in the 2.4GHz frequency range, users connected to the DWL-6000AP will enjoy faster downloads and email communication.
The DWL-6000AP combines the latest advancements in 802.11b silicon chip design from Texas Instruments, utilizing their patented Digital Signal ProcessingTM technology along with impressive high-speed performance and features of the Atheros 802.11a chip design.
In addition to bridging 802.11a and 802.11b wireless networks, the D-Link AirPro DWL-6000AP can bridge to wired networks with its integrated 10/100 Ethernet port.
For more secure communication, the DWL-6000AP supports user-selectable encryption settings — up to 152-bit WEP on the 5GHz band and up to 256-bit WEP on the 2.4GHz band. With its web-based configuration and AP Manager, the DWL-6000AP is easy to install and manage.
The D-Link AirPro DWL-6000AP Multimode Wireless Access Point simultaneously connects to both 802.11a and 802.11b wireless networks. With a total of eleven non-overlapping channels, the DWL-6000AP is the ideal solution for any network administrator who needs to expand the capacity of the wireless network and allow users on different frequencies to connect.
Featuring the latest dual-band technology in 2.4GHz and 5GHz, it is also a best-of-both-worlds solution for those operating wireless networks in public areas where the extra bandwidth can attract additional paying customers. This is especially applicable to wireless networks in high traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments.
At transfer rates of up to 72Mbps in the 5GHz frequency range and 22Mbps in the 2.4GHz frequency range, users connected to the DWL-6000AP will enjoy faster downloads and email communication.
The DWL-6000AP combines the latest advancements in 802.11b silicon chip design from Texas Instruments, utilizing their patented Digital Signal ProcessingTM technology along with impressive high-speed performance and features of the Atheros 802.11a chip design.
In addition to bridging 802.11a and 802.11b wireless networks, the D-Link AirPro DWL-6000AP can bridge to wired networks with its integrated 10/100 Ethernet port.
For more secure communication, the DWL-6000AP supports user-selectable encryption settings — up to 152-bit WEP on the 5GHz band and up to 256-bit WEP on the 2.4GHz band. With its web-based configuration and AP Manager, the DWL-6000AP is easy to install and manage.
Specs
Device Specifications
Device Management
Media Access Control
Ports
Diagnostic LEDs
Standards
Available Channels
Antenna Type
Transmitter Output Power
Power Input
Temperature
Humidity
Physical Dimensions
Weight
Certifications
Warranty
802.11a Specifications
Data Rates
Data Security
Frequency Range
Modulation Technology
Modulation Techniques
Enhanced 802.11b Specifications
Data Rates
Data Security
Frequency Range
Operating Range
Modulation Technology
Modulation Techniques
Product Information
Part No
Description
UPC
Device Management
- Web-Based – Internet Explorer v5 or later; Netscape Navigator v4 or later; or other Java-enabled browsers Access Point Manager
Media Access Control
- CSMA/CA with ACK
Ports
- (1) 10/100Base-T Ethernet, RJ-45 (UTP)
Diagnostic LEDs
- Power (Green)
- 10/100M Link/Act (Green)
- 11a WLAN (Green)
- 11b WLAN (Green)
Standards
- IEEE 802.11
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.1d
- IEEE 802.3
- IEEE 802.3u
Available Channels
- Eleven non-overlapping channels
Antenna Type
- Dual 5dBi dipole antenna with diversity (standard)
Transmitter Output Power
- 15dBm ± 2dB
Power Input
- External Power Supply — DC 5V, 2.5A
Temperature
- 32°F to 131°F ( 0°C to 55°C)
- Storing: -25°C to 65°C (-77°F to 140°F)
Humidity
- 5%-95% RH non-condensing
Physical Dimensions
- L = 9.25 inches / 91.2mm
- W = 6.25 inches / 54mm
- H = 1.50 inches / 36.4mm
Weight
- ~2.0 lbs / 907 grams
Certifications
- FCC part 15b
- UL1950-3
Warranty
- 3 Year (details inside product package)
802.11a Specifications
Data Rates
- 6, 9, 12, 18, 24, 36, 48, 54, 72 Mbps
Data Security
- 64, 128, 152-bit WEP (Wired Equivalent Privacy) Encryption with Dynamic Keying
- Access Control List
Frequency Range
- 5.150 - 5.350GHz
Modulation Technology
- Orthogonal Frequency Division Multiplexing (OFDM)
Modulation Techniques
- BPSK
- QPSK
- 16 QAM
- 64 QAM
Enhanced 802.11b Specifications
Data Rates
- 1, 2, 5.5, 11, 22Mbps
Data Security
- 64, 128, 256-bit WEP (Wired Equivalent Privacy) Encryption
- Access Control List
Frequency Range
- 2.4GHz to 2.462GHz
Operating Range
- Indoors: Up to 328 feet / 100 meters
Modulation Technology
- PBCC - Packet Binary Convolutional Coding
- Direct Sequence Spread Spectrum (DSSS)
- 11-chip Barker sequence
Modulation Techniques
- Barker (1Mbps/0db)
- Barker (2Mbps/3db)
- CCK (5.5 Mbps/5.5db)
- PBCC (5.5Mbps/1.5db)
- CCK (11Mbps/8.5db)
- PBCC (11Mbps/4.5db)
- PBCC (22Mbps/8.5db)
Product Information
Part No
- DWL-6000AP
Description
- 2.4GHz/5GHz Multimode Wireless Access Point
UPC
- 790069-245442
Support
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual (English) | Manual (English) | - | 6.94mb | Download |
Version | Description | Date | Type | |
---|---|---|---|---|
Firmware 2.30 | Firmware | 17/01/2006 | - | Download |
Version | Description | Date | |
---|---|---|---|
AP Manager | AP Manager |
05/04/2006 | Download |
Version | Description | Date | |
---|---|---|---|
DEU_CE_Declaration_RevA | CE Declaration (English) | 21/10/2002 | Download |
