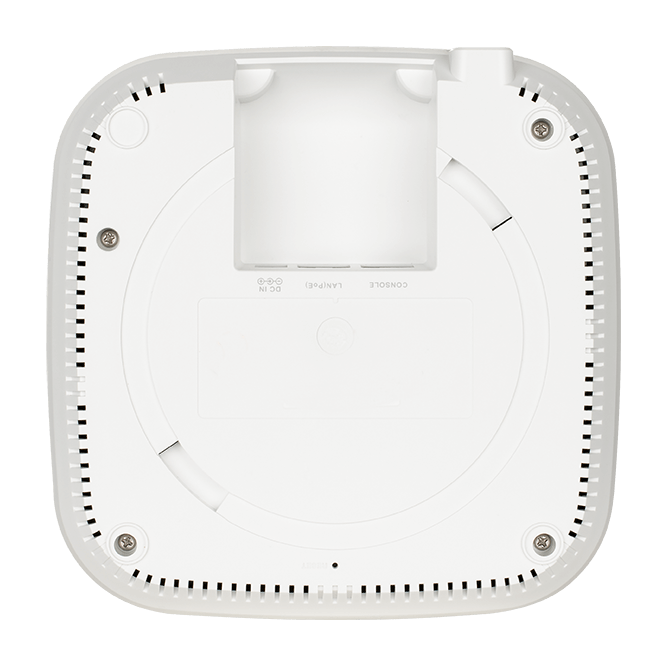

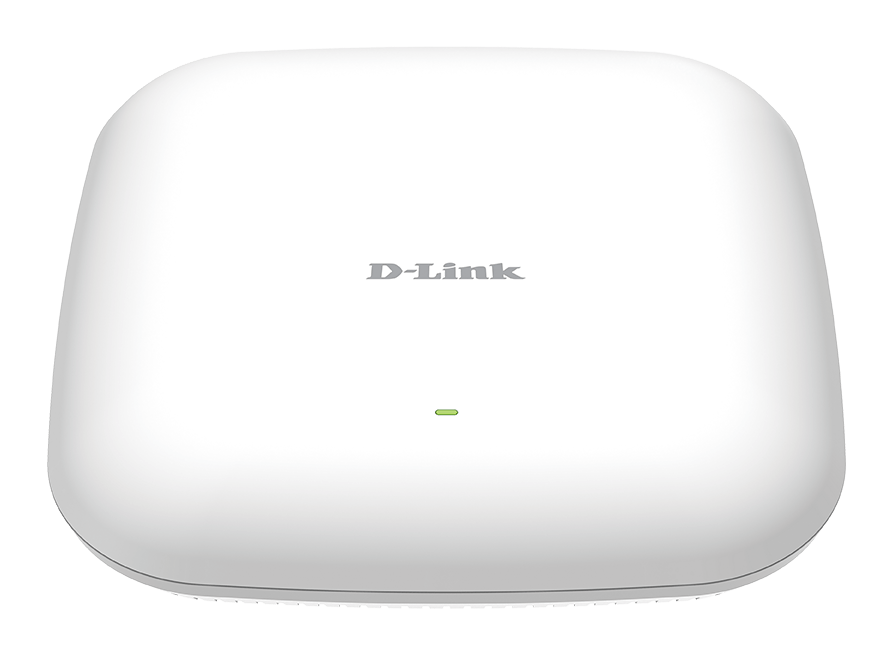

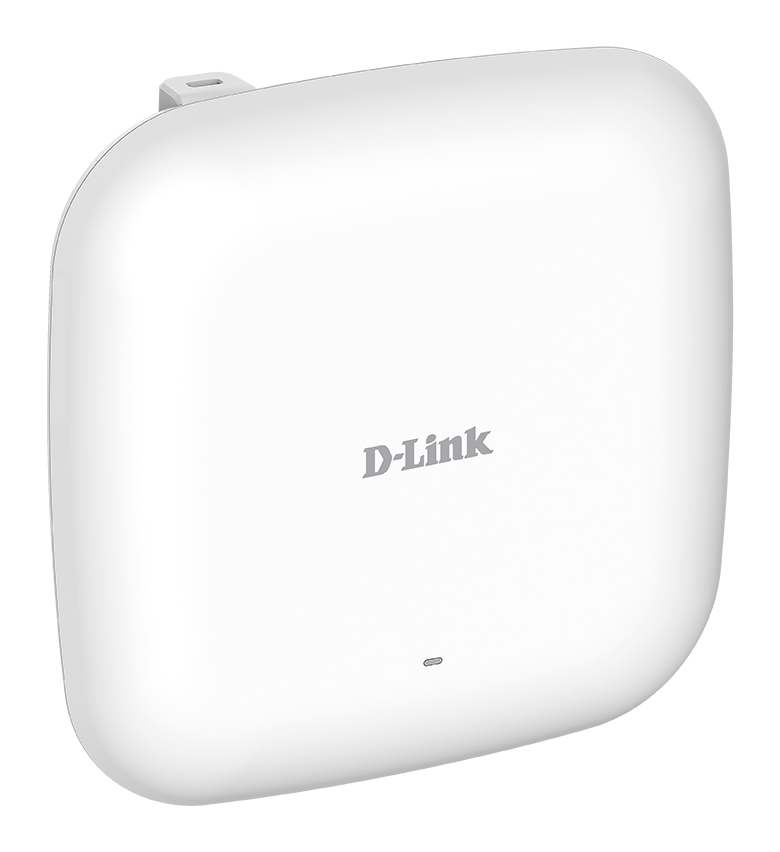

AX1800 Wi-Fi 6 Dual-Band PoE Access Point

DAP-X2810

  • Product Status (Revision A1): Live
  • Wi-Fi 6 AX1800, up to 1.8 Gbps1
  • Dual-band, 2x2 MIMO, band-steering & airtime fairness
  • Free-to-download Nuclias Connect software & app
  • Flexible installation with PoE
  • Customisable captive portal
  • D-Link Limited Lifetime Warranty

Download the datasheet.

Where to buy

Simple‑to‑manage and easy‑to‑scale Wi‑Fi 6 for your business.

The Wi-Fi 6-ready DAP-X2810 provides businesses of all sizes with incredible speeds, significantly increased capacity and interference-free coverage, combined with centralised management by Nuclias Connect.

Manage your business network with ease

The DAP-X2810 works with our Nuclias Connect software-based management platform (with optional hardware controller) that enables you to manage and control your business network from anywhere with an internet connection, for easy access, automation, and network scalability.

Learn more
Easily manage your network with Nuclias Connect

Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.

Next-gen Wi-Fi 6

Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards

Intelligent, secure performance

Superior security with WPA3™ wireless encryption, and high throughput with dual-band, 2x2 MU-MIMO technology, band steering & airtime fairness that intelligently manages users.

Flexible installation with PoE

Supports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.

License-Free Access Point

Works as a standalone AP or as part of a centralised, scalable multi-device deployment in line with business demand.

Minimise the hassle of admin tasks

Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly.

Branded Captive Portal

A branded Captive Portal with industry-standard authentication for enhanced access management.

Free-to-download software & app

Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app

Next‑gen Wi‑Fi 6 performance that turbo boosts your business

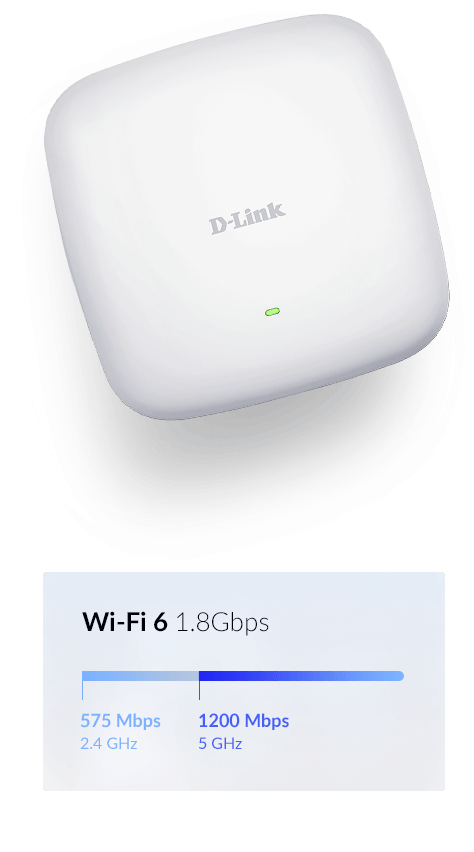

Wi-Fi 6.

With combined Wi-Fi 6 802.11ax speeds of up to 1,800 Mbps, the DAP-X2810 provides lightning-fast connectivity, enabling large data transfer and superior quality video streaming, even in highly congested environments.

As the next-generation of connectivity, Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.

Learn more about Wi‑Fi 6

Optimised Wi‑Fi for a superior client experience.

The DAP-X2810 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.

Multiple Operation Modes

The DAP-X2810 can be configured to fit the needs of your network and optimise performance.

- Access point
- Wireless distribution system
  (WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client.





Simple and clean installation, anywhere.

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2810’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.




Designed as a comprehensive and easy‑to‑use solution for every type of business

Manage your business network with powerful controls

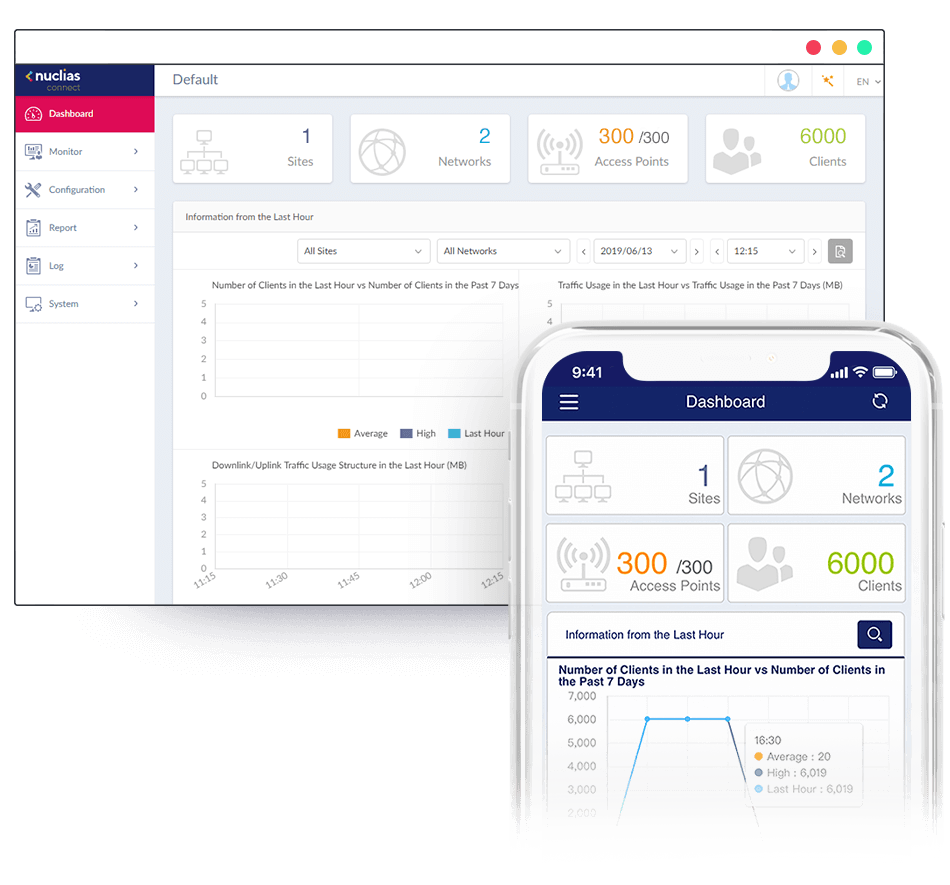

Nuclias Connect app.

Nuclias Connect enables you to manage and control your network from anywhere and provides an extensive understanding of your network and its users through traffic analytics and status reports via a web browser or our free app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network and all the way down to the level of a single Access Point.

Learn more

Comprehensive on‑site network management

Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.

Learn more

Scale your Wi‑Fi alongside your business, from anywhere

Nuclias Connect is designed with unlimited scalability, allowing you to tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points and surveillance cameras being ready to deploy straight out of the box and be automatically discovered by the software.

Learn More

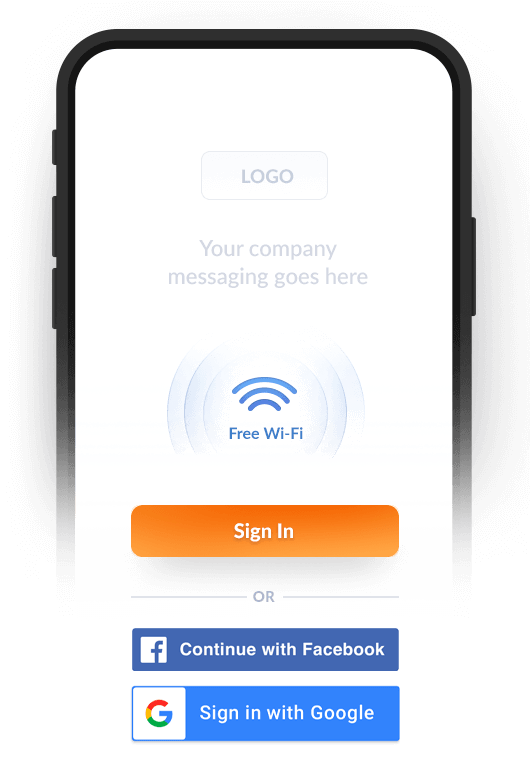

Get your guests online through a captive portal

Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.

Learn More

Nuclias Connect use-cases:

SMB & SME

Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.

Retail Chains

Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.

Universities

Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.

Hotels

Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

AX3600 Wi-Fi 6 Dual-Band PoE Access Point
DAP-X2850
Find out more
DNH 100 Nuclias Connect Hub
DNH-100
Find out more
DWA-X1850 AX1800 Wi-Fi 6 USB Adapter - side view with lid off.
AX1800 Wi-Fi 6 USB Adapter
DWA-X1850
Find out more

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ax specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Type
Software Managed AP
Wireless standard
802.11ax Wi Fi 6
Frequency band mode
Dual-band simultaneous
Wireless speed
1200 Mbps 5 GHz
574 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3.2 dBi for 2.4 GHz
4.3 dBI for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Advanced features
802.11k/r Roaming
MU-MIMO
SmartBeam
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Version Date Type File Size
Datasheet EN - PDF 0.90mb Download
Version Description Date Type File Size
Manual 1.02 RevA1 Product Manual 02/09/2022 - - Download
Manual 1.01 RevA1 Product Manual 21/10/2021 - - Download
Manual 1.00 RevA1 Product Manual 12/10/2021 - - Download
Version Description Date Type File Size
QSG 1.06 RevA1 Quick Setup Guide 15/04/2024 - - Download
QIG 2.00 RevA1 Quick Install Guide 06/02/2024 - - Download
QSG 1.05 RevA1 Quick Setup Guide 18/12/2023 - - Download
QSG 1.04 RevA1 Quick Setup Guide 02/11/2023 - - Download
QIG 1.00 RevA1 Quick Install Guide 16/08/2021 - - Download
QSG 1.00 RevA1 Quick Setup Guide 15/02/2021 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.20 RevA1 Firmware 09/03/2023 - Download
FW 1.10 RevA1 Firmware 25/03/2022 - Download
Version Description Date
Nuclias Connect Free remote centralised network management software 09/09/2019 Download
Version Description Date
CE doc UKCA 1.00 RevA1 CE documentation 17/10/2021 Download
