Wireless N Dual Band PoE Access Point

DAP-2590

Product Status: End of Life

Compatibility and performance

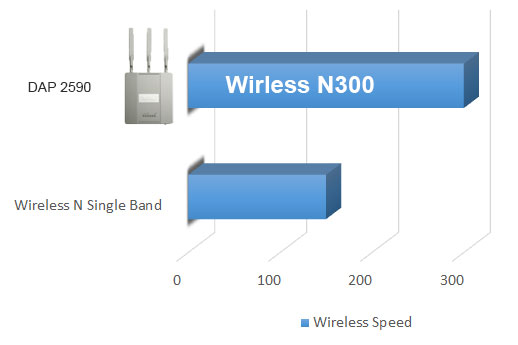

With adjustable antennas, the DAP-2590 delivers 300Mbps per band performance

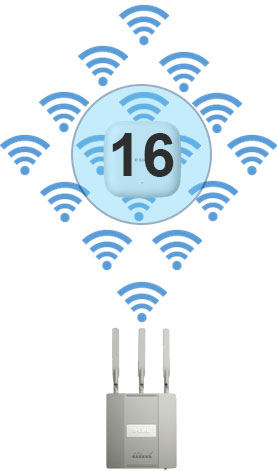

Broadcast 16 independent SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band, including station isolation

Performance and Compatibility

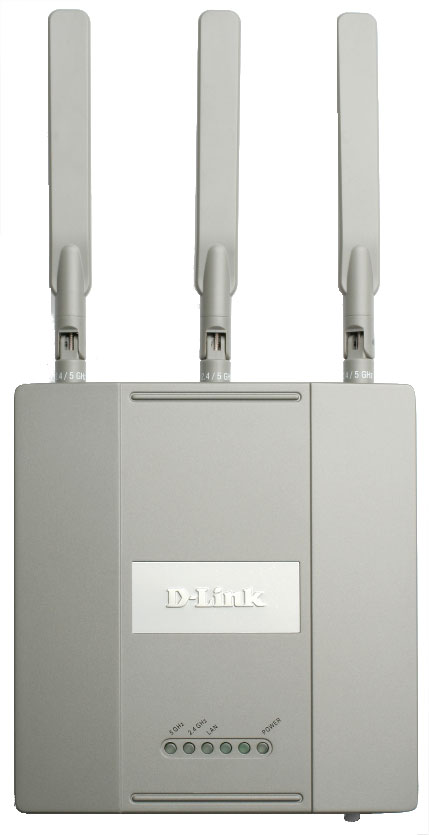

The DAP-2590 is a second generation Dual-Band Wireless N indoor access point designed specifically for businesses. It’s varied and comprehensive management capabilities ensures that the DAP-2590 meets the needs of almost any business.

Simultaneous Dual-Band Wireless

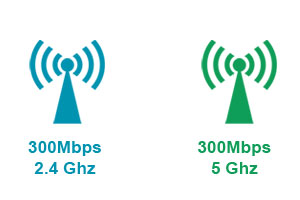

Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

Smart Design

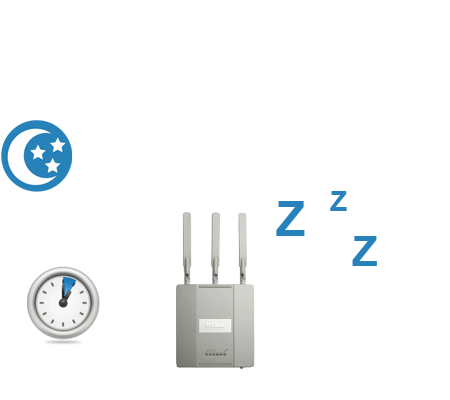

The DAP-2590 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Specs

Download the datasheet.

Type	Software Managed AP
Frequency band mode	Dual-band selectable
Wireless standard	Wireless N
Advanced features	MIMO

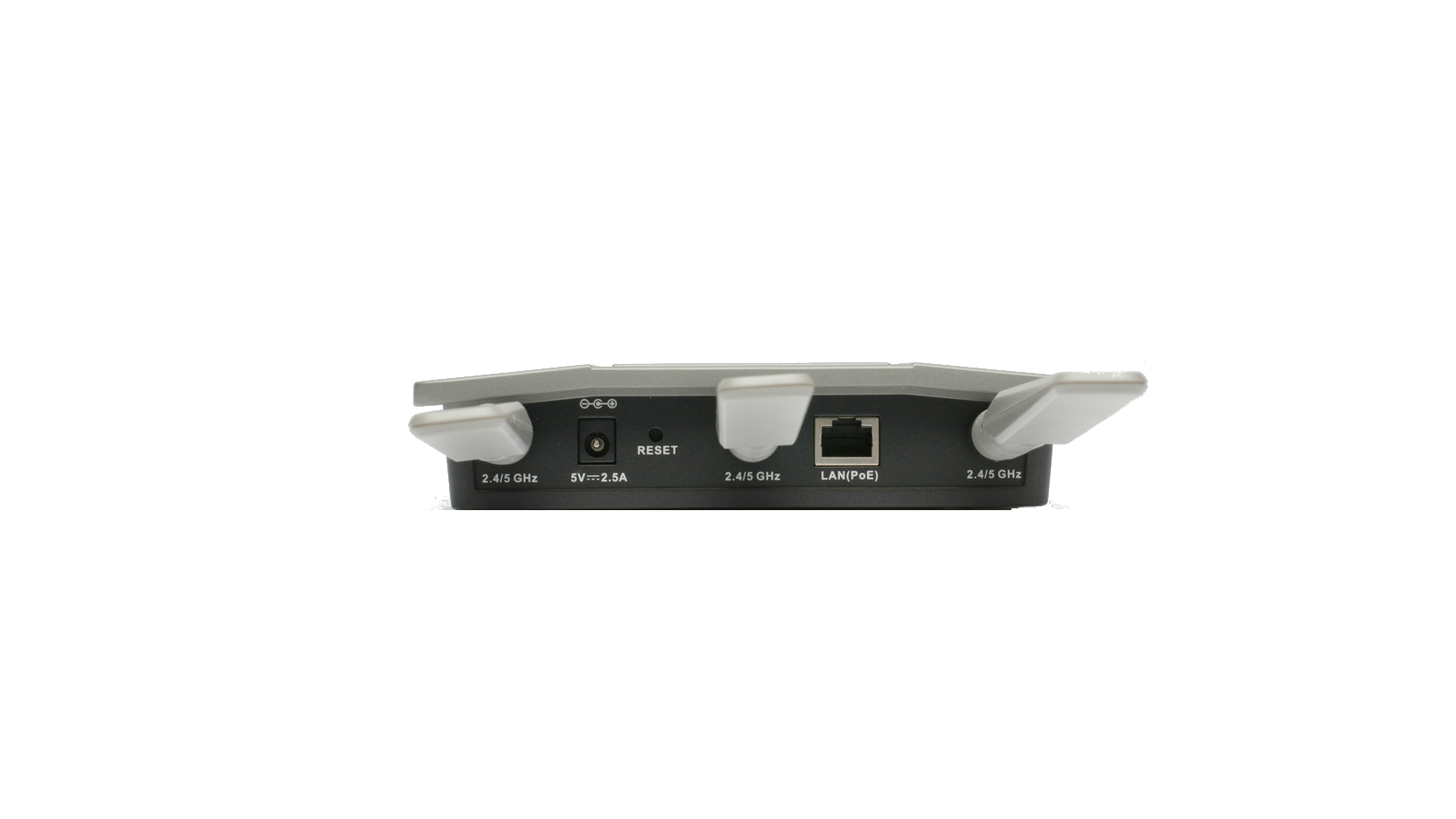

Antenna type	3 detachable omni-directional antennas
Antenna gain	4 dBi for 2.4 GHz 6 dBi for 5 GHz
Power-over-Ethernet	Yes
Wired interface	1 x Gigabit Ethernet LAN
Indoor/outdoor	Indoor
Type of housing	Metal
Plenum rated (UL-2043)	Supported
Wireless modes	Access Point (AP) WDS bridge WDS with AP Wireless client
Maximum number of SSIDs	8
Auto channel selection	Supported
WMM-PS/802.11e (U-APSD)	Supported
Wi-Fi scheduler	Supported
AP traffic load balance	Supported
L2 roaming	Supported
WEP 64/128 bit	Supported
WPA/WPA2-Personal/Enterprise	Supported
TKIP/AES encryption	Supported
WPA_WPA2_PSK over WDS	Supported
WLAN partition	Supported
SSID broadcast disable	Supported
Rogue AP detection	Supported
Station isolation	Supported
MAC address filtering	Supported
802.1X authentication	Supported
DHCP server	Supported
802.1D STP	Supported
IGMP snooping	Supported
ARP spoofing	Supported
NTP	Supported
WEB	Supported
SNMP (v1, v2c, v3)	Supported
CLI	Supported
Telnet	Supported
SSH	Supported
Syslog	Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)	Supported
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio.
Download the datasheet.

Support

Open support case

This product was phased out on: 15/05/2016

This product's last date of support is on: 14/05/2021

Version	Date	Type	File Size
Datasheet (English)	-	PDF	4.47mb	Download

Version	Description	Date	Type	File Size
Manual (English)	Manual (English)	-	PDF	3.69mb	Download
AP Manager II - User	AP Manager II - User Manual (English)	-	PDF	5.96mb	Download

Version	Description	Date	Type	File Size
	Quick Installation Guide (Multilingual)	-	PDF	1.91mb	Download

This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.

Version	Description	Date	Type
Firmware 1.25rc056	Firmware	15/05/2013	-	Download
Firmware 1.20 rc039	Firmware	26/07/2012	-	Download

Version	Description	Date
MIB file 1.15 rc012	MIB file	15/08/2011	Download
AP Manager II v 1.13 1.13 r38	AP Manager II v 1.13 Release notes enclosed.	06/01/2011	Download

MIB file 1.15 rc012

MIB file

15/08/2011

Download

AP Manager II v 1.13 1.13 r38

AP Manager II v 1.13

Release notes enclosed.

06/01/2011
