Wireless N300 Dual-Band PoE Access Point
DAP-2553
- Product Status (Revision B): End of Life
Performance without Compromise
Using the latest generation of Wireless N technology, the DAP-2553 delivers great wireless performance and coverage in a compact design.
Broadcast 8 independent SSIDs simultaneously
Flexibile Deployment Scenarios
Supporting up to 4 different operating modes, the DAP-2553 is one of the most flexible access points on the market.
Small but mighty
With it’s deceptively small and simple design, the DAP-2553 is a robust and versatile access point. Multiple operational modes mean it can be deployed quickly and efficiently in any environment.
Selectable Dual-Band Wireless
Supports up to 300Mbps for the 5Ghz band or up to 300Mbps for the 2.4Ghz band
Smart Design
The DAP-2553 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Frequency band mode
|
Dual-band selectable |
|
Wireless standard
|
Wireless N |
|
Advanced features
|
MIMO |
|

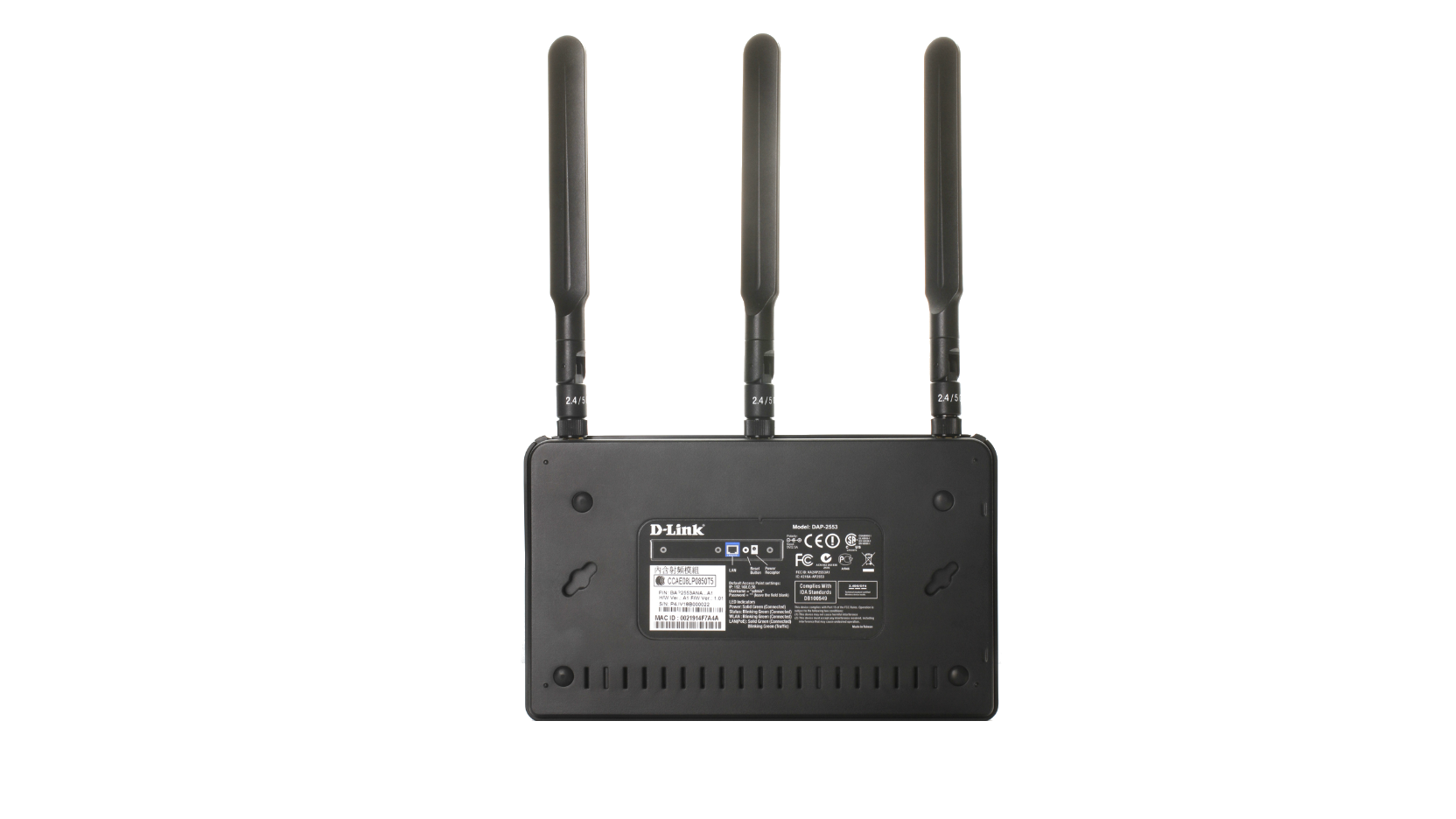

Antenna type
|
3 detachable omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 5 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Maximum number of SSIDs
|
4 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
NTP
|
Supported
|
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
|
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio. |
|
