How to Install Remote Desktop and Run Service – DCS-250
System Setup:
![DCS_250_how_to_install_remote_desktop_viewer_and_run_service](/it/it/-/media/faqs/uk/dcs/dcs_250/dcs_250_how_to_install_remote_desktop_viewer_and_run_service0001.png)
Disable Remote Desktop:
Step 1 – On PC1 you will need to disable Remote Desktop Service

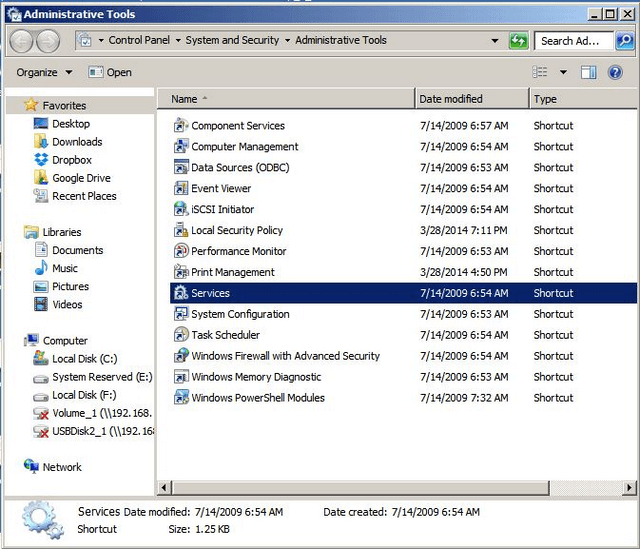

Control Panel > System and Security > Administrative Tools > Services
Double-Click “Services”

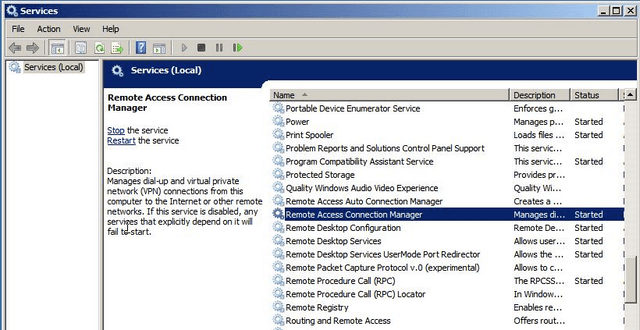

Step 2 – Open “Remote Access Connection Manager”

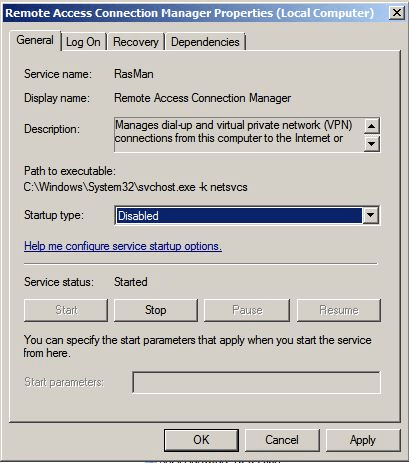

Step 3 – Click on “Stop” and select “Disabled” in “Startup type”
Click “Apply”

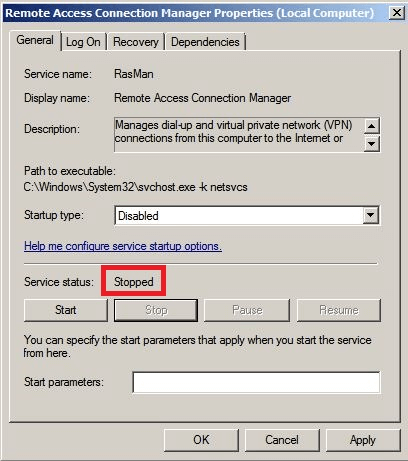

Step 4 – Make sure the “Service status:” is “Stopped”
Click “OK”
Installation of Remote Desktop Viewer:

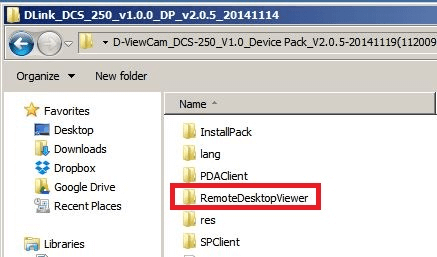

Step 5 – Open the D-View_DCS-250 Folder to locate “RemoteDesktopViewer”
Step 6 – Double-click on “setup”

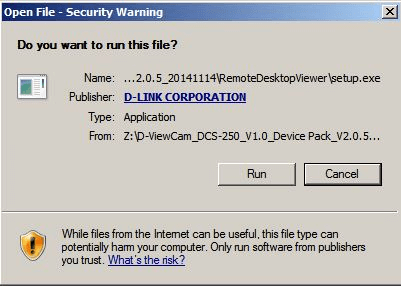

Step 7 – Click on “Run”

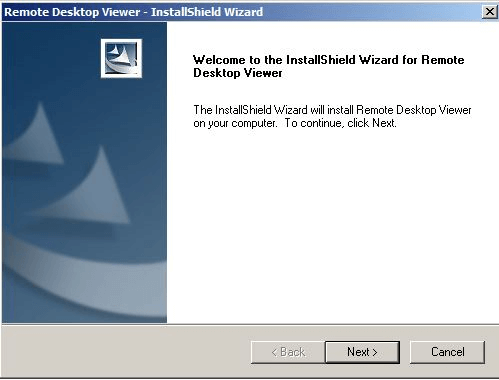

Step 8 – Click “Next”

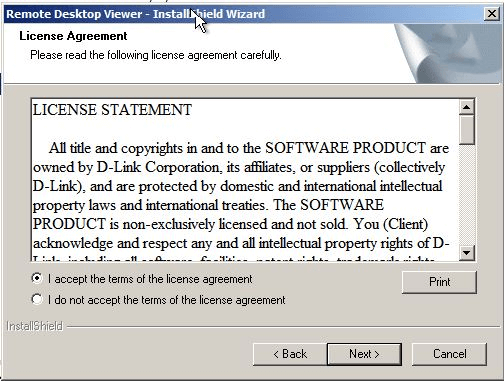

Step 9 – Select “I accept the terms of the license agreement” to continue
Click “Next”

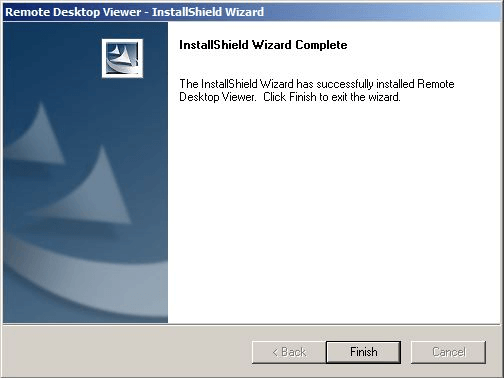

Step 10 – Installation completed
Click “Finish”
Start Network Service:
Step 11 – On PC1 - Open “Main Console”

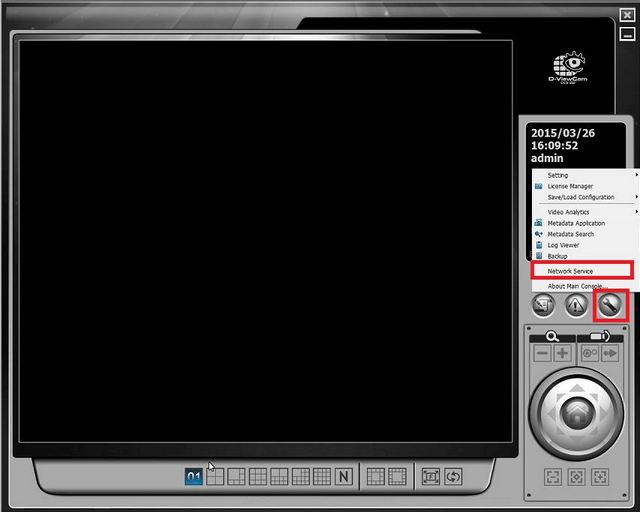

Step 12 – Login and click on the “Spanner Icon” then “Network Service”
Step 13 – Select “Remote Desktop” and you should notice by default the “Server Status: Stopped” - Click on “Start”
You will notice the service is running now
Click on “OK”

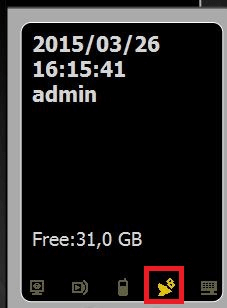

Step 14 – You should also notice that the Remote Desktop Icon seen (as below)
Establish Remote Desktop from PC2:

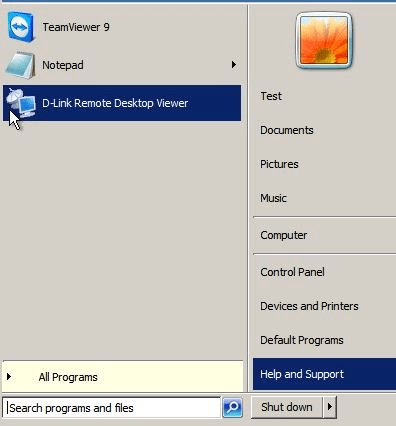

Step 15 – Go to PC2 and open “D-Link Remote Desktop Viewer”

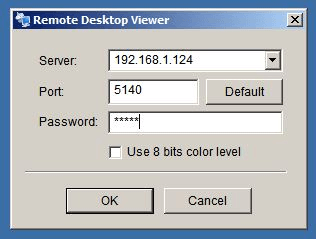

Step 16 – Configure the settings for “Remote Desktop Viewer”
Server: 192.168.1.124 (IP of where DCS-250 resides) in our example PC1
Port: 5140 (Default)
Password: This is the password for DCS-250
Click “OK”
Step 17 – Connection established on PC2
Step 17 – To ensure “Remote Desktop Server” service always runs on start up, you will need to enable this service in “Setting”
Click on the Spanner Icon > System Setting > Setting > General
Select “Remote Desktop Server” then click “OK”
