How to Change the Default Folder and Record to a Mapped Drive – DCS-250

System Requirements:

• DCS-250 Installed
• Network Attached Storage Device (NAS) – Static IP

Step 1 – Once you have created a network share on your NAS – You will need to map to this drive on your Windows PC /Laptop

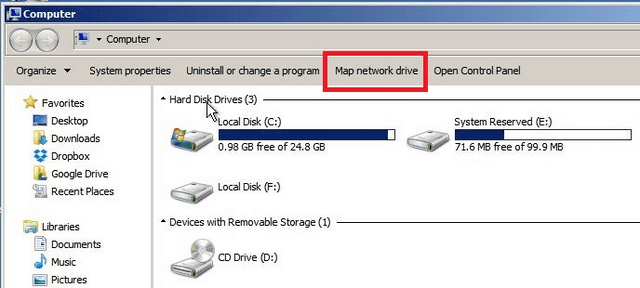

Step 2 – Click on “Start” then “Computer”

Step 3

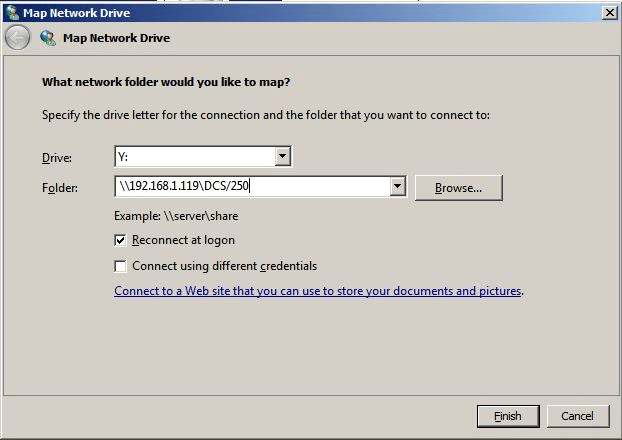

– Select a “Drive” letter and then enter the root to the folder. In our example, we have a NAS on “” with a network share in the name of “DCS-250”

Therefore the root will be: \\\DCS-250

Click “Finish”

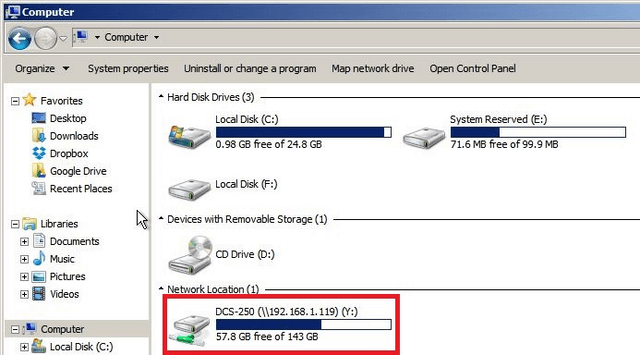

Step 4 – You should notice the following mapped drive created on your computer

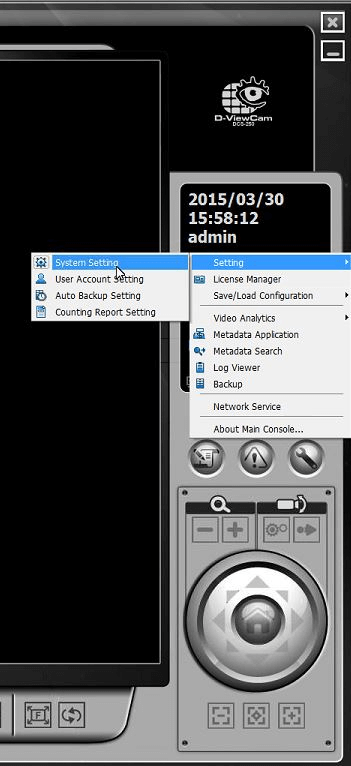

Step 5 – You will need to log into DCS-250 and go to “System Setting”. To do this click on the “Spanner icon”, “Setting” then “System Setting”

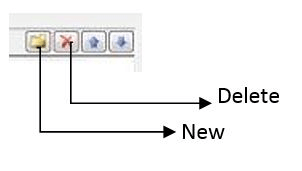

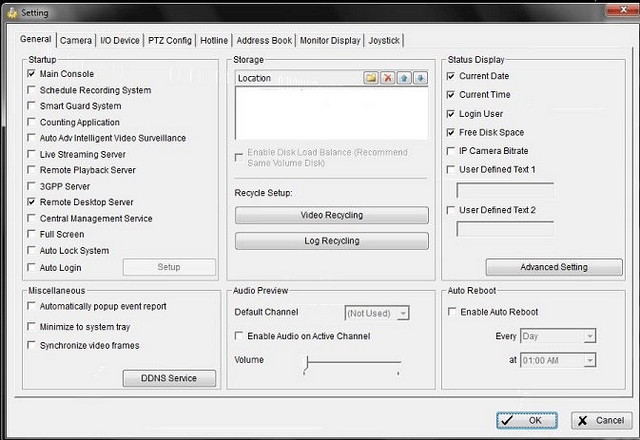

Step 6 – You should notice that DCS-250 creates a folder by default. To change this, click on “Delete” then “New”. Click on the search icon  D-Link  to search for the mapped drive created in Step 4

Step 7 – Once you have selected the mapped drive you should have the following

Click on “OK”

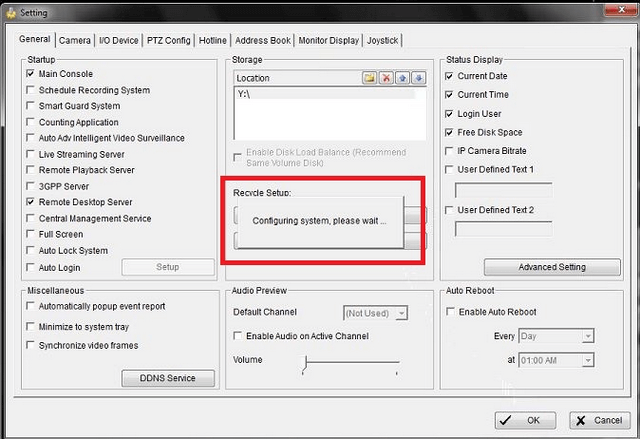

You will notice the following screen

Once complete, you will be returned to live view and ALL recordings will be default to
