10 Gigabit Ethernet Smart Managed Switches
DXS-1100 Series
- Product Status (Revision A): End of Sale
There's a new version of this product:
10G Multi-Gigabit Smart Managed Switches
DXS-1210 Series
See Newer ProductThere's a new version of this product:
DXS-1210 Series
10G Multi-Gigabit Smart Managed Switches
Overview
- Free centralised management with Nuclias Connect
- 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
- Layer 2 management and security, with Layer 3 Lite features
- Industry standard full CLI, web-based GUI, console port
- Static Routing and MSTP
- D-Link Limited-Lifetime Warranty after registration
Overview
- Free centralised management with Nuclias Connect
- 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
- Layer 2 management and security, with Layer 3 Lite features
- Industry standard full CLI, web-based GUI, console port
- Static Routing and MSTP
- D-Link Limited-Lifetime Warranty after registration

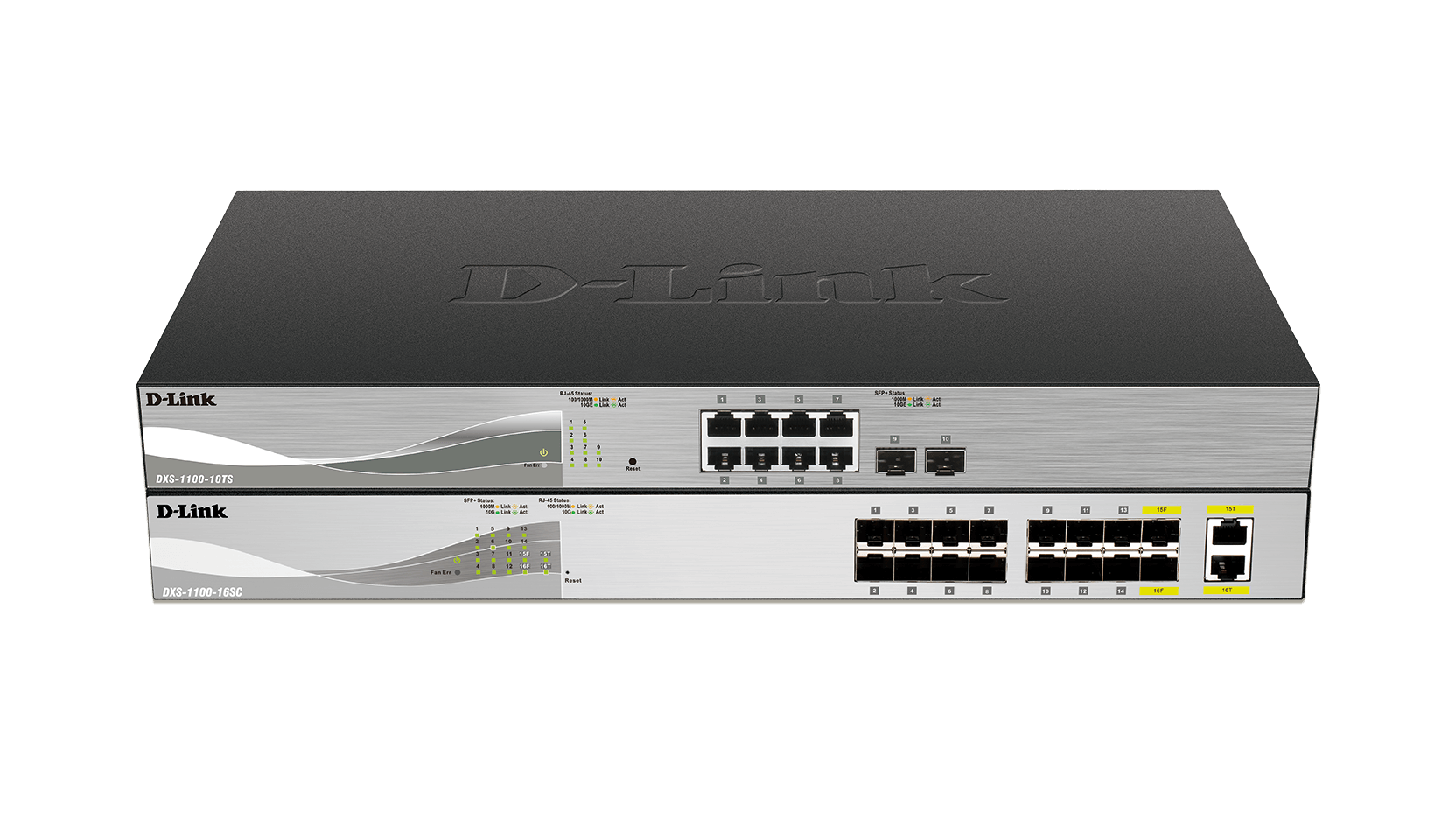

The DXS-1100 Series 10 Gigabit Ethernet Smart Managed Switches are a set of Smart Layer 2 10 Gb Ethernet switches that provide an entry-level solution for Small and Medium Businesses (SMB) wishing to deploy 10 Gb Ethernet. These switches are ideal for server farms or as network aggregation devices, and provide a cost-effective and feature-rich solution to 10 Gb Ethernet requirements.

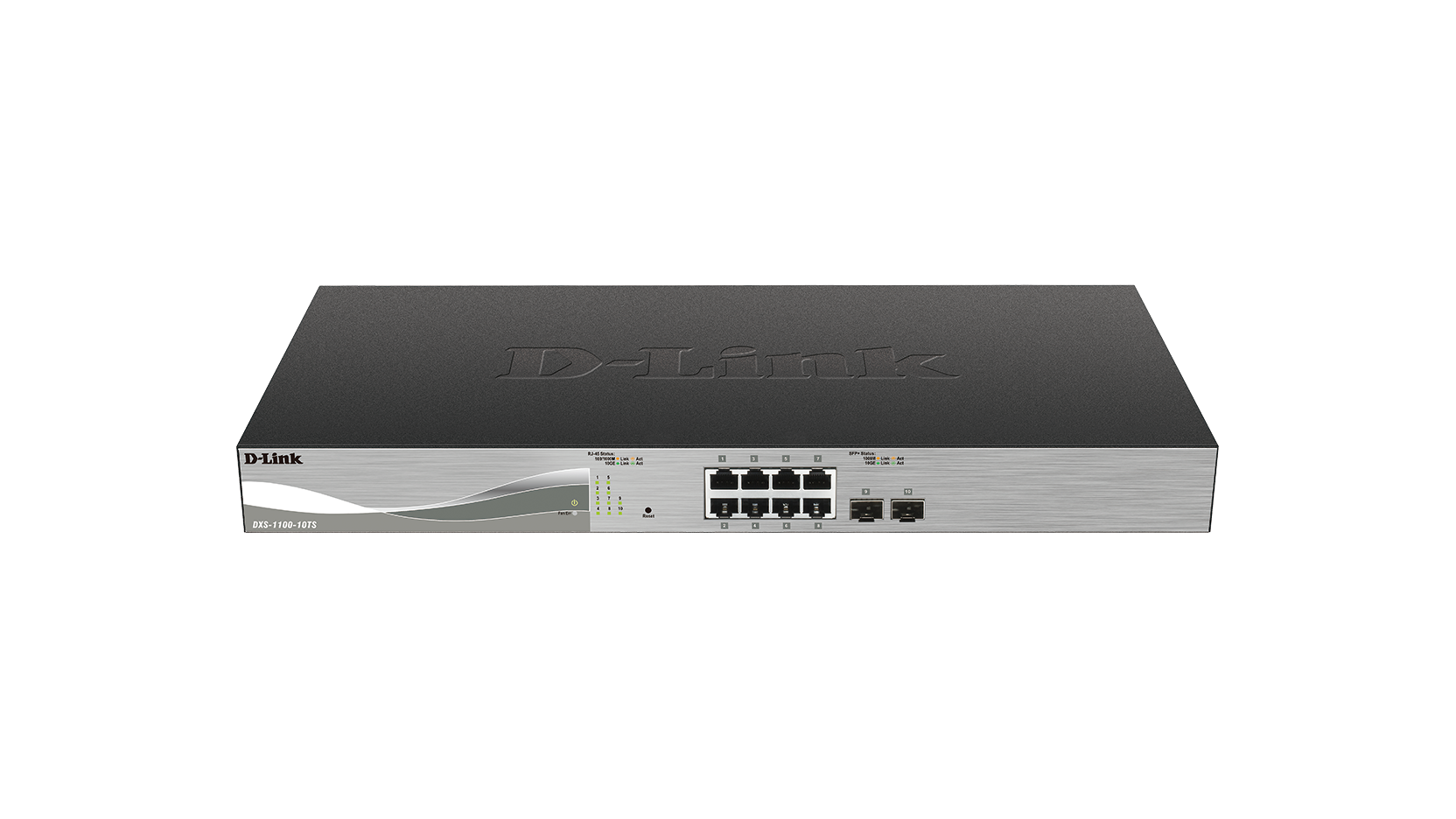

The series includes DXS-1100-10TS with 8 x 10GBase-T ports and 2 x 10 Gigabit SFP+ fibre ports. The copper 10GBase-T ports instantly increase network bandwidth over standard Cat 6a cabling without the need to overhaul existing network infrastructure wiring, whilst fibre SFP+ ports provide additional network connection flexibility.
The switch is ideal for server farms or as a network aggregation device and it provides a cost-effective but feature-rich solution to growing and demanding network environments.
The DXS-1100-10TS supports intuitive client-based utilities (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
The DXS-1100 Series switches supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are ideal for Voice over IP (VoIP) and video surveillance deployments. Auto Surveillance VLAN is an industry-leading technology that automatically prioritises video surveillance data traffic. The Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN.
The DXS-1100 Series switches is equipped with advanced security features such as Static MAC, Storm Control and IGMP Snooping, protecting your network from malicious attacks.
Related Products
Specs
Number of ports
|
16 to 30 ports 5 to 14 ports |
---|---|
Layer
|
Layer 2 |
Main type of ports
|
10GBASE-T 10 Gigabit Ethernet 10GbE SFP+ |
Type of uplink ports
|
10GbE SFP+ Combo 10GBASE-T/SFP+ |
Switching capacity
|
200 Gbps 320 Gbps |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP |
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Number of QoS queues per port
|
8 |
Bandwidth control
|
64 Kbps minimum granularity |
Encryption protocol supported
|
SSL (v1/v2/v3) |
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
