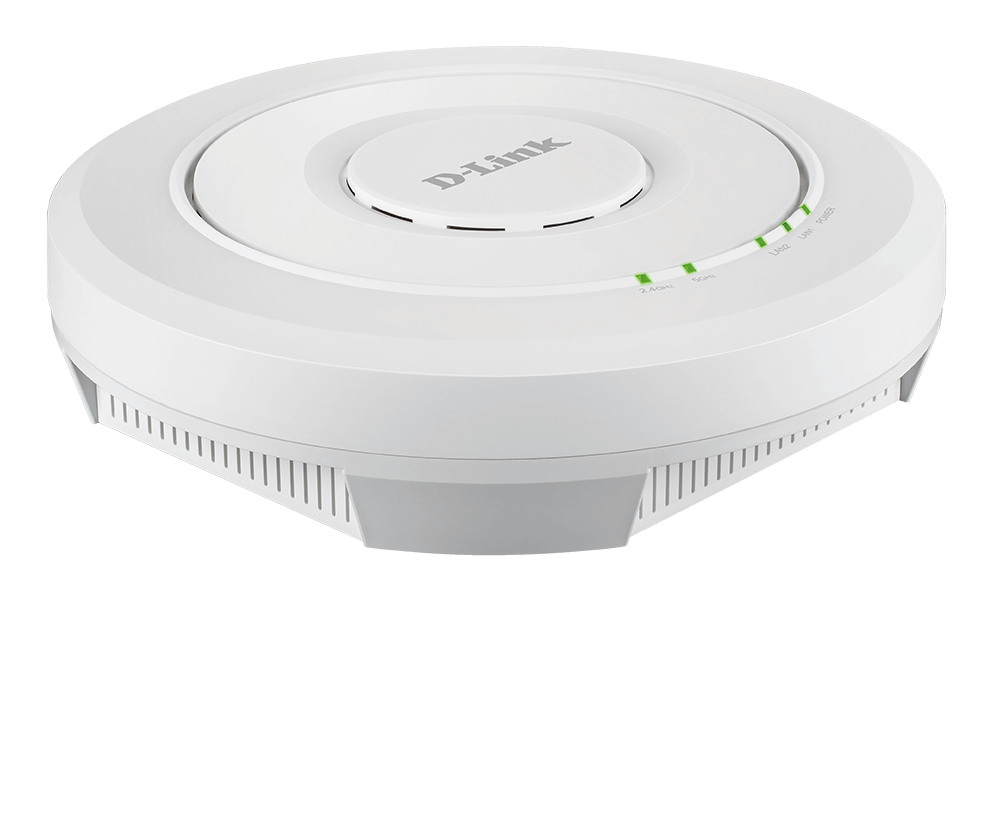

Wireless AC1300 Wave 2 Dual-Band Unified Access Point with Smart Antenna


  • Product Status (Revision A): Live
  • 802.11ac Wave 2, up to 1.3 Gbps* speeds
  • 2x2 Internal D-Link Smart Antennas
  • Up to 32 virtual access points per access point
  • Multi-User Multiple-Input Multiple-Output (MU-MIMO)
  • Quality of Service (QoS)
  • Link aggregation
  • Register for Limited Lifetime Warranty

Download the datasheet.

Where to buy

Wave 2 has landed. Connect to more.

Unparalleled performance makes the DWL-6620APS Wireless AC1300 Wave 2 Unified Access Point a must-have upgrade that allows your wireless customers in high-density areas to reliably connect to more, with faster throughput and flexibility. Perfect for medium to large-scale Wi-Fi networks.

AC1300 Wave 2 Wi-Fi

Combined wireless speeds of up to 1.3 Gbps* with 802.11ac Wave 2 technology.

802.11k Fast Roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1

D-Link Smart Antenna

Improved throughput and coverage by reducing co-channel interference, bringing more reliability in high-density areas.

Band steering

Automatically steers traffic to the fastest, least congested band.

Smart, secure & green

The wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saves power and increases network security.

Smart Antenna Technology

D-Link’s Smart Antenna technology processes algorithms used to identify spatial signal signatures such as Direction Of Arrival, and uses them to calculate beamforming vectors which are then used to target the wireless client and achieve the best possible throughput.

The fast channel selection feature scans all channels and rapidly selects the one with the least interference. And the Null Steering capability curtails the power in the direction of interference to mitigate its influence. With these capabilities the D-Link Smart Antenna strengthens the connection reliability in real-time and delivers an optimised wireless user experience.

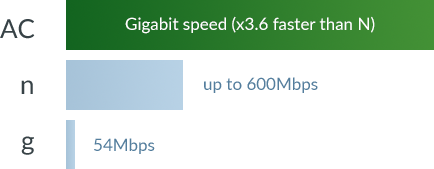

Greater Speed & Connectivity

It provides unparalleled connectivity by using the 802.11ac Wave 2 standard. High combined data rates of 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n) can be delivered over the air and Wi-Fi Multimedia (WMM) together with 802.1p Quality of Service (QoS) can give time-sensitive traffic like Voice over IP (VoIP) or video streaming a higher priority ahead of other traffic.

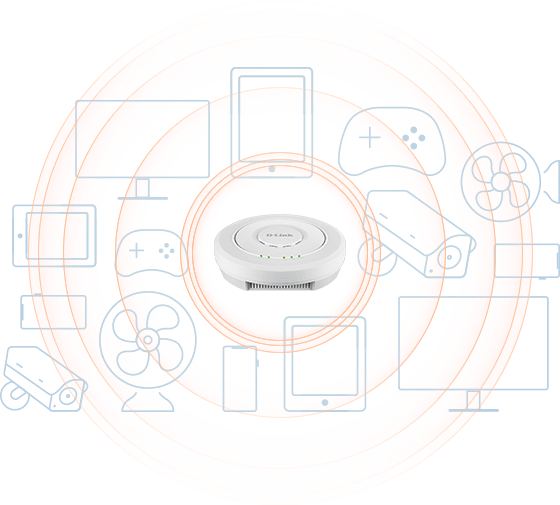

Efficiency multiplied

Support for 802.11ac Wave 2 MU-MIMO technology enables the access point to communicate with multiple clients simultaneously, resulting in significantly improved network capacity and throughput.

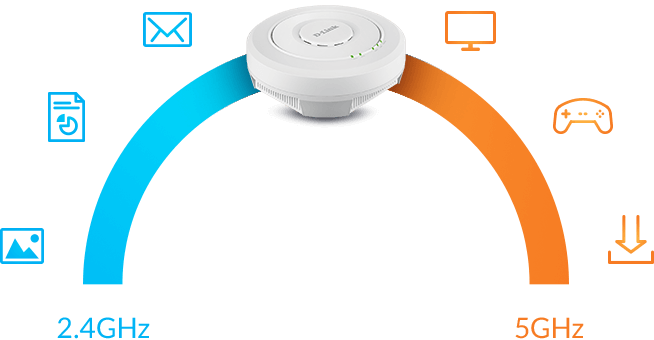

Dual-Band Wireless for efficient performance

The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers.

Airtime fairness ensures that equal airtime is given to each client, providing improved performance even when slower devices are connected.

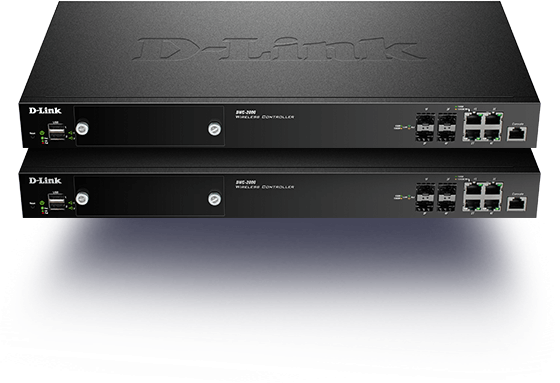

Centrally Manage your Wireless Network

When deployed in combination with D-Link Wireless Controllers (DWC-1000/DWC-2000), up to 1,024 DWL-6620APS access points can be centrally managed. Once the APs are discovered by the controller, any configuration can be pushed to them as a group, instead of doing so individually. Additionally, Radio Frequency (RF) resource management1 allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.

1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Wireless Controllers (DWC-1000/DWC-2000)

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Η επικοινωνία μαζί μας είναι εύκολη

Ειδικευμένη τεχνική υποστήριξη σε 16 χώρες. Οι ομάδες υποστήριξής μας είναι έτοιμες να σας βοηθήσουν.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Wireless Controller
Find out more
DWC 1000 Front
Wireless Controller
Find out more
Hardware-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
400 Mbps 2.4 GHz

867 Mbps 5 GHz
Antenna type
Embedded smart antenna

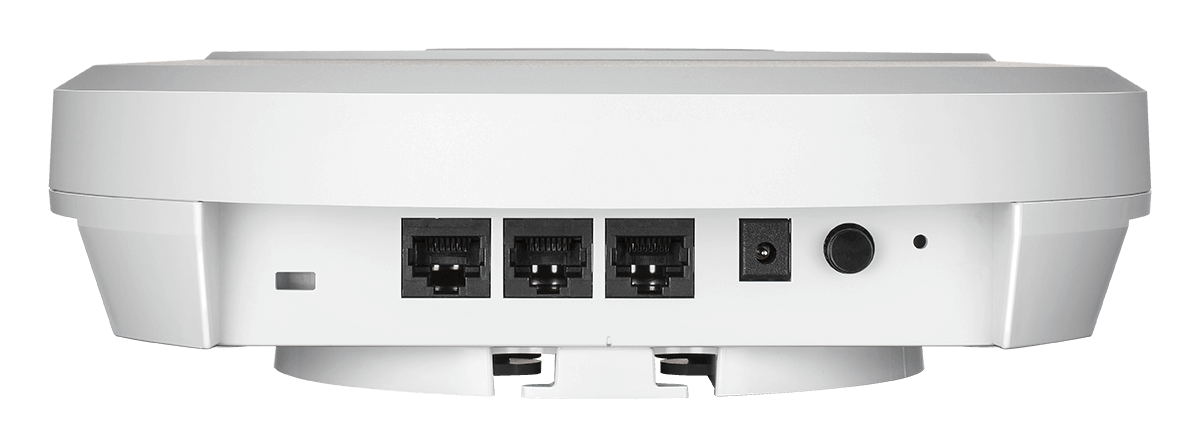

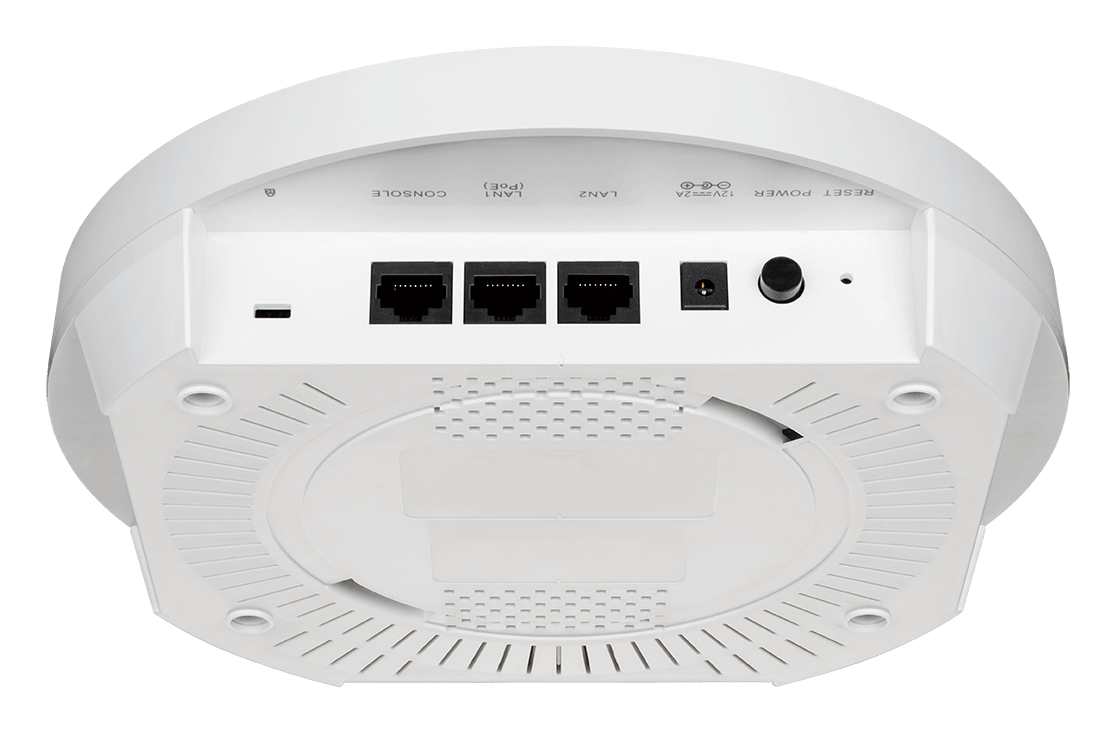

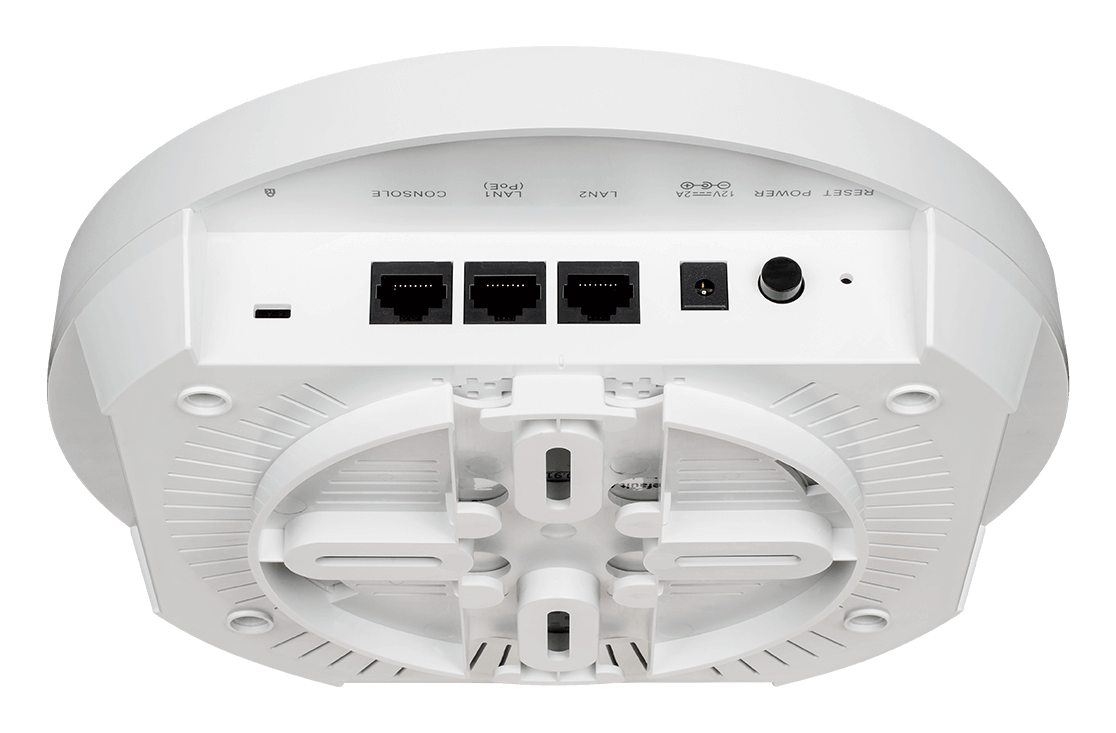

Wired interface
2 x Gigabit Ethernet LAN
Type of housing
Plenum rated (UL-2043)
Wireless modes
Access Point (AP)
Advanced features
Fast Roaming


Smart Antenna


SmartConnect band optimisation
Maximum number of SSIDs
16 per radio
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
AP traffic load balance
L2 roaming
TKIP/AES encryption
WLAN partition
SSID broadcast disable
Rogue AP detection
Station isolation
MAC address filtering
802.1X authentication
Controller managed features
AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

Supported D-Link Wireless Controllers/Unified Switches

Management platform
Hardware controller: DWC Series
SNMP (v1, v2c, v3)

* 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n). Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Wireless Controllers (DWC-1000/DWC-2000)

2 The 2x2 smart antenna supports up to 81sets of radio patterns. The omni-directional mode is one such pattern.
