The D-Link DVS-310-1 1-channel H.264 PoE Video Encoder is a high-performance, single channel video encoder for integrating an existing analog CCTV (closed circuit television) camera into an IP-based video surveillance system. It is an ideal choice for banks, airports, factories, government buildings, prisons, and traffic surveillance applications - any location where surveillance equipment is already installed and functioning.
Multiple video streams
The DVS-310-1 supports simultaneous streaming of H.264, MPEG4, and M-JPEG video to provide both high quality, and bandwidth-efficient compression formats. M-JPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 produces a small file size, making it useful for extended recording or for use in low bandwidth networks. Additionally, the DVS-310-1 supports multicast H.264 which allows several users to view the stream by subscribing to a multicast IP address on the network.
Surveillance with advanced alarms and events
Alarm handling features provide alerts in the event of loss of video or loss of network connection. Motion alarms with configurable detection areas allow for effective surveillance and help to mitigate the need for constant human supervision. A buffer system allows the encoder to capture images to the built-in SD card slot both before and after an event occurs.
3GPP mobile surveillance
Support for 3GPP Mobile Surveillance allows you to view a live video feed from your 3GPP compatible Internet ready mobile device. This extends your monitoring capability, allowing you to check your camera’s video feed while on the go without a computer.
Manage, record, and view video with ease
D-Link’s intuitive D-ViewCam management software provides a robust platform for configuring and controlling one or many IP cameras and video encoders. Intuitive controls allow you to manage and control live video with ease. D-ViewCam software allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

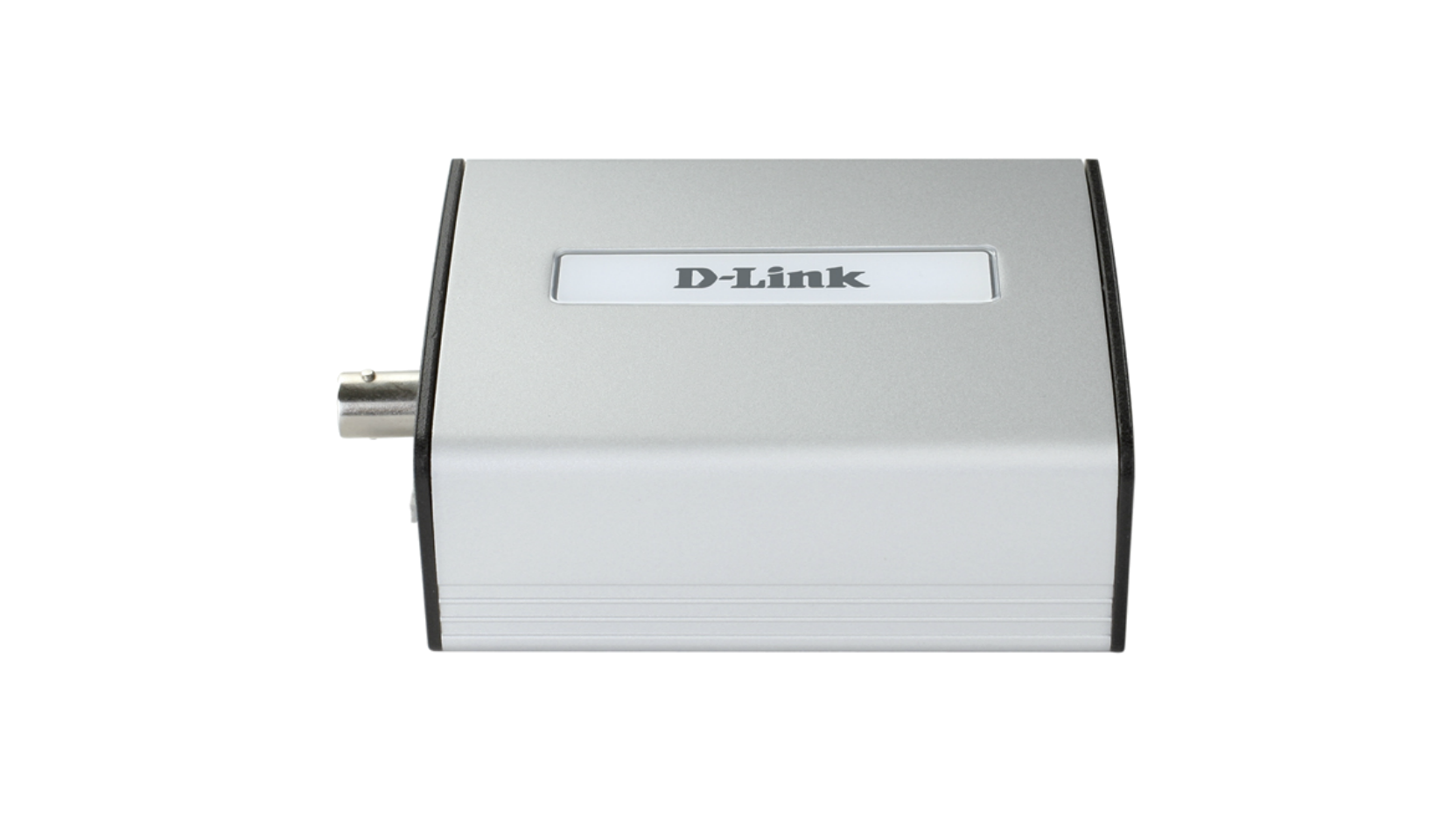

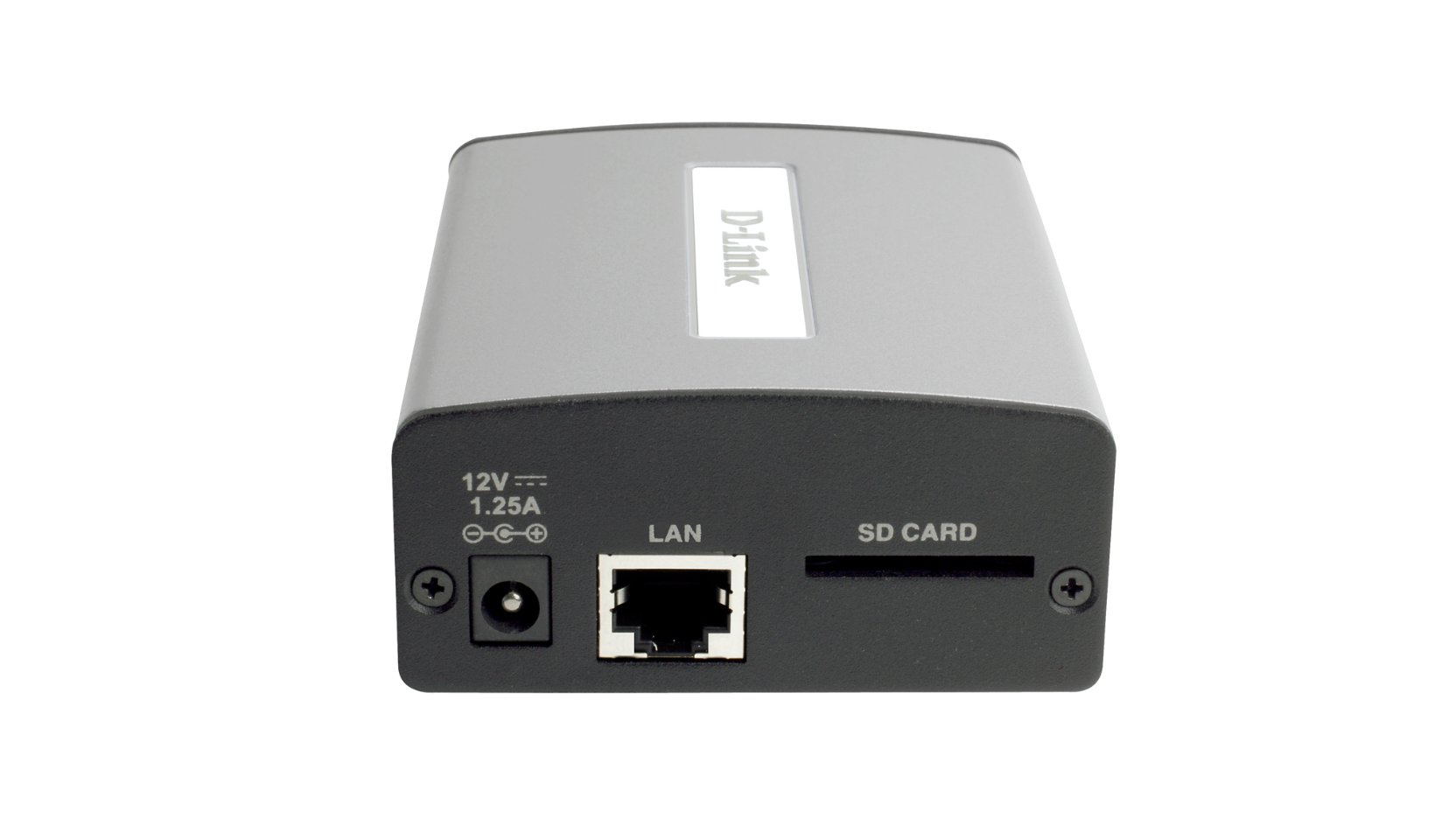

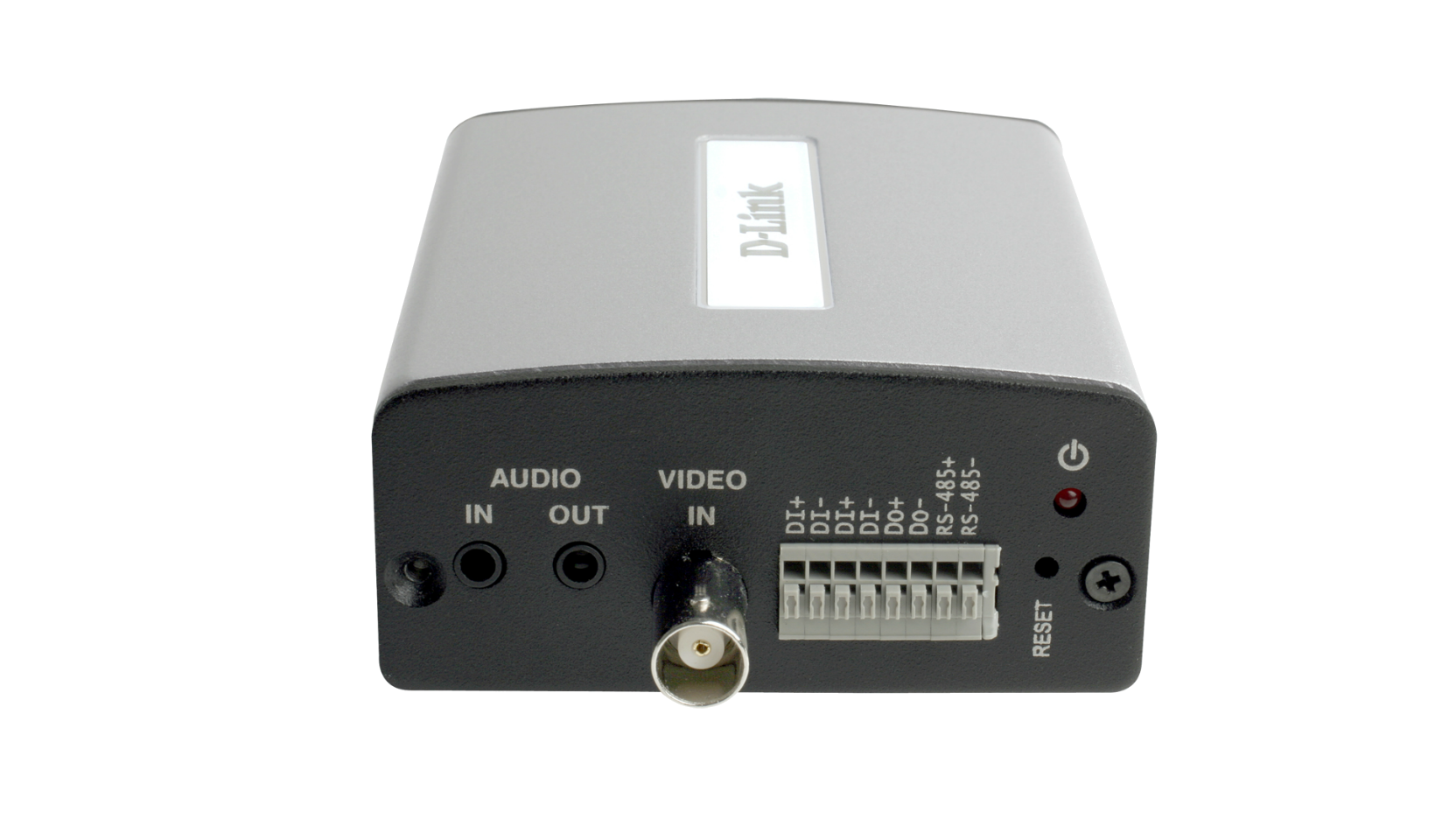

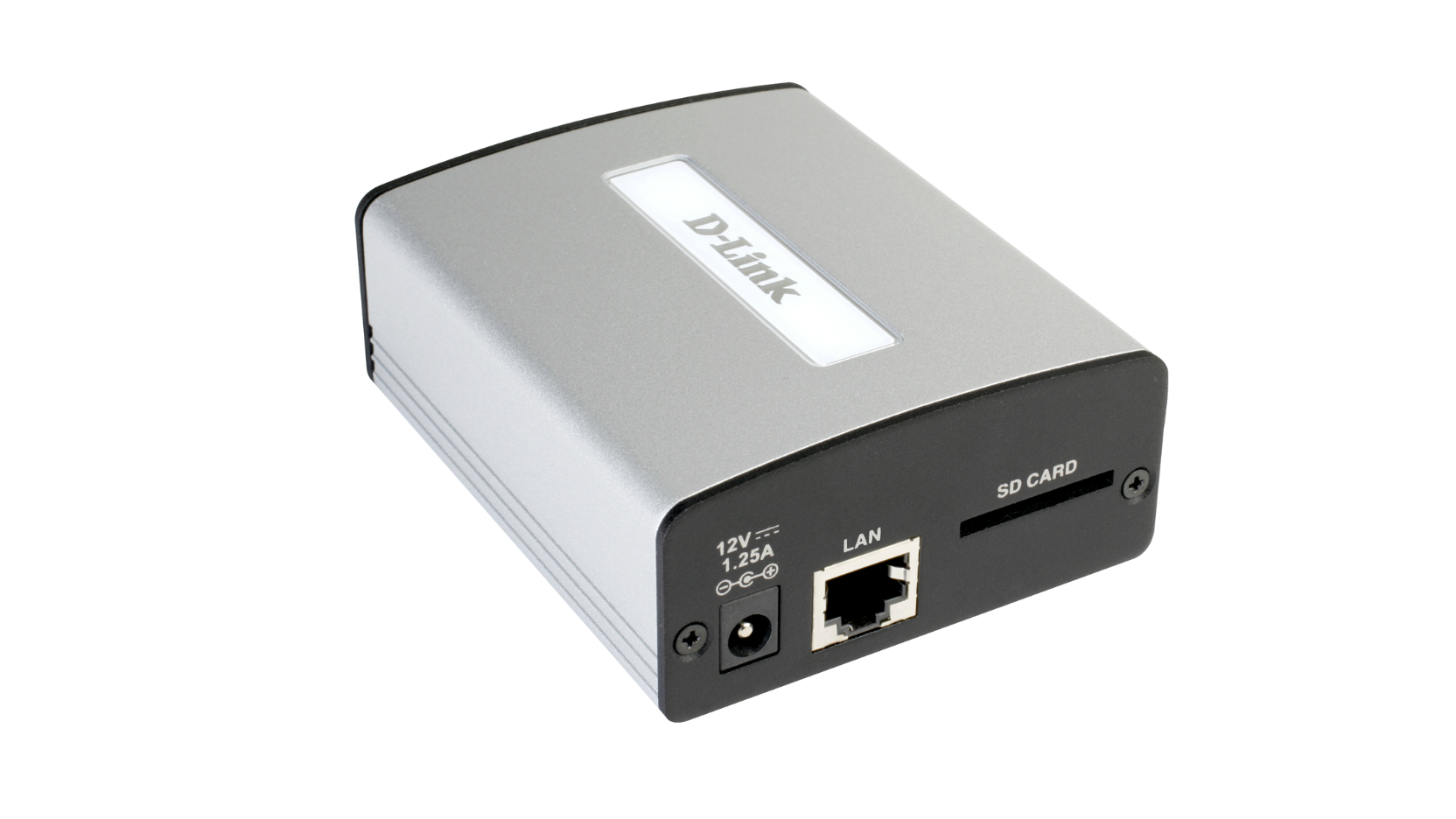

Actual product appearance may differ from the image displayed on this page
Multiple video streams
The DVS-310-1 supports simultaneous streaming of H.264, MPEG4, and M-JPEG video to provide both high quality, and bandwidth-efficient compression formats. M-JPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 produces a small file size, making it useful for extended recording or for use in low bandwidth networks. Additionally, the DVS-310-1 supports multicast H.264 which allows several users to view the stream by subscribing to a multicast IP address on the network.
Surveillance with advanced alarms and events
Alarm handling features provide alerts in the event of loss of video or loss of network connection. Motion alarms with configurable detection areas allow for effective surveillance and help to mitigate the need for constant human supervision. A buffer system allows the encoder to capture images to the built-in SD card slot both before and after an event occurs.
3GPP mobile surveillance
Support for 3GPP Mobile Surveillance allows you to view a live video feed from your 3GPP compatible Internet ready mobile device. This extends your monitoring capability, allowing you to check your camera’s video feed while on the go without a computer.
Manage, record, and view video with ease
D-Link’s intuitive D-ViewCam management software provides a robust platform for configuring and controlling one or many IP cameras and video encoders. Intuitive controls allow you to manage and control live video with ease. D-ViewCam software allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.
Actual product appearance may differ from the image displayed on this page
Specs
Video algorithms supported
Supported resolutions
Analog video input
Audio specifications
Networking specifications
PTZ specifications
Removable storage
Minimum system requirements
Power output
Dimensions (L x W x H)
Operating temperature
Operating humidity
Certification
- Simultaneous multi-profile support (H.264, MJPEG, MPEG4)
- Simultaneous multi-profile support for web viewing, 3G mobile viewing, and video recording
- JPEG compression for still images
Supported resolutions
- NTSC: D1 (720x480), CIF (352x240), QCIF (176x120)
- PAL: D1 (720x576), CIF (352x288), QCIF (176x144)
Analog video input
- 1CH, NTSC/PAL, BNC connector
- 1.0Vp-p with 75 Ω loading
Audio specifications
- Two-way audio
- External audio in
- External audio out
- G.726 Codec
Networking specifications
- Ethernet: RJ45 - 10/100 Base-TX
- 802.3af PoE
- Supported Protocols: IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTTP, HTTPS, UPnP™, Port Forwarding, Samba, SMTP, PPPoE, NTP (D-Link), FTP, RTP, RTSP, UDP, RTCP, ICMP, 3GPP
PTZ specifications
- Baud rates: 2400, 4800, 9600, 19200
- Connector: RS-485 for PTZ control
Removable storage
- SD Card Slot
Minimum system requirements
- CPU: Pentium 4, 2.4 GHz and above
- Hard Disk: 40 GB or higher
- Memory: 512 MB or higher
- Operating System: Windows Vista / Windows XP with SP2 or higher / Windows 2000 with SP4 or higher
- Video Resolution: 1024x768 (SVGA/XGA)
- Software: DirectX 9.0c or higher
- Browser: Microsoft IE 6.0 or higher
Power output
- 100 - 240 VAC, 50/60 Hz, 12 VDC, 1.25 A
Dimensions (L x W x H)
- 105 x 78 x 36 mm (4.1 x 3.1 x 1.4 inches)
Operating temperature
- 0° to 40° C (32° to 104° F)
Operating humidity
- 20% to 80% non-condensing
Certification
- CE (Class A)
- C-Tick (Class A)
- FCC (Class A)
Support
This product was phased out on: 25/04/2017
This product's last date of support is on: 25/04/2019
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet (English) | - | 1.04mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual (English) | Manual (English) | - | 4.99mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Quick Installation Guide (Multilingual) | - | 0.80mb | Download |
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
Firmware 1.00.15 | Firmware | 28/9/2012 | - | Download |
Version | Description | Date | |
---|---|---|---|
DEU_CE_Declaration_1_RevB1 | CE Declaration ver B1 (English, French, Spanish, Portuguese) | 16/8/2012 | Download |
