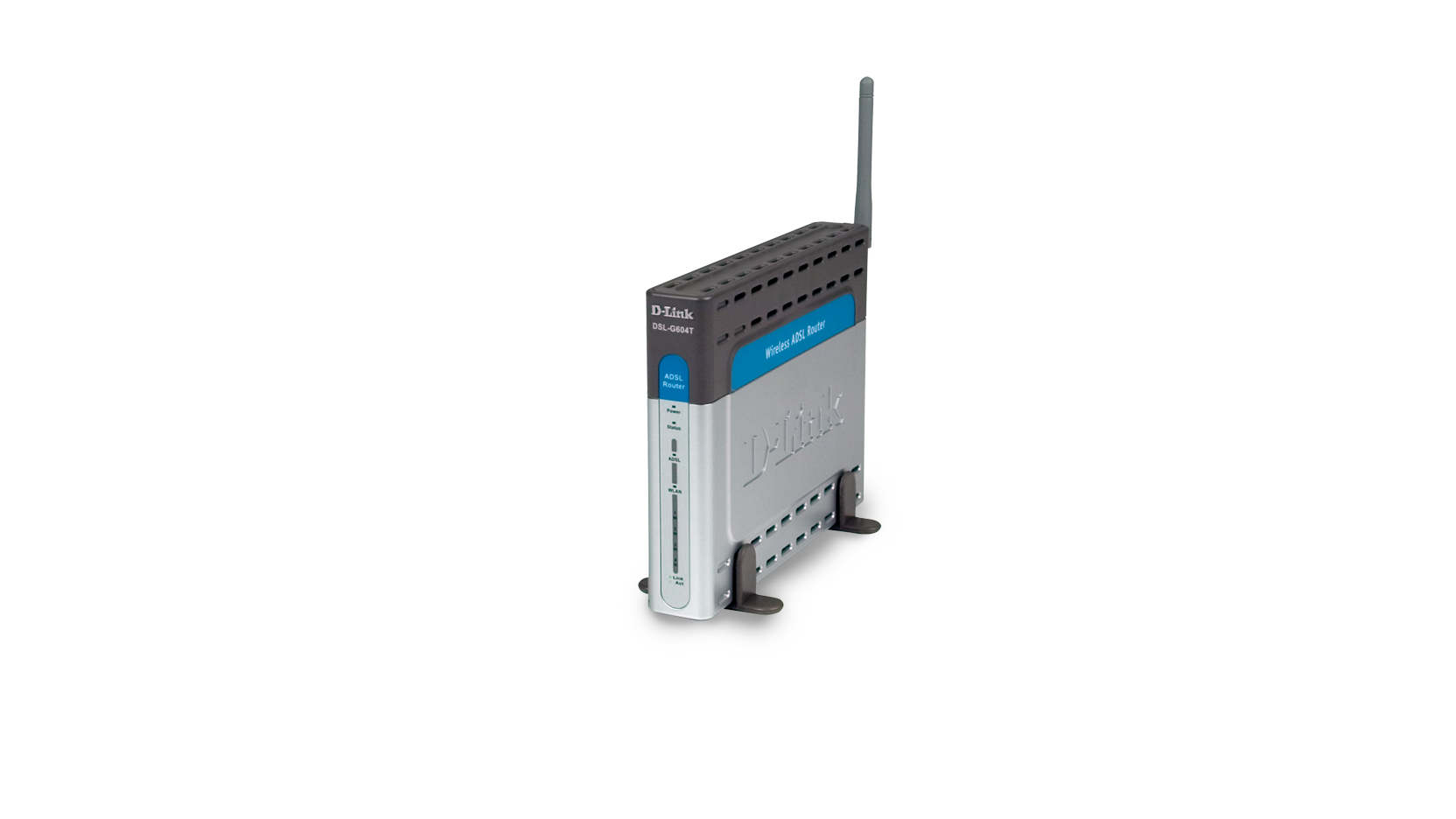

DSL-G604T Wireless ADSL Router

DSL-G604T

  • Product Status (Revision A): End of Life
The DSL-G604T combines both an ADSL modem and 802.11g wireless router in one unit, bringing high-speed wireless Internet connection to a home or office.


D-Link, an industry leader in networking, introduces the DSL-G604T, a Wireless ADSL router modem combining both an ADSL modem and 802.11g wireless router in one unit, bringing high-speed wireless Internet connection to a home or office.
The DSL-G604T uses ADSL (Asymmetric Digital Subscriber Line) technology for Internet connection speeds of up to 150x faster than dial-up, while using a standard phone line.


Using 802.11g wireless technology, Wi-Fi enabled computers and devices can wirelessly connect to the DSL-G604T and share a single incoming Internet connection. With four additional Ethernet LAN ports, you can connect your network Ethernet-enabled devices.


The router functionality on the DSL-G604T Wireless ADSL Router Modem includes support for VPN pass-through of multiple concurrent IPSec and PPTP tunnels, making it especially useful for telecommuters or users who need a more secure way to communicate and transmit information.


A simple configuration tool and a Web-based user interface allow you to easily modify settings to connect to your Internet Service Provider (ISP). This Web interface also provides traffic statistics, connection speed, and other detailed information.


The DSL-G604T Wireless ADSL Router Modem supports static IP, Dynamic IP, as well as PPPoE connections, and works with applications such as online gaming and VPN connections with no additional configuration. The DSL-G604T is easily upgradeable, making it future-proof for both end-users and service providers.


Whether it’s for a home user who wants to share wireless high-speed Internet access or for a small office that needs Internet access for conducting essential business activities, the DSL-G604T Wireless ADSL Router Modem is the ideal all-in-one broadband solution.

Standards
  • ANSI T1.413 issue 2
  • ITU G.992.1 (G.dmt)
  • ITU G.992.2 (G.lite)
  • ITU G.994.1 (G.hs)
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11
  • IEEE 802.11b
  • IEEE 802.11g


Ports
  • RJ-11 Port for Connection to ADSL
  • Four 10/100Mbps Ethernet LAN Ports for Connection to Ethernet-enabled devices


Device Management
  • Telnet
  • HTTP Web Management
  • TFTP for Firmware Upgrade


DSL Data Rates
  • DMT full rate downstream (up to 8Mbps)
  • DMT full rate upstream (up to 640Kbps)
  • G.lite ADSL downstream (up to 1.5Mbps)
  • G.lite ADSL upstream (up to 512Kbps)


Software Features
  • Dynamic Learning (Up to 256 MAC Addresses)


DHCP
  • Server and Client


Routing Protocols Supported
  • TCP/UDP, ARP, RARP, ICMP, DHCP, DNS, RIPv1 (RFC 1058), RIP v2 (RFC1389), IGMP, PPPoE, IGMP, P2PP


VPN Pass Through
  • L2TP
  • PPTP
  • IPSec


Wireless Signal Rates* With Automatic Fallback
  • IEEE 802.11b: 11, 5.5, 2, and 1Mbps
  • IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps


Media Access Protocol
  • DSMA/CA with ACK


Wireless Security
  • WEP: 64/128/256-bit
  • WPA (IEEE 802.1x + TKIP)


Wireless Frequency Range
  • 2400 ~ 2484.5Mhz ISM Band


Radio and Modulation Type
  • IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
  • IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM. OFDM


Channels
  • 11 Channels (US)
  • 13 Channels (Europe and Japan)


LEDs
  • Power
  • Status
  • WLAN
  • ADSL Link/Act
  • Ethernet Link/Act
  • Ethernet 10/100M


Power
  • Output: 12V AC, 1.2A
  • Max Power Consumption: 12W


Operating Temperature
  • 0º to 40ºC (32ºF to 104ºF)


Storage Temperature
  • -20º to 70ºC (-4ºF to 158ºF)


Certifications
  • FCC Part 15 Class B
  • FCC Part 68
  • IEC 60950
  • EN 60950
  • CSA 950
  • CE Mark
  • UL 1950 3rd Ed


Dimensions
  • 7.07in x 5.59in x 1.18in


Weight
  • 0.8lbs


Warranty
  • 1 Year
This product was phased out on: 27/04/2008
This product's last date of support is on: 27/04/2010
Version Date Type File Size
Datasheet (English) - PDF 0.25mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 4.91mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 0.49mb Download
Version Description Date Type
Firmware: v200 build 01t01 EU 2.0.0 Firmware: v200 build 01t01 EU 30/9/2005 - Download
Firmware build 01.T16 GPL Release Firmware build 01.T16 GPL Release Source Code 26/8/2004 - Download
Version Description Date
DEU_CE_Declaration_ver_a1_RevA Certificate of Declaration 21/5/2004 Download
