Gigabit L2 Managed Switches
DGS-3000
- Product Status (Revision B1): End of Sale
There's a new version of this product:
DGS-2000
Gigabit Managed Switches
Overview
- Wide range of port and media types
- Effortless multi-site deployment
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
Overview
- Wide range of port and media types
- Effortless multi-site deployment
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations

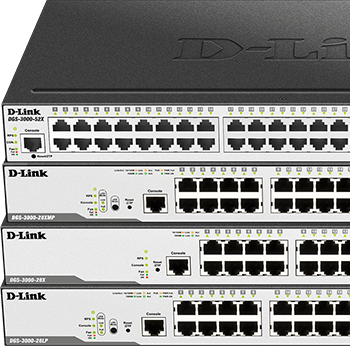

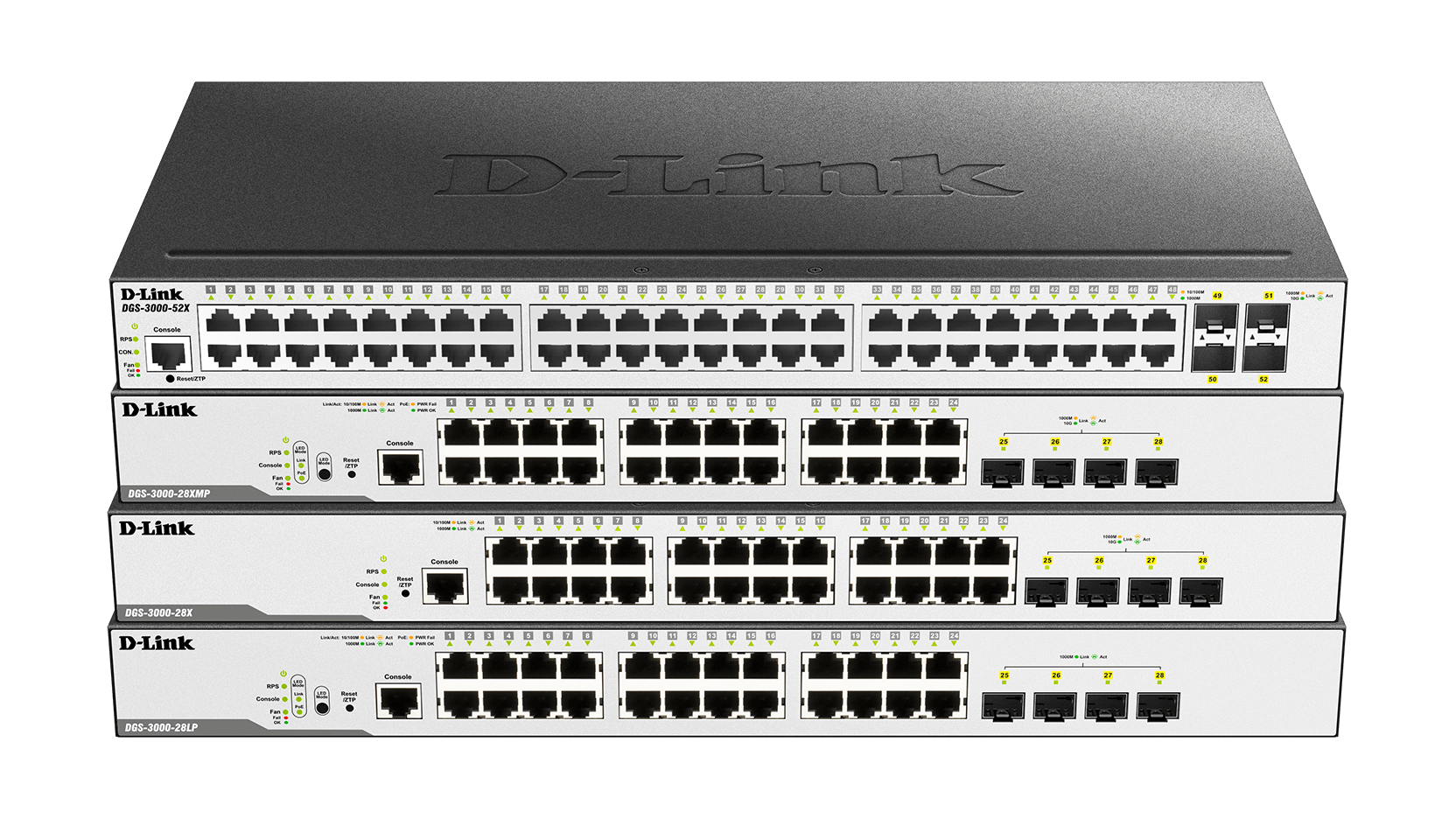

Comprehensive Controllable Network.
The DGS-3000 Series Gigabit L2 Managed Switches provide wired Gigabit speeds, featuring a variety of ports for increased network bandwidth.
Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-3000 Series Gigabit L2 Managed Switches ideal for Metro Ethernet and campus applications
Product Feature Highlights
Service Provider Features
Layer 2 multicast functions allow IPTV streams to be distributed efficiently and security features prevent network abuse.
Comprehensive Security Solution
Supports Access Control Lists (ACLs) and multiple device/user authentication methods.

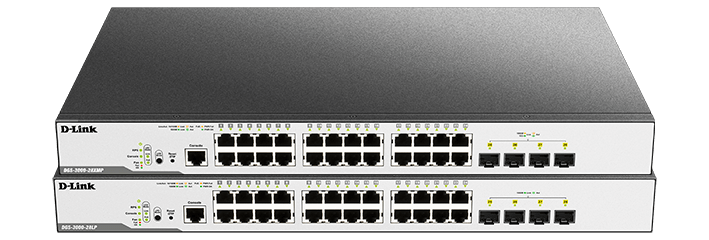

Multi-Gigabit Performance

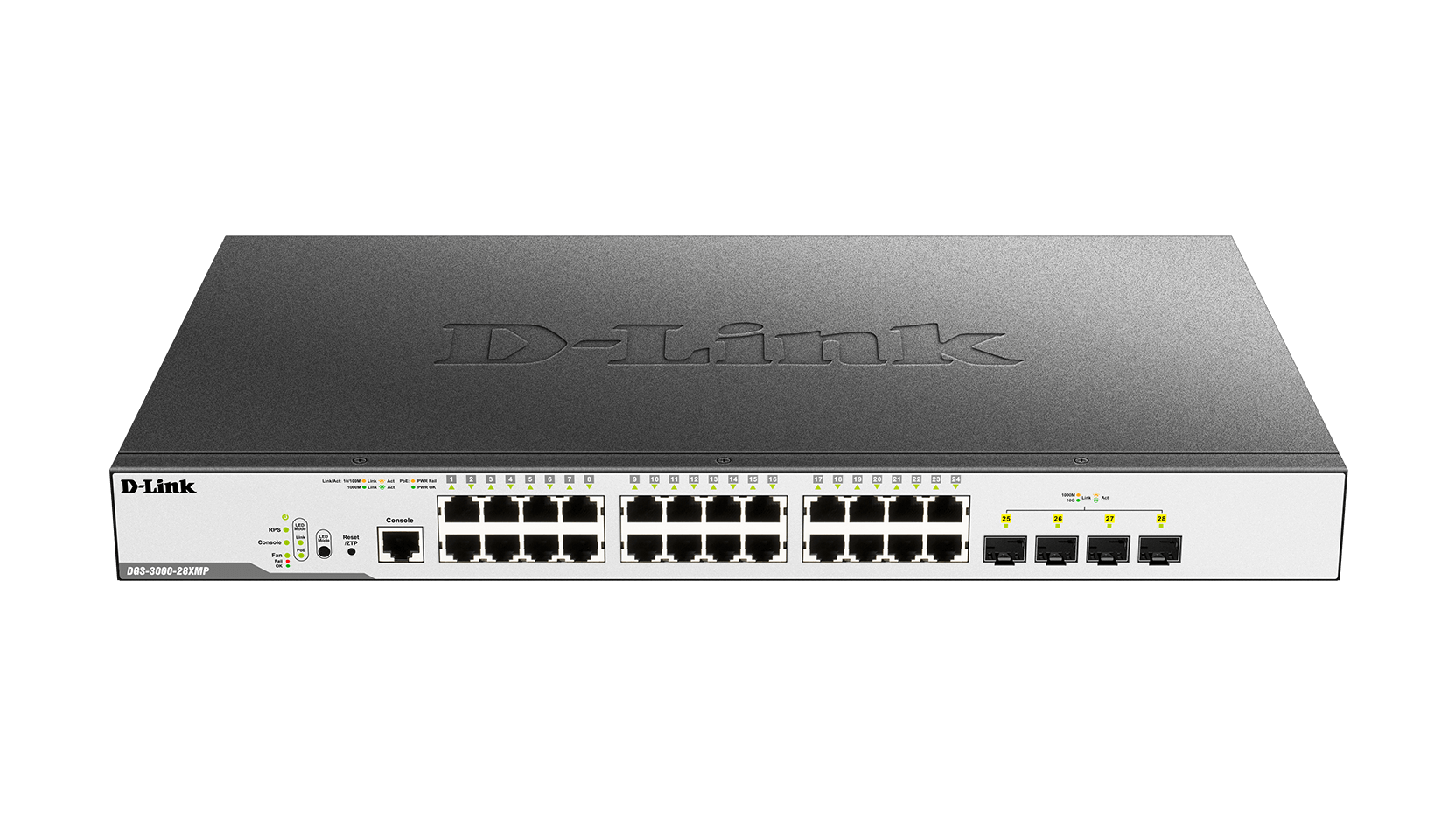

The DGS-3000 series comes with a variety of port types, including 1 G RJ-45 ports, 1 G SFP ports, and 10G SFP+ ports, with all models offering a minimum of at least 2 1G SFP ports.

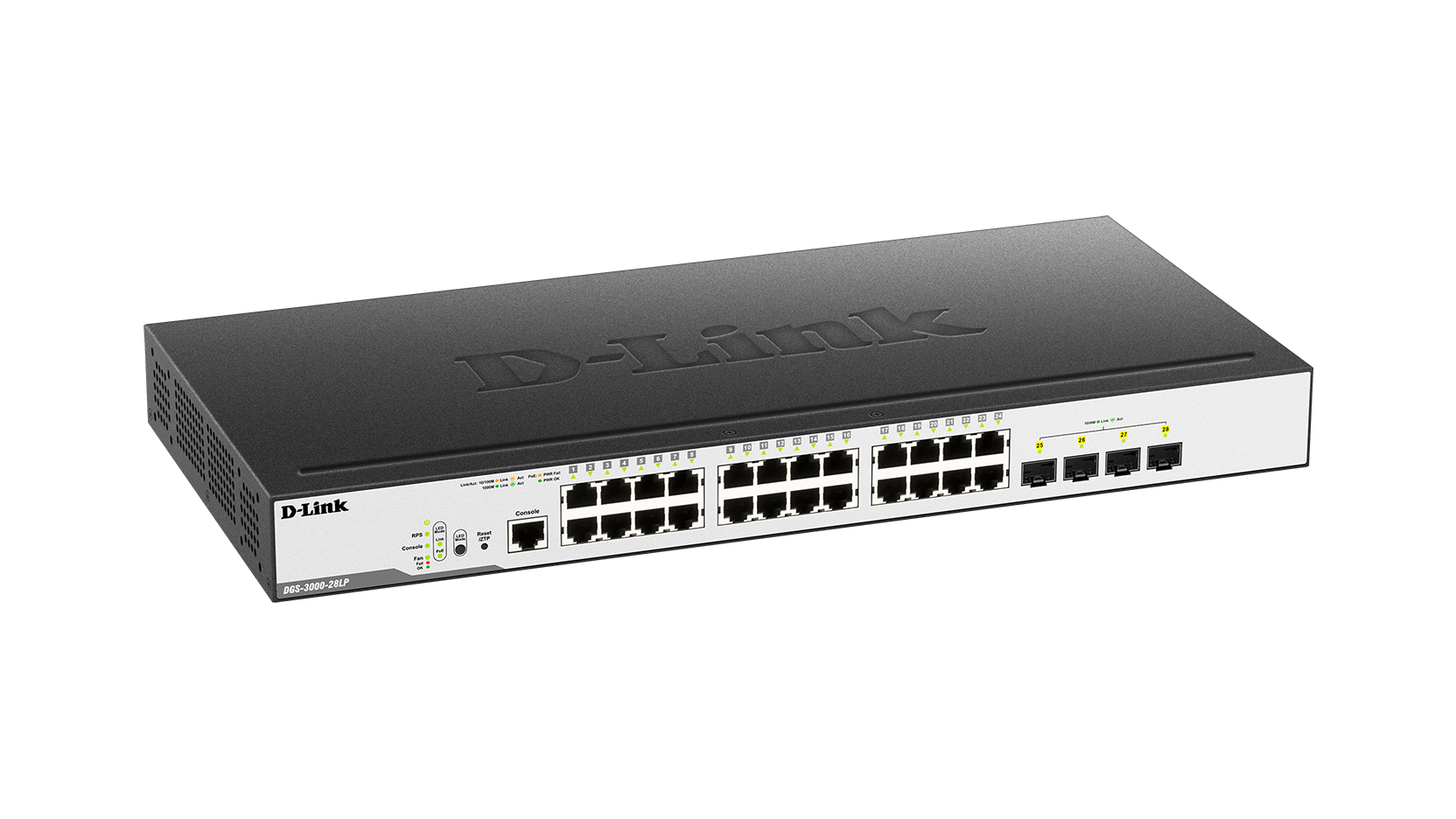

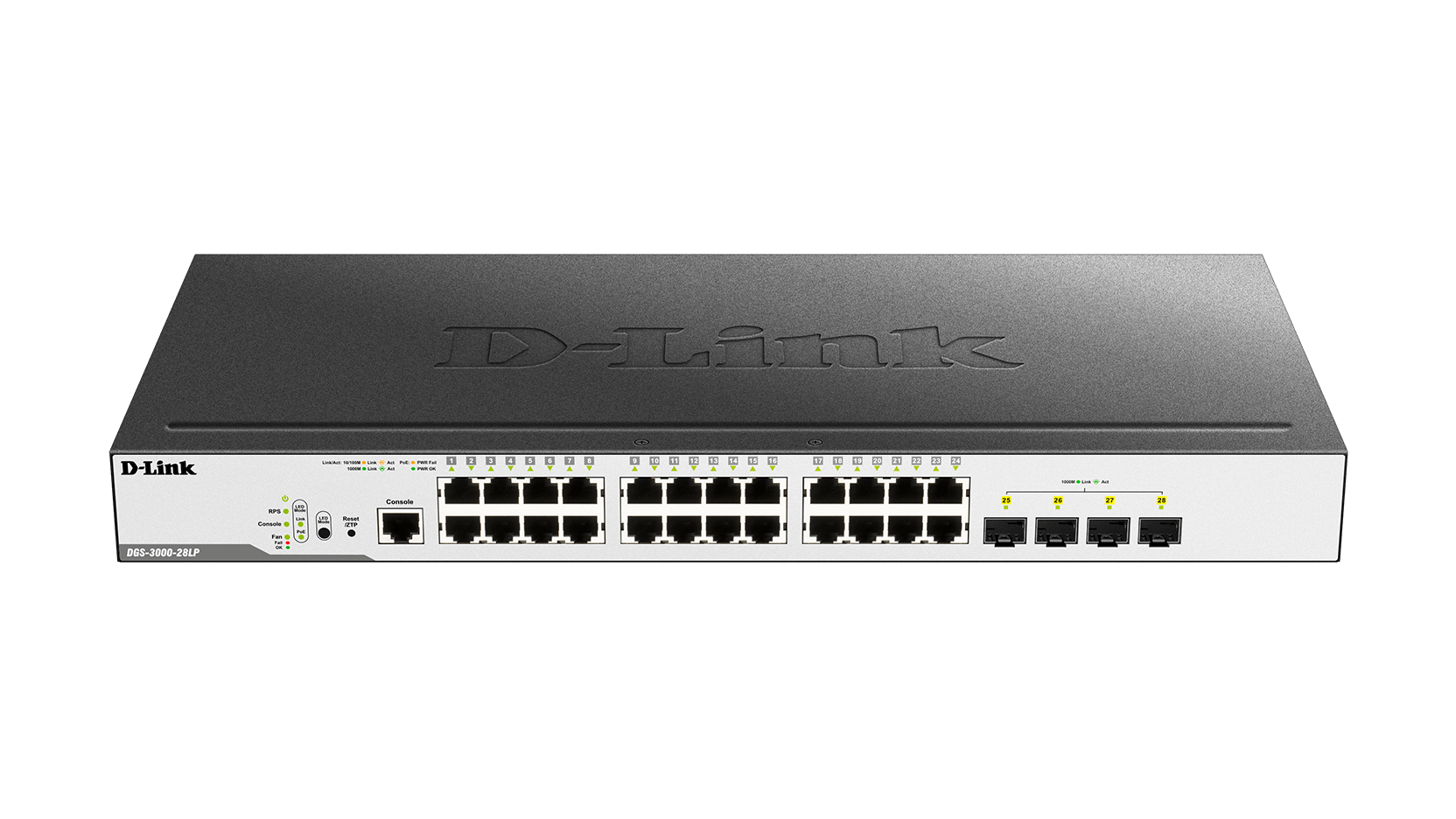

The DGS-3000-28LP switch features Power over Ethernet (PoE), and switching capacities of 56 Gbps.
Efficient and Resilient Networking
The DGS-3000 Series supports:

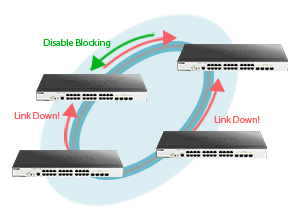

- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS), which allows 50-millisecond failover, minimising service disruption.
- Up to 6 kV surge protection on all Ethernet ports.
- IEEE 802.1AX and 802.3ad Link Aggregation allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments.
Manageability
All switches can be managed as a virtual stack, allowing physically separate switches to be managed using a single IP address. The DGS-3000 Series also supports management tools such as a Web UI, SSH, Telnet, and console, and standards-based protocols such as SNMP, RMON, and SSL.
D-Link Single IP Management (SIM) simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored, and maintained from any workstation, wherever the location.
Security & Authentication
The DGS-3000 Series offers user and device authentication, including host-based authentication and authorization, which provide the option to finely control network access for each device on the network.

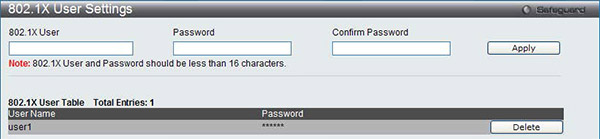

Identity-driven Network Policies
Supported authentication mechanisms for the DGS-3000 series:
- 802.1X port-based Access Control
- Web-based Access Control (WAC)
- MAC-based Access Control (MAC)
After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host.
Secure Network Environment
Advanced features such as RADIUS accounting allow the switches to be integrated with back-end systems for billing or advanced access control.
The DGS-3000 Series also supports address and interface binding features such as IP-MAC-Port Binding and ARP Spoofing Prevention to protect against Man-in-the-Middle or ARP Spoofing attacks.
Quality of Service
The DGS-3000 Series implements a rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferencing, IPTV, and IP surveillance are given high priority.

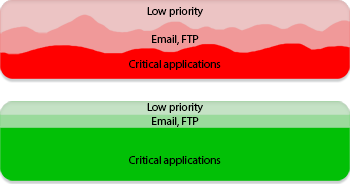

Administrators can prioritise network traffic with Traffic Shaping features guaranteeing bandwidth for critical services when the network is busy.
Related Products
Specs
Type
|
Managed |
---|---|
Number of ports
|
16 to 30 ports 48 to 54 ports |
Layer
|
Layer 2 |
Stacking
|
Virtual |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
10GbE SFP+ SFP |
Switching capacity
|
128 Gbps 176 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 |
PoE power budget
|
See datasheet See datasheet |
Form Factor
|
Rackmountable |
Housing
|
Metal |
Virtual stacking (up to 32 devices)
|
Supported
|
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) ISM VLAN Voice VLAN |
IP interfaces
|
16 |
Static route for IPv4/IPv6
|
IPv4 - 64 IPv6 - 32 |
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
sFlow
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
802.3ah
|
Supported
|
802.1ag
|
Supported
|
ITU-T Y.1731
|
Supported
|
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 0.53mb | Download |
Version | Description | Date | |
---|---|---|---|
CE doc UKCA 2.10 RevB1 | - | 27/5/2022 | Download |
CE doc UKCA 2.10 RevB2 | - | 27/5/2022 | Download |
CE doc UKCA 3000-28LP 1.00 RevB1 | CE document | 23/5/2022 | Download |
CE doc 2.00 RevB1 | - | 11/8/2020 | Download |
CE doc 3000-52X 1.00 RevB2 | CE document | 23/3/2020 | Download |
CE doc 3000-28LP 1.20 RevB1 | CE document | 24/7/2019 | Download |
CE doc 3000-28XMP 1.20 RevB1 | CE document | 24/7/2019 | Download |
CE doc 3000-28X 1.20 RevB1 | CE document | 24/7/2019 | Download |
CE doc 3000-52X 1.20 RevB1 | CE document | 24/7/2019 | Download |
CE doc 3000-28LP 1.10 RevB1 | CE document | 25/9/2018 | Download |
CE doc 3000-28XMP 1.10 RevB1 | CE document | 25/9/2018 | Download |
CE doc 3000-28X 1.10 RevB1 | CE document | 25/9/2018 | Download |
CE doc 3000-52L 1.10 RevB1 | CE document | 25/9/2018 | Download |
CE doc 3000-52X 1.10 RevB1 | CE document | 25/9/2018 | Download |
HW install 4.00 Revision B1 | Hardware Installation Guide | 3/5/2018 | Download |
CLI guide 4.00 Revision B1 | CLI reference guide | 27/4/2018 | Download |
Web UI 4.00 Revision B1 | WEB ui Reference Guide | 27/4/2018 | Download |
