Outdoor Full HD WDR PoE Day/Night Fixed Bullet Network Camera

DCS-7513

  • Product Status (Revision B): End of Sale

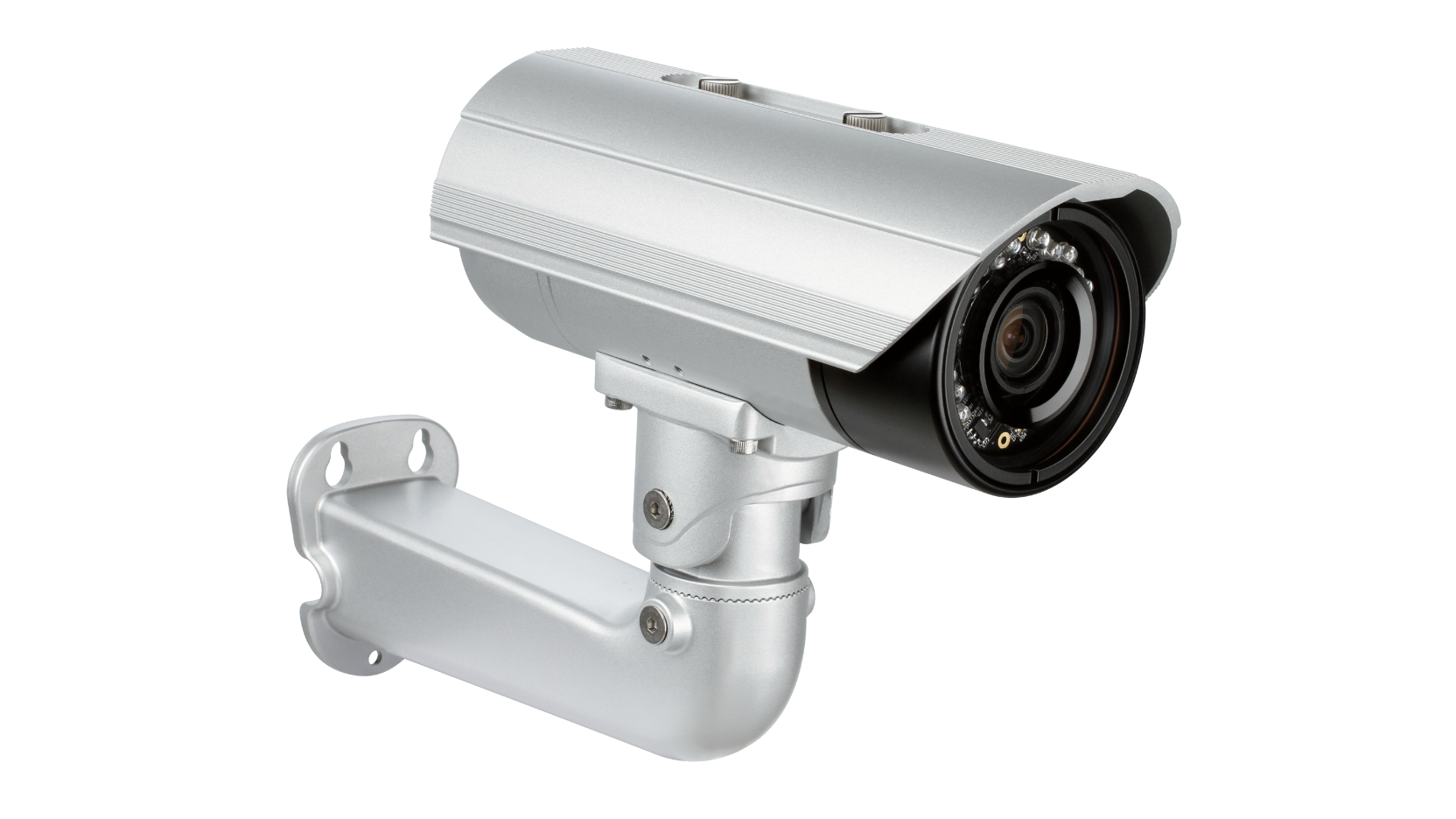

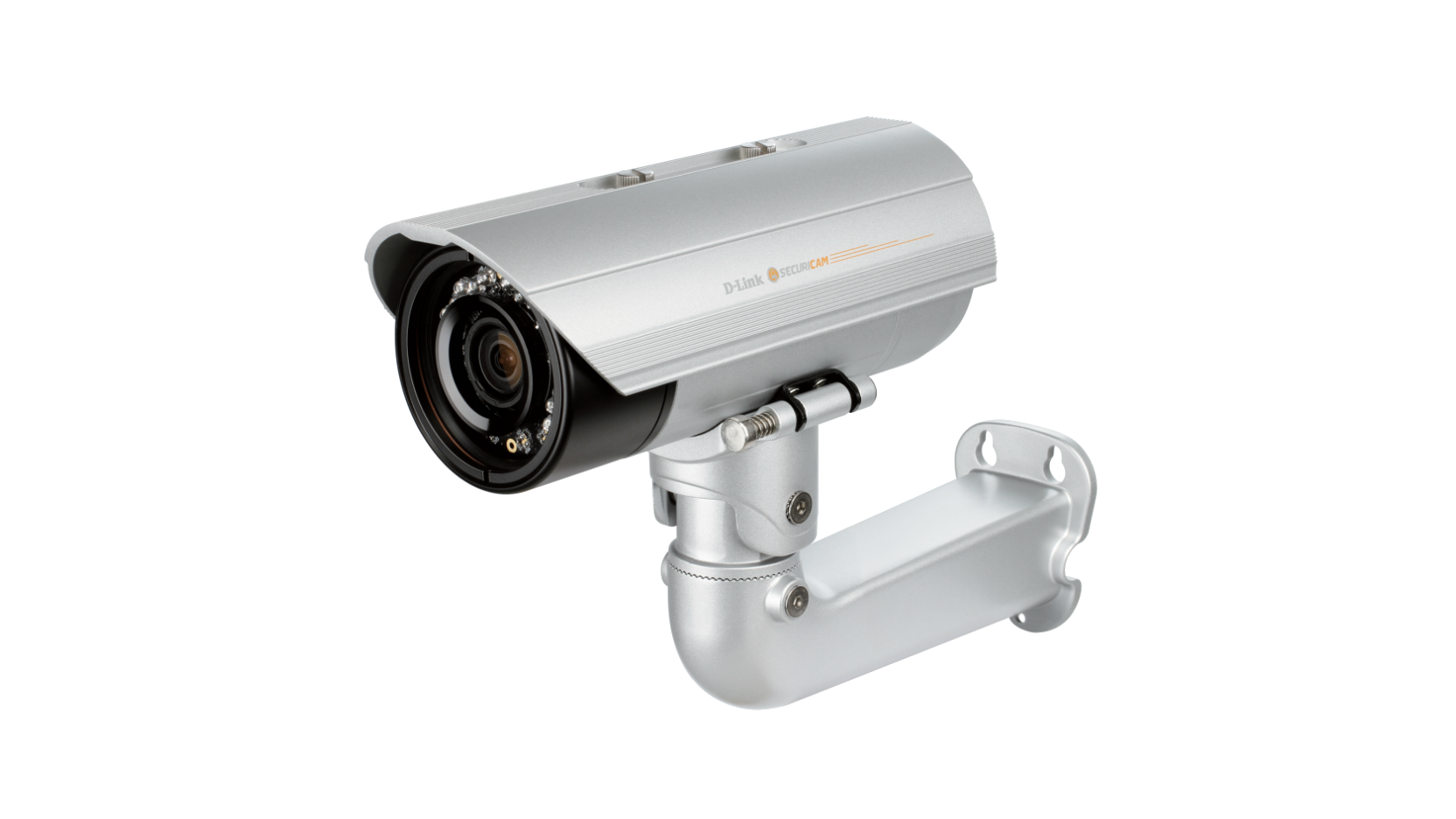

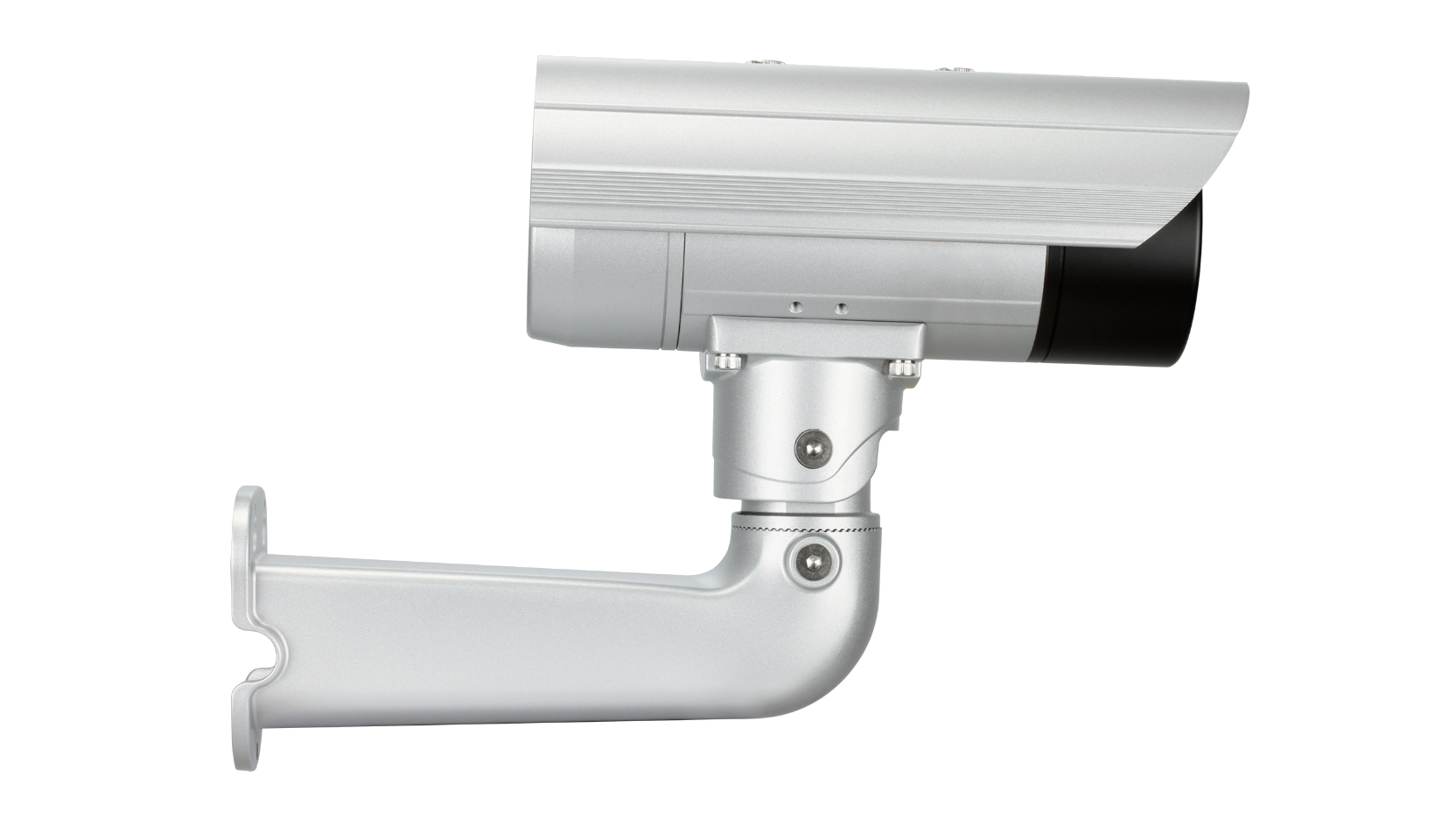

The D-Link DCS-7513 Full HD WDR Day & Night Outdoor Network Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2-megapixel progressive scan CMOS sensor with a motorised P-Iris lens and onboard WDR image enhancement to deliver truly superior quality video with up to 1080p resolution at 60 fps in all conditions. The all-in-one durable design makes this camera ideal for reliable deployment in surveillance applications without the need for accessories.

High-Quality Video

 The DCS-7513 is equipped with a P-Iris lens that controls the iris with extreme precision. Its built-in stepping motor maintains the Iris opening at an optimal level at all times, resulting in superior image quality, clarity, and depth of field. The remote focus function eliminates the need for manual focusing at the camera’s position and allows you to make adjustments from any computer. To maximise bandwidth efficiency and improve image quality, the DCS-7513 provides real-time video compression using the H.264 and MJPEG codecs and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

 The DCS-7513 WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-7513 is also built with IR LED illuminators with a 30-metre range, allowing the camera to keep watch even in complete darkness. These work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

 The Full HD WDR Day & Night Outdoor Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered by motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Connectivity

The DCS-7513 has a built-in 802.3af compliant PoE module that eases installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. The optional cable harness (DC-11) provides additional digital input and output connector allowing connections to external devices such as IR sensors, switches and alarm relays, as well as external audio input and output for 2-way audio.

Related Products

Functional Cable for DCS-6517, DCS-7513, DCS-7517
DCS-11
Find out more
D-ViewCam
DCS-100
Find out more
5 Megapixel Varifocal Outdoor Dome Network Camera
DCS-6517
Find out more
Indoor/outdoor
Indoor
Outdoor
Type
Bullet
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.8" 2 megapixel WDR progressive scan CMOS (Sony Exmor)
Maximum Video Resolution
1440 x 1080 (other)
1920 x 1080 (16:9)
Lens
2.8-12 mm
F1.4
Motorised P-iris
Varifocal
Angle of View (H/V/D)
108°~33° / 57°~19° / 134°~39°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
30 m
Wide Dynamic Range(WDR)
Supported
Privacy Masks
3 zones
2-way audio
Supported
External Microphone Input
Supported
External Speaker Output
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC SDXC (max 128 GB)
Power Consumption
10 W
Features
ONVIF
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
16x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 24/10/2020

Downloads can vary across product revisions. Please select the correct hardware revision.
