Functions & Features

Features

Camera

• High quality CMOS sensor for crystal clear images
• Pan and Tilt functions to cover a large area
• Built-in IR LEDs to capture video in low-light environments

Wi-Fi Connectivity

• Wireless 802.11n gives increased speed, range, and reliability
• Place anywhere without the need for additional network cabling

Sound and Video

• Real-time H.264 and MJPEG compression for reduced video file size
• Sound and motion detection

Remote and Mobile Access

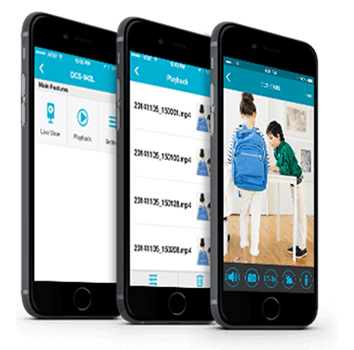

• Support for mydlink Lite lets you manage your camera from anywhere with Internet access
• Remote video monitoring via the mydlink website

Ease Of Use

• Supports WPS for simple, secure wireless setup
• Send snapshots or video clips to an FTP site or through E-mail

Technical Specifications

Camera

Camera Hardware Profile

• 1/4” HD progressive CMOS sensor
• 5 metre IR illumination distance
• Minimum illumination:
• 0 lux with IR LEDs on
• 1 lux (color), 0.5 lux (B&W) with IR LEDs off
• Built-in Infrared-Cut Removable (ICR) Filter module
• Lens: Fixed length 2.38 mm
• Aperture: F2.2
• 4X digital zoom
• Angle of view:
• (H) 94.36°
• (V) 59.3°
• (D) 110.44°
• Built-in microphone
• microSD card slot¹

Image Features

• Configurable image size and quality
• Time stamp and text overlays
• Configurable motion detection windows
• Pre-event snapshot/recording

Video Compression

• Simultaneous H.264/MJPEG format compression
• JPEG for still images

Video Resolution

• H.264: 1280 x 720 (default), 640 x 480, 320 x 240 at frame rates up to 30 fps
• MJPEG: 1280 x 720 (default), 640 x 480, 320 x 240 at frame rates up to 30 fps

Audio Compression

• G.711 μ-law

Pan /Tilt

Pan Range

• -170° to +170° (total 340°)

Tilt Range

• -20° to +90° (total 110°)

Angular Velocity

• 16° per second

Step Setting

• Pan 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30° per click
• Tilt: 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30° per click

Network

Connectivity

• 10/100 BASE-T Fast Ethernet port
• Single-band 1T 1R mode supports a maximum data rate of 72.2 Mbps (PHY rate) using the 20 MHz band
• 802.11n/g/b wireless

Network Protocols

• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• UPnP Port Forwarding
• LLTD

Security

• WPS
• WPA-PSK, WPA2
• HTTP digest encryption
• Password authentication

Advanced Features

System Requirements for Web Interfaces

• Operating system: Microsoft Windows Vista/7/8/102, Mac OS X 10.7
• Browser: Internet Explorer 8/Firefox 12/Safari 6/Chrome 203 or higher with Java and/or ActiveX installed and enabled²

Event Management

• Motion detection
• Sound level detection
• Event notification and uploading of snapshots/video clips via e-mail (SMTP) or FTP

Remote Access

Remote Management

• Configuration accessible via web browser

Mobile support

• mydlink Lite app for iOS and Android
• mydlink+ app for iOS and Android

General

Weight

• Device: 292.4 grams (0.64 lbs)
• Stand: 60.8 grams (0.13 lbs)

Power

• 5 V DC 1.5 A, 50/60 Hz

Power Consumption

• 5.56 W

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -25 to 70˚ C (-13 to 158 ˚F)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 5% to 90% non-condensing

Certifications

• CE, CE LVD, FCC Class B, ICES

Dimensions

• 116.4 x 109.1 x 133.6 mm (4.58 x 4.29 x 5.26 inches) (Camera only)
• 116.4 x 109.1 x 230.0 mm (4.58 x 4.29 x 9.06 inches) (Including mounting bracket)

<sup>1. MicroSD card not included. Supports card capacities up to 32 GB.
2. Microsoft Edge is not supported.
3. mydlink Portal only.</sup>
