¿Cómo configurar VPN SSL en el DSR?

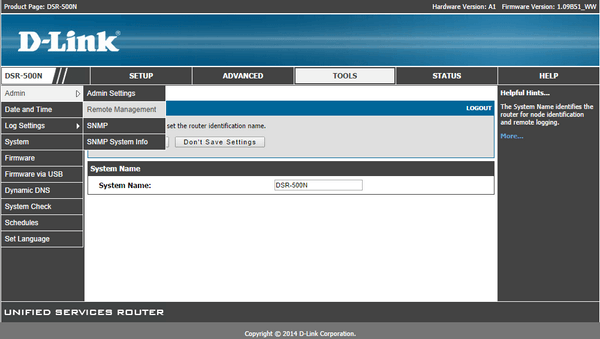

Paso 1 – Diríjase a Tools > Admin > Remote Management

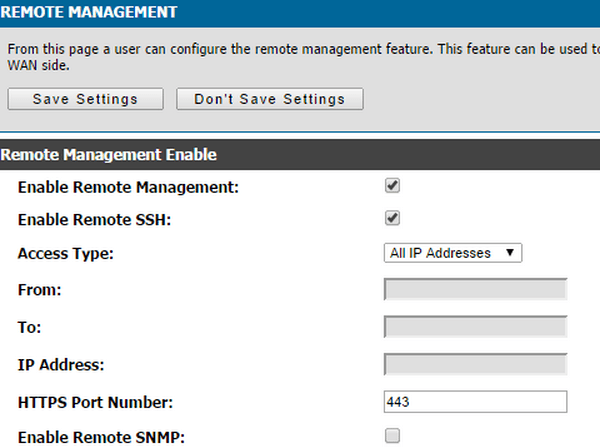

Paso 2 – Habilite la opción Enable Remote Management y luego guarde los cambios presionando el botón Save Settings

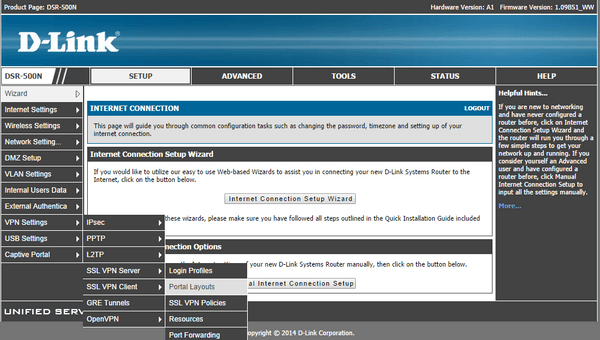

Paso 3 – Diríjase a Setup > VPN Settings > SSL VPN Settings > Portal Layouts

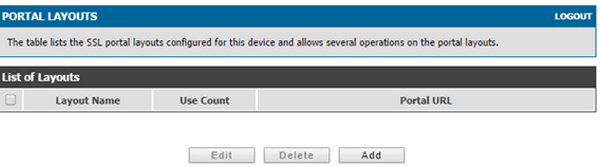

Paso 4 – Presione el botón Add

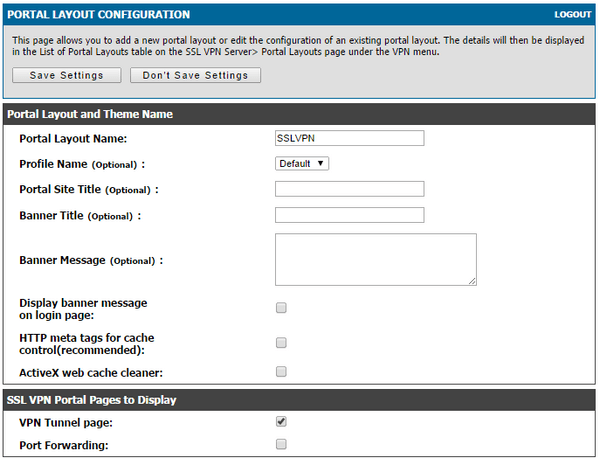

Paso 5 – Configure el portal Layout

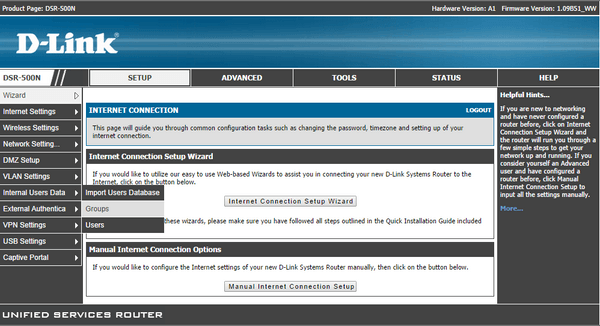

Paso 6 – Diríjase a Setup > Internal User Data > Groups

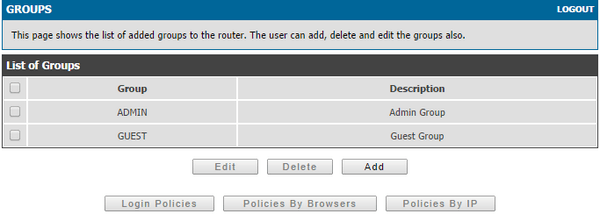

Paso 7 – Presione el botón Add

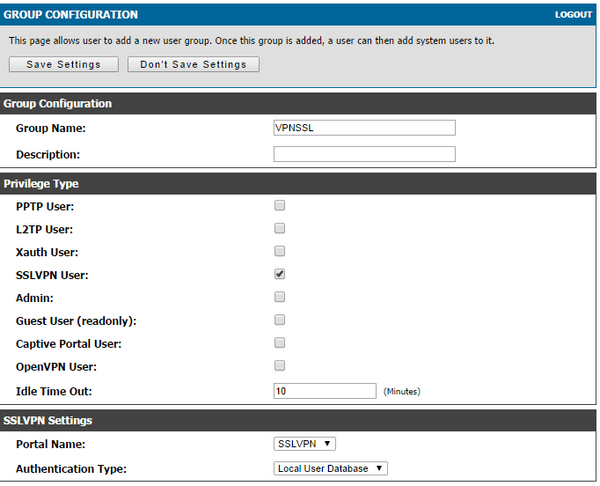

Paso 8 – Configure el grupo

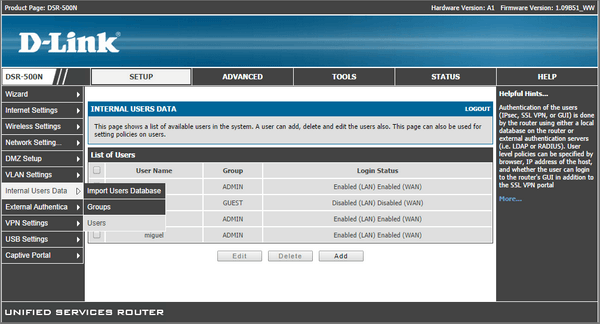

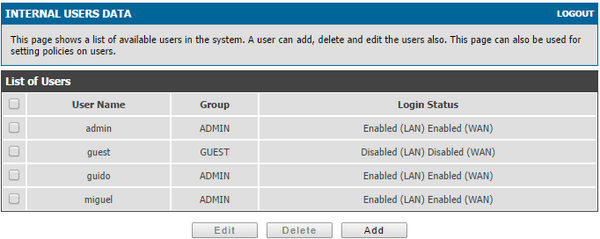

Paso 9 – Diríjase a Setup > Internal User Data > Users
Paso 10 – Presione el botón Add

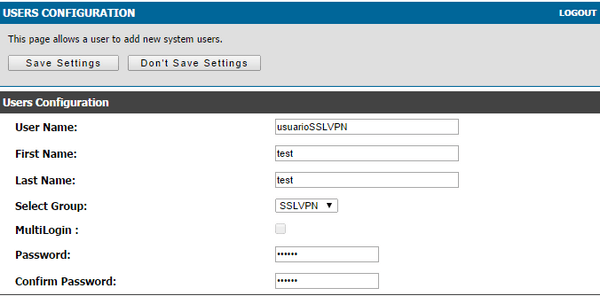

Paso 11 – Configure el usuario

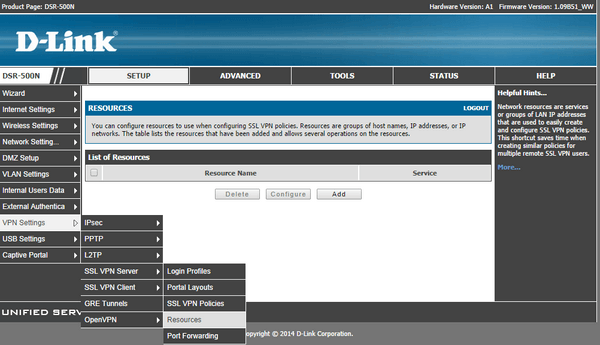

Paso 12 – Diríjase a Setup > VPN Settings > SSL VPN Server > Resources

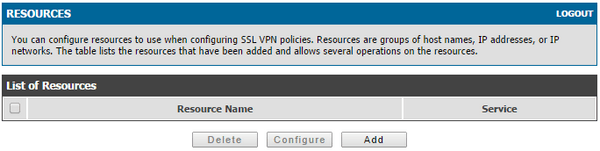

Paso 13 – Presione el botón Add

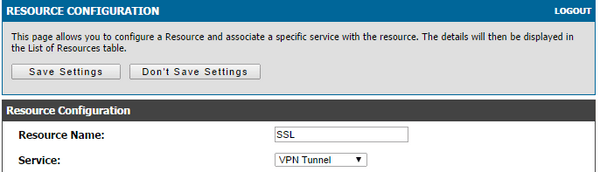

Paso 14 – Agregue un nombre y el servicio del recurso, luego guarde los cambios

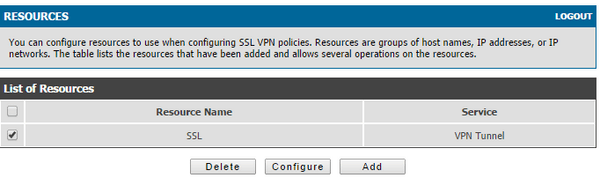

Paso 15 – Configure el recurso, marcando la casilla del lado izquierdo y luego presionando el botón Configure

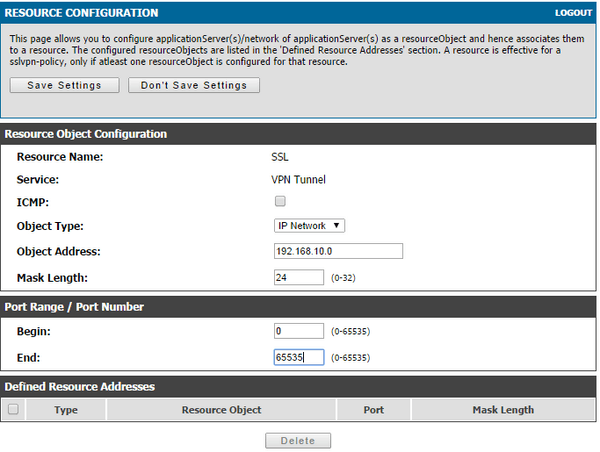

Paso 16 – Configure los recursos de la siguiente manera

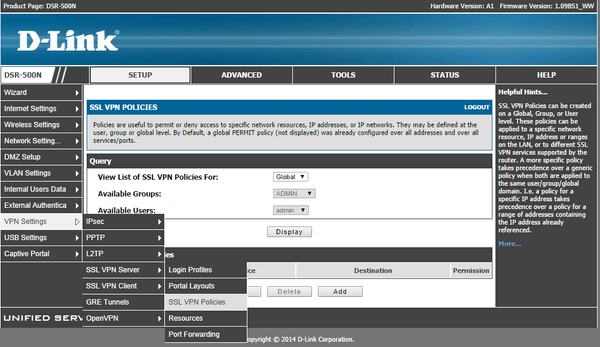

Paso 17 – Diríjase a Setup > VPN Settings > SSL VPN Server > SSL VPN Policies

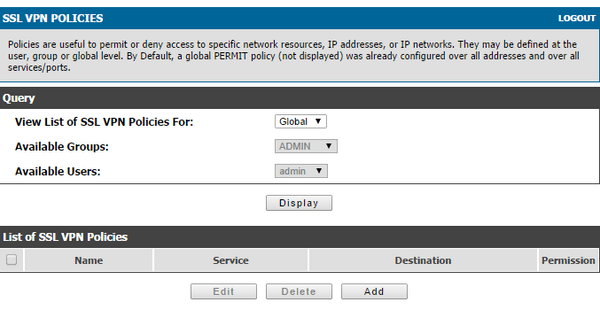

Paso 18 – Presione el botón Add para agregar la SSL VPN Policies

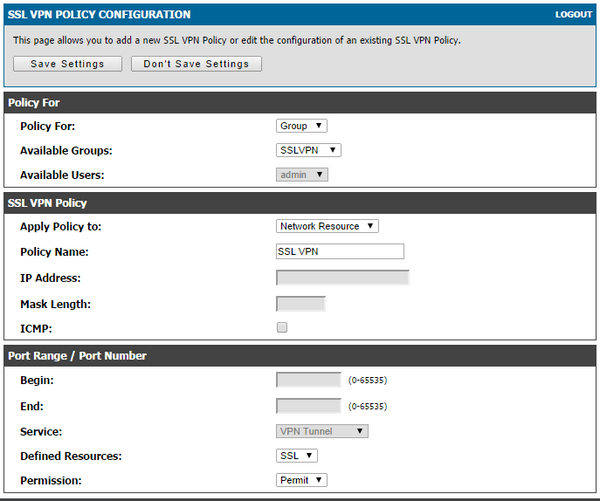

Paso 19 – Configure la SSL VPN Policies, luego guarde los cambios
