10G Layer 3 Stackable Managed Switch

DXS-3130-28P

  • Product Status (Revision A1 v1.01): Live
  • 24 x 10G/multi-Gigabit ports and 4 x 10/25G SFP28 ports to provide 10/25 Gigabit connectivity
  • Equipped with 24 PoE ports supporting 802.3af, 802.3at, and 802.3bt provide max. power up to 60W per port, ideal for 10G PoE applications
  • 790W PoE Budget, expandable to 1440W with dual power supplies
  • 2 hot-swappable power modules for 1+1 power redundancy and load sharing
  • Physical stacking up to 9 switches with up to 200 Gbps bandwidth per unit, virtual stacking up to 32 switches
  • Advanced L2 & L3 Features to build the reliable and flexible network
  • 6kV Surge protection on all PoE ports
  • Provide Intuitive Web UI and industrial standard CLI
  • Support Nuclias Network Controller management*
    * All functions of the DMS/DXS-3130 can be configured through Nuclias Connect v1.3.1 via remote CLI and Remote Web.

Download the datasheet.

Where to buy

Leading the Future of 10G Connectivity


The DXS-3130-28P is equipped with twenty-four 10G Multi-Gigabit 802.3bt 60W PoE++ ports and four 10/25G SFP28 ports, offering versatile, high-speed networking. The uplink ports handle higher bandwidth and faster speeds, while the integrated 100M/1G/2.5G/5G/10G speeds boost performance and enhance operational efficiency.

Tailored for secure connectivity in various applications, the DXS-3130-28P features 25G ports, rich software capabilities, and enhanced security. It can serve as a core switch for SMBs, an aggregation switch for enterprises, or as the edge layer for Metro Ethernet. The DXS-3130-28P is ideal for meeting your networking needs.

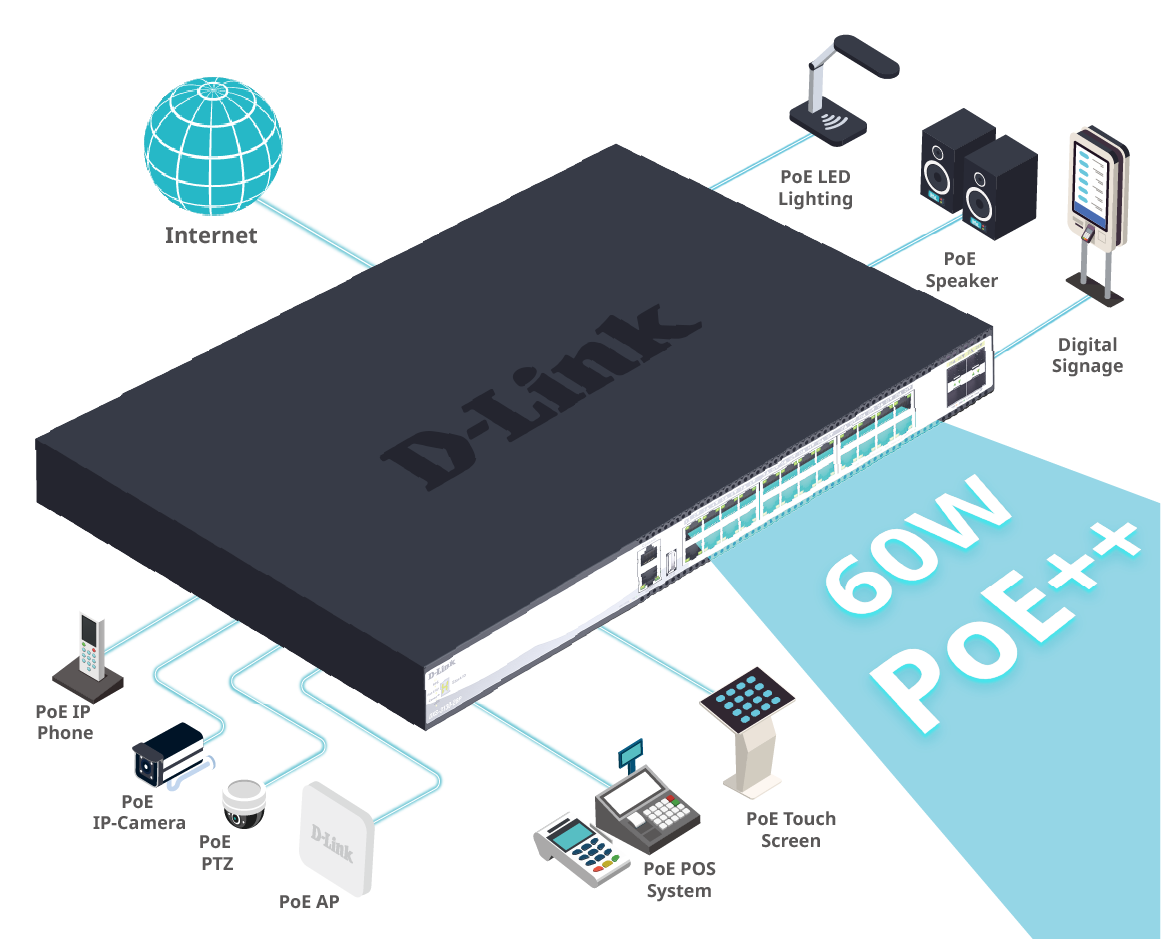

PoE for Unstoppable Power Stability

The DXS-3130-28P supports Power-over-Ethernet (PoE) across IEEE 802.3af, IEEE 802.3at PoE+, and IEEE 802.3bt PoE++ standards, delivering up to 60W per port. It also offers Perpetual PoE and Fast PoE.

The DXS-3130-28P features a 790 W PoE power budget which can be increased to 1440 W when outfitted with dual power supplies, that can power up even more devices.

PoE simplifies the deployment of IP cameras, VoIP phones, Wireless Access Points, and other powered devices through a standard Ethernet that eliminates the cost for additional electrical cabling.

Perpetual PoE

Delivers uninterrupted power to connected powered devices(PD) even when the power sourcing equipment (PSE) switch is booting.

Fast PoE

Enables the switch to supply power to connected endpoint devices in a relatively short time without waiting for the operating system to boot up.

PD-Alive

The PD-Alive feature is perfect for IP surveillance networks to monitor the status of connected powered devices and verify their activity.​

6 kV Surge Protection

The Frontline Against Electrical Surges

The DXS-3130-28P has built-in 6 kV surge protection on all Ethernet ports without external surge protection equipment, safeguarding against sudden electrical surges like lightning strikes. This effectively reducing maintenance costs by minimizing the need for expensive equipment repairs or replacement.

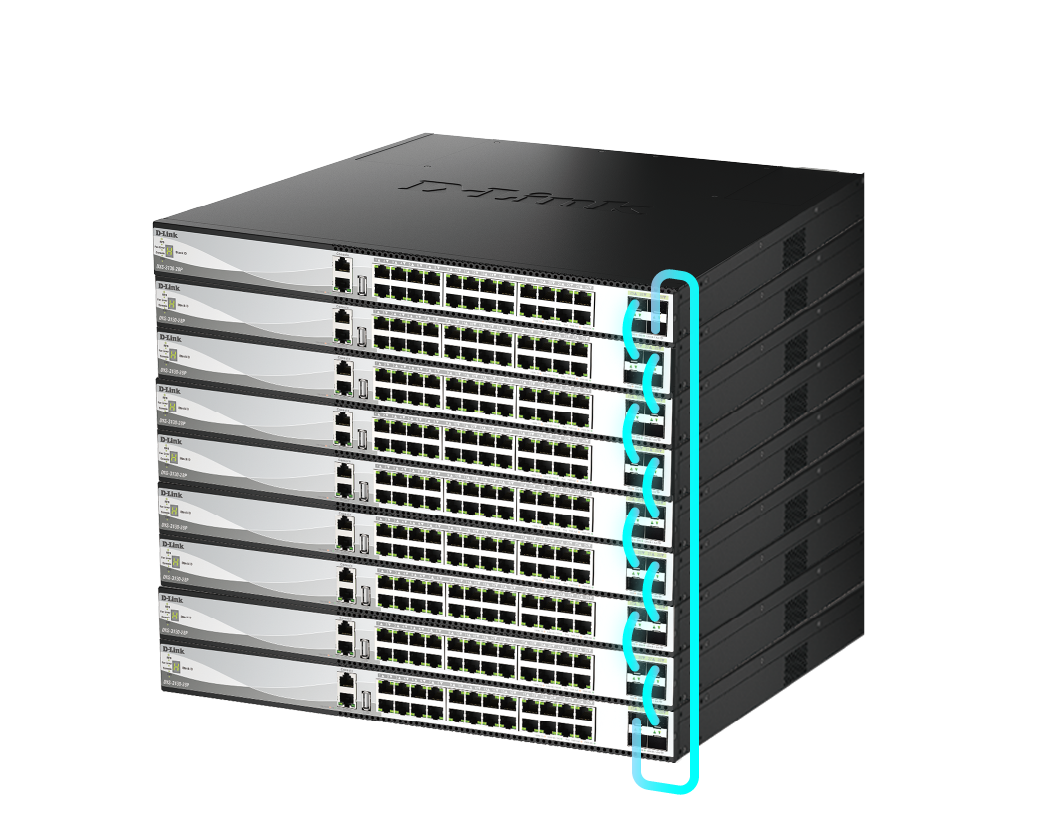

Unified the Power, Stack for Success

Scale your network with the DXS-3130-28P by combining multiple switches into a single physical or virtual stack. The stacking function simplifies management, enhances redundancy, and allows you to control the entire stack with a single IP address across multiple physical units.

Physical stacking supports up to nine switches with 200Gbps of stacking bandwidth per device, enabling seamless scalability as network demands grow.

World-class Reliability

The DXS-3130-28P targets users who require a high level of network security and maximum uptime. It supports hot-swappable internal redundant power supplies and incorporates essential reliability features including 802.1D Spanning Tree (STP), Ethernet Ring Protection Switching (ERPS) ,and Loopback Detection (LBD) to enhance network resilience.

With Ethernet Ring Protection Switching (ERPS), recovery time can be minimized to just 50 ms. Loopback Detection prevents accidental port shutdowns, ensuring continuous operation. The DXS-3130-28P maintains a secure and highly reliable network for your critical infrastructure.

Comprehensive security

The DXS-3130-28P offers advanced security features such as Multi-layer, Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. With its robust security functions, you can easily enhance user access control, and experience a stronger network safeguard.

Easy Access Control Policy

The DXS-3130-28P supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control for strict access control and easy deployment. Individual policies, including VLAN membership, QoS policies, and ACL rules, can be assigned to each host after authentication, ensuring all access remains under your control.

Interfaces
24 x 100M/1G/2.5G/5G/10GBASE-T 60W PoE++ ports
4 x 10/25G SFP28 ports
Standards
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
PoE Power Budget
790 W
1440 W (dual power supplies)

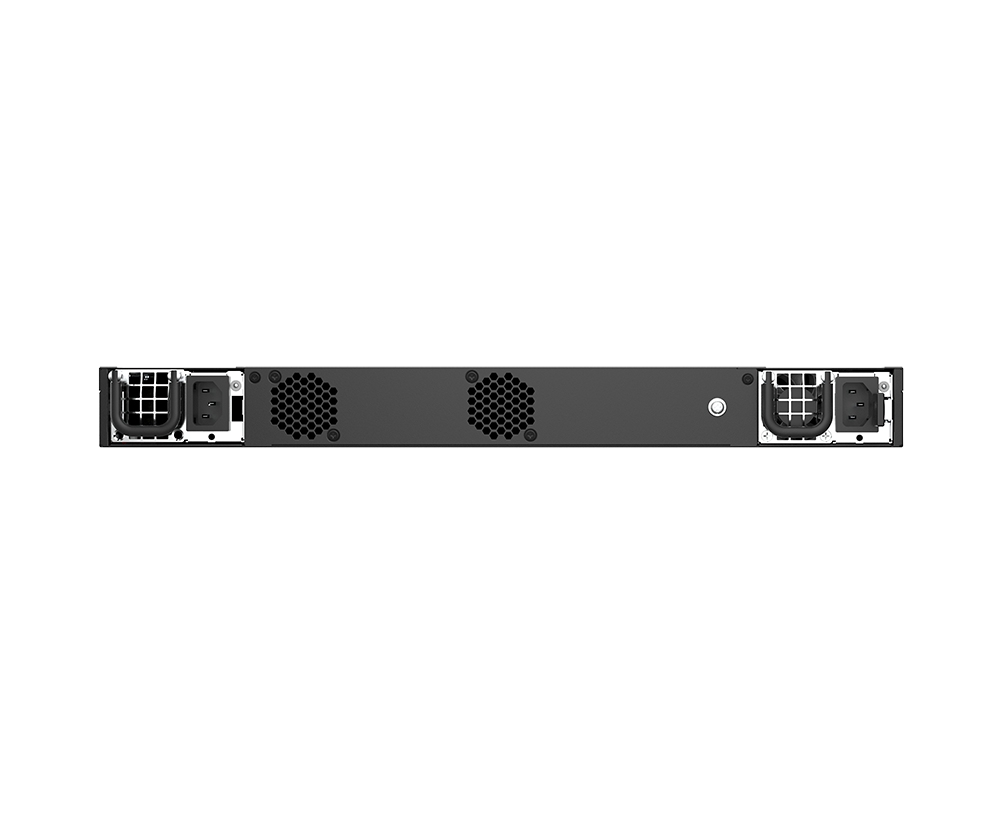

Optional Redundant Power Supply
AC (DPS-PWR1200AC) hot-swappable redundant power supplies
DC (DPS-PWR1200DC) hot-swappable redundant power supplies
Stacking Ports
4
USB
1 x USB 2.0 Type A port
Switch Capacity
680 Gbps
MTBF
286,495.20 hours
Acoustic
Max: 50.01 dB (fan high speed)
Min: 41.2 dB (fan low speed)
FAN
2 x Smart fans
Temperature
Operating 0 to 50 ˚C (32 to 122 ˚F)
Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
Operating: 10% ~ 90% RH
Storage: 5% ~ 90% RH
Dimensions
440 x 470 x 44 mm (17.32 x 18.50 x 1.73 in)
Weight
6.48 kg (14.29 lbs)
Max. Packet Forwarding Rate
506.92 Mpps
Max Power Consumption
Max: AC CRPS at 100V/60Hz
PoE On: w/ dual CRPS: 1782.37 W (AC CRPS x 2)
PoE On: w/ single CRPS: 1008.1 W (AC CRPS x 1)
PoE Off: 95.9 W
Standby: 50.18 W
Maximum Heat Dissipation
3439.637 BTU/hr @790W
6081.446 BTU/hr @1440W
