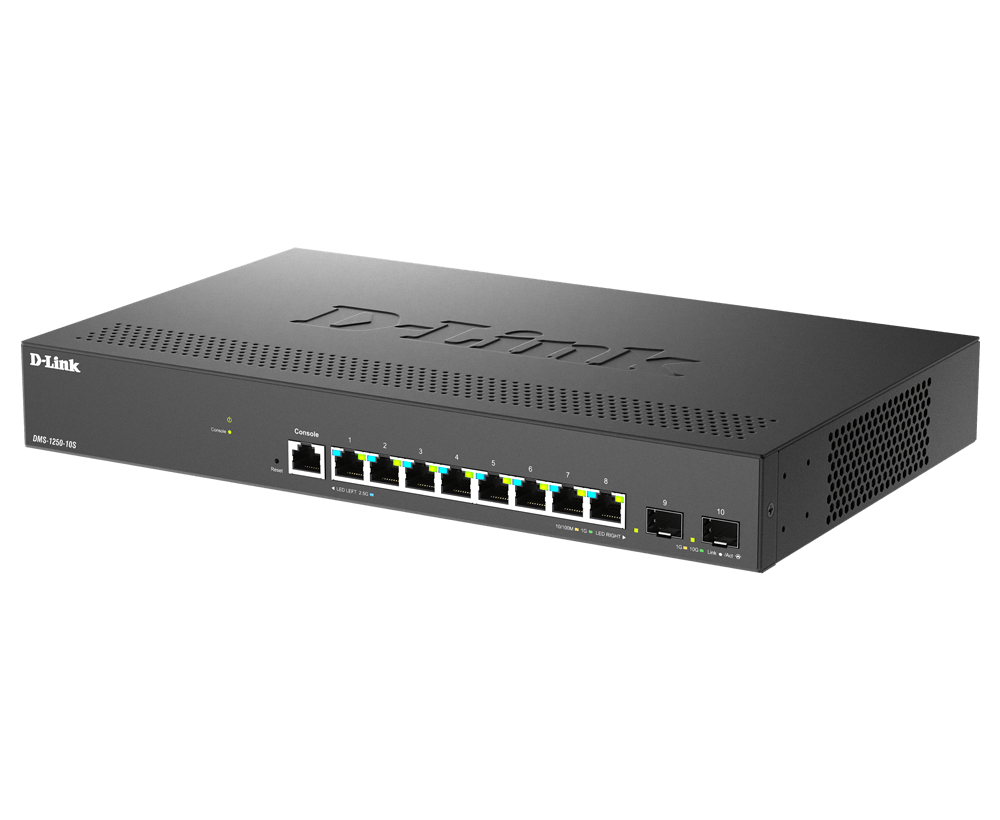

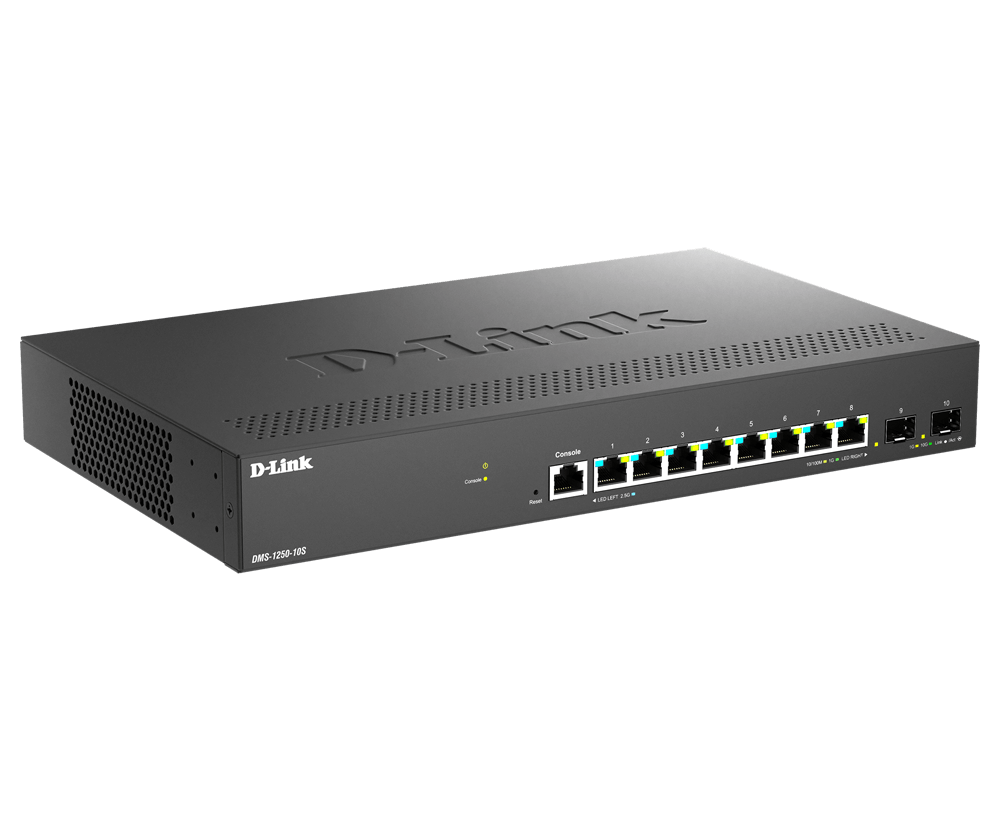

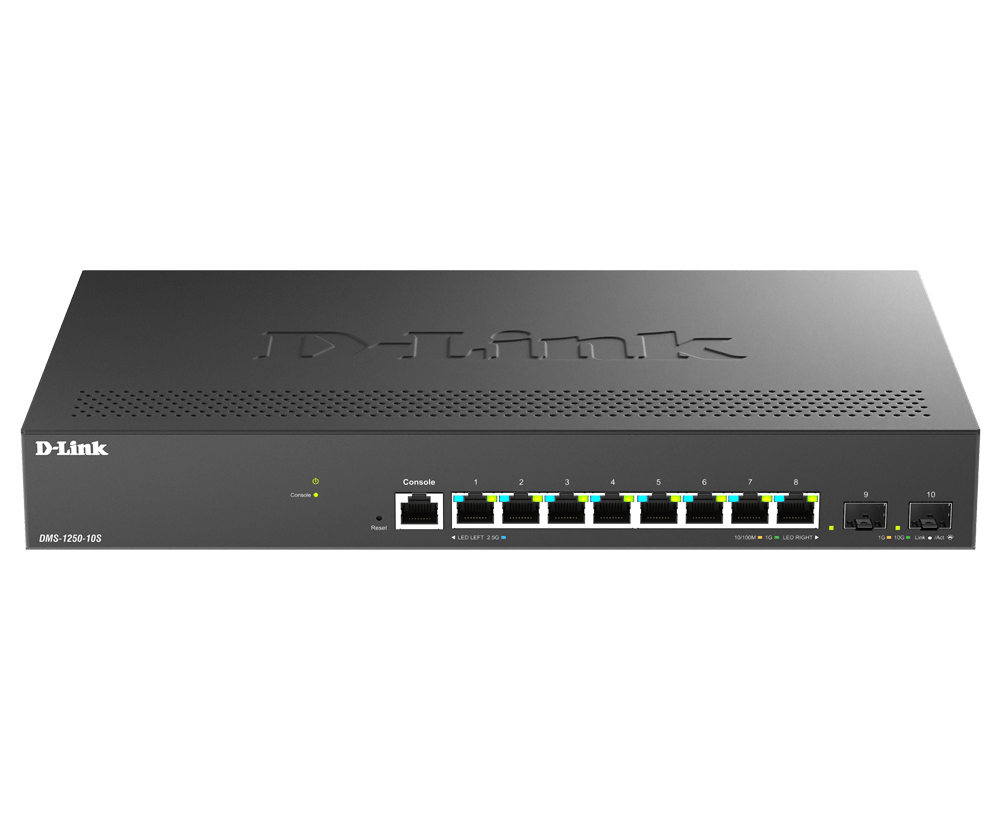

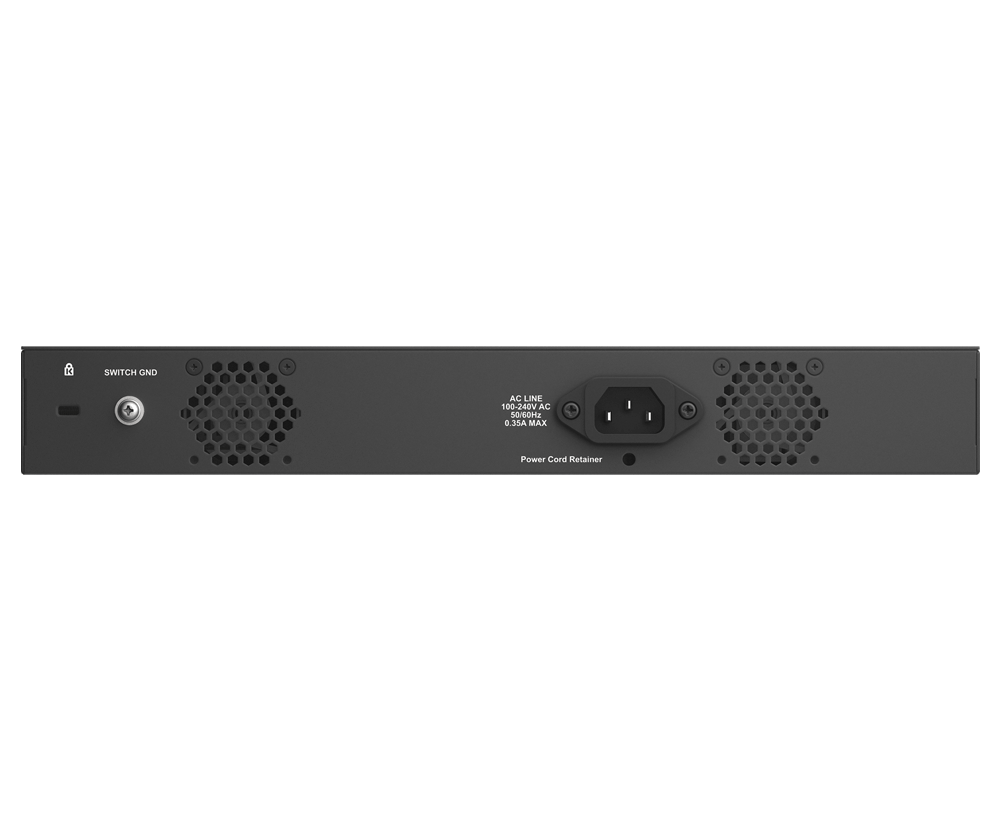

8-Port Multi-Gigabit Smart Managed Switch

DMS-1250-10S

  • Product Status (Revision Series_v1.03): Live
  • Eight 2.5Gbps Multi-G Ethernet Ports
  • Additional 2x SFP+ Ports.
  • DNC / DNH ( D-Link Nuclias Connect / Hub ) and
    D-View 8 for centralized management
  • D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding.
  • 6kV surge protection on all 2.5-Gigabit Ethernet Ports

Download the datasheet.

Where to buy

2.5G Speed, Ready for Wi-Fi 6 and More

The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports, effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.

6 kV Surge Protection for All Ethernet Ports

The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.​

Support L2+ Features

The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:

  • Static Route
  • IPv4/IPv6
  • DHCP relay*
  • DiffServ QoS
  • Port Mirroring
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP and MLD Snooping
* Please note that support is only available in version R2 or later.

Easy Management by DNC & D-View 8

The DMS-1250 Series switches​ offers a range of management tools to cater to users' diverse needs. D-Link Nuclias Controller (DNC) and D-Link Nuclias Hub (DNH) enable the discovery and management of multiple D-Link devices, providing access to configure settings efficiently. Furthermore, the DMS-1250 Series can be seamlessly managed through D-View 8, a comprehensive central network management system. SNMP functionality allows for centralized network asset management, remote configuration, and logging functions.

Best Choice for SOHO, SMB and MDU

The DMS-1250 Series switches​ are versatile, suitable for SOHO, SMB, and MDU environments. They provide high-speed data transmission with 2.5GE and a crucial 10G speed uplink for external connectivity. This high-speed uplink ensures that the entire MDU can access external services without encountering data bottlenecks. Furthermore, they effectively implement IEEE 802.3at or IEEE 802.3bt in DMS-1250-10SP, 10SPL, and 12TP to enable devices to connect and receive power supply.​

DMS-1250 Series Switches Comparison



DMS-1250-10S
DMS-1250-10S
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
Interface
8 x 2.5GE
2 x 10G SFP+
8 x 2.5GE PoE
2 x 10G SFP+
8 x 2.5GE PoE
2 x 10G SFP+
8 x 2.5GE PoE
2 x 10GE
2 x 10GE SFP+
Performance
Switch Capacity 80 Gbps 80 Gbps 80 Gbps 120 Gbps
Max. Packet Forwarding Rate 59.53 Mpps 59.53 Mpps 59.53 Mpps 89.29 Gbps
PoE
PoE Standard N/A IEEE802.3bt + IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
PoE Ports N/A Port 1 ~ 2 (IEEE802.3bt)
Port 3 ~ 8 (IEEE802.3af/at)
Port 1 ~ 8 Port 1 ~ 8
PoE Budget N/A 120 W 240 W 240 W
Technical Specification
Surge Protection ・IEEE61000-4-5 surge protection compliance
・6kV surge protection on all 2.5-Gigabit Ethernet ports
Maximum Power Consumption 13.58 W 147 W​ (PoE on) 287.58 W (PoE on) 289.74 W (PoE on)
Fan Fanless Fanless 2 internal fans 2 internal fans
Console Port Yes No Yes Yes
Power Supply Type Internal External Internal Internal

Support

Version Date Type File Size
Datasheet - PDF 0.31mb Download
