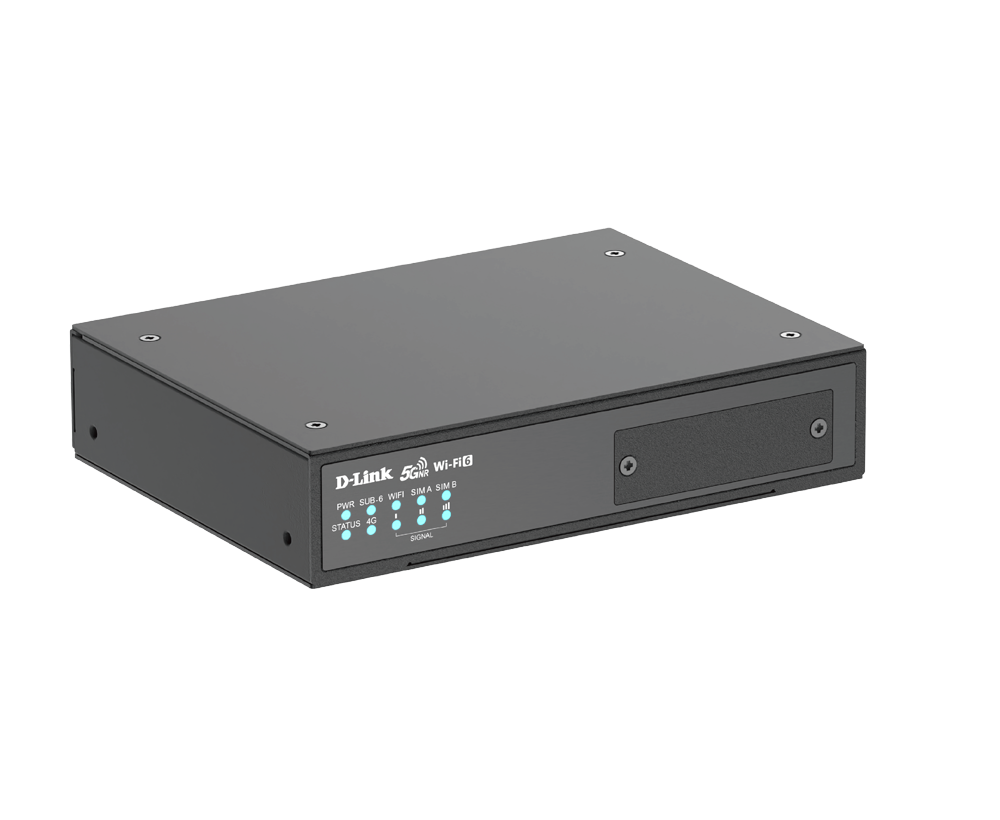

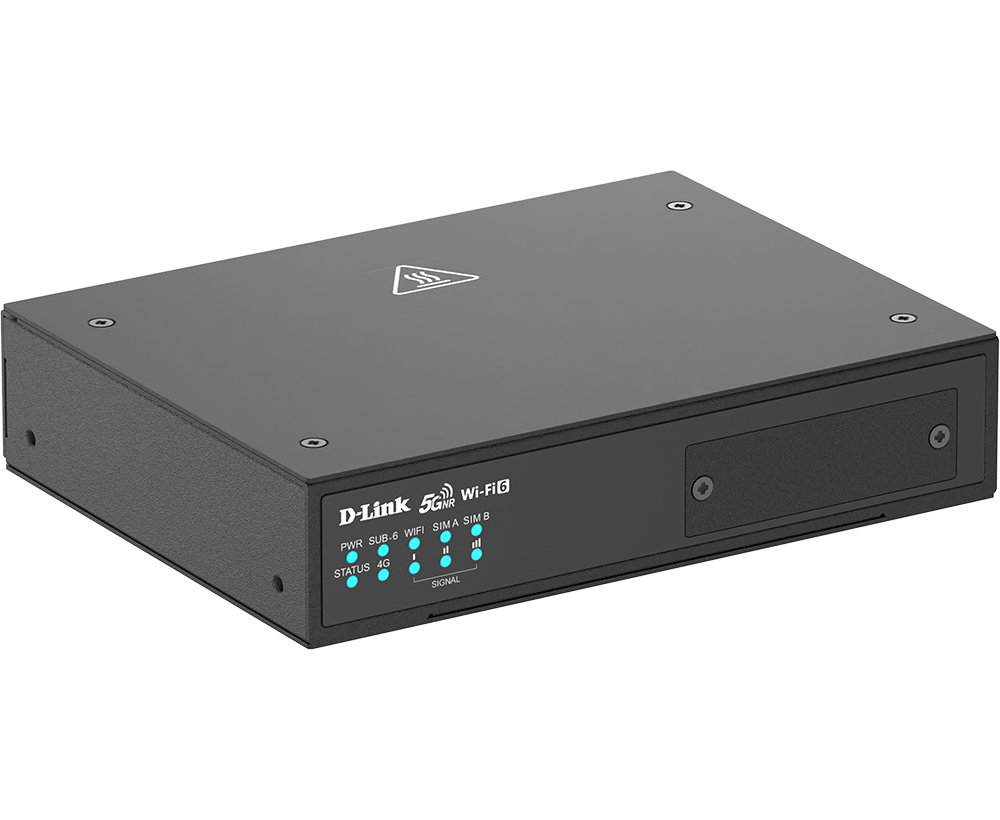

5G M2M Router
DWM-550-G
- Dostupnost produktu (Revision AX_v1.1): Live
- 5G SA & NSA speeds of up to 3.4 Gbps1 for Internet access and data transfer
- Wi-Fi speeds of up to 1.8 Gbps1 to connect multiple Wi-Fi devices

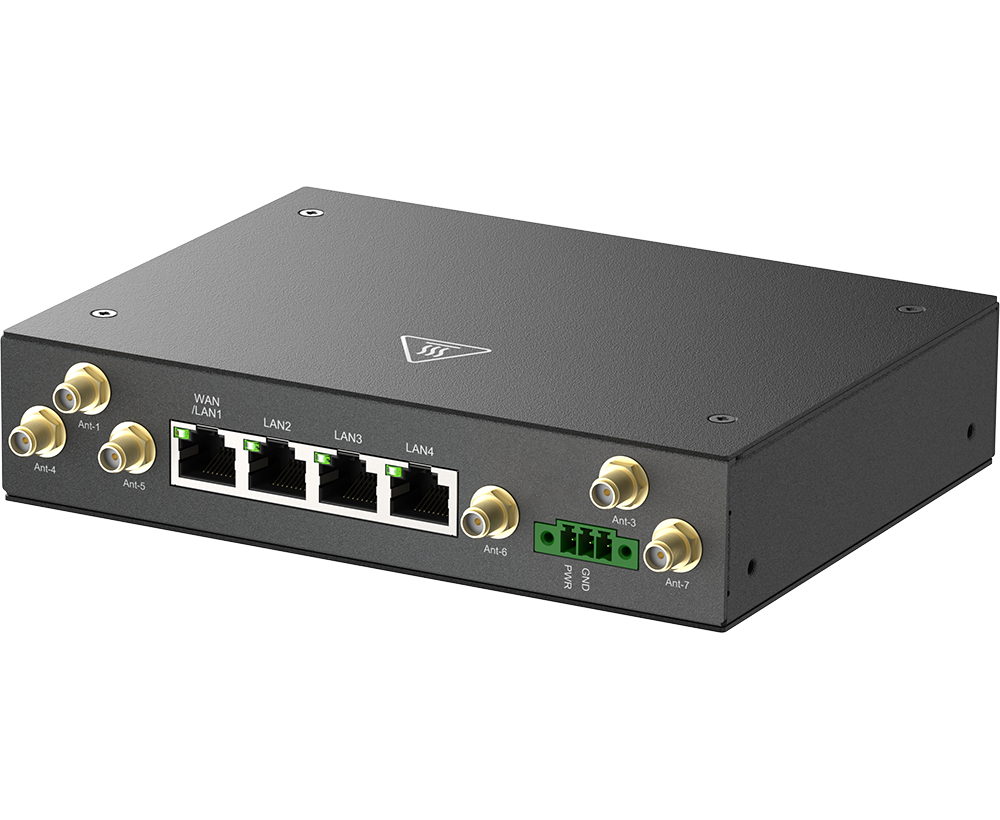

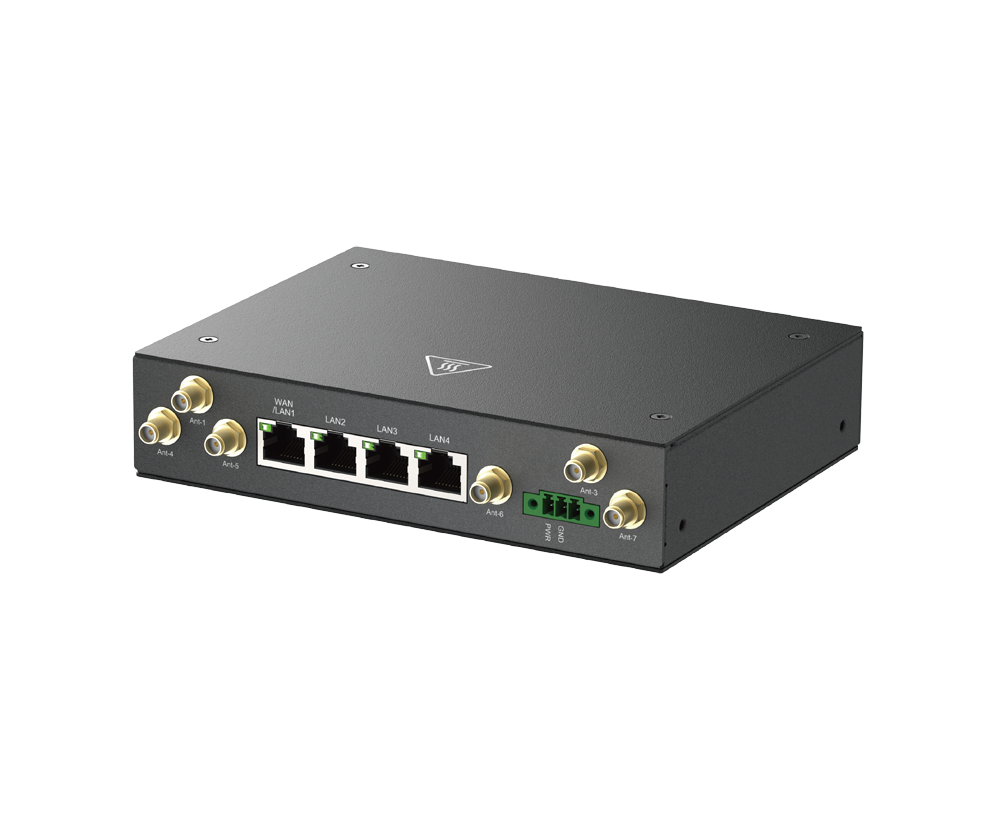

- 1 x Gigabit Ethernet WAN/LAN port configurable as wired WAN access
- 3 x Gigabit Ethernet LAN port for reliable wired connectivity
- 2 x SIM slots for cellular WAN failover redundancy
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Optional Wall mount bracket allows for optimal device placement
Seznam prodejců
User Benefits
5G SA & NSA
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.
Dual-SIM záloha
Dva sloty SIM s redundancí automatického přepnutí při selhání pro zajištění nepřetržitého připojení k mobilní síti WAN.

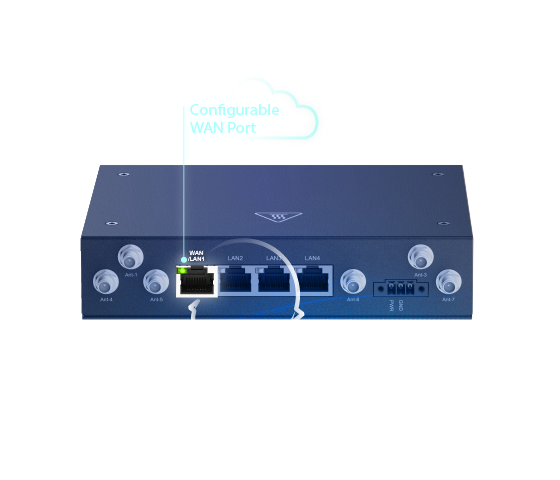

Ethernet & 5G Redundancy
Seamless failover between Ethernet WAN and 5G for reliable connectivity.
Odolnost průmyslové úrovně
Pouzdro z pozinkované oceli odolné proti korozi a robustní konstrukce zajišťují spolehlivý provoz v náročných prostředích.
Zabezpečená ochrana VPN
Chraňte přenos citlivých dat prostřednictvím zabezpečených tunelů VPN, abyste zabránili neoprávněnému přístupu k síti.
Wi-Fi 6 AX1800
Drive Wi-Fi 6 to cover various portable and IoT device networking services.
Carrier Diversity and Network Redundancy
The DWM-550-G 5G M2M Router ensures continuous service with Dual SIM (Nano-SIM 4FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and 5G connections, ensuring you always have the best network access.
Secure Your Network with VPN
The DWM-550-G 5G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-550-G ensures that financial transactions and customer information are securely managed and transmitted.

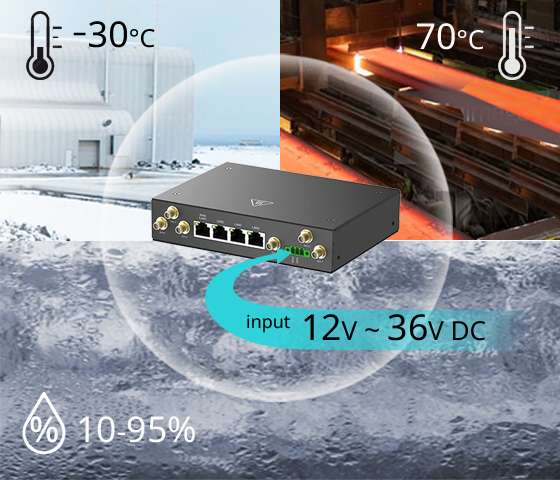

Robust Build Quality
The DWM-550-G is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment.
Související produkty
High-Speed 5G & Wi-Fi 6 Connectivity for Modern IoT Deployments
Explore the capabilities of the DWM-550-G 5G M2M Router, engineered for peak performance with high-speed 5G and Wi-Fi 6 AX1800 technology for machine-to-machine applications. Featuring dual-SIM support, it maintains constant communication by switching to a backup network during primary network failures. This router secures data with advanced VPN features and facilitates centralized management via the D-ECS platform.
Ideal for diverse settings like NVRs, kiosks, industrial PCs, digital signage, and mobile POS systems, the DWM-550-G is perfect for remote locations, pop-up stores, and bus stops, enhancing efficient operation and network performance.
Versatile Applications
Kiosk
Remote access for kiosks ensures secure and continuous operation while minimizing service interruptions.
EV Charger
Remote management of charging information and usage status to optimize operations.
Smart Bus Stop
Remote access for real-time bus info and ad updates, enhancing commuter experience.
Vending Machine
Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.
Technické specifikace produktu
|
4G/5G Antenna Connectors
|
4 x SMA antennas |
|---|---|
|
Wi-Fi Antenna Connectors
|
2 x RP-SMA antennas |
|
Bridge Mode
|
Yes |
|
Cellular Module
|
5G NR |
|
Ethernet Interface
|
1 x WAN/LAN GE 3 x LAN GE |
|
IPv6
|
Cellular IPv6 |
|
LAN
|
DHCP Server/Relay |
|
Local Management
|
Web UI/SSH |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Power Input
|
3-pin TB for DC 12V-36V |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 4FF Nano-SIM |
|
SMS Notification
|
Yes |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular/Ethernet |
