Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router


  • състоянието на продукта: End of Life

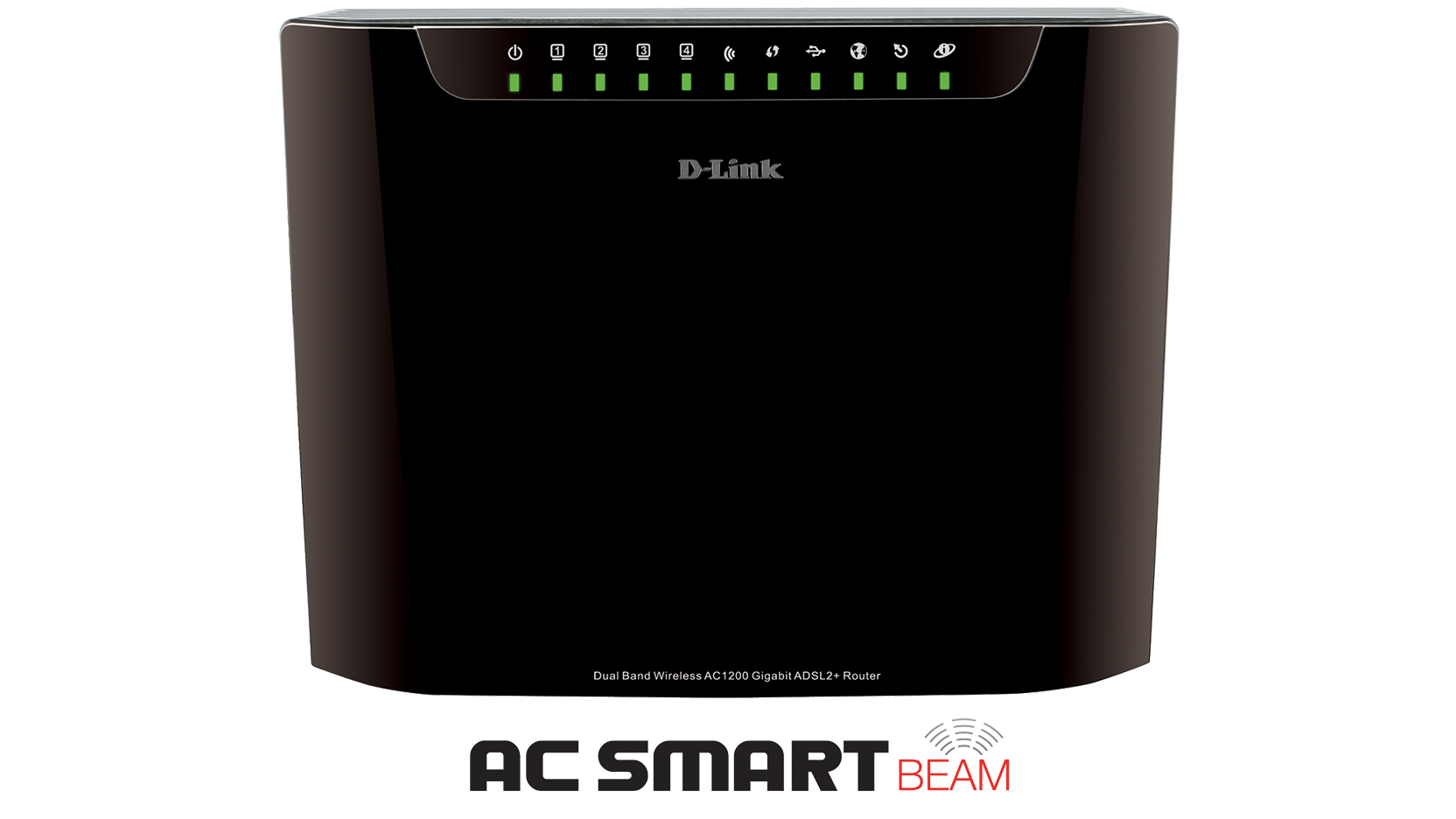

The DSL-3580L Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router is everything you need for high-speed Internet access for your entire home. It combines an ADSL2+ modem and high-end wireless AC router to create a single, easy to use device that creates and shares an Internet connection for all your devices.

Fast and Reliable Home Networking

The D-Link DSL-3580L Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router creates a blazing fast home network that connects all of your devices to your broadband Internet connection. Concurrent dual-band 802.11ac brings you the future of high-bandwidth wireless connectivity allowing you to stream HD video, make Internet voice calls, and surf the Internet from every corner of your home without interruption. Gigabit Ethernet ports provide high-speed wired connections for up to four PCs or other devices. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.

Greater Coverage and Speeds with the latest Wireless AC and Revolutionary AC SmartBeam™ Technology

The DSL-3580L uses the latest Wireless AC technology, which can provide transfer rates of up to 867 Mbps1. D-Link’s intelligent AC SmartBeam™ technology guarantees continuous blazing fast wireless speeds to all your devices, anywhere in your home, even under heavy network utilisation or in rooms that have bad wireless signal.
Faster gigabit wireless speeds allow you to download contents and sync files over 3 times faster1 than the previous standard and provide you with whole home coverage. The router operates on both the 2.4 GHz band and 5 GHz wireless bands at the same time using concurrent dual-band technology and six internal antennas. This allows you to browse the web, chat and e-mail using the 2.4 GHz band, while simultaneously streaming digital media, playing online games, or making Internet phone calls on the 5 GHz band.

Monitor and Manage Your Network from Anywhere with mydlink™3

The Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router allows you to use the secure mydlink™ web portal and mobile apps to remotely access, view, and manage devices on your home network no matter where you are. See who’s connected to your router, change settings, or block connections, all from any PC with an Internet connection, or an iOS or Android mobile device. Parents can monitor what sites their children are visiting, and can stay informed and in control wherever they are.

Share a Storage Drive or Printer Easily

Connect a USB storage device to the DSL-3580L to create a shared storage space, making it easy to share music, movies and documents between computers and devices connected on your home network. Plug in a USB hard drive and access your library of videos and music from your laptop. You can even customise your shared storage space by creating separate accounts to control access to the USB drive, so you can share your music with everyone but keep your personal files private. You can also connect a USB multifunctional printer to share printing and scanning functions, allowing a single printer to be shared with an office or a household.
1. Maximum wireless signal rate derived from IEEE Standard 802.11 and draft 802.11ac specifications. D-Link makes no warranties as to forward compatibility with future standards or compatibility with draft 802.11ac devices from other manufacturers. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2. To benefit from Wireless AC speeds, connected device must support 802.11ac standard
3. Please make sure you upgrade to the latest firmware available from the product downloads section

Подобни продукти

Безжичен АС двубандов USB адаптер
Разбери повече
AC600 MU-MIMO Wi-Fi USB Adapter
Разбери повече

Технически характеристики

Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz

867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Wired interface
1 x Gigabit Ethernet WAN

4 x Gigabit Ethernet LAN

Advanced features

Този продукт ще бъде прекратен на: 18/09/2016
Последната дата на поддръжка на този продукт е: 18/09/2018
Версия Дата Тип Размер на файла
Datasheet - PDF 0.73mb Свали
Версия Описание Дата Тип Размер на файла
Product manual A2

Product manual A2

30.11.2014 г. PDF 4.02mb Свали
Product manual A1

Product manual A1

23.10.2013 г. PDF 5.65mb Свали
Версия Описание Дата Тип Размер на файла

Quick installation guide

23.10.2013 г. PDF 0.85mb Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
Firmware Release notes included 2.00

Release notes included

6.11.2014 г. - Свали
DSL-3580L firmware 1.01 DSL-3580L firmware 14.3.2014 г. - Свали
Версия Описание Дата
Setup Wizard for Windows

Setup Wizard for Windows

2.7.2015 г. Свали
Версия Описание Дата

CE declaration

23.10.2013 г. Свали
CE doc Revision A1 CE document 30.9.2013 г. Свали
CE doc 3.00 Revision A2 CE document 30.9.2013 г. Свали
DEU_mydlink_routers_cheat_sheet_RevA mydlink routers cheat sheet - Свали
