Гигабитово Smart смарт управляемо наблюдение PoE+ суичове

DGS-1100 Series

  • състоянието на продукта: End of Sale

The DGS-1100 MP Series Gigabit Smart Managed Surveillance PoE+ Switches of:

  • DGS-1100-10MP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, 130W PoE budget, fan)
  • DGS-1100-26MP: 26-Port Gigabit Max PoE Smart Managed Switch including 2 comb ports (24 x PoE ports, 370W PoE budget, fan)

The world’s first PoE switch with ONVIF support specifically designed for Video Surveillance applications. This allows it to recognise ONVIF devices and integrate seamlessly with your surveillance network.

With the surveillance optimised web interface, you can access real-time information on your surveillance network such as surveillance topology and device status, as well as PoE power and network bandwidth utilisation.

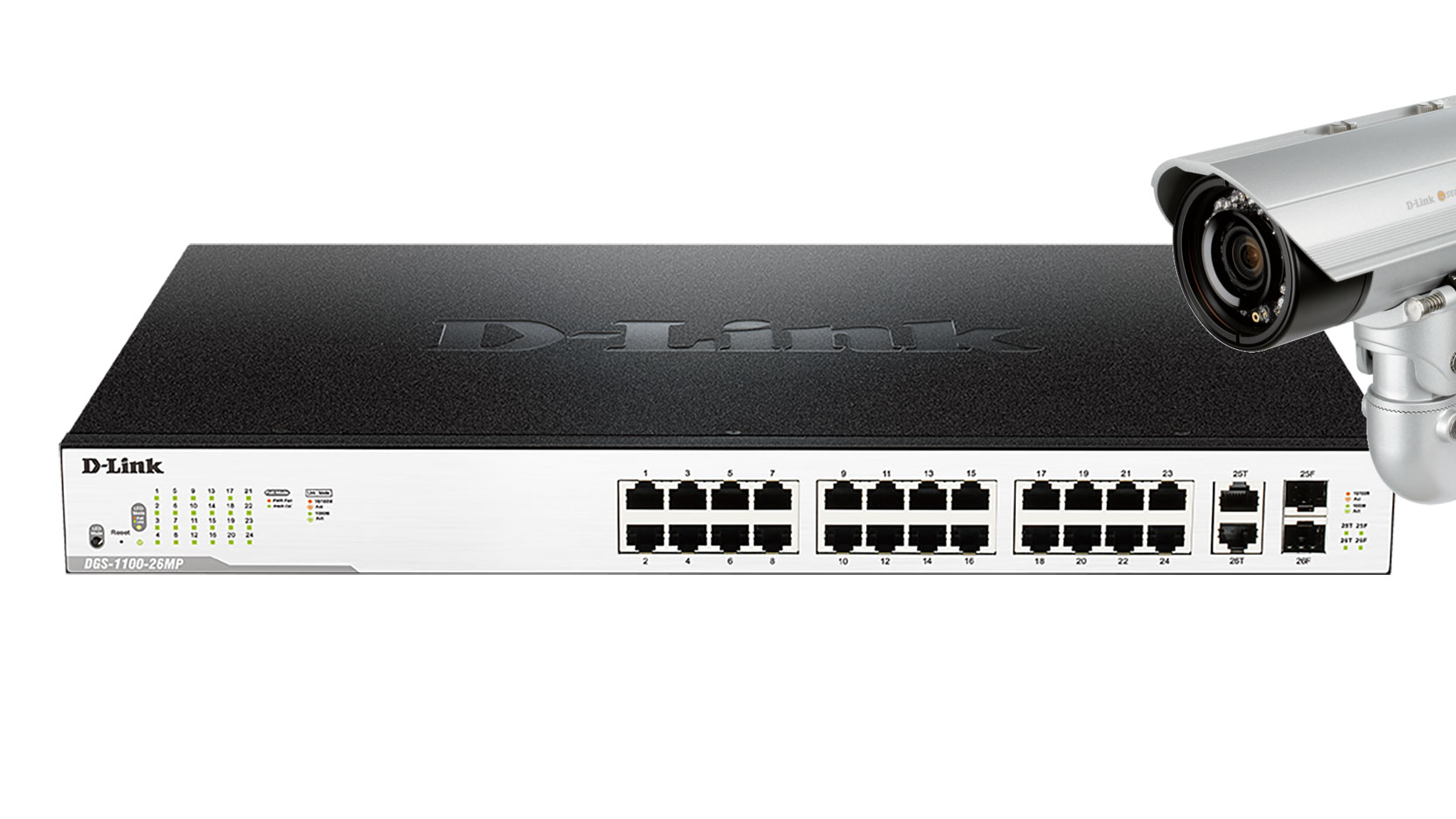

Auto Surveillance VLAN (ASV) function ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.

The DGS-1100 MP Series offer high PoE power budget suitable for powering multiple network cameras. The 10-port DGS-1100-10MP supports up to 30W on eight ports with a power budget of 130W, whereas the DGS-1100-26MP provides 24 PoE-enabled ports, a power budget of 370W, and all PoE-enabled ports support up to 30W.

The DGS-1100 MP Series supports an intuitive D-Link Network Assistant Utility and a web-based management interface. The D-Link Network Assistant Utility allows customers to discover all switches in the D-Link Smart Managed Switch family within the same L2 network segment.


Подобни продукти

Интелигентни+ Управляеми Гигабитови Суичове
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Разбери повече
Гигабитови Smart управляеми суичове
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Разбери повече
D‑View 7 система за мрежово управление
DV-700
Разбери повече

Технически характеристики

Type
Smart managed
Number of ports
16 to 30 ports
5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP
SFP
Switching capacity
20 Gbps
52 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
24
8
PoE power budget
See datasheet
See datasheet
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Rackmountable
MAC address
8K
Link aggregation
802.3ad
VLAN group (max static)
32
VLAN type
Port-based
Advanced VLAN
Auto Surveillance VLAN
Auto Voice VLAN
Number of QoS queues per port
4
Bandwidth control
64 Kbps minimum granularity
Този продукт ще бъде прекратен на: 07/05/2021
