Гигабитови Smart управляеми суичове
DGS-1210 Series
- състоянието на продукта (Revision G): Live
- Free centralised management with Nuclias Connect
- Layer 2 management and security
- Web-based User-Interface
- PoE options up to 193W power budget
- Dual config files
- Limited-Lifetime Warranty after registration
Свалете таблицата с характеристики.
Where to buy
Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.
Fibre Uplink Ports
Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.
Surveillance Mode Interface
D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.
PoE Capable
Up to 370 W PoE output per switch
VLANs
Segment your network into VLANs.
С увеличаване на захранването през Ethernet (PoE) и разширените функции на 2 слоя, серията DGS-1210 предлага икономично и гъвкаво решение за разширяване на всяка бизнес мрежа.
Изключителни функции Layer 2
Фибро ъплинкове
Фиброъплинковете включват разширено управление, както и функции за сигурност, които осигуряват производителност и мащабируемост, което го прави подходящ за бизнес употреба.
PoE
Серията DGS-1210 включва набор от високопроизводителни комутатори с възможност за пускане на потребление на енергия за фирми, търсещи захранване на VoIP телефони, безжични точки за достъп или мрежови камери.
Free Network software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Енергоспестяване
Като включват технологията D-Link Green, превключвателите на серията DGS-1210 са способни да пестят енергия, без да се жертват оперативните характеристики или функционалността.
Surveillance mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
Тук сме, за да помогнем
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Комуникацията с нас е лесна
Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

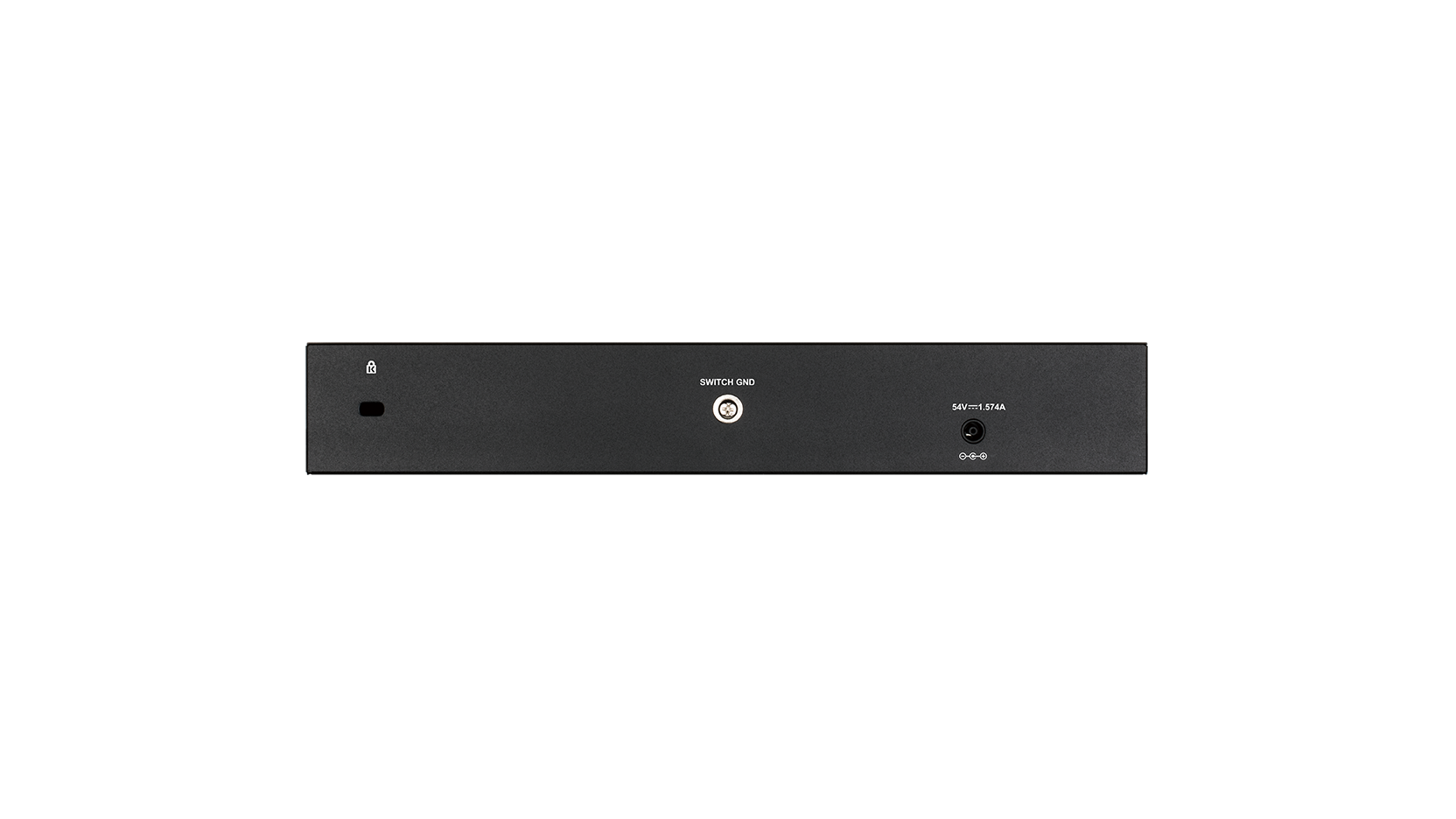

Интелигентната серия DGS-1210 включва:
· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 65W power budget
· Fanless

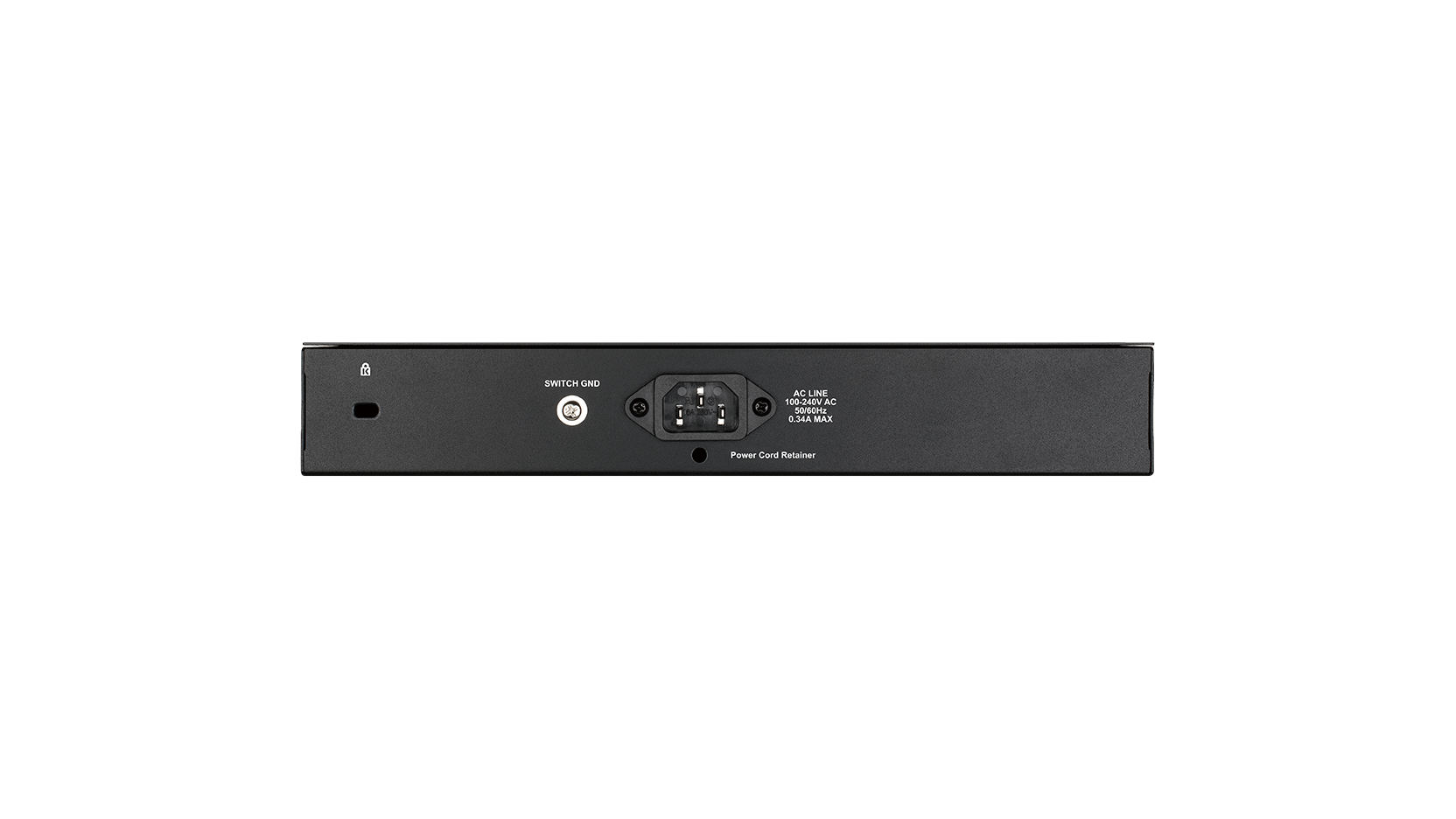

· 16 x 1000Base-T
· 4 x Combo
· Fanless

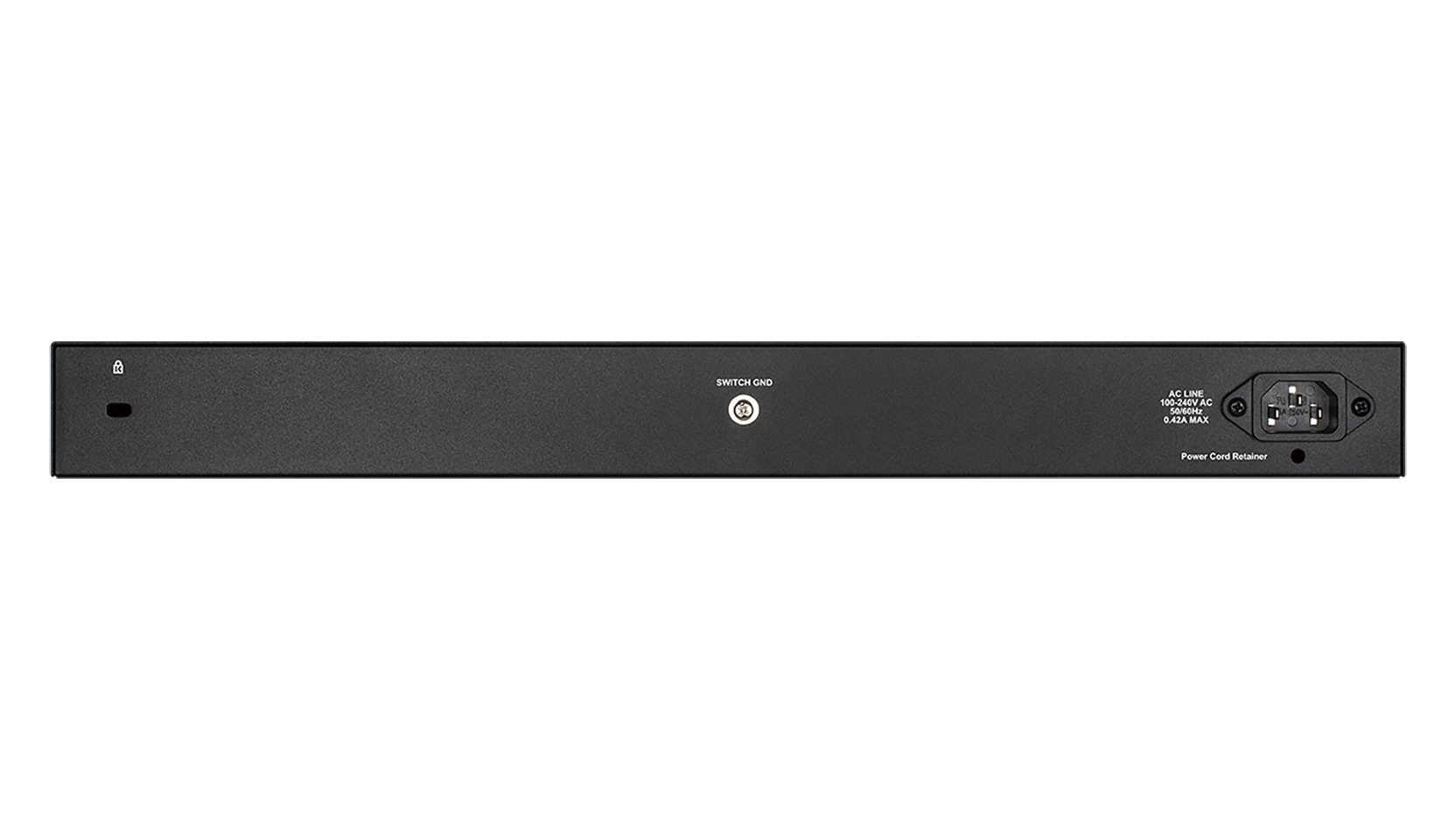

· 24 x 1000Base-T
· 4 x Combo
· Fanless
· 24 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 193W PoE budget

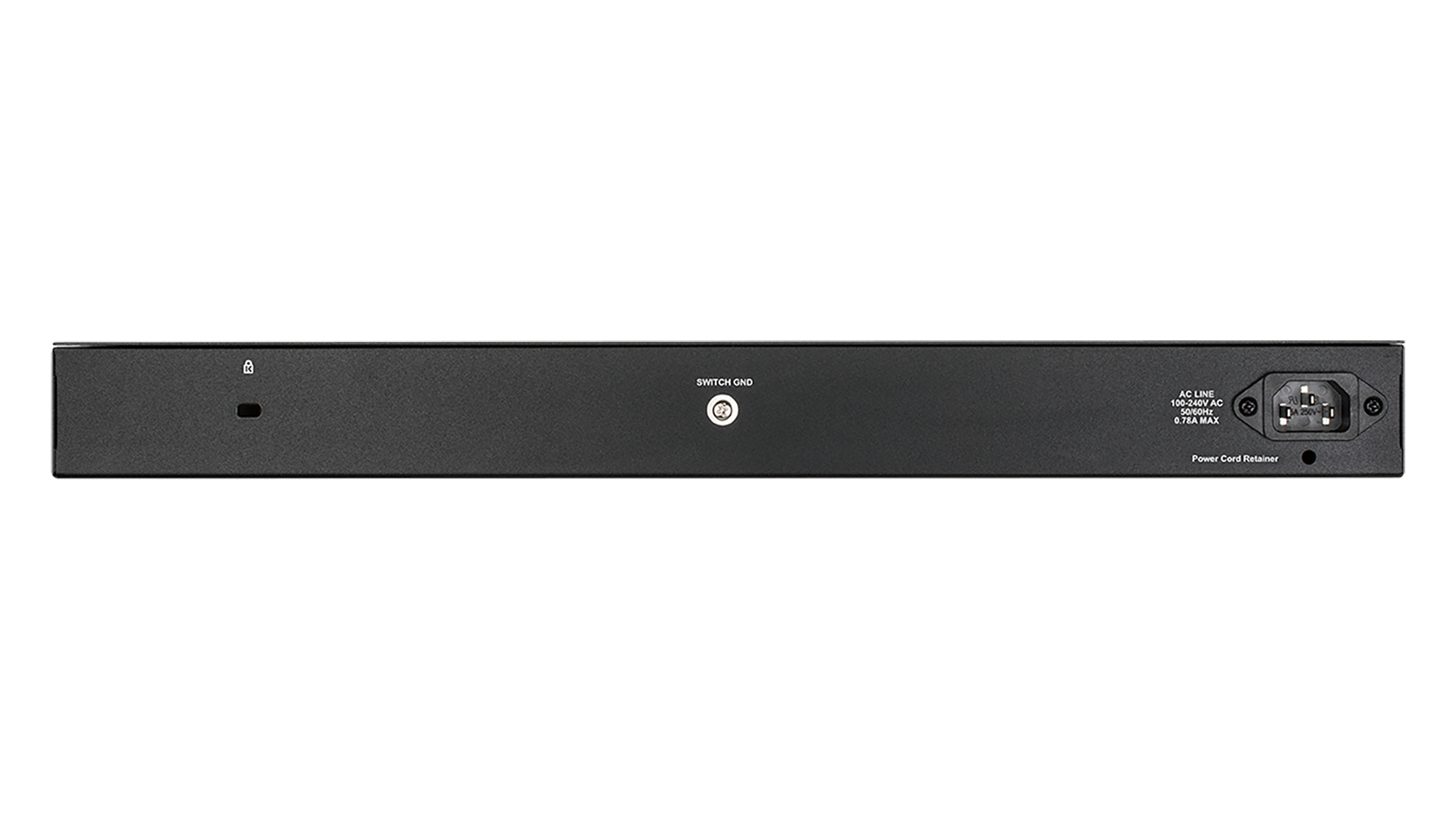

· 48 x 1000Base-T
· 4 x Combo
· Fanless
Подобни продукти
Технически характеристики
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
|
Layer
|
Layer 2 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Type of uplink ports
|
Combo 1000BASE-T/SFP SFP |
|
Switching capacity
|
20 Gbps 40 Gbps 96 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 8 |
|
PoE power budget
|
See datasheet See datasheet |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Desktop Rackmountable |
|
MAC address
|
16K 8K |
|
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
256 |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
15 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
ACL based on packet contents
|
Supported
|
|
Encryption protocol supported
|
SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
