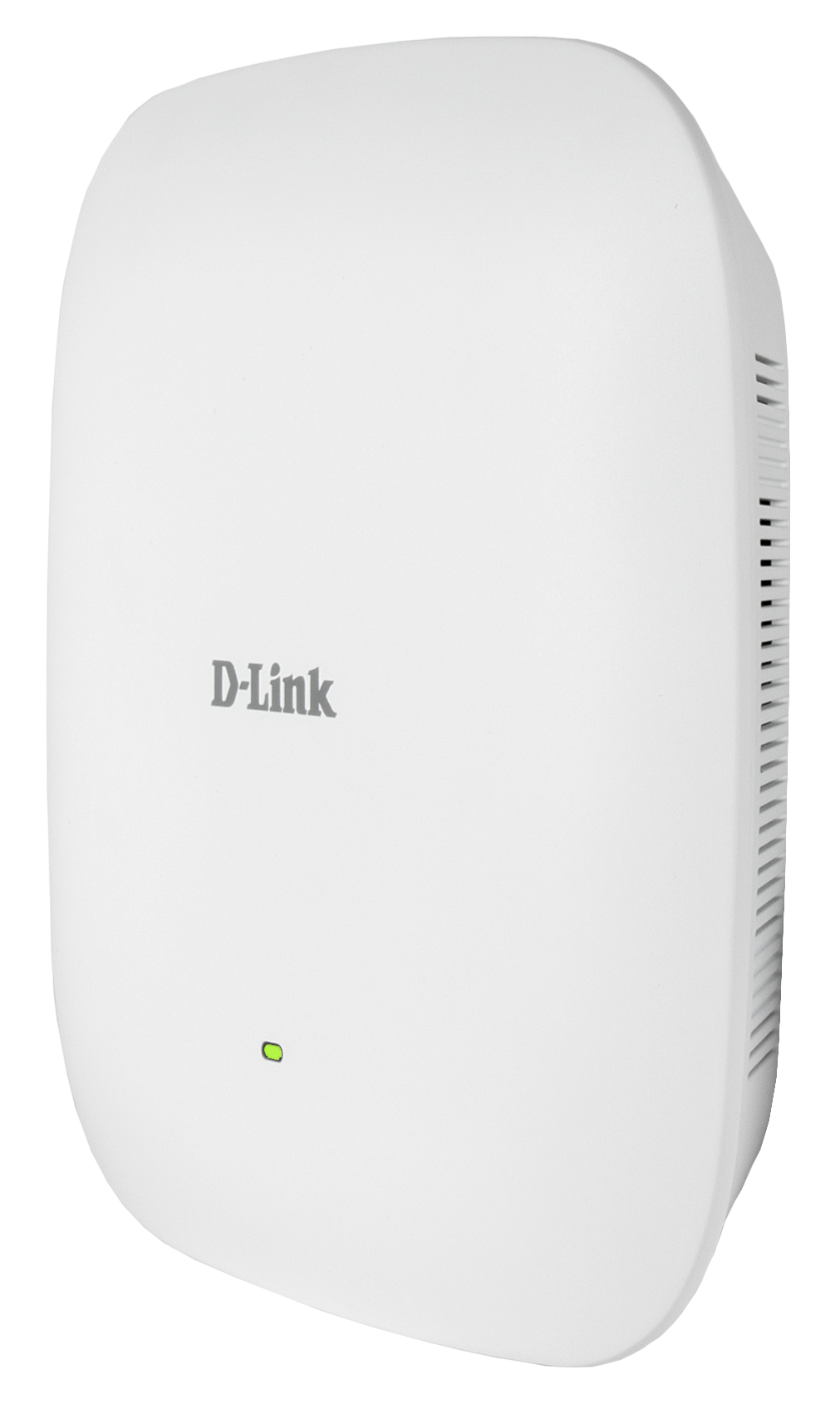

AX3600 Wi-Fi 6 Dual-Band PoE Access Point

DAP-X2850

  • състоянието на продукта (Revision A1): Live
  • Manage with Nuclias Connect
  • Next-gen Wi-Fi 6
  • Dual-band, 4x4 MIMO, band-steering & airtime fairness
  • 2.5 Gigabit Uplink
  • Free-to-download software & app
  • Flexible installation with PoE
  • Made for IoT

Свалете таблицата с характеристики.

Where to buy

Business-class Wi-Fi 6.

The Wi-Fi 6-ready DAP-X2850 provides businesses of all sizes with multi-gigabit speeds, significantly increased capacity and interference-free coverage, with centralised management. Ideal for SMB, retailers, hospitality, campuses, and managed service providers that need to keep data flowing, even in the most device-dense areas.

Manage your business network with ease.

The DAP-X2850 works with Nuclias Connect - a software-based management platform (with optional hardware controller) that can be used on-premises, or as a cloud solution hosted on a public cloud service. Admin tasks can be swiftly carried out from the Nuclias Connect app, or server/PC-based software for easy access, automation, and network scalability.

Learn more
Easily manage your network with Nuclias Connect

Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.

Next-gen Wi-Fi 6

Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards

2.5 Gigabit Uplink

x2 LAN ports (2.5G / 1G) offer an expansive backhaul to your wired network, eliminating bottlenecks at the AP

Free-to-download software & app

Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app

Flexible installation with PoE

Supports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.

Intelligent, secure performance

Superior throughput with dual-band, 4x4 MIMO technology, band steering & airtime fairness intelligently manages users with WPA3™ wireless encryption

Minimise the hassle of admin tasks

Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly, even across multiple sites, and utilise the intuitive dashboard to keep issues to an absolute minimum.

Made for IoT

Target Wake Time (TWT) reduces power consumption of Wi-Fi 6 and IoT devices.

Next-gen Wi-Fi 6 performance that turbo boosts your business.

With combined Wi-Fi 6 802.11ax speeds of up to 3,600 Mbps, the DAP-X2850 enables large data transfers and superior quality video streaming, even in highly congested environments.

Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards.

Optimised Wi-Fi for a superior client experience.

The DAP-X2850 supports Band steering, 4x4 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.

Multiple Operation Modes.

The DAP-X2850 can be configured to your network needs and optimise performance.

- Access point
- Wireless distribution system (WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client

Simple and clean installation, anywhere.

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2850’s PoE function allows for easy installation with a single cable. Perfect for advanced installations in areas where power outlets are not readily available.

Advanced and customisable on‑premise network management.

Nuclias is a unified network management tool with cost-effective scalability, customisable controls, and is designed as a solution for every type of business.

Efficient multi‑site management.

Manage multiple sites easily by setting authority levels for head and branch-level offices and setting different configurations. Network devices can be pre-configured before being dispatched to regional offices, allowing faster and more efficient deployments.

Manage your business network, like never before.

Nuclias Connect enables you to manage and control your network from anywhere with an Internet connection. It provides an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance through the intuitive interface via a browser or the app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network, and to the level of a single AP.

Learn more

Your Guests Online in No Time with a Captive Portal.

Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.

Scale your Wi-Fi alongside your business.

Nuclias Connect gives you the financial and technical flexibility to expand from a small network to up to 1,000 Access Points while retaining a robust and centralised management system.

Learn more

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

Как Nuclias Connect може да ви помогне

Независимо дали е новосъздадена малка фирма или голямо предприятие, което трябва да обнови съществуваща мрежа, Nuclias Connect посреща нуждите на всякакъв размер фирми от различни икономически сектори. Вижте как.

Малки фирми и големи предприятия

Подобрявате управлението на вашата компютърна мрежа, правите го по-лесно и го автоматизирате. Разбирате всичко за нея с един поглед.

Търговски вериги

Получавате аналитични данни, с които се разгадават моделите на поведението на клиента.

Училища

Пускате устройствата в действие бързо и ефективно със специална защита на поверителността.

Хотели

Потребление в реално време и справки за минали дати, часове и обекти.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Комуникацията с нас е лесна

Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Подобни продукти

Wireless AC2300 Wave 2 Dual-Band PoE Access Point
DAP-2682
Разбери повече
Nuclias Connect
DNC-100
Разбери повече
Nuclias Connect Hub
DNH-100
Разбери повече
Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points
DAP-3666
Разбери повече

Технически характеристики

Type
Software Managed AP
Wireless standard
802.11ax Wi Fi 6
Frequency band mode
Dual-band simultaneous
Wireless speed
1147 Mbps 2.4 GHz
2402 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3.5 dBi for 2.4 GHz
5.5 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x 2.5GBASE-T LAN
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
802.11k/r Roaming
MU-MIMO
SmartBeam
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Версия Дата Тип Размер на файла
Datasheet EN - PDF 1.05mb Свали
Версия Описание Дата Тип Размер на файла
Manual 1.01 RevA1 Product Manual 2.9.2022 г. - - Свали
Manual 1.00 RevA1 Product Manual 31.5.2021 г. - - Свали
Версия Описание Дата Тип Размер на файла
QSG 1.02 RevA1 Quick Setup Guide 26.2.2024 г. - - Свали
QIG 2.00 RevA1 Quick Install Guide 6.2.2024 г. - - Свали
QSG 1.01 RevA1 Quick Setup Guide 11.5.2021 г. - - Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
1.10 Firmware 9.3.2022 г. - Свали
Версия Описание Дата
Nuclias Connect Free remote centralised network management software 9.9.2019 г. Свали
Версия Описание Дата
CE doc UKCA 1.00 RevA1 CE Document 14.5.2021 г. Свали
