Wireless AC2300 Wave 2 Dual-Band PoE Access Point

DAP-2682

  • състоянието на продукта (Revision A1): Live
  • 802.11ac Wave 2 wireless, up to 2.3 Gbps1
  • MU-MIMO with beamforming
  • Band steering
  • x2 Gigabit PoE-capable LAN ports
  • Free D-Link Nuclias Connect software
  • Limited Lifetime Warranty

Свалете таблицата с характеристики.

Where to buy

Fast, business-class Wave 2 Wi-Fi.

Designed for medium businesses or enterprise environments, the DAP-2682 provides network administrators with fast, secure and manageable dual-band 802.11ac wireless, coupled with easy and free Nuclias Connect network management.

Strong security, with centralised network management

Use as a standalone AP or manage centrally via free Nuclias Connect software.

Wave 2 Wi-Fi with Band Steering

Fast wireless speeds of up to 2300 Mbps1. Automatically steers traffic to the fastest, least congested band.

MU-MIMO & Beamforming

Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.

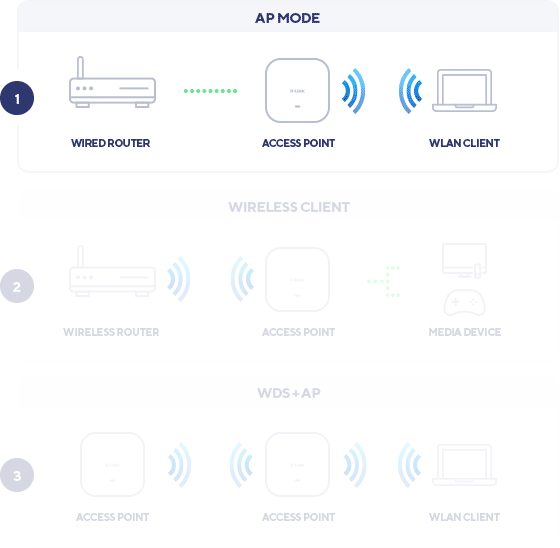

Multiple Operational Modes

Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).

Convenient management

Intuitive interface with instant alerts and live usage reports with integrated Google maps to show the locations of all devices in the network.

Free dedicated app

Free Nuclias Connect tablet app to instantly detect devices on the network and easy remote management from anywhere.

Easy-mount setup with PoE

Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.

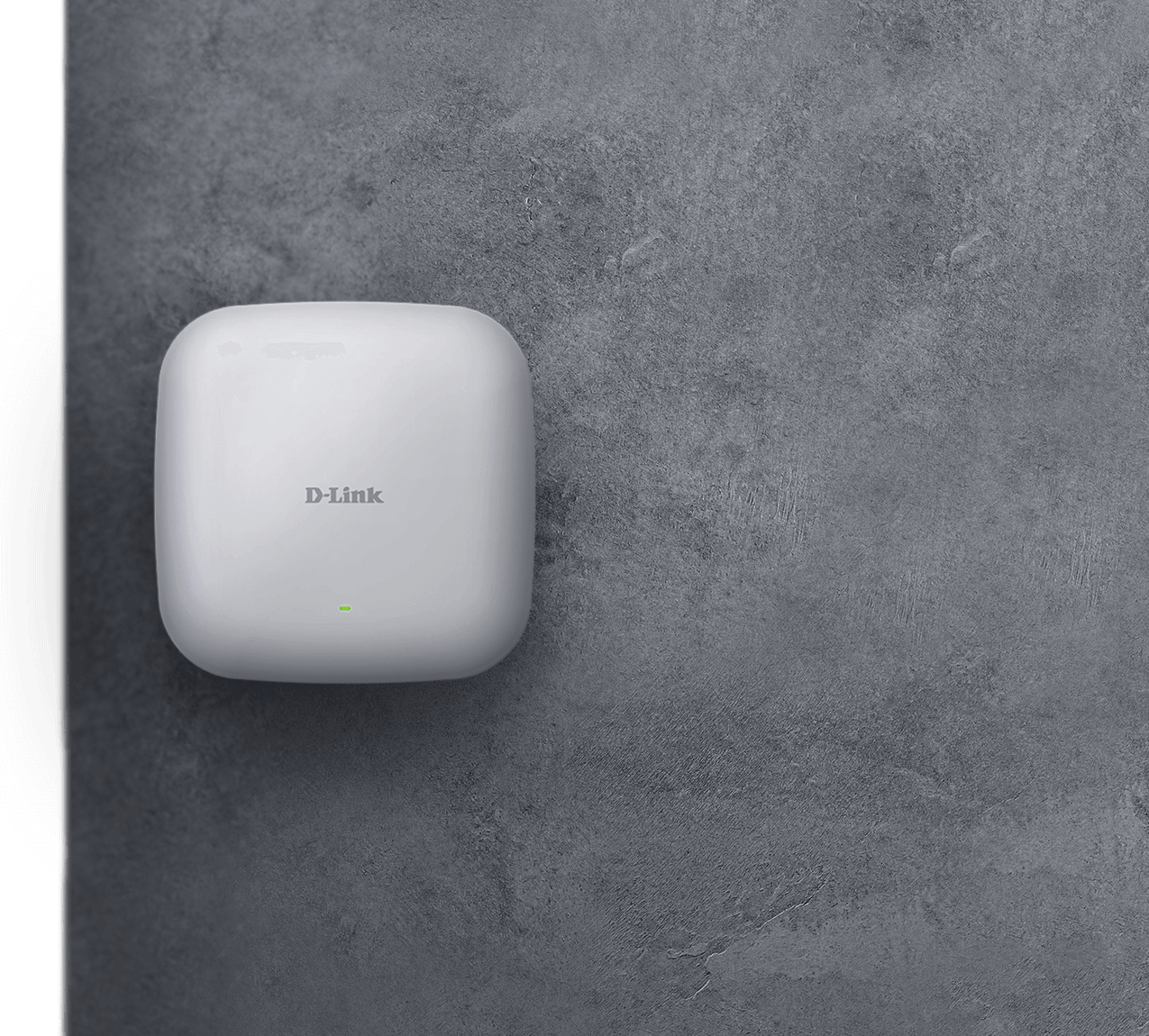

Simple installation.

It can be ceiling mounted, wall-mounted, or placed on a desk. PoE support allows for easy deployments without needing to run extra power lines.

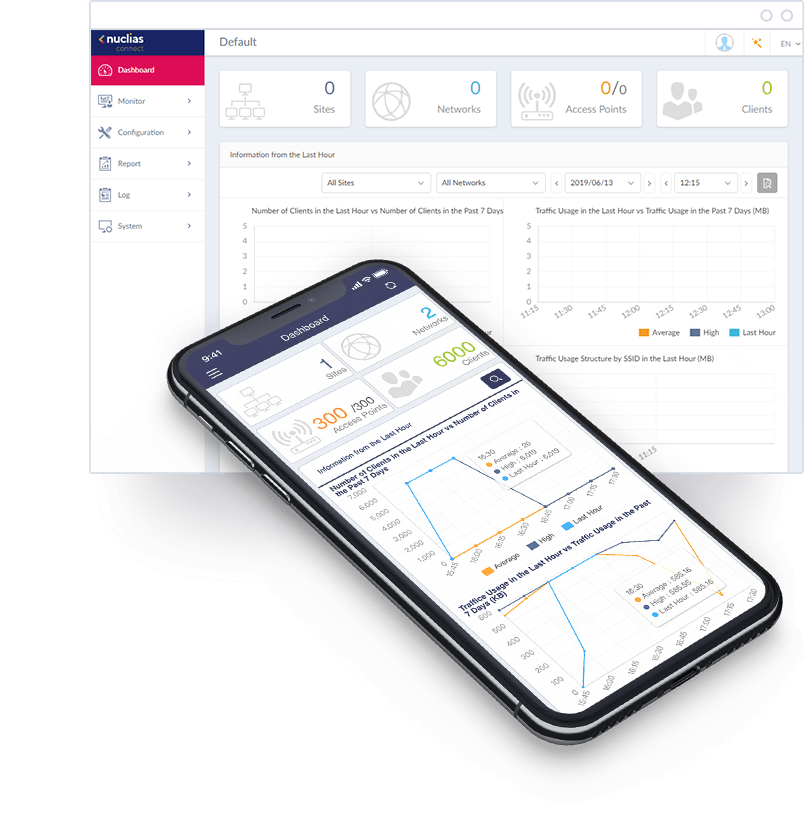

Free network management software.

Network administrators have multiple management options, including web GUI, Nuclias Connect software, Nuclias Connect mobile app, as well as traditional SSL/SSH and Telnet. D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) is easy to use and provides centralised management.

Download button for the Google Play Store.  Download button for the Apple App Store.


Learn more about Nuclias Connect

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

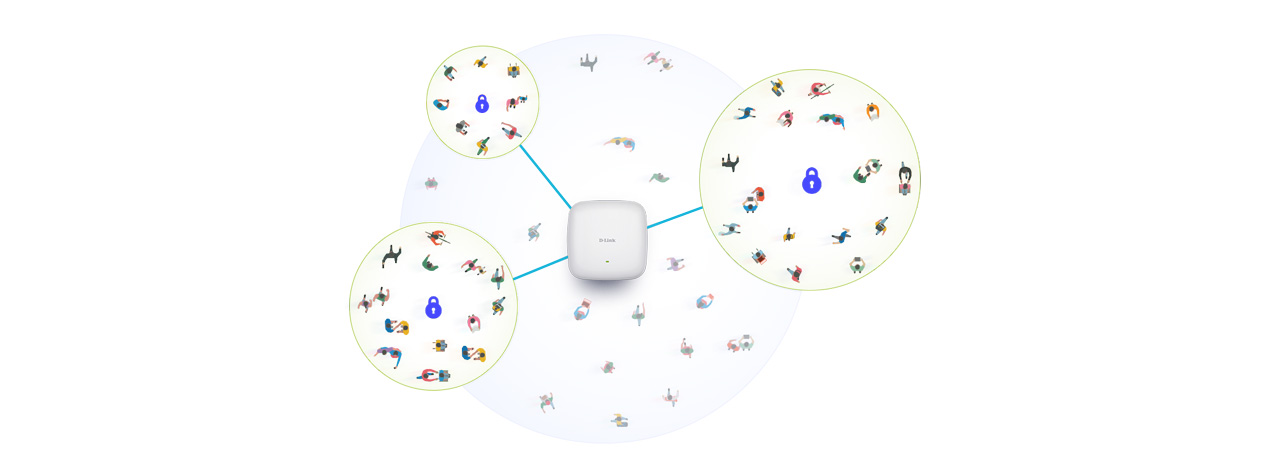

Seamlessly connect entire crowds to a safer and faster internet.

It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.

Your network, your way.

Customise the network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

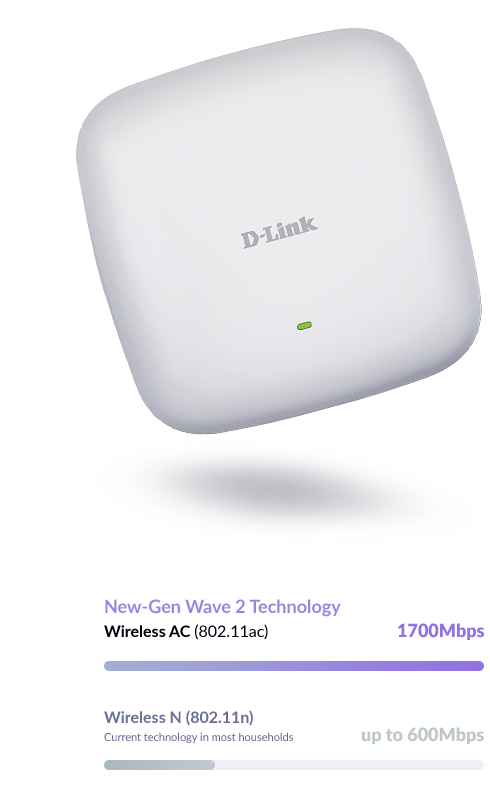

Reliably faster Wireless AC performance.

Delivers reliable wireless speed with maximum wireless signal rates of up to 600 Mbps in the 2.4 GHz band and 1700 Mbps in the 5 GHz band, and also optimises your network’s performance with Quality of Service (QoS), MU-MIMO, Band Steering and Beamforming.

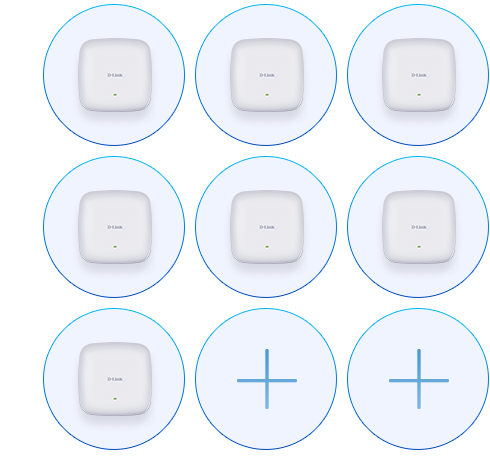

Scale your Wi-Fi alongside your business.

The free Nuclias Connect management software controller allows you to scale up the network by up to 1,000 access points2, providing a cost-effective network that can be tailored to the demands of the business.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Комуникацията с нас е лесна

Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Подобни продукти

Nuclias Connect
DNC-100
Разбери повече
Nuclias Connect Hub
DNH-100
Разбери повече
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
Разбери повече
Wireless AC1750 Wave 2 Dual-Band PoE Access Point
DAP-2680
Разбери повече

Технически характеристики

Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
1700 Mbps 5 GHz
600 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3.7 dBi for 2.4 GHz
4.8 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
MU-MIMO
SmartBeam
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer  with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.
3 Maximum of 1,000 APs is for software controlled. DNH-100 has a maximum capacity of 100 APs per hub.
