Features

Connectivity

  • Share your 3G/4G connection with up to 32 devices
  • Uses a SIM/UICC card to connect to the Internet
  • Four 10/100 Ethernet LAN ports to connect wired devices
  • Optional WAN port for fixed line broadband
  • 802.11n/g/b wireless

Security Features

  • Industry standard WPA/WPA2 encryption to help protect wireless traffic

Firewall

  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)


Technical Specifications

General

Frequency Support1

  • LTE Bands:
    • Release 10, Cat 4: Band 1/3/7/8/20 (800/900/1800/2100/2600 MHz)
  • Pentaband UMTS/HSPA/HSPA+/DC-HSPA+
    • Bands 1/2/3/5/8 (850/900/1800/1900/2100 MHz)
  • Quadband GSM/GPRS/EDGE
    • 850/900/1800/1900 MHz

Data Throughput2

  • LTE Mode
    • Downlink: Up to 150 Mbps
    • Uplink: Up to 50 Mbps
  • DC-HSPA Mode
    • Downlink: Up to 42 Mbps
    • Uplink: Up to 5.76 Mbps

Standards

  • IEEE 802.11n/g/b
  • IEEE 802.3i
  • 802.3u

Wi-Fi Data Rates2

  • Up to 300 Mbps with 802.11n clients
  • 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode
  • 1/2/5.5/11 Mbps in 802.11b mode


Functionality

Wireless Security

  • 64/128-bit WEP (Wired Equivalent Privacy)
  • WPA & WPA2 (Wi-Fi Protected Access)
  • WPS (Wi-Fi Protected Setup)

Firewall

  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)

Advanced Features

  • L2TP/PPTP/IPSec VPN Passthrough
  • User configurable multi-WAN
  • DMZ (Demilitarized Zone)
  • Port/Application Forwarding
  • URL Filter
  • QoS engine (Quality of Service)
  • Scheduler
  • Virtual server
  • Two-way filtering


Physical

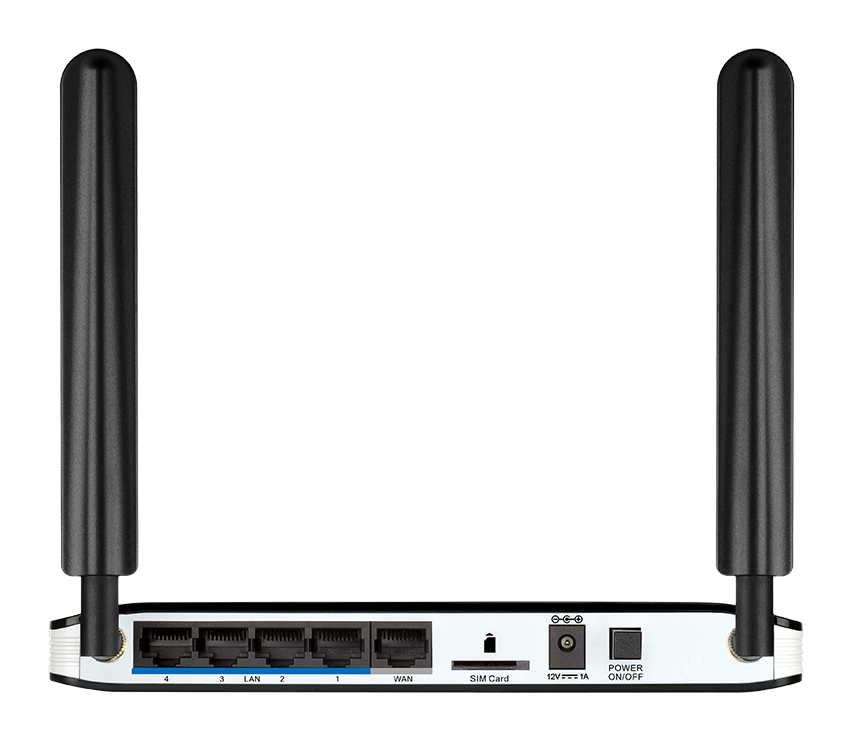

Device Interfaces

  • Four 10/100 Ethernet LAN ports
  • WAN (RJ-45) port
  • Wireless N Standard
  • Mini-SIM/UICC slot
  • Two detachable 3G/4G antennas

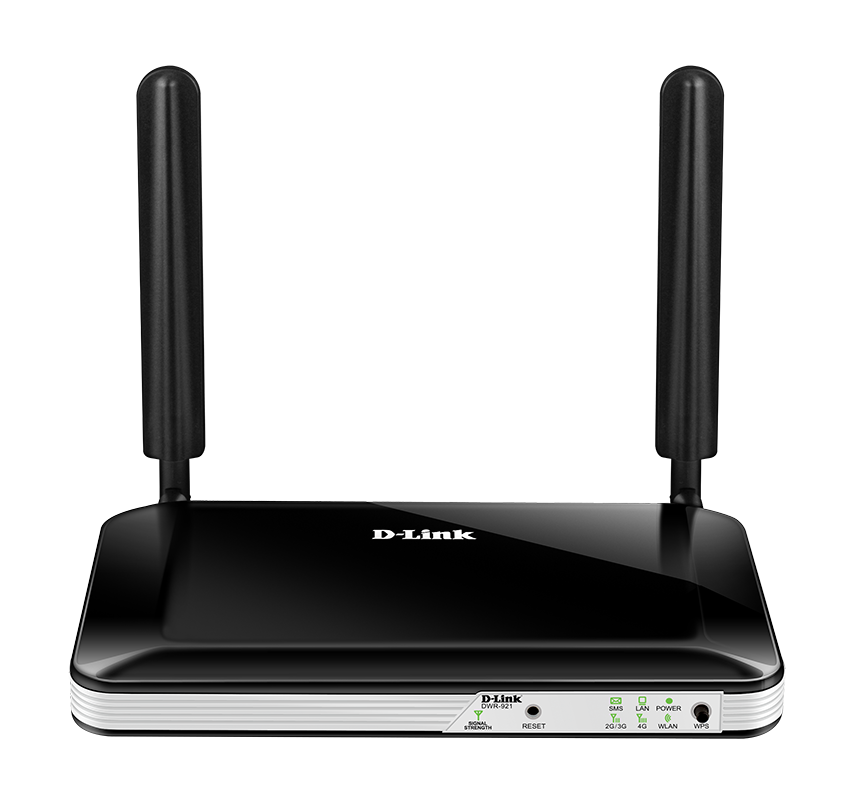

LED Status Indicators

  • Power
  • LAN
  • WLAN
  • 4G
  • 2G / 3G
  • Signal Strength

Dimensions

  • 190 x 116 x 22.4 mm (7.43 x 4.57 x 0.88 inches)

Weight

  • 295 g (0.65 lb)

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -10 to 70 °C (14 to 158 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 0 to 95% non-condensing

Certifications

  •  CE



1 Supported frequency bands are dependent on regional variants and may not be available in all markets.
2 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
3 Please check regional mobile operators for 4G LTE/3G mobile Internet availability.
