Downloads can vary across product revisions. Please select the correct hardware revision.

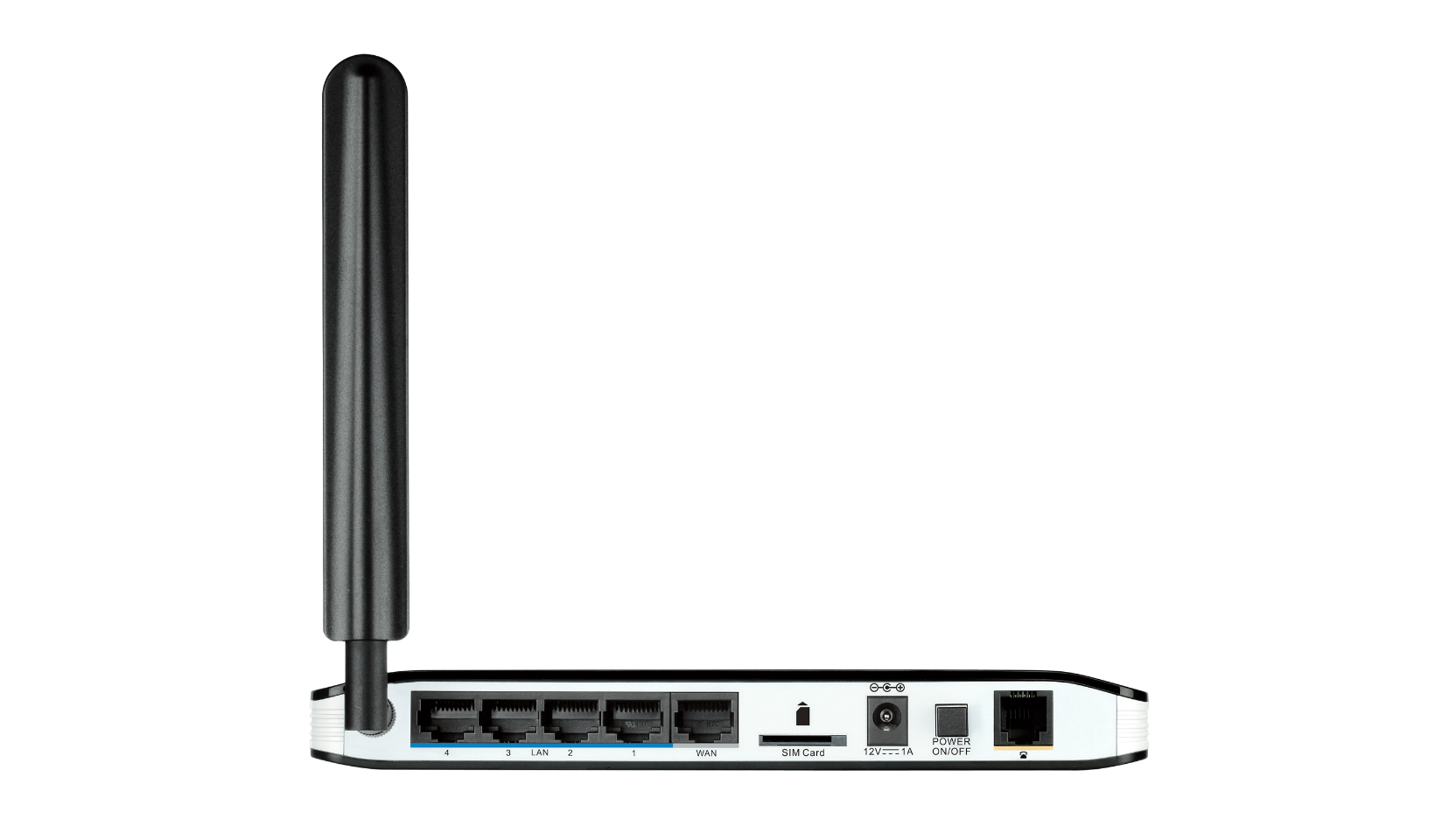

Hardware
  • 1x Fast Ethernet WAN port
  • 4x Fast Ethernet LAN port
  • 1x phone socket (RJ-11) for standard handset
  • Standard 6-pin SIM card slot, accepting UMTS/HSDPA SIM cards from any operator
  • External detachable 3G antenna
  • WPS button
  • Power on/off button
  • Reset button

Wireless

  • Wireless N 150 technology
  • Compatible with 802.11b/g/n wireless devices
  • Wireless Protect Setup (WPS) button
  • 64/128-bit WEP
  • WPA & WPA2

Security
  • Stateful Packet Inspection (SPI)
  • Network Address Translation (NAT)
  • IPSEC/PPTP/L2TP VPN pass-through

GSM band (GSM/GPRS/EDGE)

  • 900/1800/1900 MHz
  • Power Class 4 (900 MHz)
  • Power Class 1 (1800/1900 MHz)

UMTS/HSDPA/HSUPA band

  • 900/1900/2100 MHz
  • Power Class 3

Data rates
  • Wireless: up to 150 Mbps
  • 3G uplink: up to 7.2 Mbps
  • 3G downlink: up to 5.76 Mbps

Dimensions (L x W x H)
  • 190 x 119 x 22 mm

Operating temperature
  • 0 to 40 °C

Operating humidity
  • 10% to 90% (non-condensing)

Certifications
  • CE
  • FCC
  • Wi-Fi
