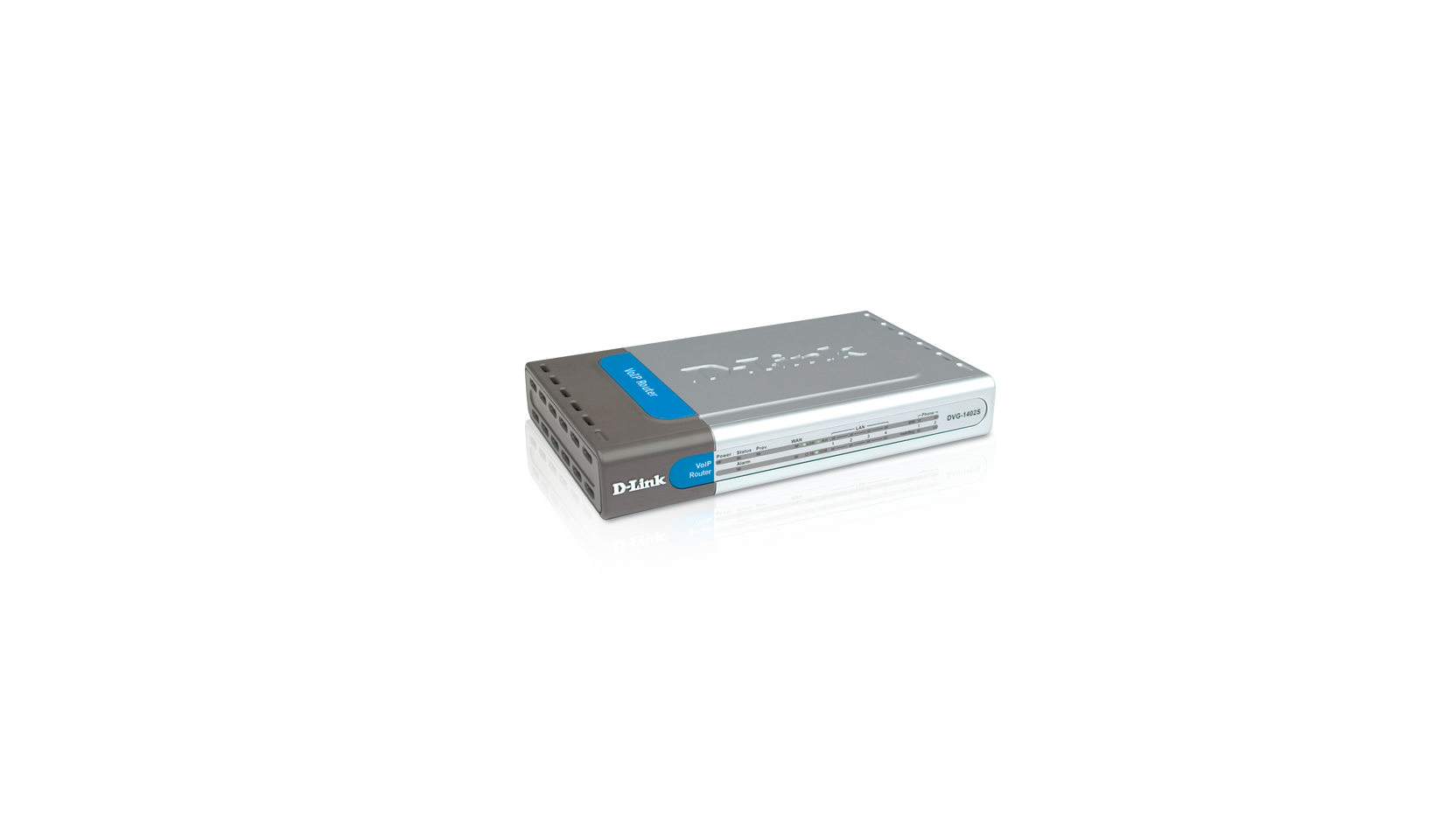

VoIP Gateway

DVG-1402S

  • Product Status (Revision A): End of Life

Specs

Download the datasheet.

Call Control Protocols Compliance
  • SIP2 (RFC3261)
  • SIP1 (RFC2543)

Voice Compression
  • G.711 (A-law and u-law), G.723.1, G.726, G.729a

Analog Voice Ports
  • Type: Loop-Start FXS interfaces
  • DTMF tone detection/generation
  • V.21/V.25 Modem/Fax tone detection
  • Echo Cancellation: G.168

Ethernet Ports
  • WAN/LAN: 10/100 Auto MDI/MDI-X Ethernet ports
  • IEEE 802.3 10BASE-T Ethernet compliance
  • IEEE 802.3u 100BASE-TX Fast Ethernet compliant

Quality of Service
  • Voice service is prioritized over the data traffic (When unit is connected directly to the modem)

Network Protocols
  • Will route all standard protocols
  • DHCP: Dynamic Host Configuration Protocol server and client
  • NAT: Network Address Translation
  • PPP over Ethernet Client

Network Management
  • Manage functions through an intuitive Web-based graphical user interface

Security
  • Administrative password through Web and Console. GUI and advanced features are password protected

LEDs General
  • Power
  • Status/Alarm

Ethernet
  • WAN: 10/100M,Link/Act
  • LAN: 10/100M, Link/Act

Phone 1 to 2
  • MWI
  • Hook/Ringing

Provision Lights
  • Dimensions : 7.58in (W) x 4.66in (D) x 1.22in (H)

Number of Ports
  • One 10/100BASE-T Ethernet port (WAN)
  • Four 10/100BASE-TX Fast Ethernet port (LAN)
  • Two loop-start FXS RJ-11 ports

Power Supply
  • AC-to-DC power adapter (provided)
  • DC Input: 12VDC/1.2A

Temperature
  • Operating: 0ºC to 50ºC
  • Storing: -10ºC to 55ºC

Humidity
  • 5%-95% non-condensing

Safety
  • UL/CUL

Emission (EMI)
  • FCC Class B
  • CE Class B

Warranty
  • 1 Year

FAQ

  • What is the default IP address of the DVG-1402S/DVG-G1402S? Read Answer
  • How do I upgrade the firmware of my DVG-1402S/DVG-G1402S? Read Answer

Support

This product was phased out on: 13/01/2010
This product's last date of support is on: 13/01/2012
Version Date Type File Size
Datasheet (English) - PDF 0.25mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 2.97mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 0.32mb Download
Version Description Date Type
Firmware DVG-1402S 1 Correct the 1.00.009

Firmware

DVG-1402S
1 Correct the logo issue
2 Resolved the configure MTU size also be reduced by 60 byte in the WEB

 31/08/2006 - Download
Version Description Date
DEU_CE_B2_RevA Certificate of Declaration B2 (English) 16/03/2006 Download
DEU_CE_A1_RevA Certificate of Declaration A1 (English) 01/07/2005 Download
