Downloads can vary across product revisions. Please select the correct hardware revision.

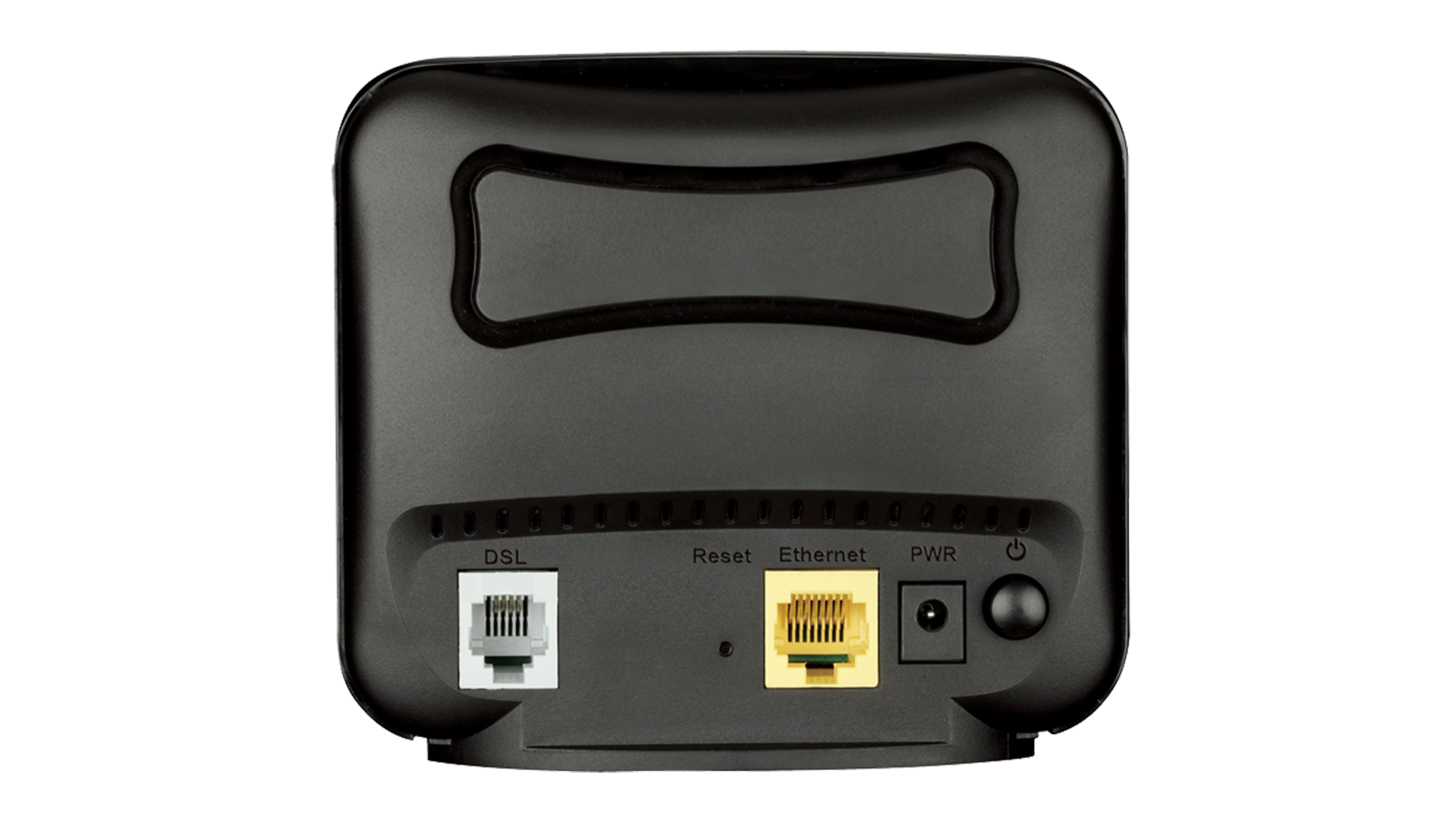

Interfaces
  • RJ-11 ADSL port
  • RJ-45 10/100BASE-TX Ethernet LAN port with auto MDI/MDIX
  • Factory reset button
  • Micro-filter included (UK only)

ADSL standards
  • Full-rate ANSI T1.413 Issue 2
  • ITU-T G.992.1 (G.dmt) Annex A
  • ITU-T G.992.2 (G.lite) Annex A
  • ITU-T G.994.1 (G.hs)

ADSL2 standards
  • ITU-T G.992.3 (G.dmt.bis) Annex A/L/M
  • ITU-T G.992.4 (G.lite.bis) Annex A
  • Annex M compatible: up to 2 Mbps upstream

ADSL2+ standard
  • ITU-T G.992.5 Annex A/M

Configuration/Management
  • D-Link Click’n Connect (DCC) easy set-up wizard
  • Web-based management

Warranty
  • 2-year warranty
