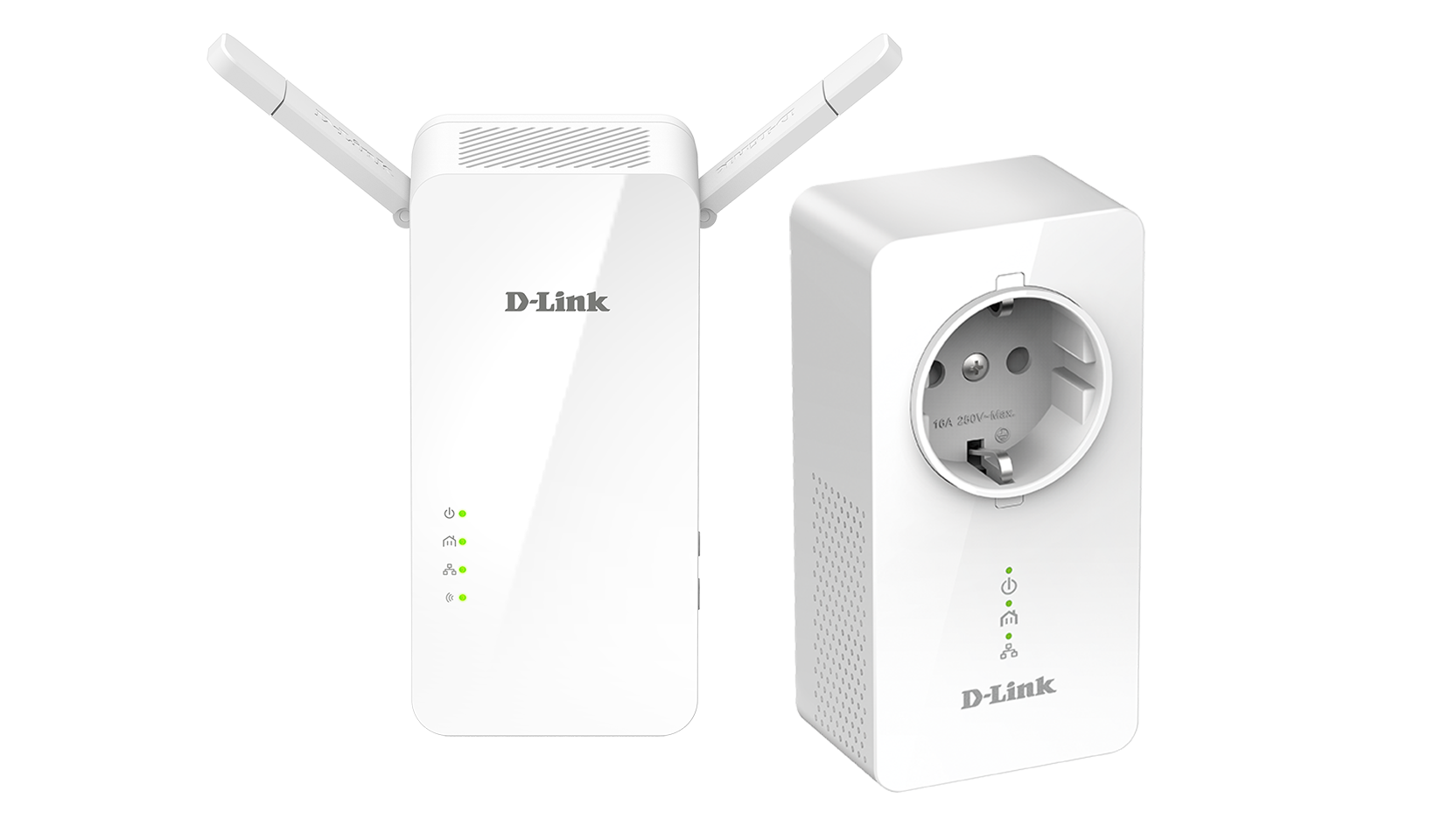

PowerLine AV1000 WiFi AC Starter Kit

DHP-W611AV

Share



Extend your network

Enjoy the convenience and reliability of an extended high-speed network throughout your entire home.

Featuring the latest HomePlug standard, Wireless AC technology and Gigabit Ethernet ports, it uses your home electrical wiring to extend your home network and Wi-Fi.



Super Easy

To set up your Powerline network, just plug the main unit into a power outlet and connect it to your Internet router, then plug the extender unit into another power outlet in any location in your home*.
It's that simple.







Top Performance

Stream 4K movies, music, download large files and enjoy a fast Internet connection anywhere in your home with AC Wi-Fi and Gigabit Ethernet.

Dual Band technology and Quality of Service (QoS) allow you to split and prioritise multimedia traffic over normal Internet traffic.







Complete Security

AES encryption secures your electrical wiring Powerline network connection.

Latest Wi-Fi security standards and a Simple Connect button ensure encrypted and secure wireless network traffic with no hassle.






* Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional units may be required to cover your entire home. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.
** Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV2 standard.
*** Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.

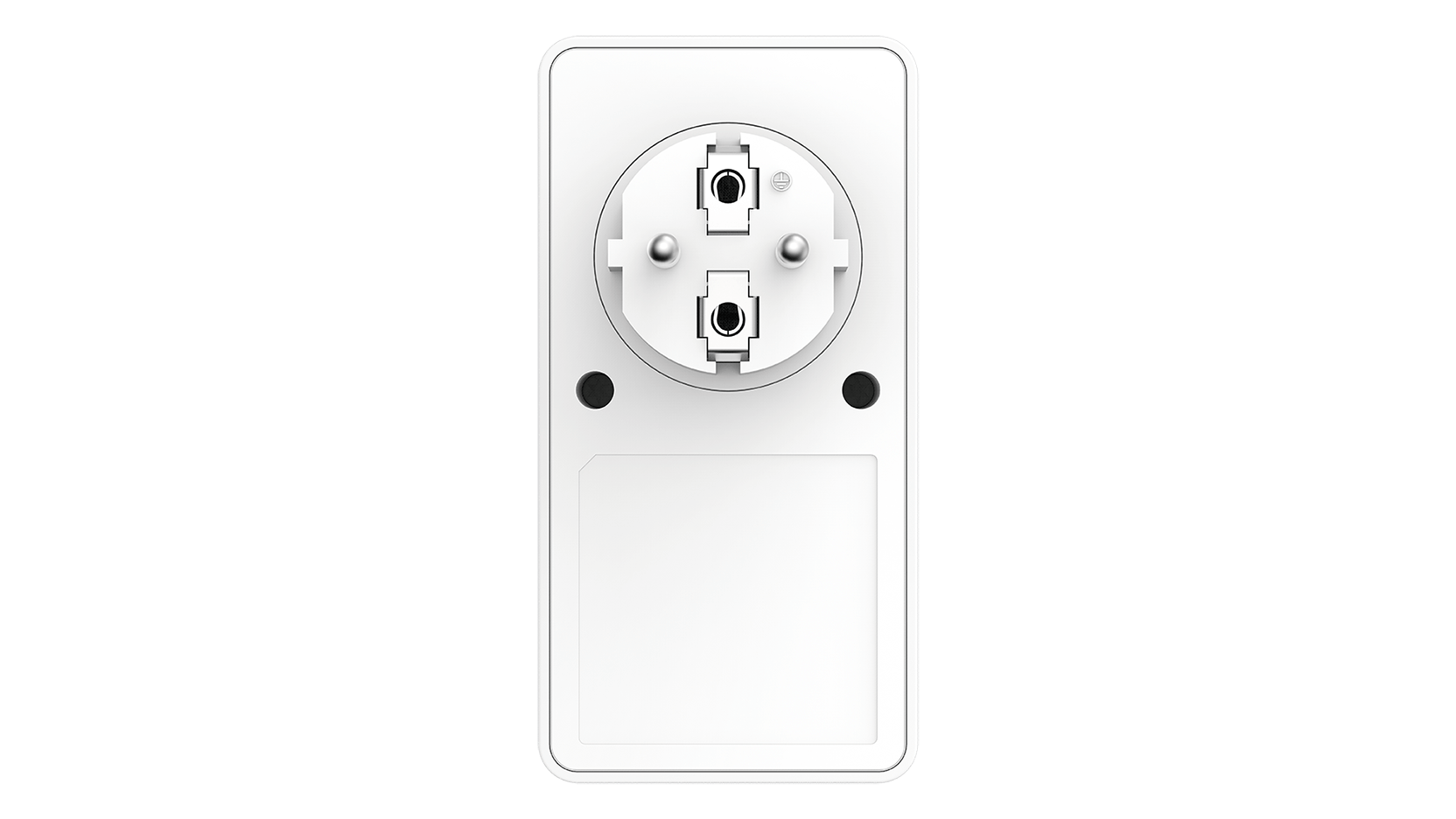

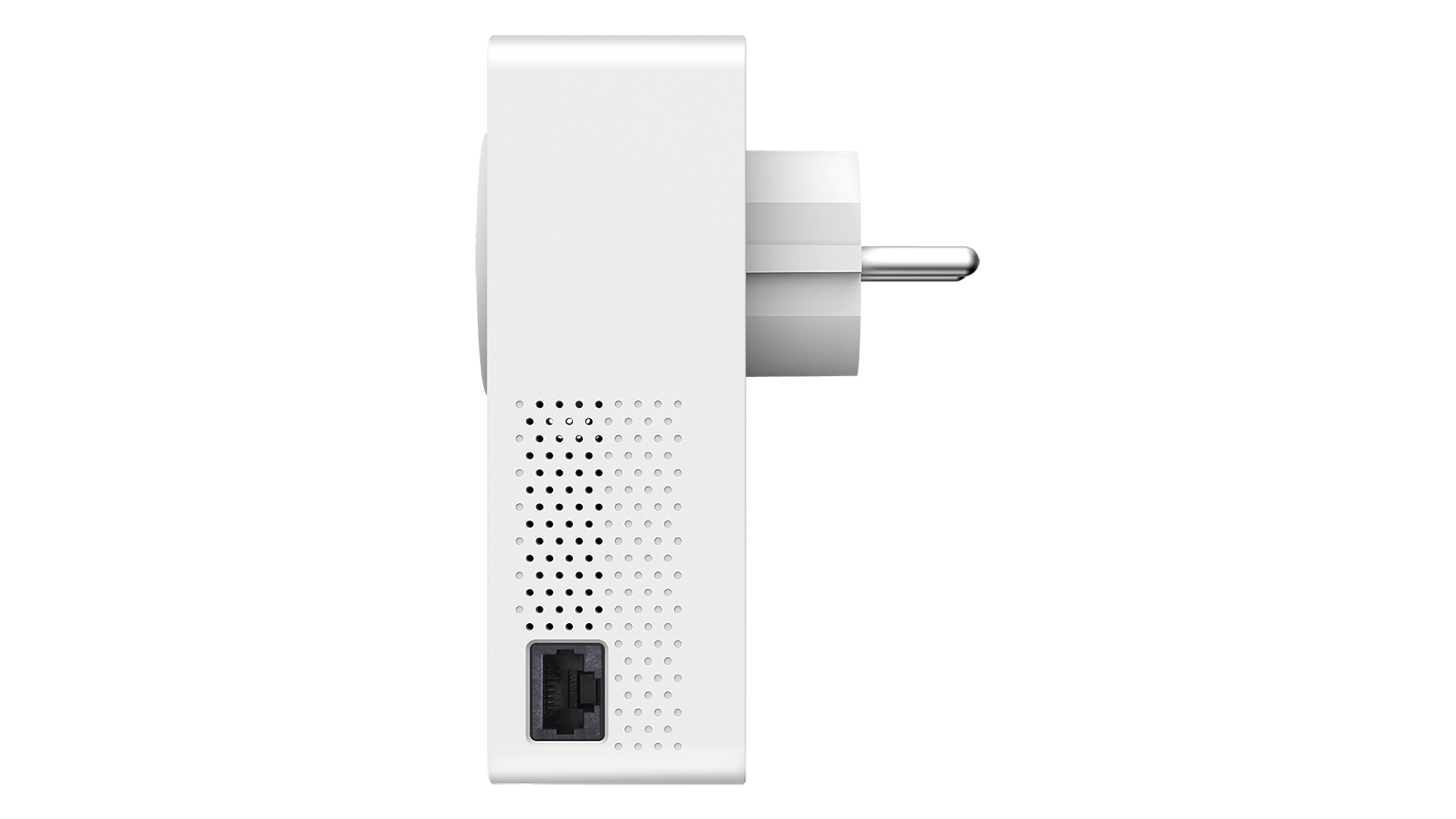

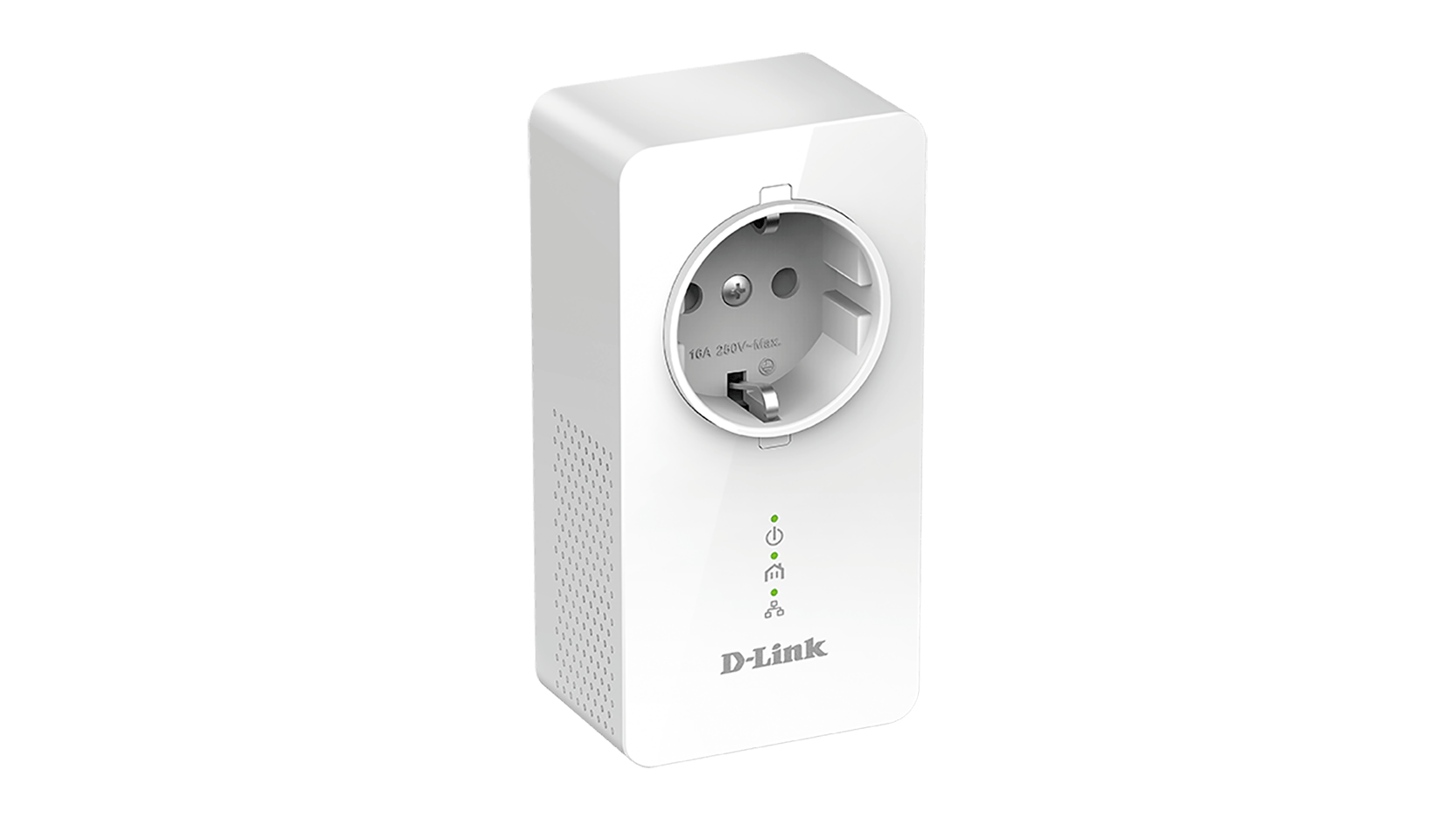

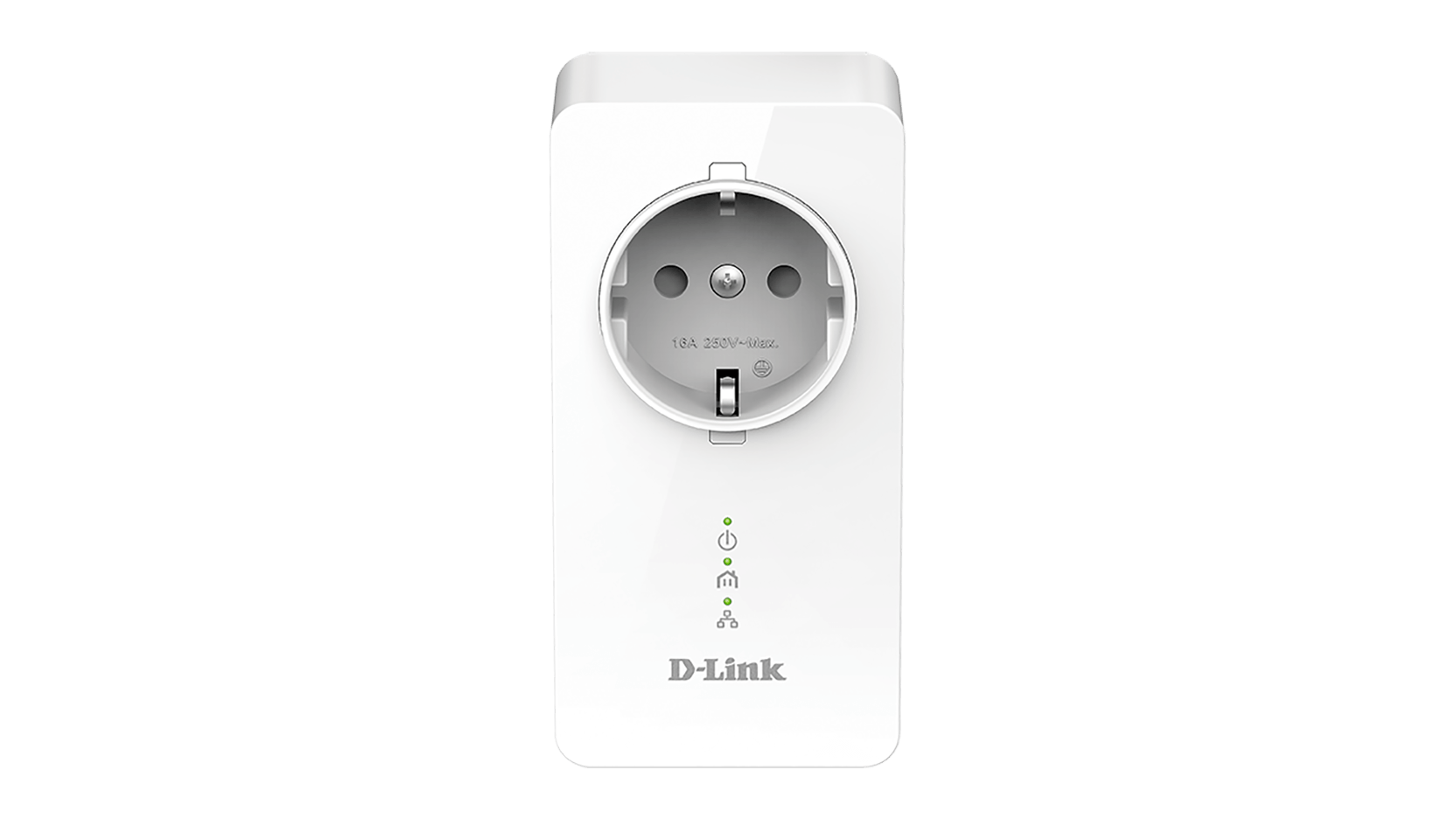

Technical Specifications (DHP-P610AV PowerLine AV1000 Gigabit Passthrough Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps

Network Interface

  • 10/100/1000 Ethernet port with auto MDI/MDIX

Other Interface

  • Simple Connect Button
  • Reset Button

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901

Security

  • 128-bit AES encryption

LEDs

  • Power
  • Ethernet
  • Powerline

Advanced Features

  • Power-saving mode
  • Compliant with European Energy Using Product Directive

Powerline Modulation Scheme

  • OFDM Symbol Modulation

Powerline Frequency Band

  • 2 to 86 MHz

Data Rate

  • Powerline: Up to 1000 Mbps (PHY rate)2
  • Ethernet: 10/100/1000 Mbps (auto negotiation)

Physical

Dimensions

  • 114 x 59 x 38 mm (4.49 x 2.32 x 1.50 inches)

Weight

  • EU Type: 188 g (6.63 ounces)

Passthrough Power Socket

  • EU Type: 250 V/16 A Maximum

Power Input

  • EU Type: 100 to 250 V AC, 50/60 Hz, 16 A

Power

  • Input: 100 to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 2.62 W
  • Network Standby: 2.23 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL

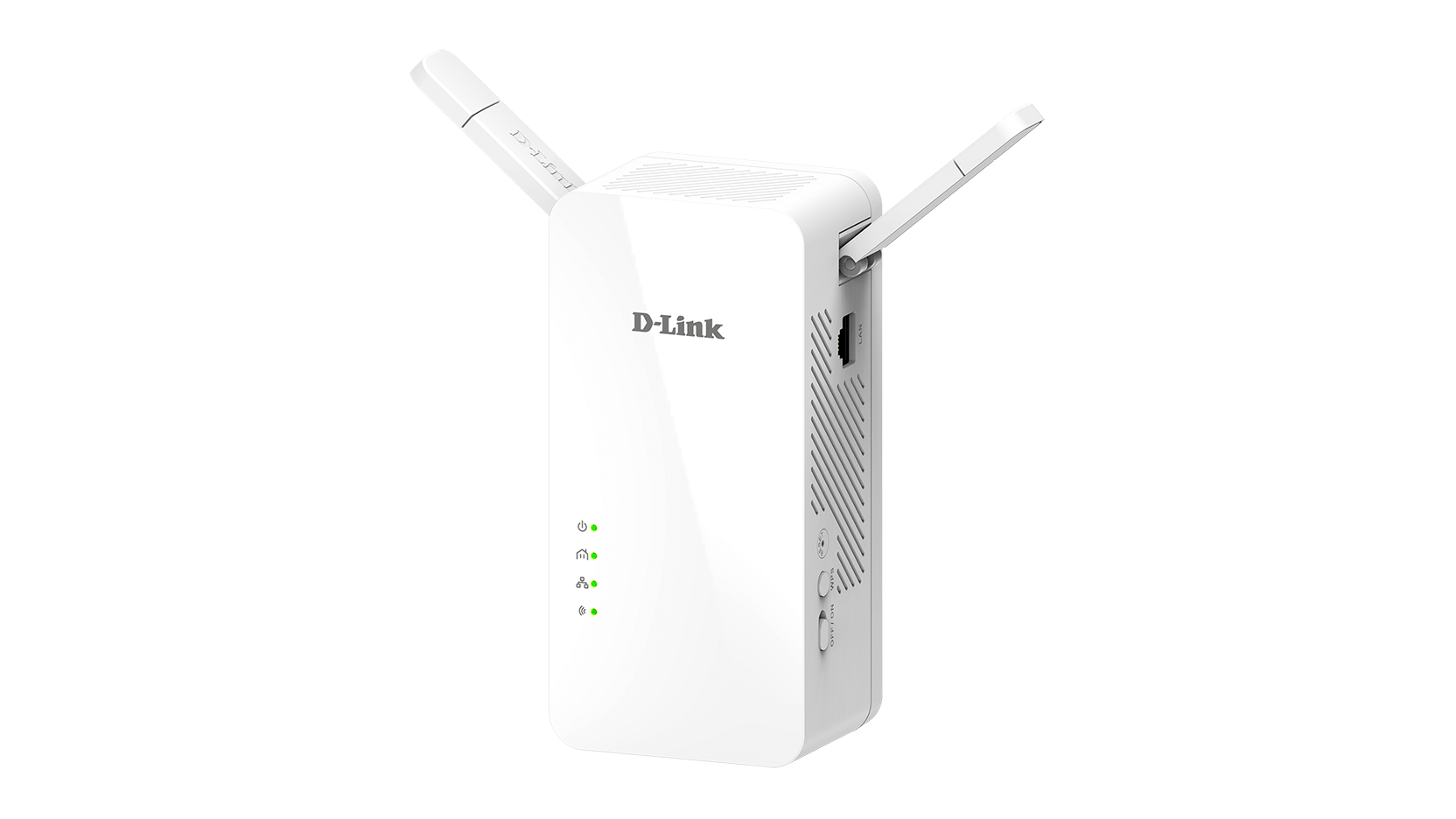

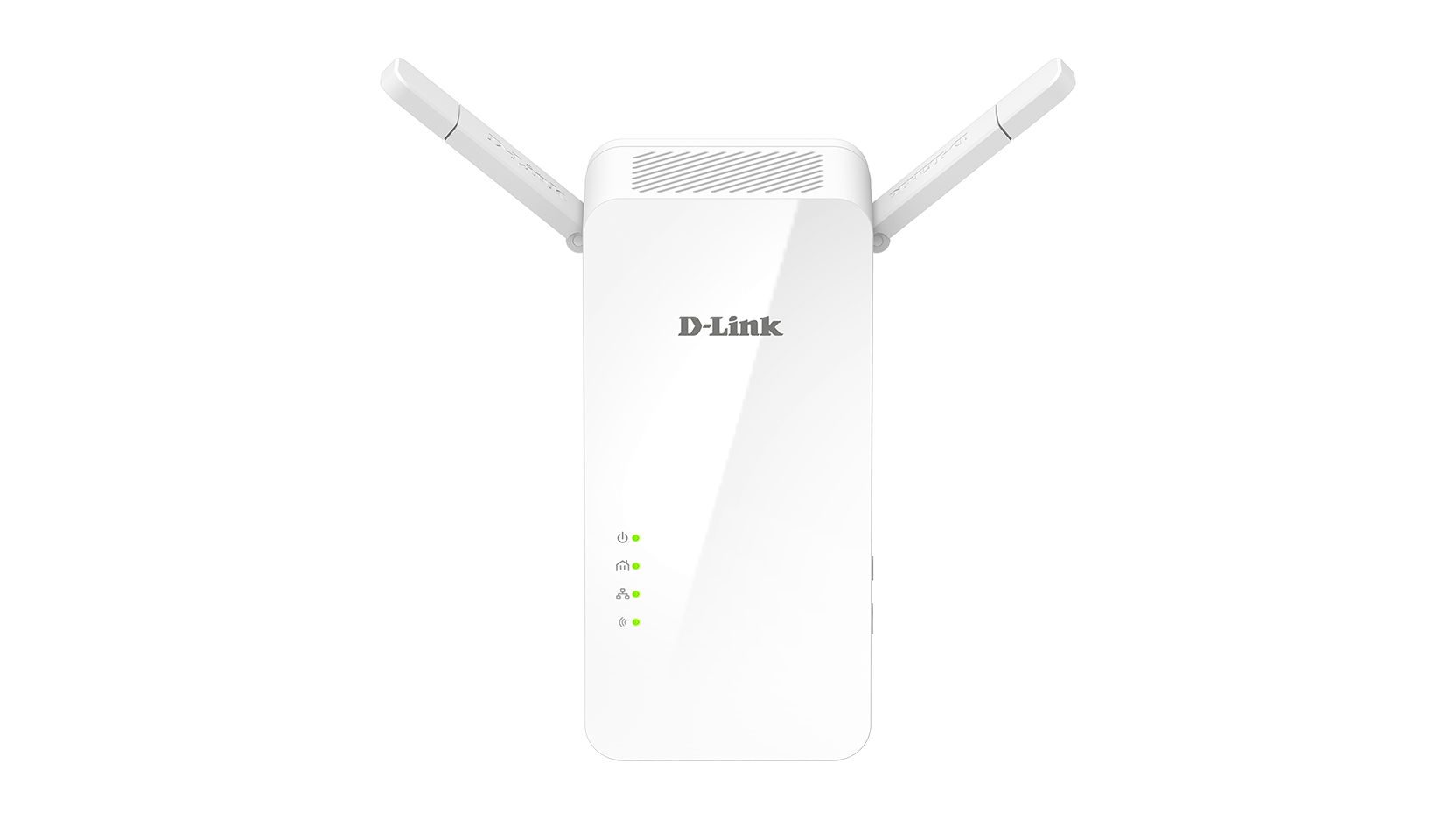

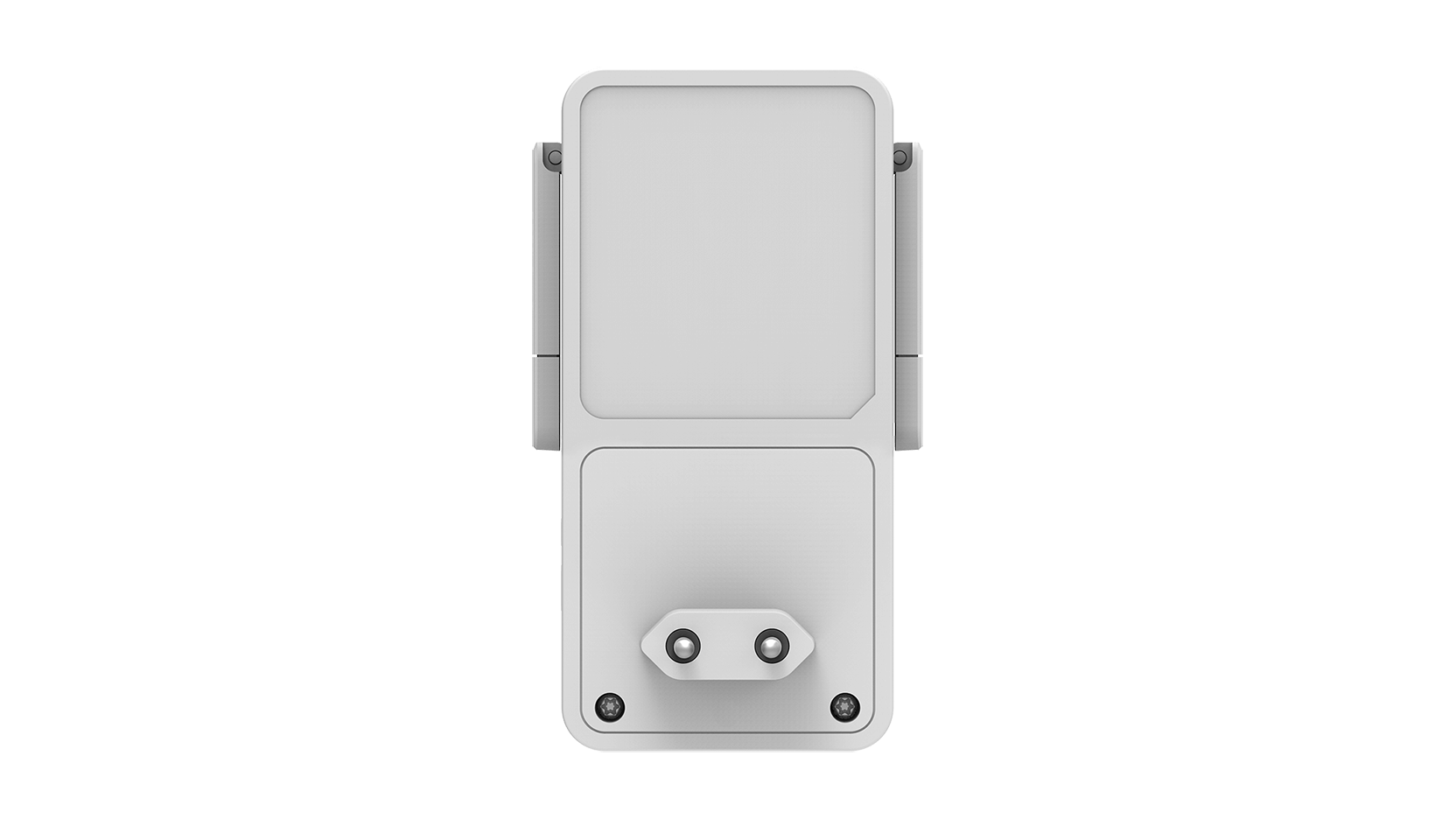

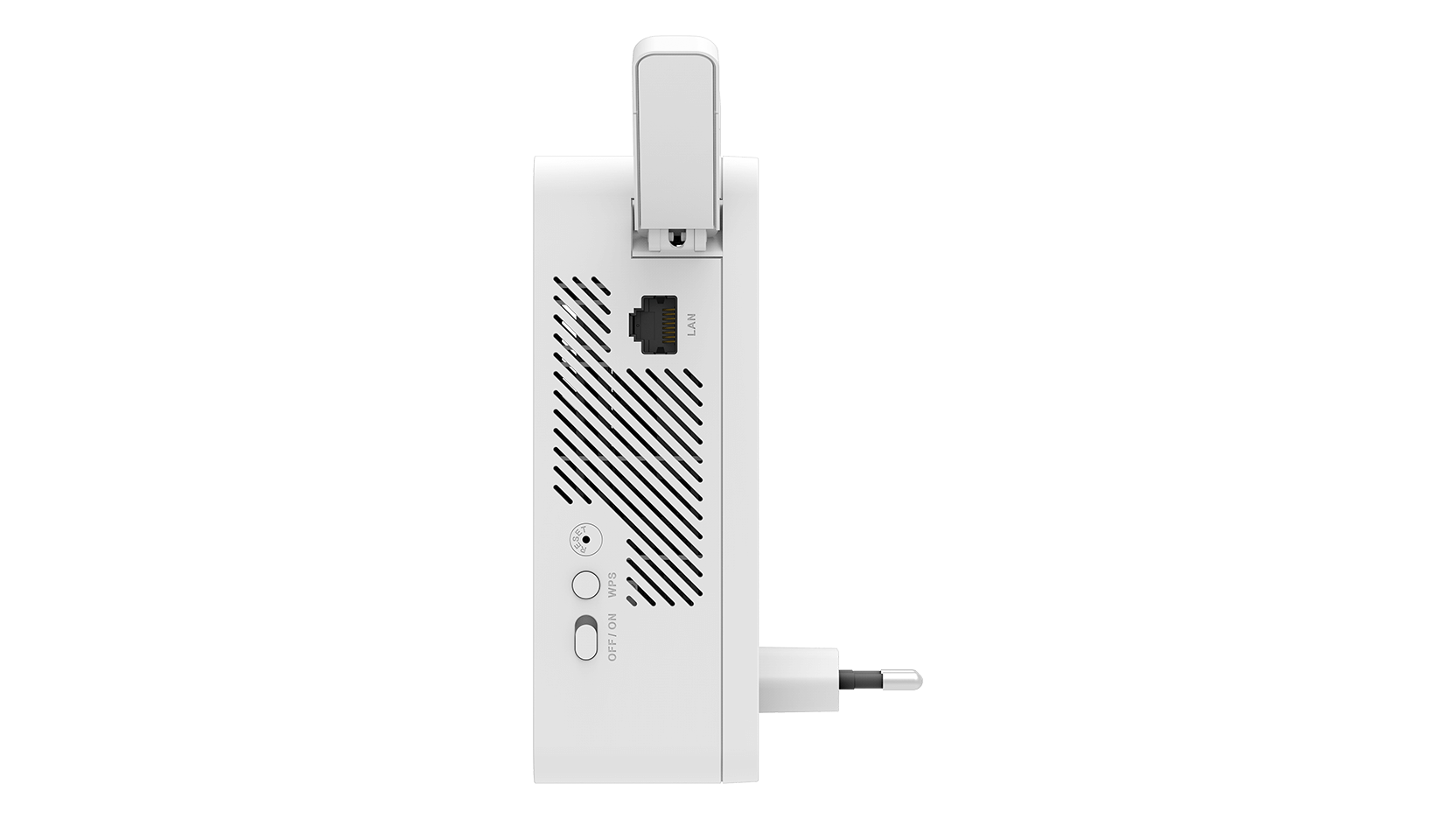

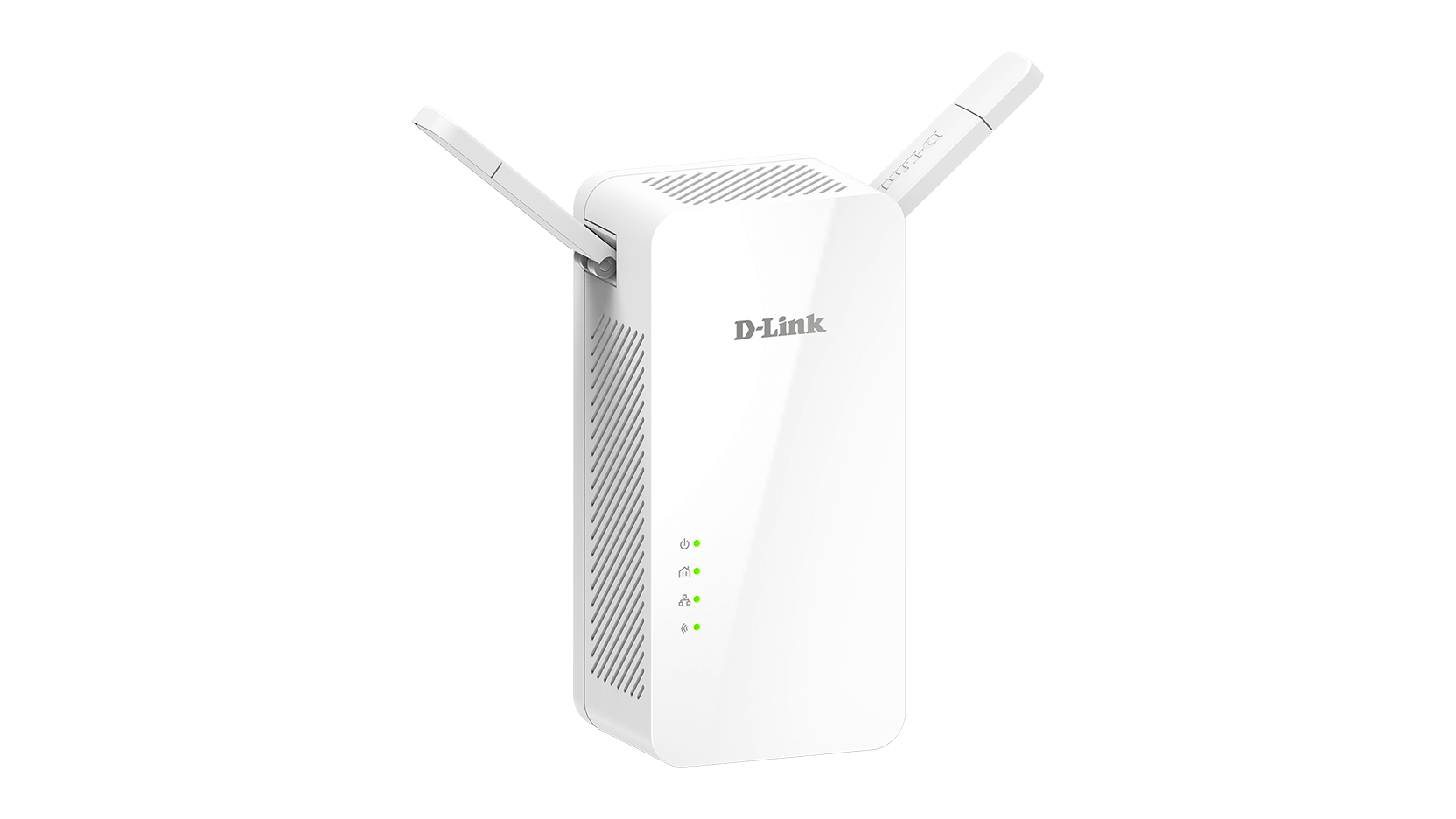

Technical Specifications (DHP-W610AV PowerLine AV1000 Wi-Fi AC Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps2

Network Interfaces

  • 10/100/1000 Ethernet LAN port with auto MDI/MDIX
  • 802.11ac WLAN

Other Interface

  • Simple Connect button
  • WPS
  • Reset button

Wireless LAN

  • 802.11ac/n/g/a standards
  • Wireless speed3:
    • 5 GHz - up to 867 Mbps
    • 2.4 GHz - up to 300 Mbps
  • WPA/WPA2 (Wi-Fi Protected Access)

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901
  • IEEE 802.11ac/n/g/a

Security

  • Powerline: 128-bit AES Encryption
  • Wireless: Wi-Fi Protected Access (WPA/WPA2)

LEDs

  • Power
  • Ethernet
  • Powerline
  • Wi-Fi

Advanced Features

  • IPv6 support
  • Power-saving mode
  • PLC Quality of Service (QoS)

Physical

Dimensions

  • 140 x 68 x 50 mm (5.51 x 2.68 x 1.97 inches)

Weight

  • EU Type: 315.2 g

Power

  • Input: 100 V to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 9.22 W
  • Network Standby: 6.15 W
  • Off: 0.1 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL
  • RoHS
1. Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional D-Link Powerline AV series products are required to add new devices to the network. A minimum of two D-Link Powerline AV series products are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.
2. Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV2 standard.
3. Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.
