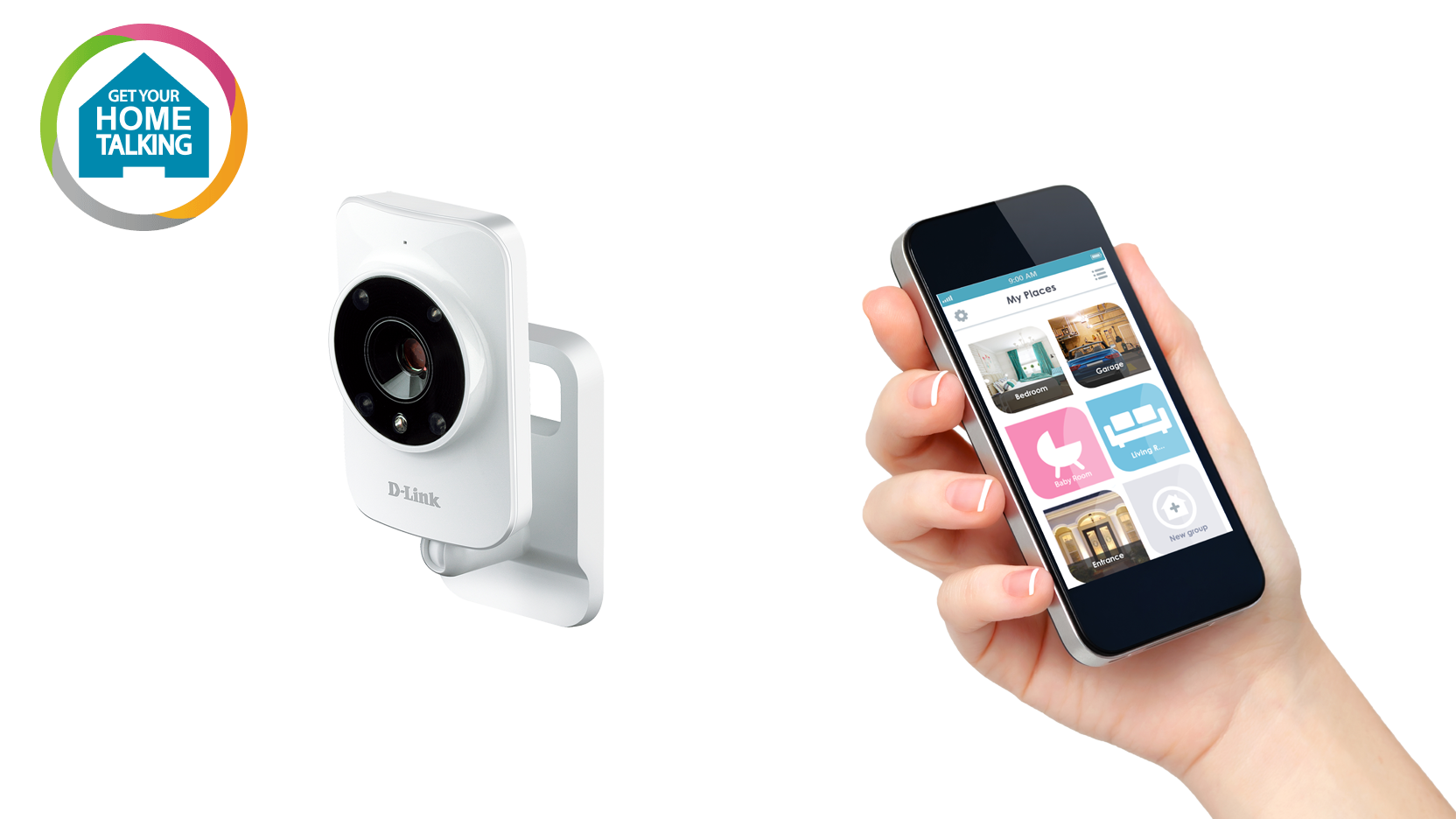

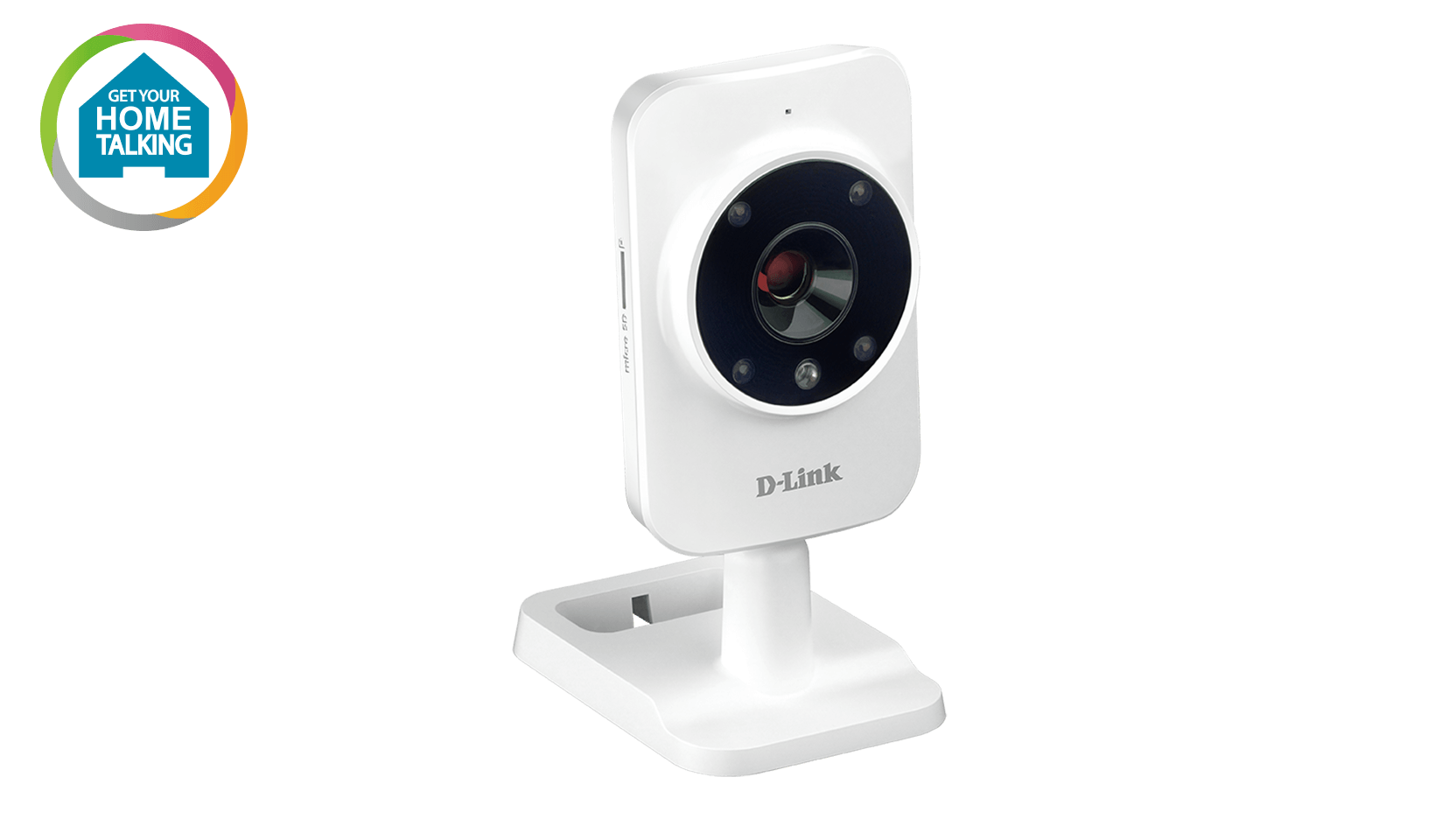

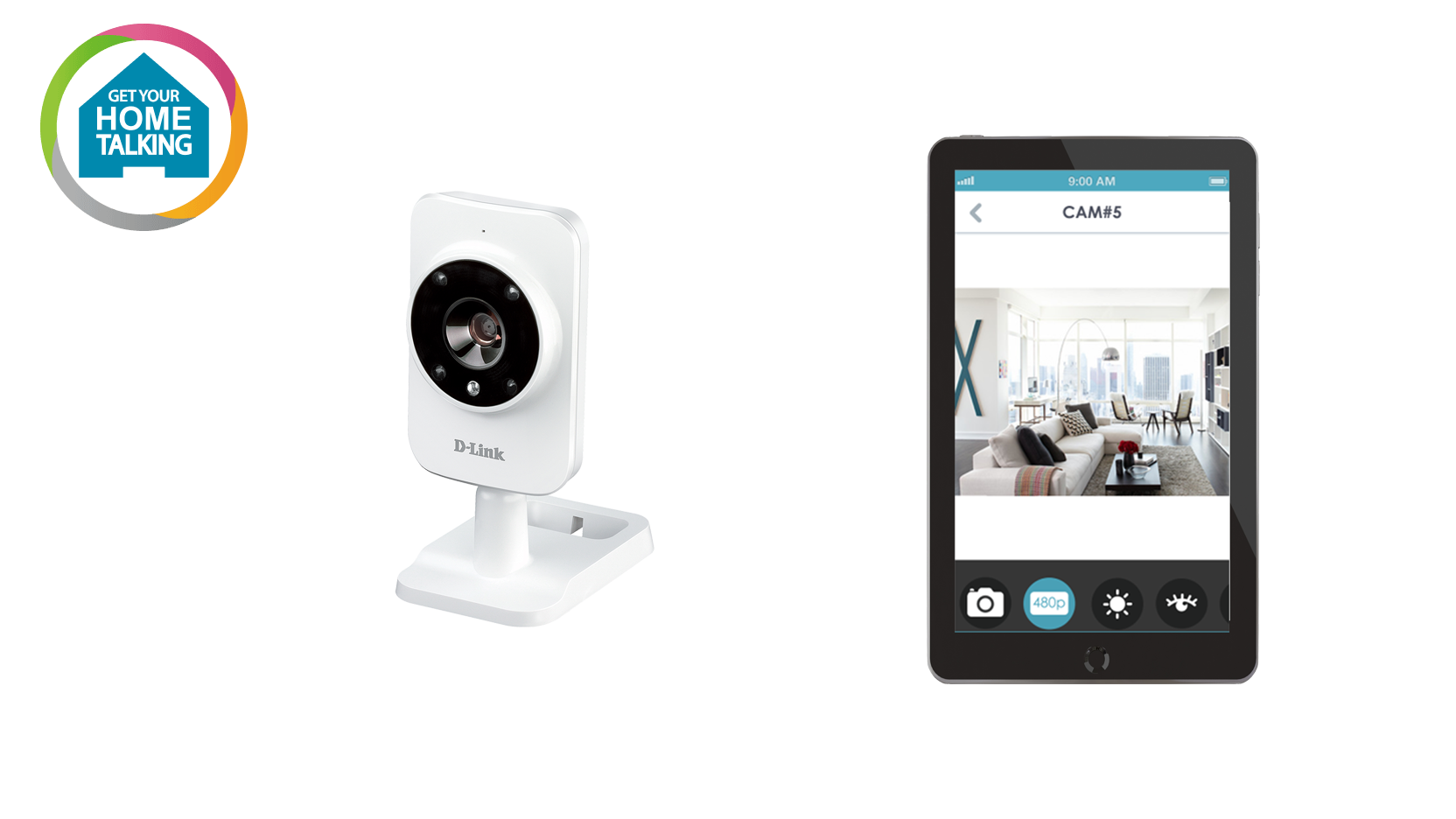

mydlink™ Home Monitor HD

DCS-935LH

Share

Monitor Everything...

This high-definition camera delivers high-quality video for remote viewing on the tablet or smartphone you already own.

mydlink Home App

The mydlink™ Home smartphone and tablet app is the command centre for the D-Link range of smart home technology devices, enabling you to set, control, monitor and automate.

Product Highlights

mydlink™ Home app-enabled.

Use the free mydlink™ Home app to view what your Monitor HD sees, using your tablet or smartphone to control it wherever you are in the world.

Wireless connectivity.

Connect the Monitor HD to your Wireless home network, easily and conveniently, using one-button setup.

Motion and sound detection with recording

Alerts you with push notification whenever motion or sound is detected, as well as video recording onto the integrated microSD card slot**.

HD Clarity

See all the details with high definition 720p colour images with sound.

Easy to Setup

Simply press a button to securely connect to your home Wi-Fi network with Wi-Fi Protected Setup. No additional control hub needed.

High Definition

Monitor your home in crystal clear HD 720p.
See everything in detail, even when zoomed in.

See in the Dark

Built-in night vision function allows you to see up to 5 metres even in complete darkness.

Motion & Sound Detection

Alerts you with push notification whenever motion or sound is detected.

View From Anywhere

View securely over the Internet through your smartphone or tablet. Works with iOS and Android smartphone and tablet* through the free mydlink™ Home app.



ifTTT



IFTTT (If This Then That) is the language of a Smart Home. Build your own device recipes to create amazing interactions around the home. Pair selected mydlink Home™ devices to other IFTTT-enabled products and apps to do amazing things around your home.

iFTTT recipes
iFTTT iphone

No hidden charges

Do-It-Yourself Simple

Do-It-Yourself
Simple

No Installation Fees

No Installation
Fees

No Monthly Charges

No Monthly
Charges


* mydlink™ Home app is available for iOS and Android devices. Please refer to the mobile app’s store page to check whether your device is compatible.
** MicroSD card not included. Supports card capacities up to 128GB.

Technical Specifications

Camera

Camera Hardware Profile

  • 1/4” Megapixel progressive CMOS sensor
  • 5 metre IR illumination distance
  • Minimum illumination: 0 lux with IR LED on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 4X digital zoom
  • Fixed length 2.38 mm
  • Aperture F2.4
  • Angle of view2
    • (H) 78.44°
    • (V) 47.9°
    • (D) 85.98°
  • Minimum object distance: 434 mm
  • Exposure Time: 1/7.5 to 1/24,000 sec.
  • Built-in Microphone

Image Features

  • Configurable image size
  • Time stamp and text overlays

Video Compression

  • H.264 • JPEG for still images
  • Video Resolution
  • 720p at up to 30 fps

Audio Compression

  • G.711

External Interfaces

  • 802.11ac/n/g/b/a wireless with WEP/WPA/WPA2 encryption
  • Operates on 2.4 GHz and 5 GHz bands
  • Maximum data rate of 433 Mbps (PHY rate)1
  • microSD/SDHC/SDXC card slot3

Network

Network Protocols

  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • HTTP Server
  • Bonjour
  • UPnP Port Forwarding

Security

  • Password authentication
  • HTTP and RTSP digest encryption

Advanced Features

Event Management

  • Motion detection
  • Sound level detection
  • Push notification of motion/sound detection events
  • Motion/Sound-triggered recording of video

Mobile support

  • mydlink Home app for iPhone, iPad, iPod Touch, and Android4

Dimensions

  • 66.8.0 x 84.5 x 124.85 mm (2.63 inches x 3.33 inches x 4.92 inches)

Weight

  • 160.0 grams (5.6 ounces) ± 5%

Power

  • 5 V DC 1.2 A, 50/60 Hz

Power Consumption

  • 3.5 watts maximum ± 5%

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 70˚ C (-4 to 158 ˚F)

Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 20% to 80% non-condensing

Certifications

  • CE
  • CE LVD
  • FCC Class B
  • C-Tick

1 Maximum wireless signal rate derived from IEEE standard 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 When the camera is set to use 16:9 aspect ratio.
3 The camera is compatible with microSD/SDHC/SDXC cards up to v3.01. The camera is not compatible with v4.x cards.
4 Please refer to the mobile app’s store page to check whether your device is compatible


Warranty Document
Datasheets
Description Type File Size
Download PDF 0.83mb
Quick Installation Guides
Version Description Date Type File Size
Download 1.00 PDF 0.98mb

Get the mydlink™ Home Monitor HD

The mydlink™ Home Monitor HD allows you to monitor your home, whenever, from wherever. See everything in full colour high definition 720p with sound. The built-in night vision allows you to see up to 5 metres even in complete darkness. It’s easy to setup, connects to your home Wi-Fi and can even alert you when motion or sound is detected. What’s more, it works with other mydlink™ Home smart devices to enable you to create a smart home without complicated setup, installation cost or monthly subscription charges.
