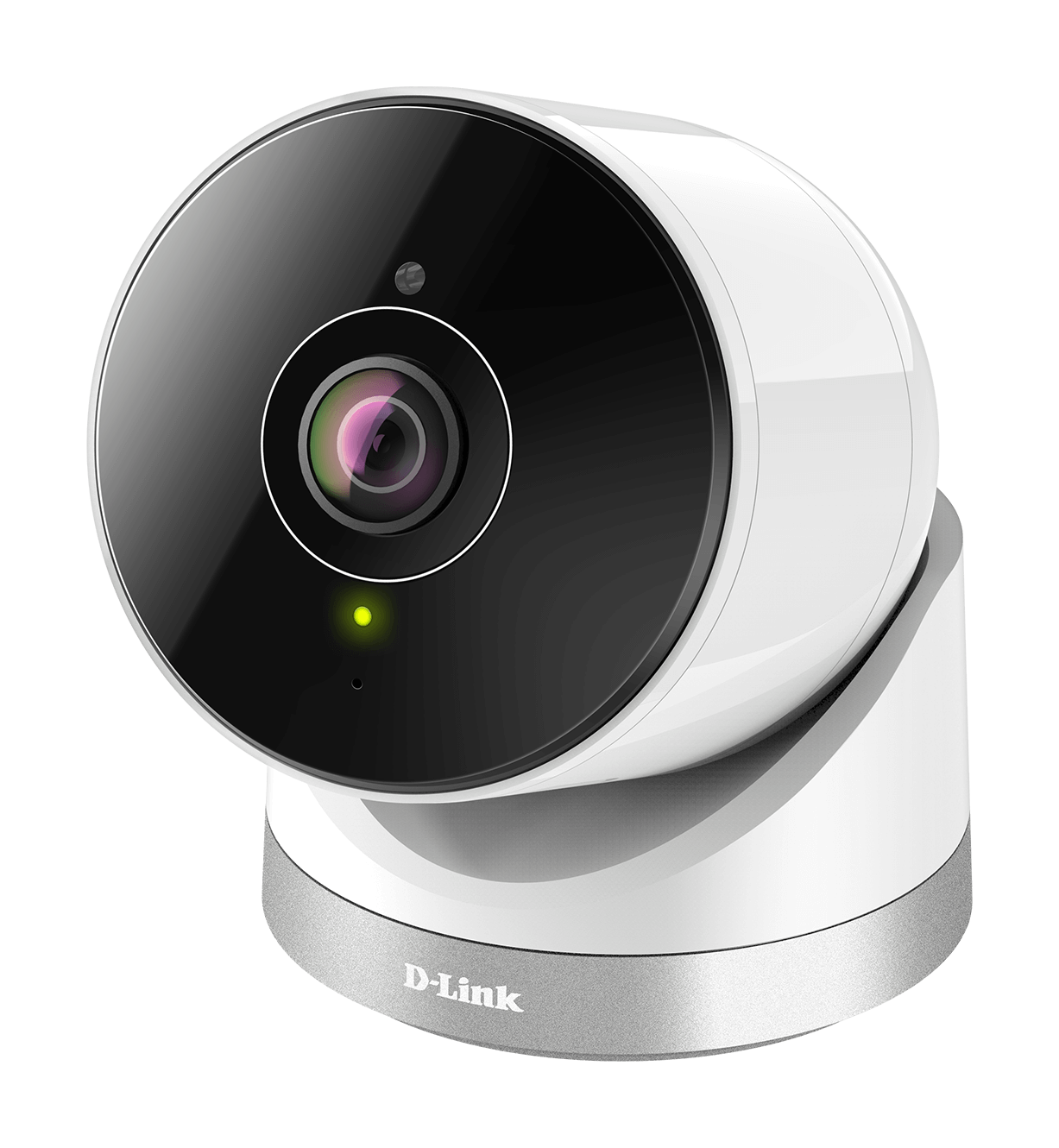

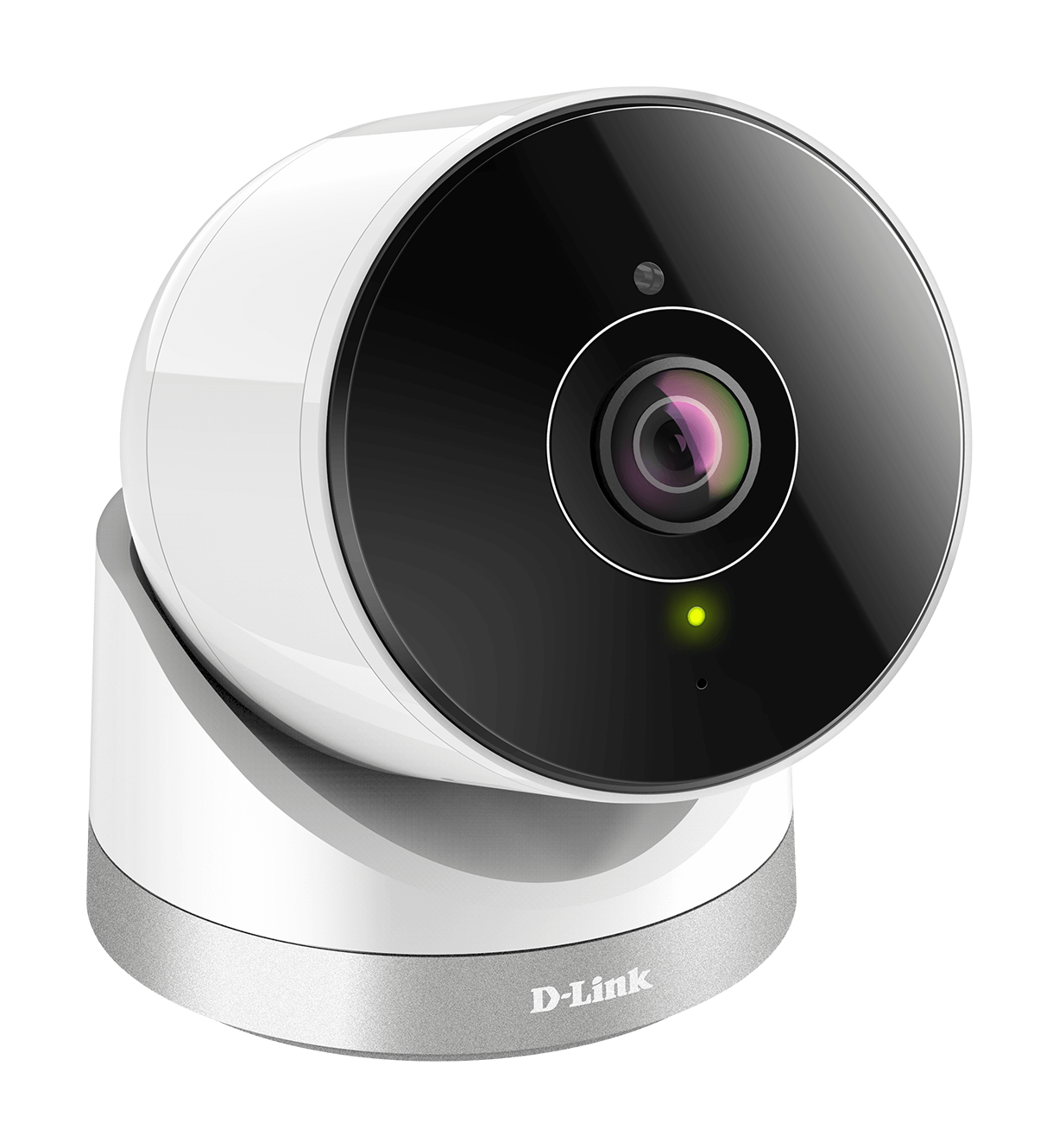

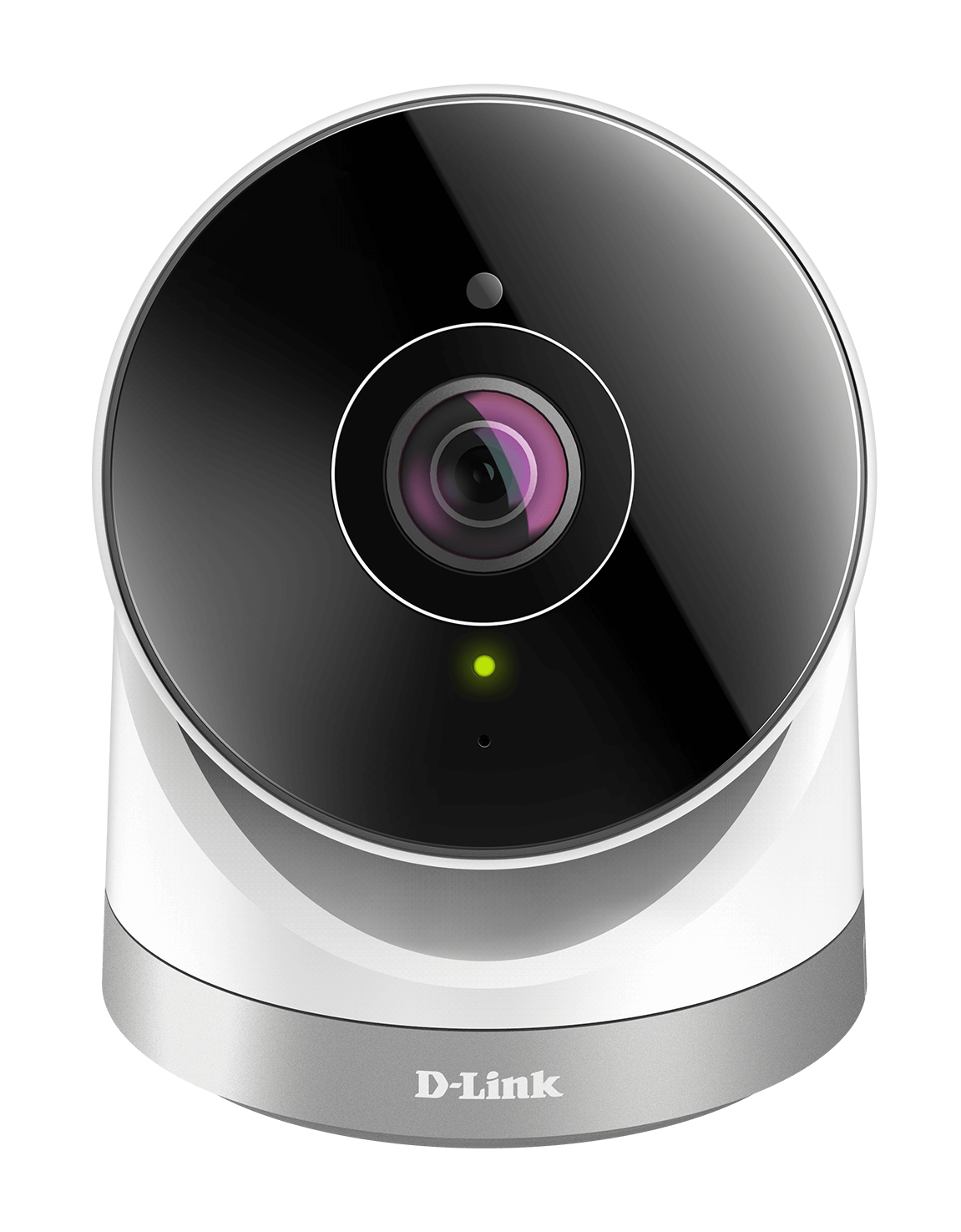

Full HD 180° Outdoor Wi-Fi Camera

DCS-2670L

  • Product Status: Live

The Full HD 180° Outdoor Wi-Fi Camera allows you to monitor your home’s exterior whatever the weather. Equipped to handle dust, rain, and snow with an IP65 rated casing, it is rugged enough to keep an eye on your toughest outdoor areas. With Full HD 1080p resolution and 180-degree panoramic lens allows you to see a wider area in more details with just one camera.


Download the datasheet.

List Retailers

Keep an eye on your world with the Full HD 180° Outdoor Wi-Fi Camera

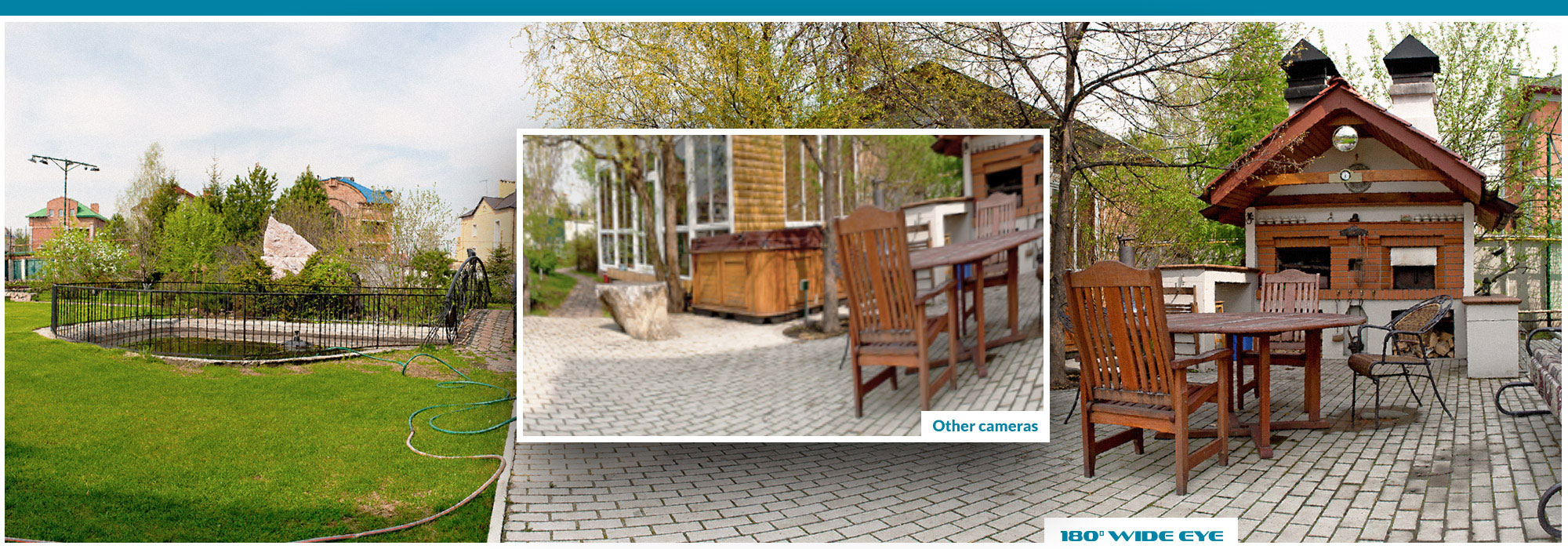

See more

The clear, bright, ultra-wide lens gives you a 180° field of view, allowing you to monitor a whole room, or your entire front or back garden outside your home with only one camera.

Bigger picture

Special de-warping technology brings even more into view so you can look after extra areas of your home.

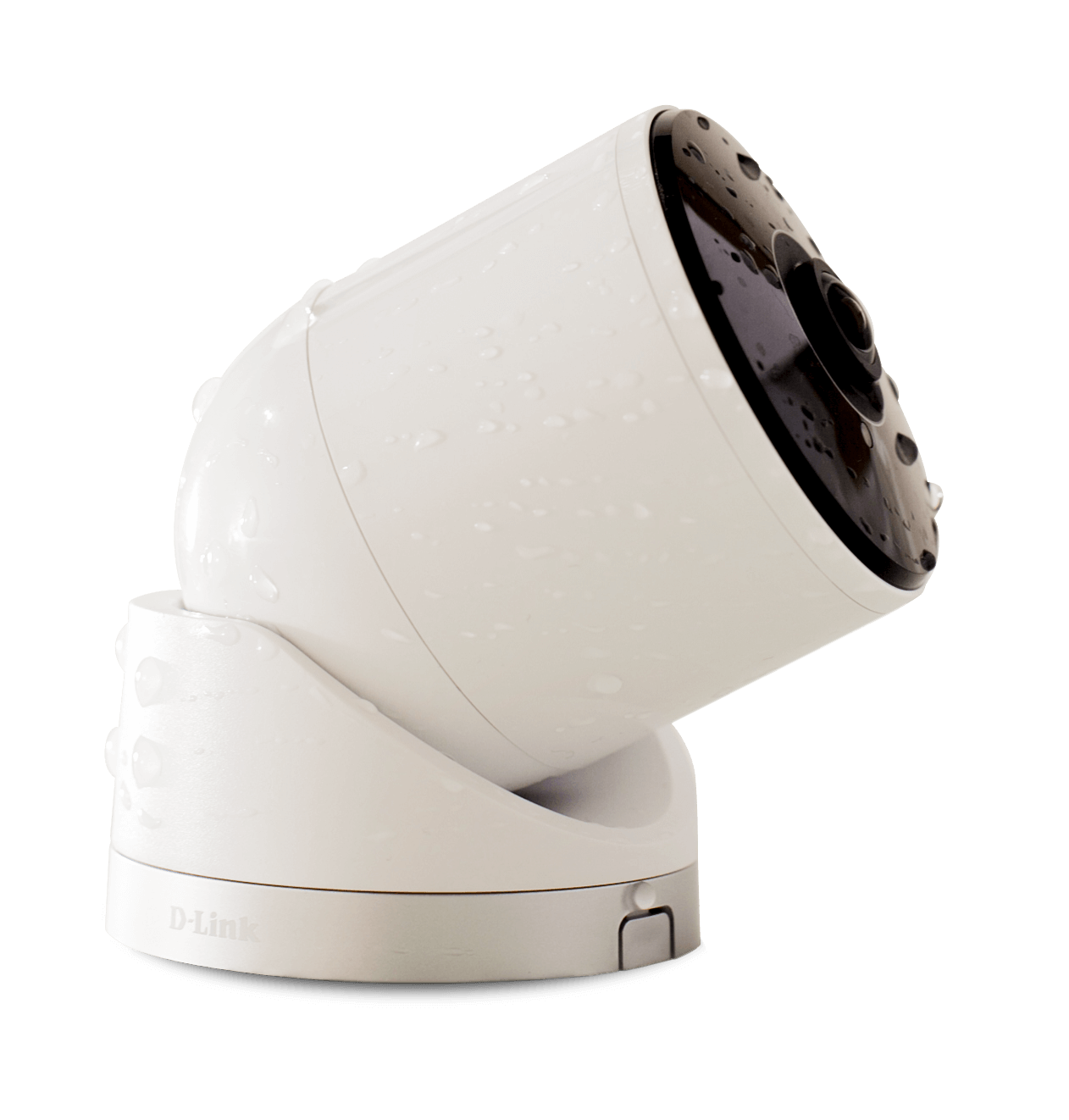

Rain or shine

With its weatherproof design, it can stand guard despite dust, rain, snow and the toughest outside weather conditions.

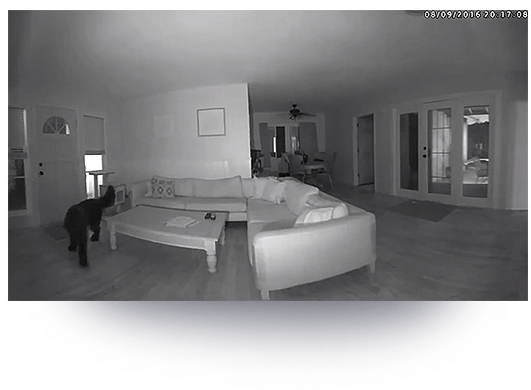

See in the dark

Sleep peacefully knowing the camera has an integrated night vision of up to 10 metres, enabling you to supervise your home even in complete darkness. Now you can be instantly alerted and know what’s happening 24/7.

See every detail

This stealthy little security camera records Full HD 1080p video with pixel-perfect precision.

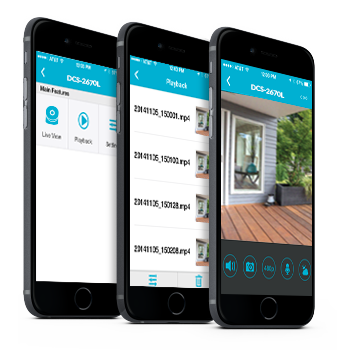

Stream anywhere, anytime

Discover exactly what happens near your home in an instant.

Live stream or record the surveillance camera feed straight from your smartphone or tablet using our free mydlink app, or through a web browser on your computer, wherever you are in the world.

Connected to you

Receive an instant push notification straight to your phone, tablet, or other devices, or automatically record videos or snapshots to your email inbox whenever motion or sound is detected to know exactly what’s happening at the time.

See closer

Pinch to zoom by a massive 10x to examine anything on your security camera stream, or during any interesting noise or motion events.

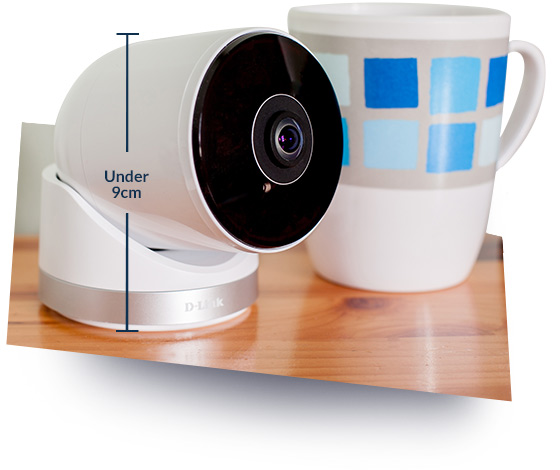

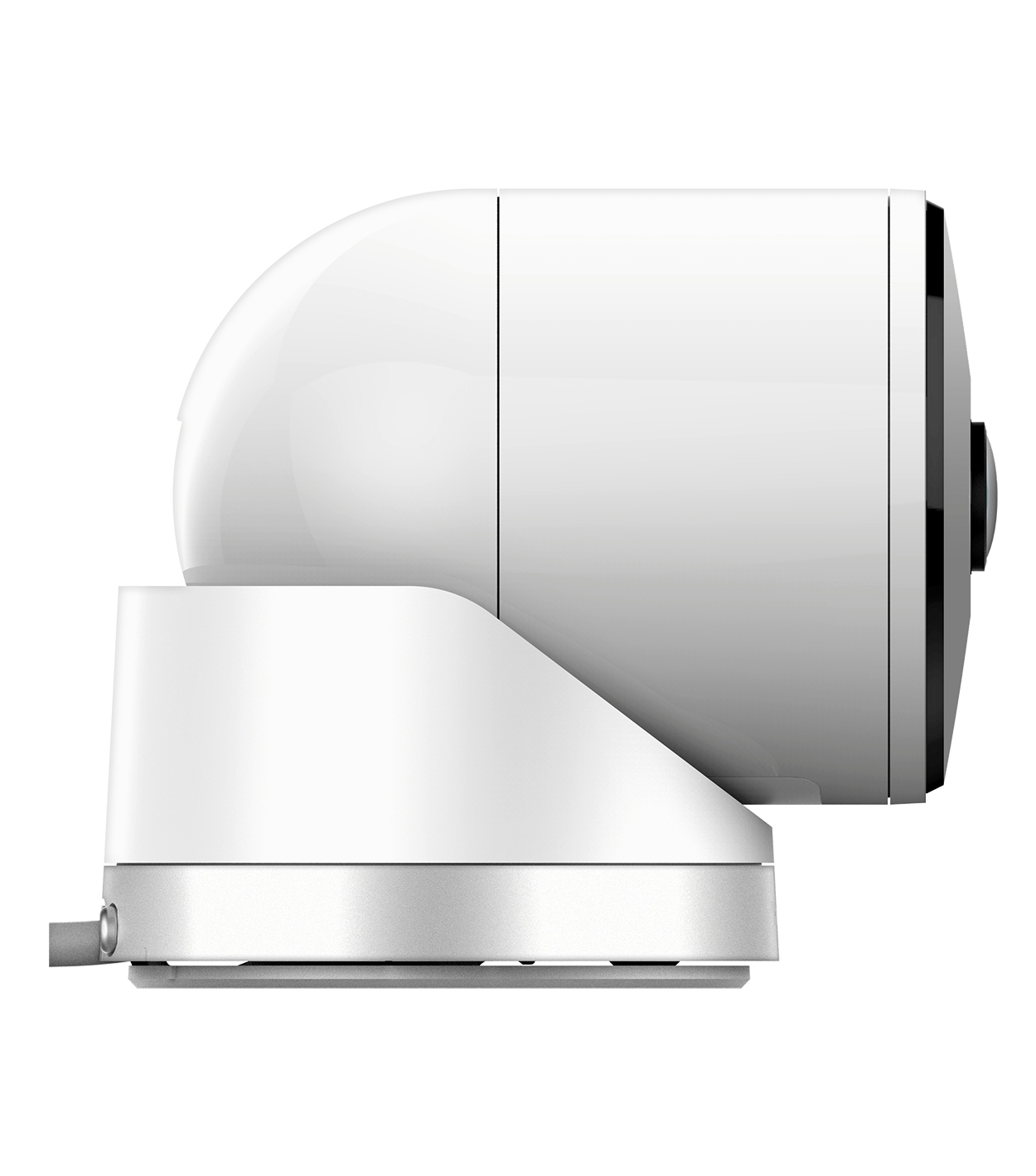

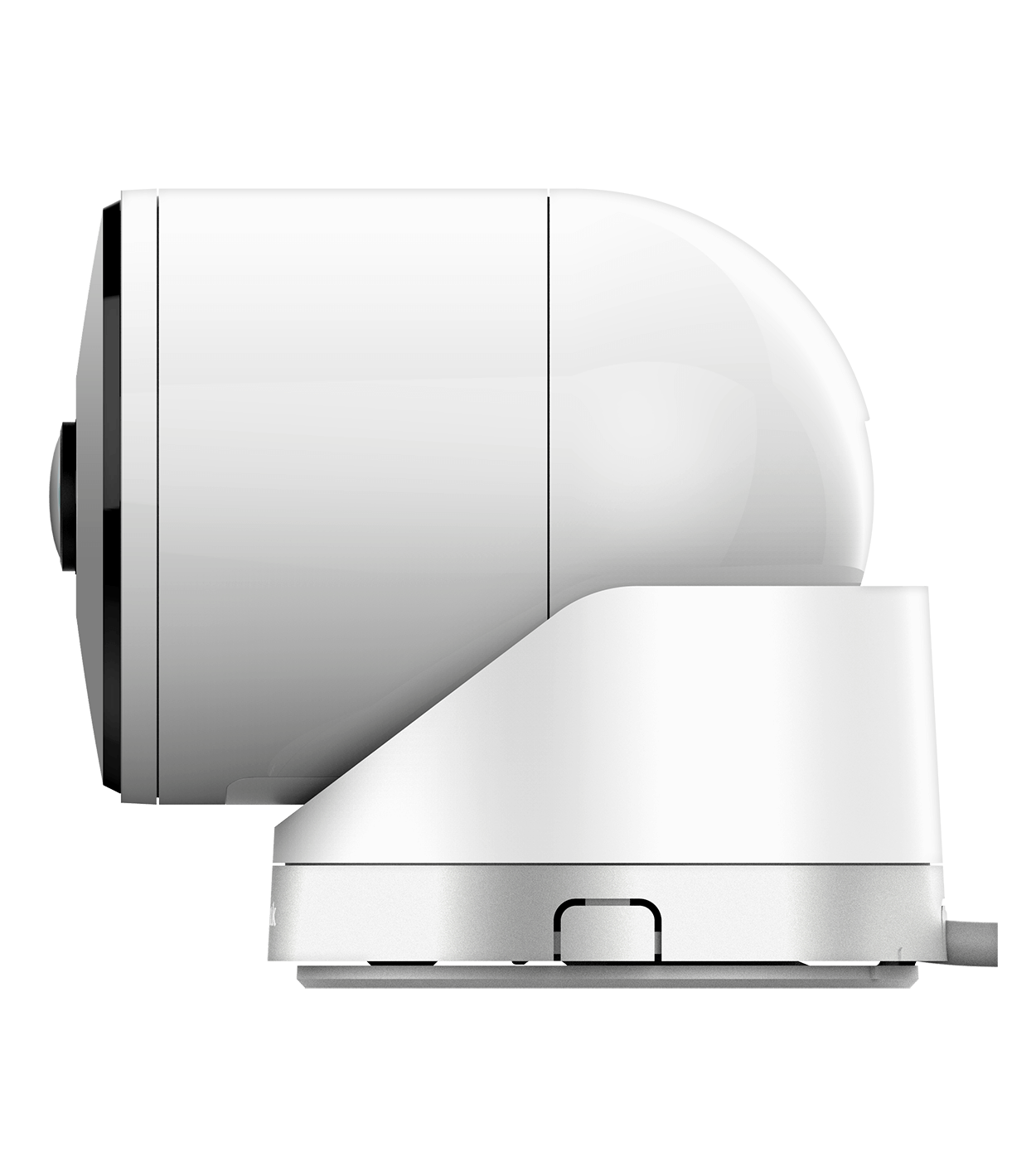

Small and stealthy

This compact and discreet camera measures under just 9cm in height, and is a watchful guard without drawing attention.

Related Products

HD Wireless N Day/Night Outdoor Cloud Camera
DCS-2330L
Find out more
HD Wi-Fi Camera
DCS-936L
Find out more
HD 180 Panoramic Camera
DCS-960L
Find out more
Wide Eye Full HD 180° Panoramic Camera
DCS-2530L
Find out more
Full HD Wireless Day Night Network Camera
DCS-2230L
Find out more

Technical Specifications

Technical Specifications

Camera

Camera Hardware Profile

  • 1/2.7” 2-Megapixel progressive CMOS sensor
  • Minimum illumination:
    • Color mode: 0.5 lux
    • B/W mode (LEDs off): 0.1 lux
    • B/W mode (LEDs on): 0 lux
  • Minimum object distance 30 cm
  • Lens focal length: 1.5 mm ± 3%
  • Aperture: F2.0
  • Angle of view (16:9):
    • Horizontal: 180°

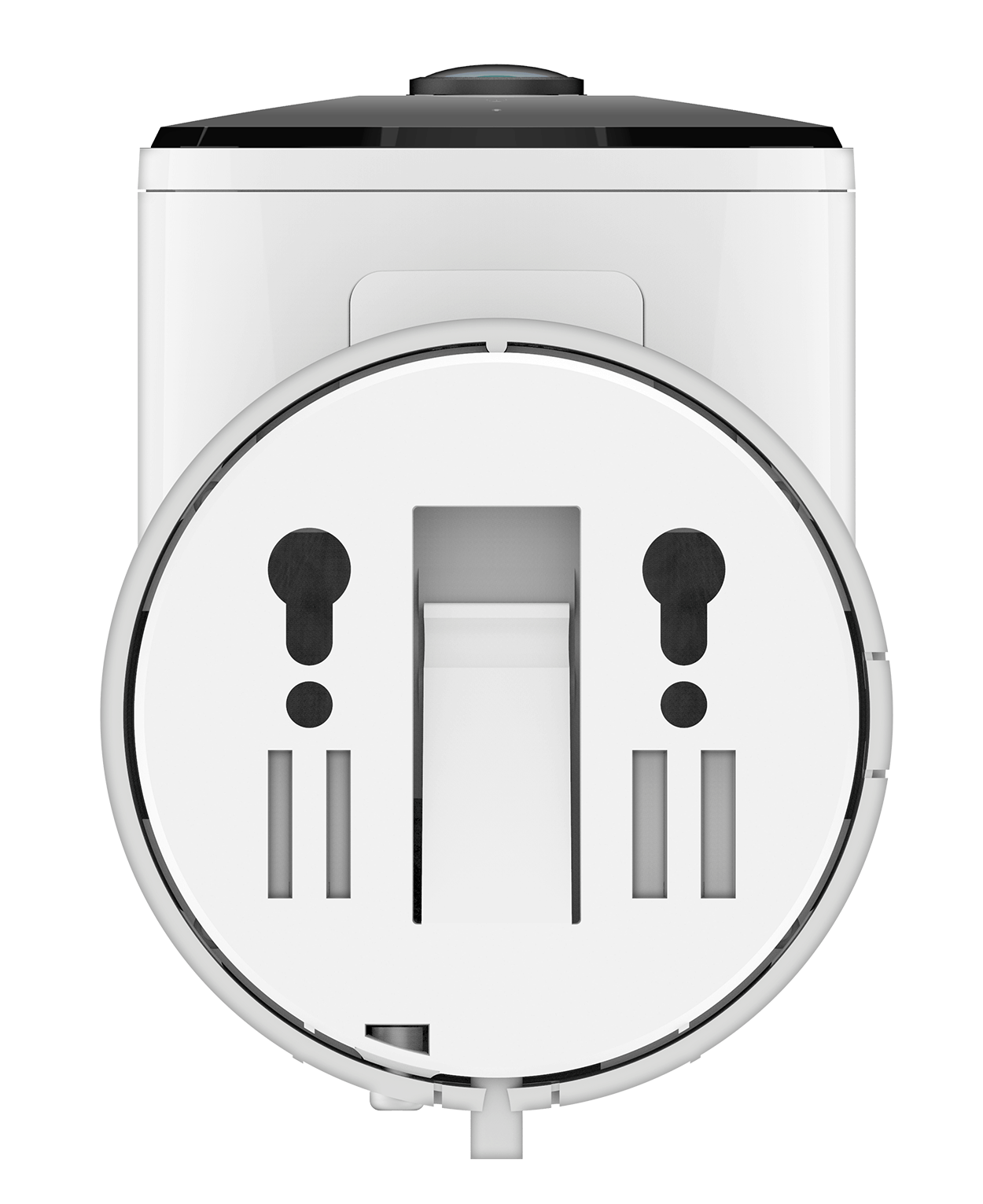

  • Mounting angle:
    • Vertical: 0° to 90°
    • Horizontal: 0° to 180°

Camera Housing

  • IP65 compliant weatherproof housing

Image Features

  • Digital zoom
  • Built-in microphone
  • Configurable image size, quality, frame rate, and bit rate
  • Wide Dynamic Range (WDR)
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable brightness

Video Compression

  • H.264 format compression
  • H.264 multicast streaming
  • JPEG for still images

Video Resolution

  • 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 at up to 30 fps

Audio Support

  • AAC (32 kbps)
  • G.711 (128 kbps)

Connectivity

  • 802.11n/g/b wireless with WPA/WPA2 encryption
  • 10/100BASE-TX Fast Ethernet port
  • Maximum data rate of 300 Mbps (PHY rate)

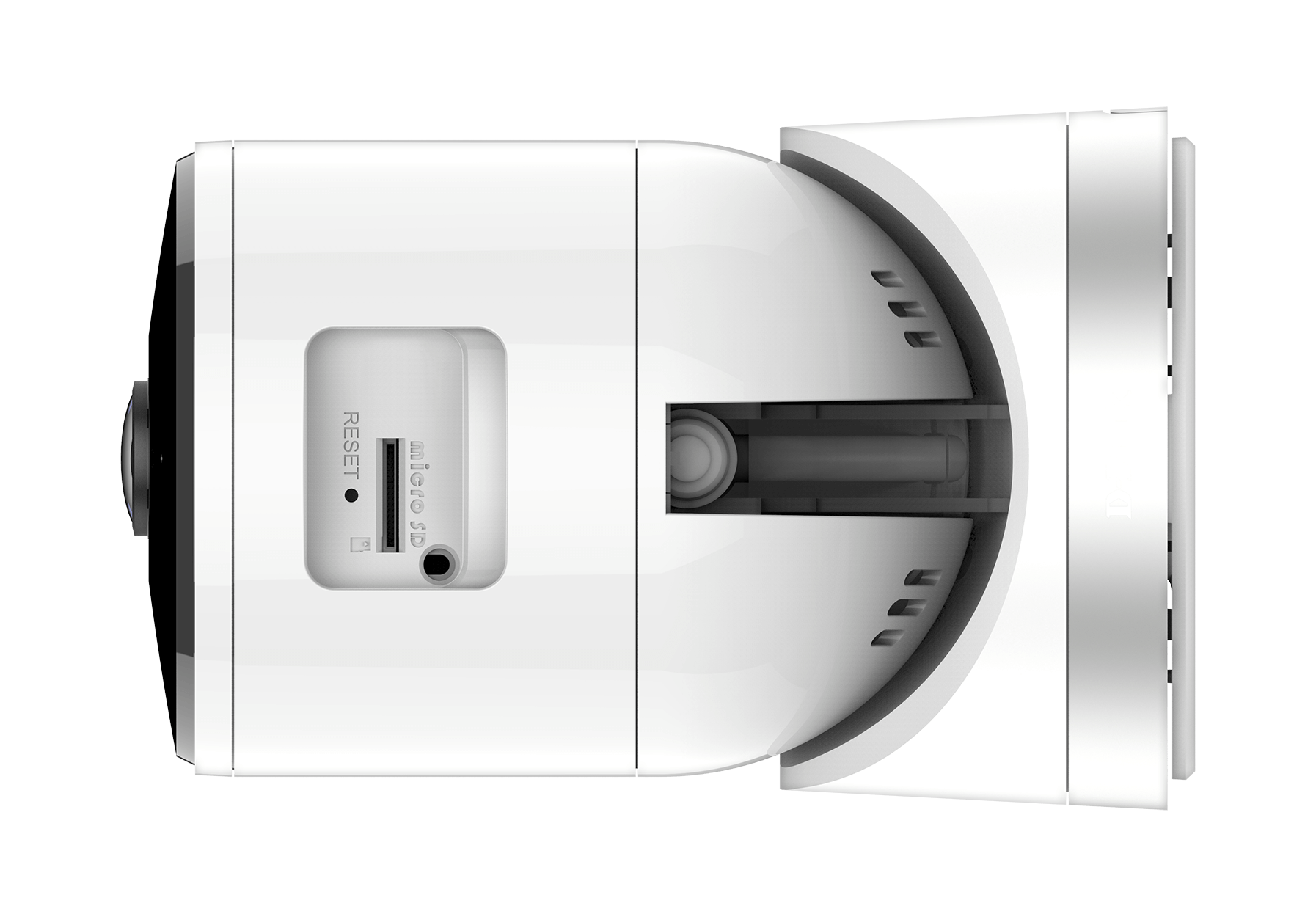

  • microSD/SDHC/SDXC card slot, accepts cards up to 128 GB
  • Bluetooth Low Energy (BLE)

Network

Network Protocols

  • IPv6, IPv4, ARP, TCP, UDP, ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • HTTP server
  • HTTPS (for configuration)
  • uPnP port forwarding
  • RTP/RTSP/RTCP
  • Bonjour
  • ONVIF

Security Features

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption

System Integration

System Requirements for mydlink Portal Web Management

  • The latest minimum system and browser requirements for using the mydlink portal can be found on your regional mydlink website.2

Event Management

  • Motion detection
  • Sound level detection
  • Scheduled recording
  • Event notification and snapshot/video clip uploads to mobile device

Remote Management1

  • Configuration interface accessible via a web browser

Mobile Support1

  • mydlink Lite mobile app for iPhone, iPad, iPod touch, and Android

Physical

Dimensions Diagram

  • 102.1 x 75.7 x 89.5 mm  (L x W x H)

Weight

  • 360 grams ± 5%

Power Adapter

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 5 V DC 1.2 A

Power Consumption

  • Maximum: 5 watts ± 5%

Temperature

  • Operating: -25 to 45 °C
  • Storage: -20 to 70 °C

Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE
  • CE LVD
  • FCC
  • ICES
  • RCM
1 Smartphone, tablet or computer must have access to the Internet via Wi-Fi or mobile Internet. For smartphones and tablets, please refer to the mobile app’s store page to check whether your device is compatible. For comoputers, please visit www.mydlink.com to see the latest supported OS and browser versions at Support > FAQ > mydlink Basic > System Requirement.
2 IP65 standard: Effective against low-pressure water jets from all directions. It is recommended to place the device under a roof or shelter.
3 microSD card required which is not included. Supports microSD/SDHC/SDXC card cards up to 128 GB capacity.
