Technical Specifications




Powerline Interface

  • Power plug (country-dependent)


Ethernet Interface

  • RJ-45 Gigabit Ethernet LAN port





  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 1901
  • HomePlug AV2



  • 128-bit AES data encryption



  • Power
  • Ethernet
  • PowerLine


Functions Support

  • Power saving mode

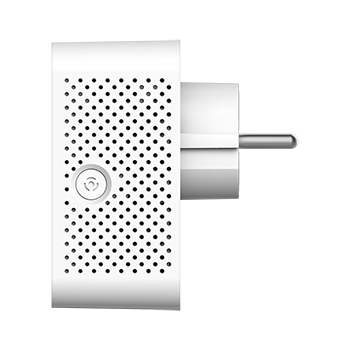

  • Simple connect button
  • QoS


Powerline Modulation Scheme

  • OFDM Symbol Modulation


Powerline Frequency Band

  • 2 MHz to 86 MHz

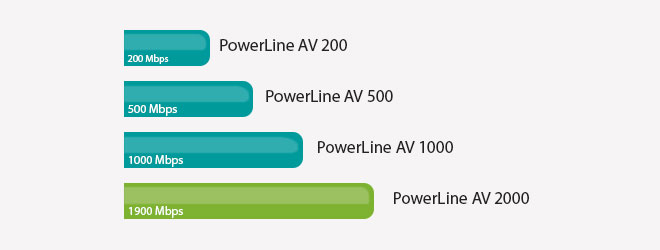

Data Rate

  • Ethernet: 10/100/1000 Mbps (auto negotiation)
  • PowerLine: Up to 1900 Mbps (PHY rate)2





  • 82 x 65 x 40 mm (3.22 x 2.55 x 1.57 inches) (each adapter)



  • 150 g (each adapter)



  • Input: 100 to 240 V AC, 50/60 Hz


Power Consumption

  • 5.2 W maximum (each adapter)



  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)



  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing



  • CE
  • FCC
  • CE/LVD
  • UL

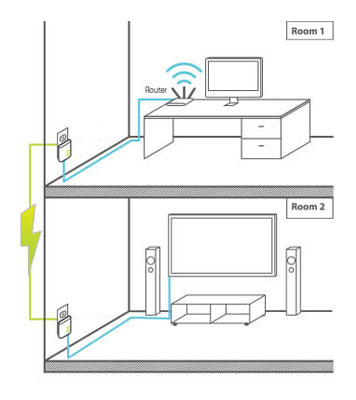

1 Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional D-Link PowerLine AV series products are required to add new devices to the network. A minimum of two D-Link PowerLine AV series products are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.


2 Maximum throughput is based on theoretical transmission PHY rate derived from HomePlug AV2 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other PowerLine devices that do not follow the HomePlug AV standard.
