8-port PS2/USB stackable KVM switch

DKVM-440

  • Statut produit: En fin de vie
The D-Link 8-Port PS/2 USB Stackable KVM Switch is a high-end local remote management solution which allows you to control up to 512 PCs from a single console.

Télécharger la fiche technique.

Voir la liste de nos partenaires
  • Controls up to 8 PCs
  • Supports daisy chaining with up to 3 cascade levels with no special configuration.
  • On-screen Display (OSD)
  • Keyboard emulation to prevent boot errors
  • Hot-pluggable: no need to switch off the KVM to add more devices

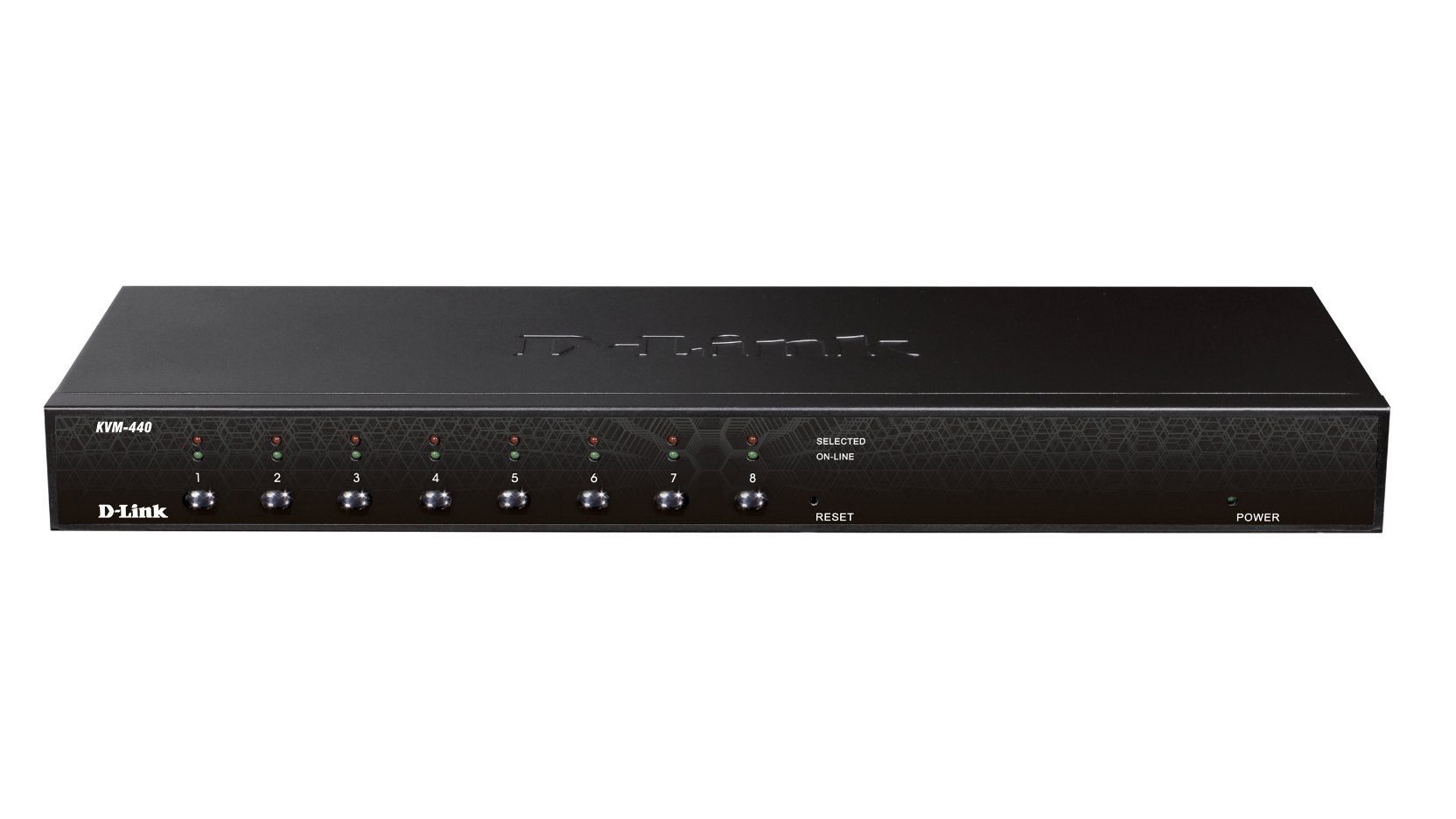

  • LED display for PC and/or server status monitoring
  • Select a PC to switch to by using one of 3 interfaces:
    • Front Panel Button
    • Hot-Keys on a PS/2 keyboard
    • OSD Menu (On Screen Display)

The D-Link DKVM-440 8-Port KVM Switch is a high-end local remote management solution which allows you to control up to 512 PCs from a single console.

Versatile Management

Toggle between clients using the front panel buttons, keyboard hotkeys, or On-screen Display (OSD) menu. The on-screen menu allows you to label each channel with a descriptive name, providing clear and easy navigation. A convenient Auto-Scan function allows you to automatically toggle between multiple computers sequentially at preset intervals. The front panel LEDs assist with workstation/server status monitoring. Green LEDs indicate that systems are online, while separate red LEDs indicate when a particular system has been selected for management via console.

Convenient Installation

The sturdy metal chassis is mountable in a standard 19” rack. Daisy chain multiple KVM switches together up to three levels deep; cascaded units require no special configuration and automatically configure themselves as master or slave. Target workstations can be connected via keyboard/mouse or PS/2 using a custom combo cable. A PS/2 or USB keyboard is emulated on each terminal allowing all attached computers to successfully boot without keyboard errors. Hot-pluggable connections allow you to add devices to or remove them from the KVM switch without the need to shut it down.

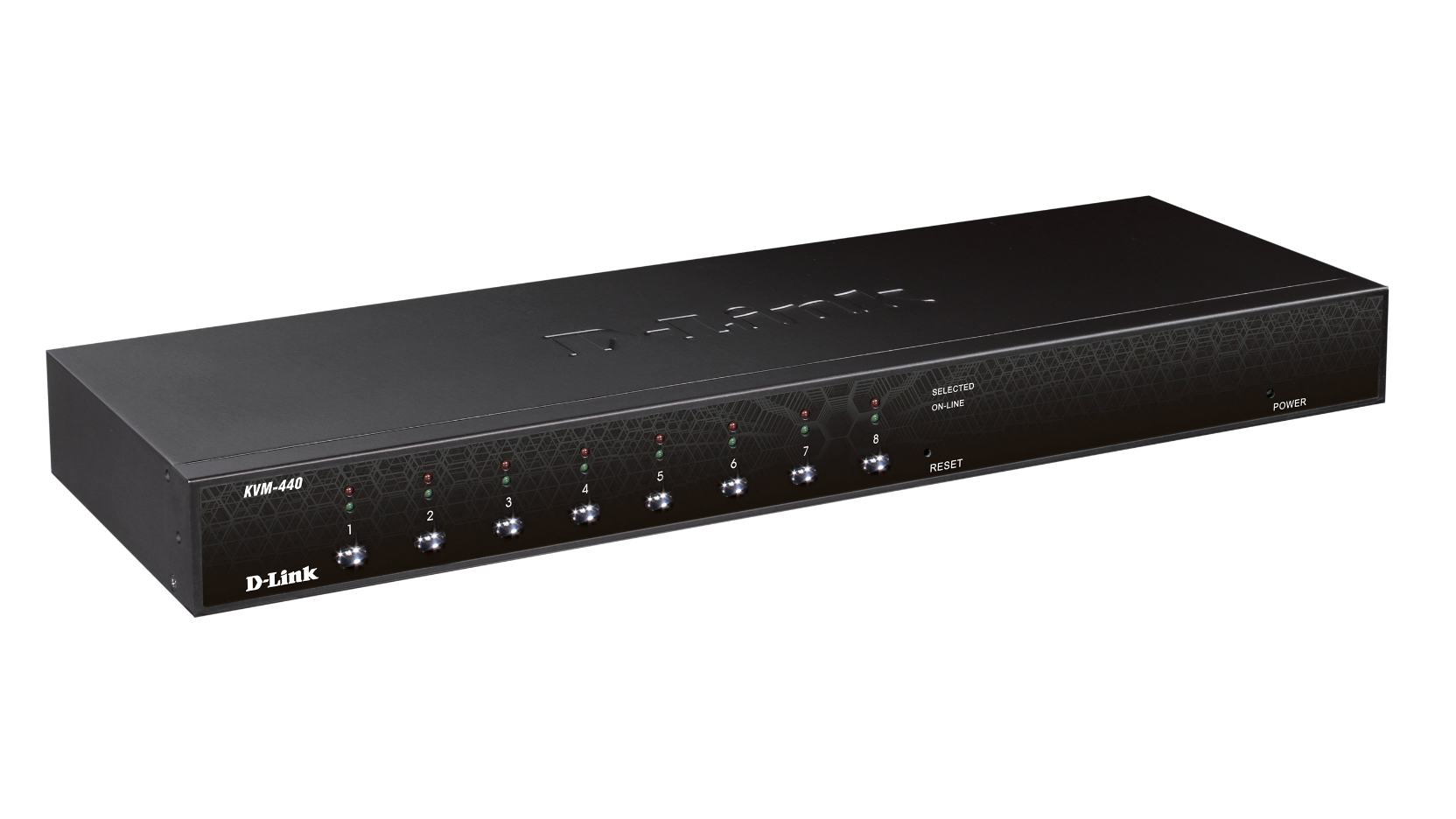

Photo non contractuelle

Technical Specifications

Number of Computers Controlled
  • 8 in single configuration, up to 512 in daisy-chain
  • Hot-swappable

Selection Method
  • Push Button
  • Hot-Key (PS/2 Keyboard)
  • On-Screen-Display (OSD)

LEDs
  • Red for PC Selected
  • Green for PC On-line/Ready

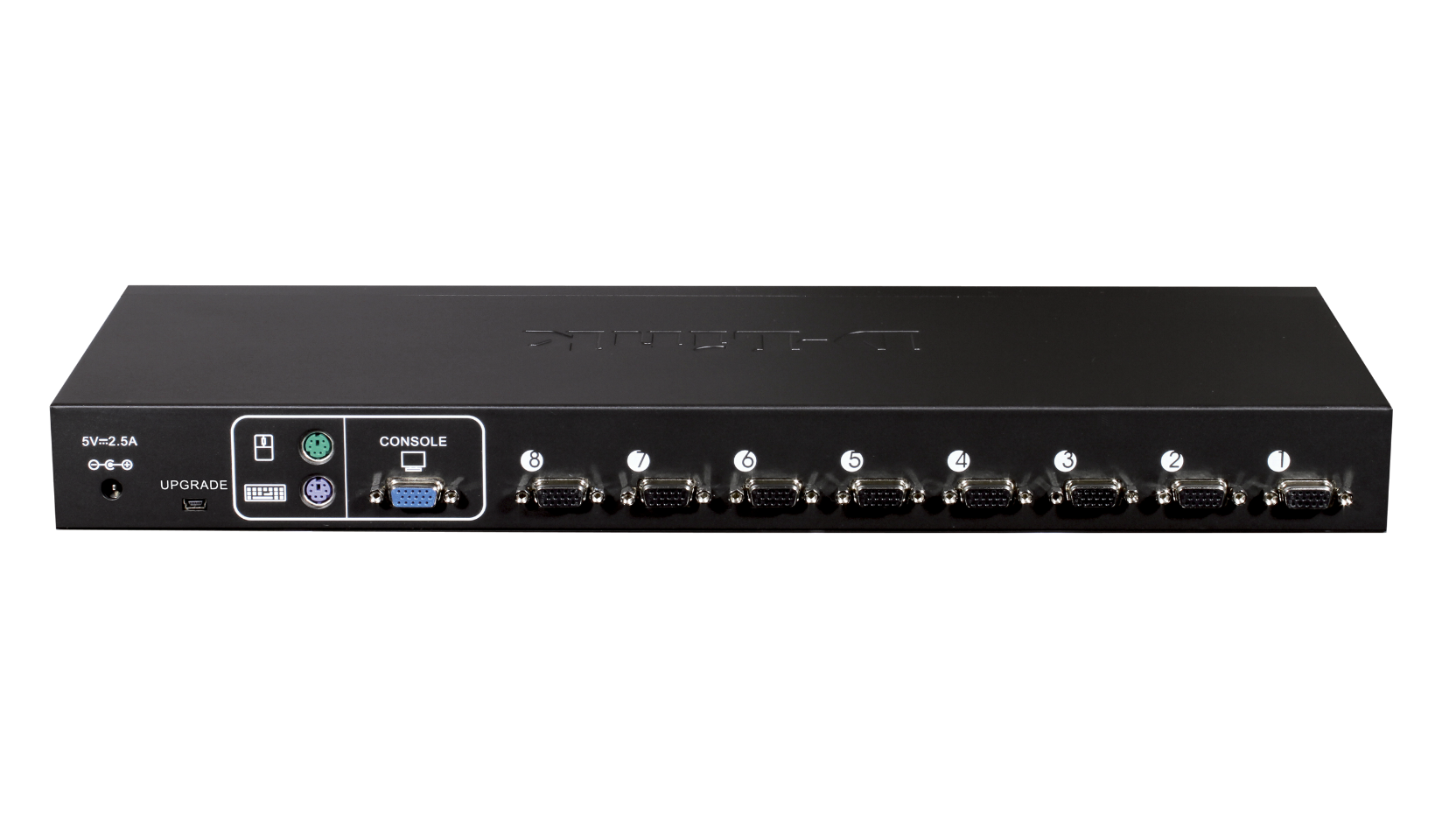

PC Connectors
  • Video: 8x HDB-15 female
  • Keyboard/Mouse: PS/2 & USB Signal Combined

Console Ports
  • Keyboard: 1 x 6 pin mini-DIN female
  • Mouse: 1 x 6 pin mini-DIN female
  • Video: 1 x HDB-15 female

Firmware Upgrade Port
  • Mini USB

Auto-Scan Interval
  • Adjustable time setting by OSD menu

Resolution
  • Up to 2048 x 1536 @ 65 Hz

Operating Systems Supported
  • Windows 98SE/ME/2000/2003/2008/XP/Vista/7
  • Linux
  • Mac OS 9/OS X
  • Sun Microsystems

Power
  • External power adapter

Physical:
  • Dimensions (L x W x H) 44 x 15.7 x 4.5 cm
  • 19'' rack mountable
  • Weight 1750 g.
  • Housing Material Metal
  • Operating Temperature 0-50°C (32°-122°F)

Certifications
  • FCC
  • CE
  • C-Tick
  • IC
  • CSA

Downloads can vary across product revisions. Please select the correct hardware revision.


Ce produits est en fin de vie depuis le : 01/04/2014
