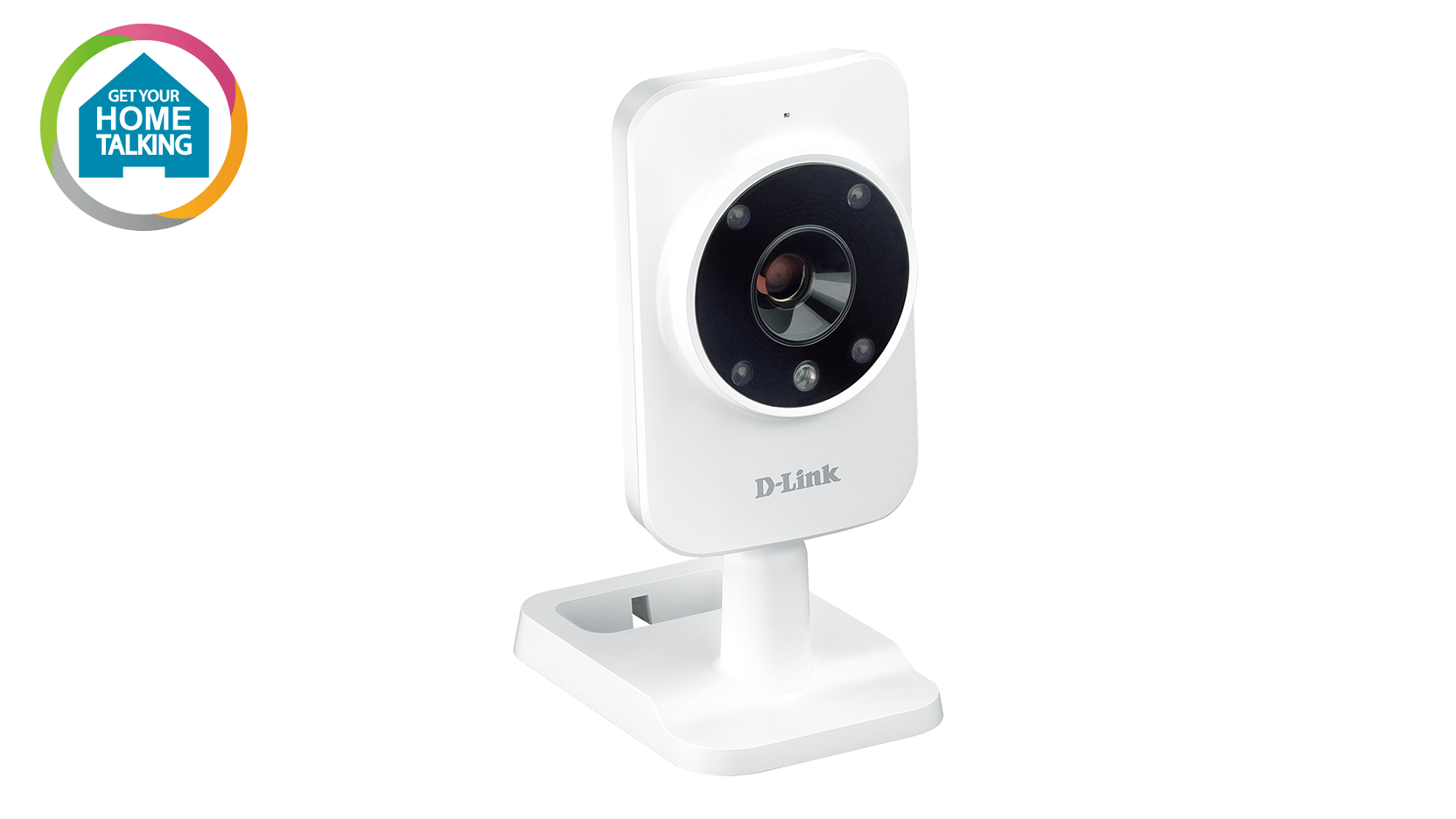

mydlink™ Home Monitor HD

DCS-935L

  • Product Status: Live
The mydlink™ Home Monitor HD allows you to monitor your home, whenever, from wherever. See everything in full colour high definition 720p with sound. The built-in night vision allows you to see up to 5 metres even in complete darkness. It’s easy to setup, connects to your home Wi-Fi and can even alert you when motion or sound is detected. What’s more, it works with other mydlink™ Home smart devices to enable you to create a smart home without complicated setup, installation cost or monthly subscription charges.

Download the datasheet.

List Retailers

Monitor Everything...

This high-definition camera delivers high-quality video for remote viewing on the tablet or smartphone you already own.

mydlink Home App

The mydlink™ Home smartphone and tablet app is the command centre for the D-Link range of smart home technology devices, enabling you to set, control, monitor and automate.

Product Highlights

mydlink™ Home app-enabled.

Use the free mydlink™ Home app to view what your Monitor HD sees, using your tablet or smartphone to control it wherever you are in the world.

Wireless connectivity.

Connect the Monitor HD to your Wireless home network, easily and conveniently, using one-button setup.

Motion detection with night vision.

Never miss a thing with the ability to be notified when motion is detected, and night vision ensures clear images even in low-light conditions, so you can always see what the Monitor HD sees.

HD Clarity

See all the details with high definition 720p colour images with sound.

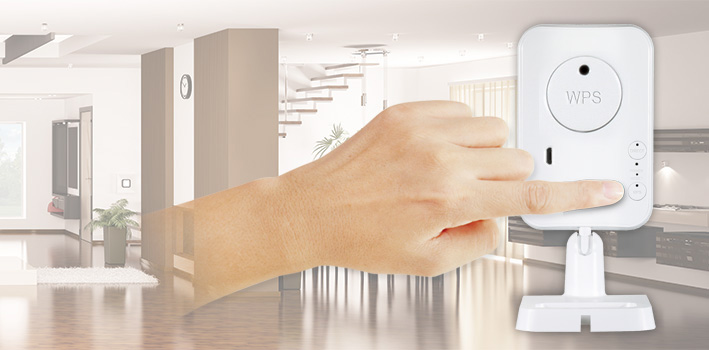

Easy to Setup

Simply press a button to securely connect to your home Wi-Fi network with Wi-Fi Protected Setup. No additional control hub needed.

High Definition

Monitor your home in crystal clear HD 720p.
See everything in detail, even when zoomed in.

See in the Dark

Built-in night vision function allows you to see up to 5 metres even in complete darkness.

Motion & Sound Detection

Alerts you with push notification whenever motion or sound is detected.

View From Anywhere

View securely over the Internet through your smartphone or tablet. Works with iOS and Android smartphone and tablet* through the free mydlink™ Home app.

No hidden charges

Do-It-Yourself Simple

Do-It-Yourself
Simple

No Installation Fees

No Installation
Fees

No Monthly Charges

No Monthly
Charges


* mydlink™ Home app is available for iOS and Android devices. Please refer to the mobile app’s store page to check whether your device is compatible.

Product Awards

AltomData
mydlink Home system

Related Products

mydlink™ Home Music Everywhere
DCH-M225
Find out more
mydlink™ Home Wi-Fi Motion Sensor
DCH-S150
Find out more
mydlink™ Home Smart Plug
DSP-W215
Find out more
mydlink™ Home Monitor 360
DCS-5010L
Find out more

Technical Specifications

Specifications

Camera

Camera  Hardware Profile

  • 1/4” Megapixel progressive CMOS sensor
  • 5 metre IR illumination distance
  • Minimum illumination: 0 lux with IR LEDs on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 4X digital zoom
  • Lens: Fixed length 2.38 mm
  • Aperture: F2.4
  • Angle of view:
    • (H) 78.44°
    • (V) 47.9°
    • (D) 85.98°
  • Minimum object distance: 434 mm
  • Exposure Time: 1/7.5 to 1/24,000 sec.
  • Built-in microphone

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Configurable brightness, contrast, sharpness, saturation and hue
  • Configurable motion detection windows
  • Time stamp and text overlays

Video Compression

  • Simultaneous H.264/MJPEG format compression
  • JPEG for still images

Video Resolution

  • 1280 x 720, 800 x 600, 720 x 480, 640 x 480, 320 x 240 at frame rates up to 30 fps

Audio Compression

  • AAC
  • G.711

Connectivity

  • 802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption
  • Operates on 2.4 GHz and 5 GHz bands
  • Maximum data rate of 433 Mbps (PHY rate)2

Network

Network Protocols

  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • RTP, RTSP, RTCP
  • UPnP Port Forwarding
  • HTTPS for configuration
  • Bonjour

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest authentication

Advanced Features

System Requirements for Web Interfaces

  • Operating system: Microsoft Windows 8/7/Vista/XP SP3 or Mac OS X 10.6 or higher
  • Browser: Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher

Event Management

  • Motion detection
  • Sound level detection
  • Event notification and uploading of snapshots/video clips via SMTP or FTP

Remote Access

Remote Management

  • Configuration accessible via web browser

Mobile support

  • mydlink ™Home app for iOS and Android1

General

Dimensions

  • 58.0 x 84.5 x 124.9 mm (2.28 inches x 3.33 inches x 4.92 inches)

Weight

  • 160.0 g (5.6 ounces) ± 5%

Power

  • 5 V DC 1.2 A, 50/60 Hz

Power Consumption

  • 3.5 watts maximum

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 70˚ C (-4 to 158 ˚F)

Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 20% to 80% non-condensing

Certifications

  • CE
  • CE LVD
  • FCC Class B
  • C-Tick
