8埠 Multi-Giga多速率無網管PoE交換器

DMS-108P

  • Product Status (A1 v1.00): Live
  • 8 x 10/100Mbps/1G/2.5G Base-T PoE
  • PoE支援802.3bt 單埠90W 總供電230W
  • 具IGMP snooping 流量控制和QoS
  • 金屬外殼 無風扇靜音設計
  • 隨插即用 體積輕巧 智慧節能

型錄下載

Where to buy

User Benefits​

Plug & Play

No complex configurations required for fast and easy network connectivity

Multi-Gigabit​

Multi-Gigabit ports for high data rate transmission

High Power Budget

230W PoE total budget to power more devices

IEEE802.3bt

Up to 90W per port enables high-power devices (PD)

Multicast Optimization

IGMP snooping feature prevents network flooding

Silent Operation

Fanless design for a noise-free working environment

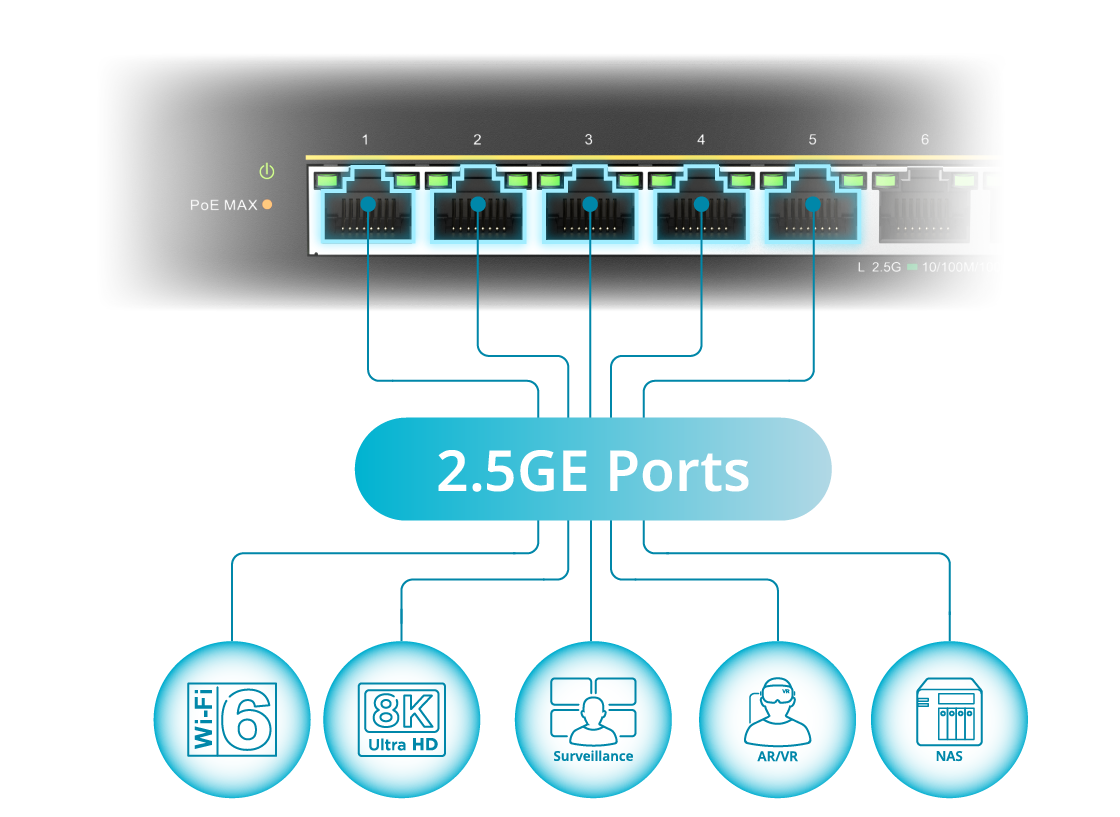

Unleash Wi-Fi 6 via 2.5G Ports

As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

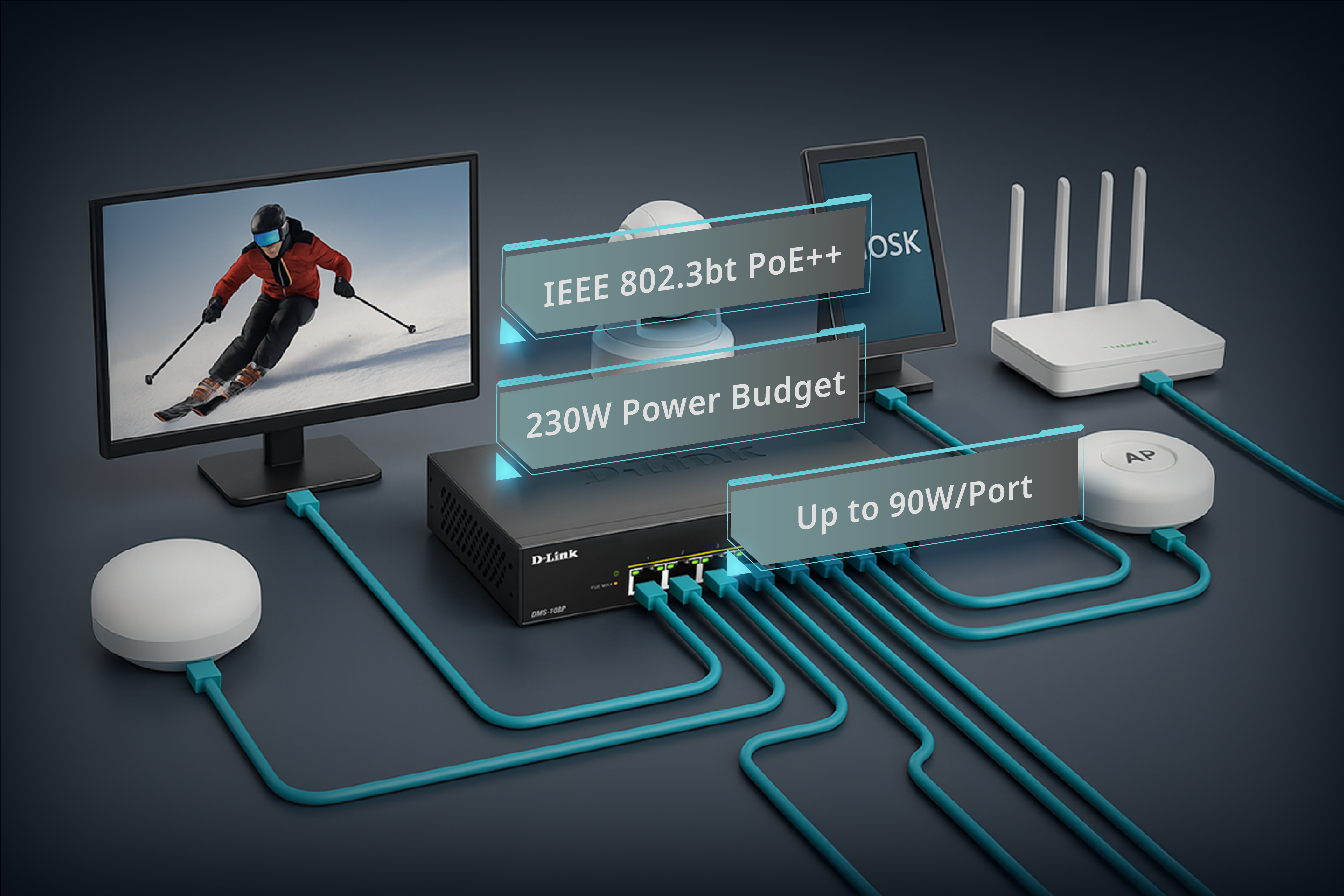

　Small Size, Big Power

The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.



Smarter Multicast, Smoother Performance

The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

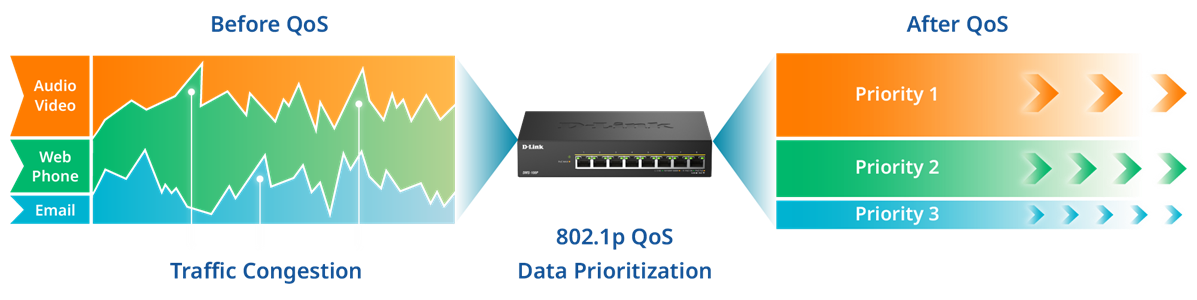

Prioritize Traffic for Optimized Performance

With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

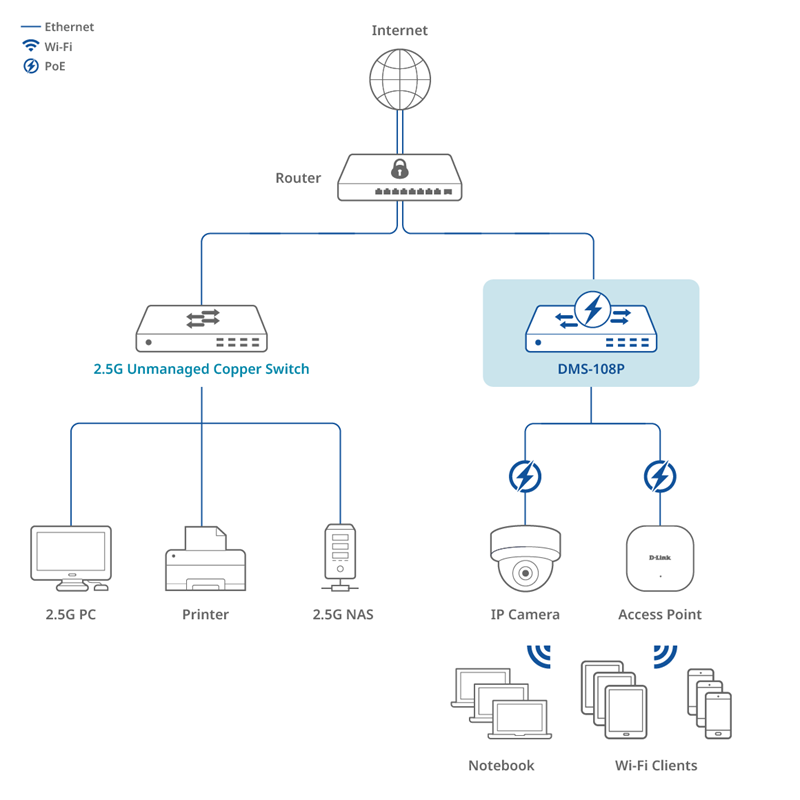

Connection Diagram

The cost-effective DMS-108P not only delivers plug-and-play 2.5G PoE connectivity for edge powered devices, it offers performance optimization to help eliminate bottlenecks for applications such as Wi-Fi 6, HD surveillance, 4K/8K streaming, and much more.

Business Router

Learn More

Access Point

Learn More

產品規格

型錄下載

Number of 2.5 GBASE-T ports​
8
Switching Capacity
40 Gbps
PoE Standards
802.3af, 802.3at, 802.3bt
PoE Power Budget
230W
PoE Capable Ports
Port 1-8, up to 90 W
Fanless
Supported
D-Link Green
Supported
802.3az EEE
Supported
Power Supply Type
External
MAC Address
4K
802.1p QoS​
Supported

實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。
