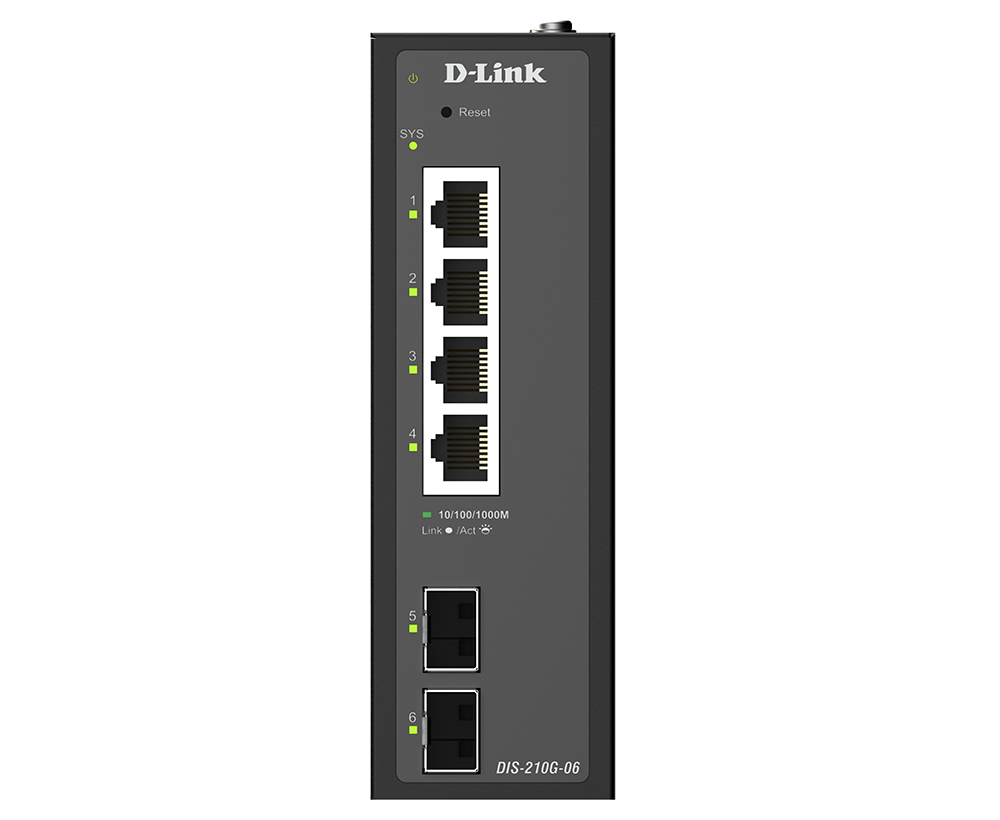

Industrial 4-Port 1G + 2-Port 1G SFP Smart Switch
DIS-210G-06
- Product Status (DIS-210G Series A1 v1.01(WW)): Live
- 2 x 1G SFP ports for aggregated throughput
- 4 x Gigabit ports for fast data transmission
- Dual power inputs provide power redundancy
- Wide voltage compatible with various power sources
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- Fanless and IP40-rated design enhances reliability
- Support Ethernet Ring Protection Switching (ERPS)
- Support L2 management and IP static routing
- Proactive OAM by Y.1731, 802.1ag, 802.3ah
Where to buy
Efficient, Resilient, and Agile
The DIS-210G-06 comes with two 1G SFP ports to extend transmission distances, enabling seamless aggregation of smaller networks into a unified system.
With static routing support, it boosts performance and simplifies management. By streamlining routing and improving overall efficiency, it enhances network resilience, helping IT professionals deliver more reliable, high-quality services.

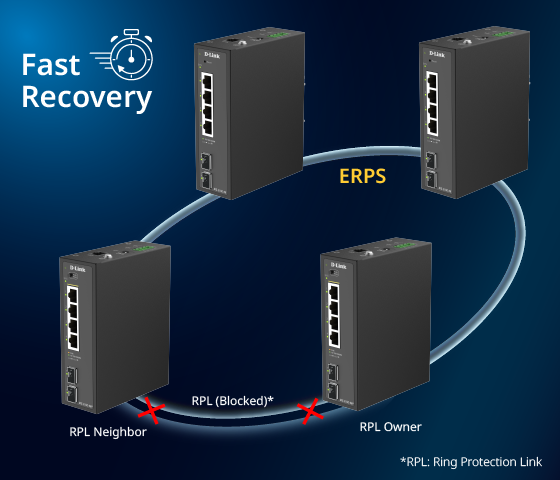

Fast Recovery, Continuous Service
The DIS-210G-06 combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimize downtime, and maintain a consistent, high-quality service experience.

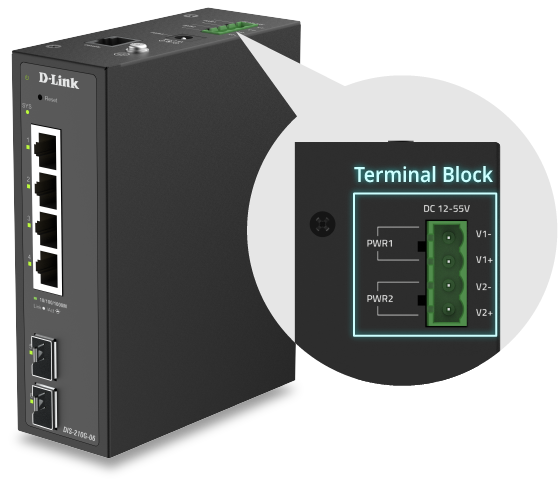

Uninterrupted Power Redundancy
The DIS-210G-06 supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimizes shutdown risk and maintains network performance.
Wide
Voltage
Redundancy
Power Supply
Overcurrent
Protection
Anti-reverse
Protection
Firm
Connection

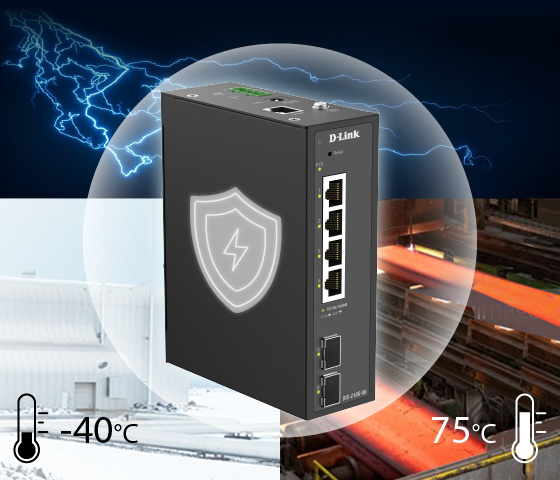

Built Tough for Demanding Conditions
The DIS-210G-06 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Related Products

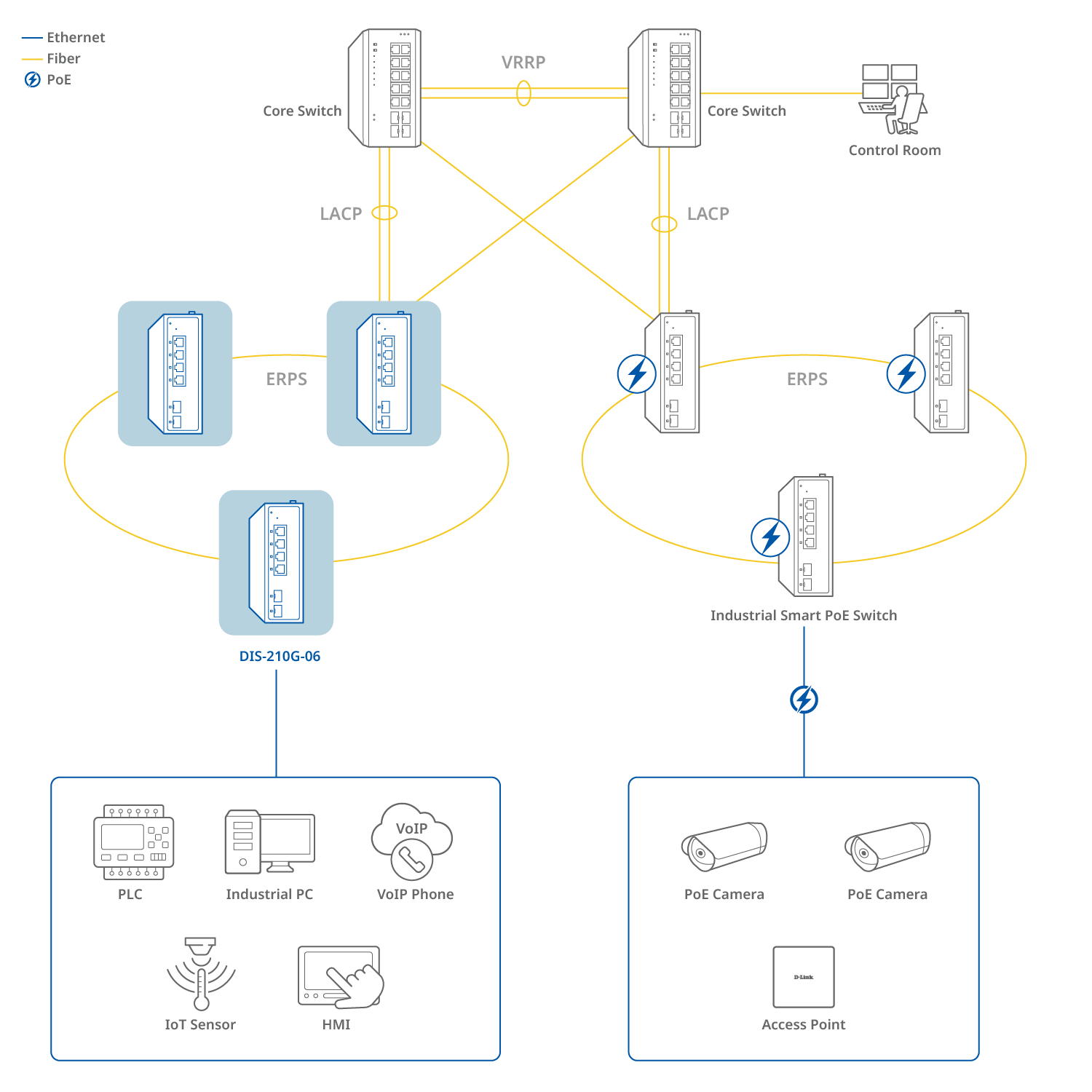

Connection Diagram
The DIS-210G-06 is an industrial smart switch equipped with four 1G ports and two 1G SFP ports for network management and aggregation. The SFP ports support long-distance data transmission, rapid failover redundancy, and throughput aggregation. The DIS-210G-06 supports ERPS and static routing, which reduces latency, enables effective traffic control, and improves network scalability and efficiency.
Core
Switch
Industrial
Switch
Access
Point
Applications

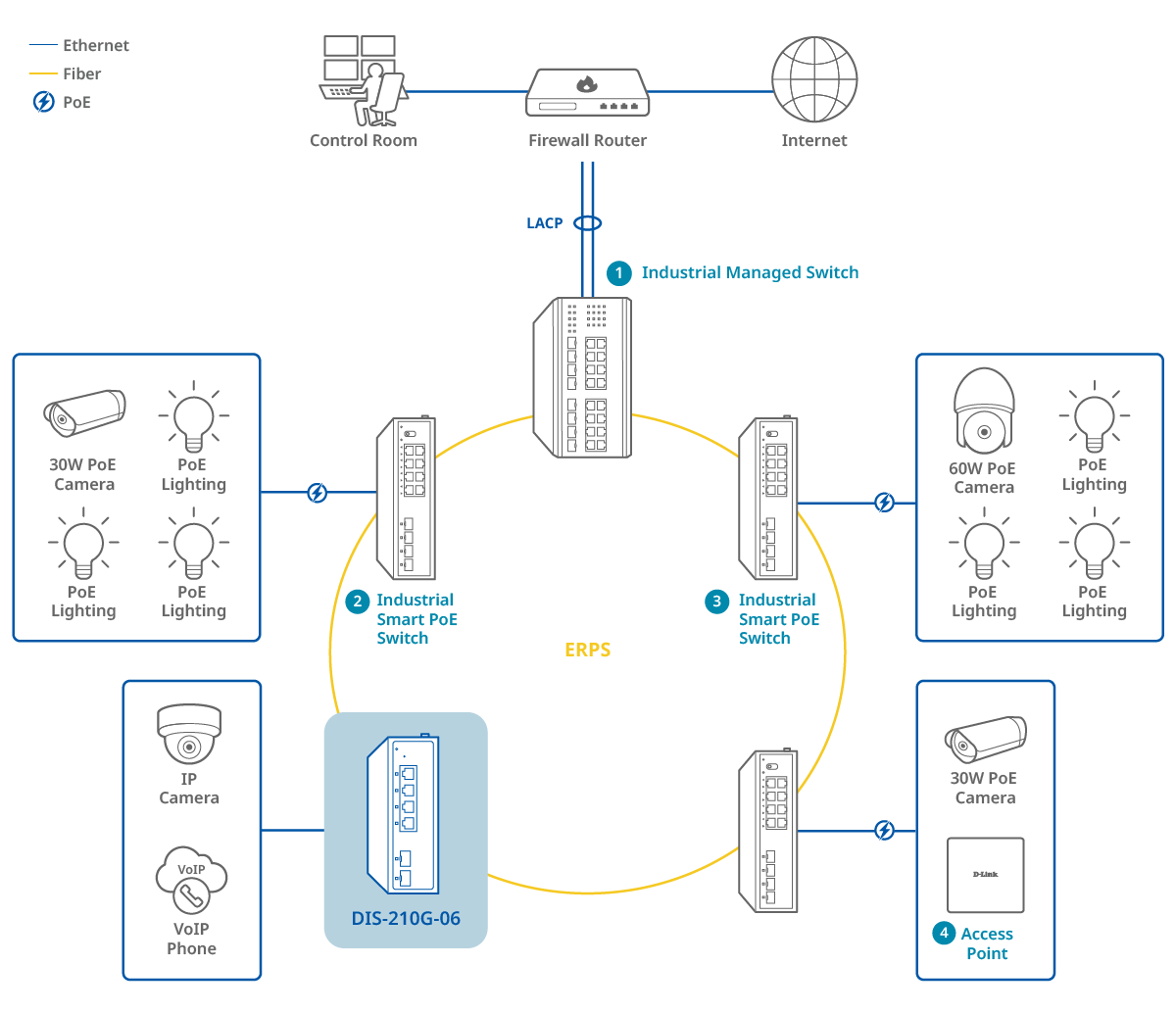

Industrial Automation
City Surveillance
Industrial Automation
User benefits :
Learn more :
- Industrial Managed Switch : DIS-310G-24X (Coming Soon)
- Industrial Smart PoE Switch : DIS-210G-12P
- Industrial Smart PoE Switch : DIS-210G-12UP
- Access Point : DAP-X3060

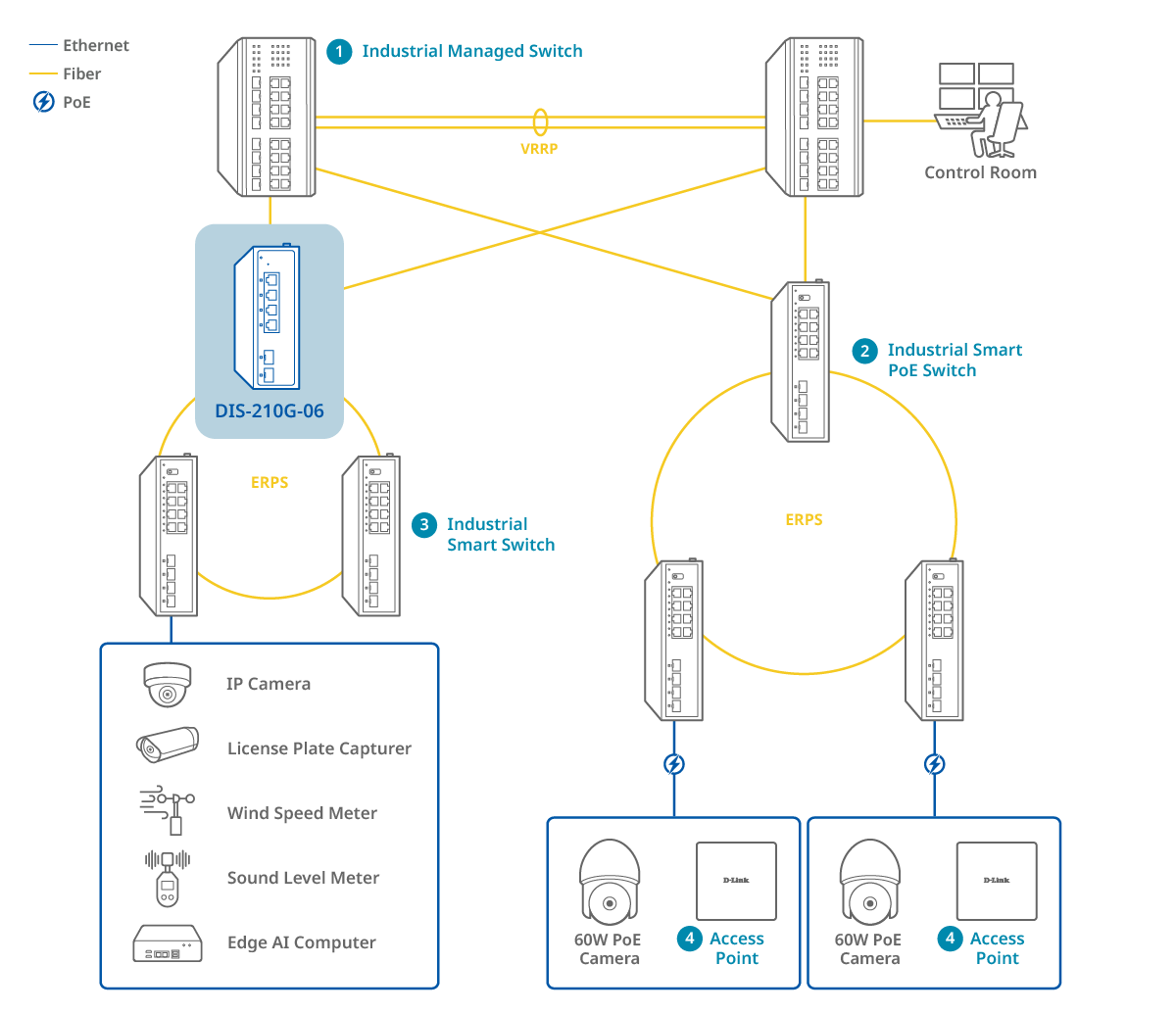

City Surveillance
User benefits :
Learn more :
- Industrial Managed Switch : DIS-310G-24X (Coming Soon)
- Industrial Smart PoE Switch : DIS-210G-12UP
- Industrial Smart Switch : DIS-210G-12
- Access Point : DAP-X3060OU
產品規格
|
Type of Uplink Ports
|
1G SFP |
|---|---|
|
Number of Gigabit Ports
|
4 |
|
Number of SFP Ports
|
2 |
|
Fanless
|
Supported
|
|
802.3az EEE
|
Supported
|
|
Surge Protection
|
6kV |
|
Ingress Protection
|
IP40 |
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:12~55V Dual input |
|
Dimensions
|
138 x 108 x 44 mm |
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
MAC Address
|
Up to 8K |
|
802.1D STP, 802.1w RSTP, 802.1s MSTP
|
Supported
|
|
Port/VLAN Basis GVRP
|
Supported
|
|
Voice VLAN
|
Supported
|
|
IPv6 Support
|
Supported
|
|
ACL Ingress
|
Supported
|
|
SSL, IP-MAC-Port Binding (IMPB), ARP Spoofing, BPDU Attack Protection
|
Supported
|
|
802.1X, RADIUS
|
Supported
|
|
SNMP (v1/v2c/v3), RMON v1/ v2
|
Supported
|
|
LLDP, LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
OAM by 802.3ah, 802.1ag, ITU-T Y.1731
|
Supported
|
|
Command Line Interface (CLI)
|
Supported
|
|
Console Port
|
RJ-45 console port |
|
