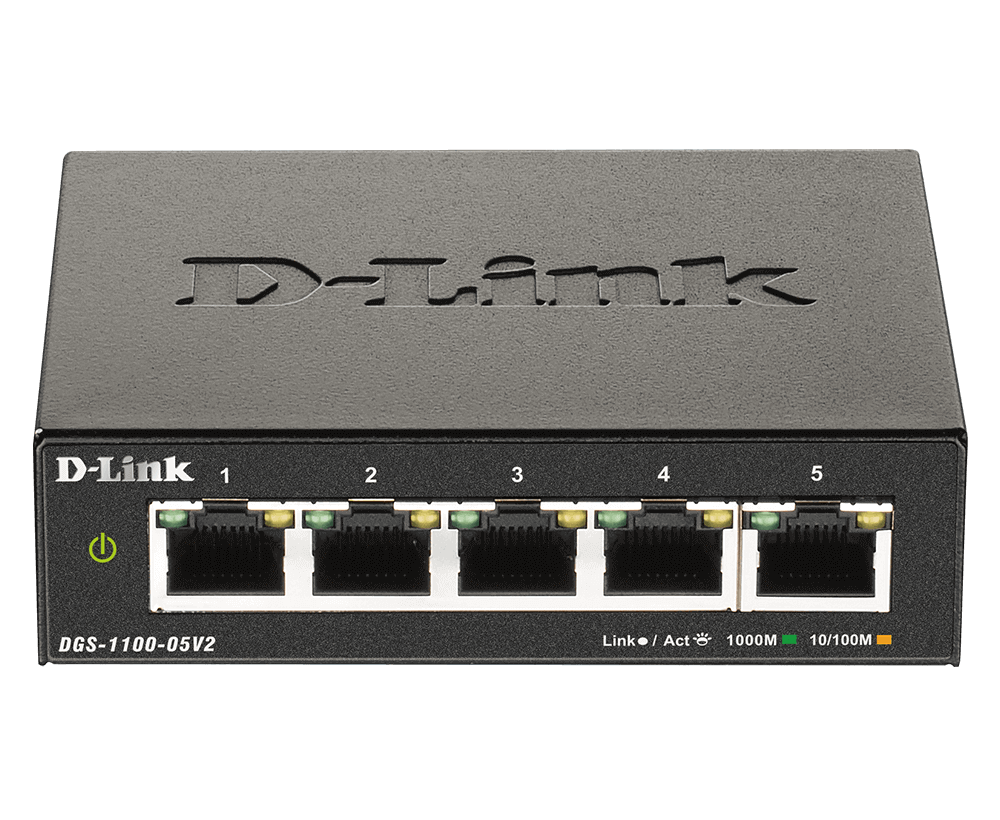

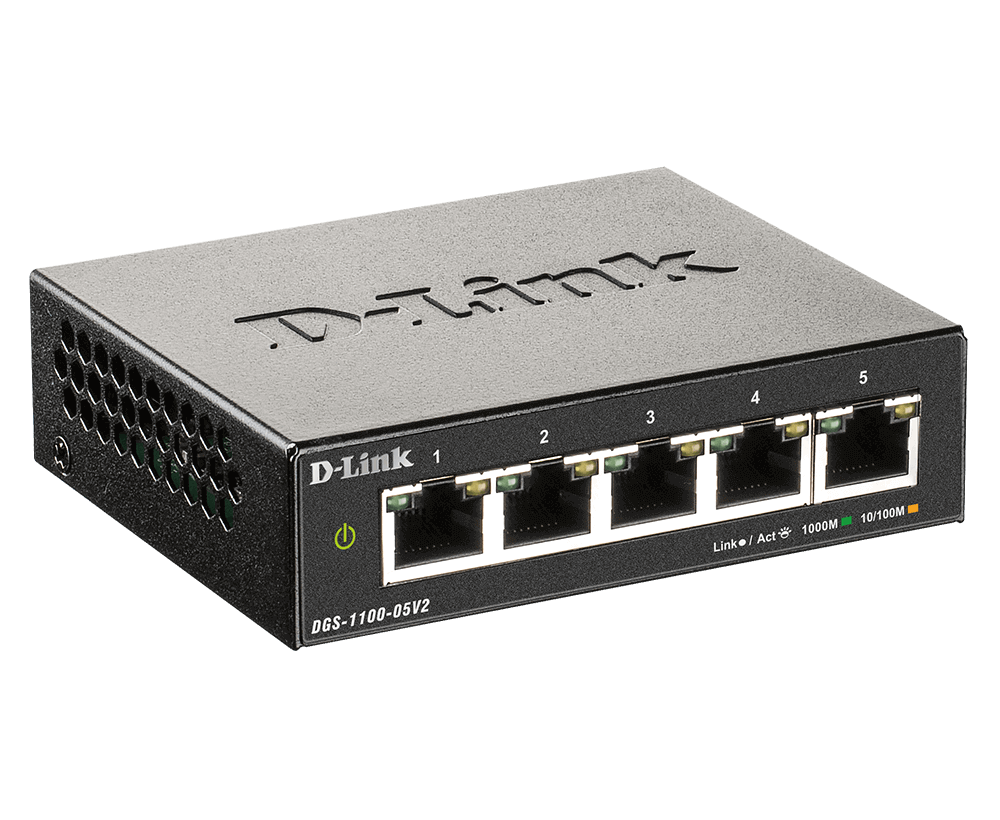

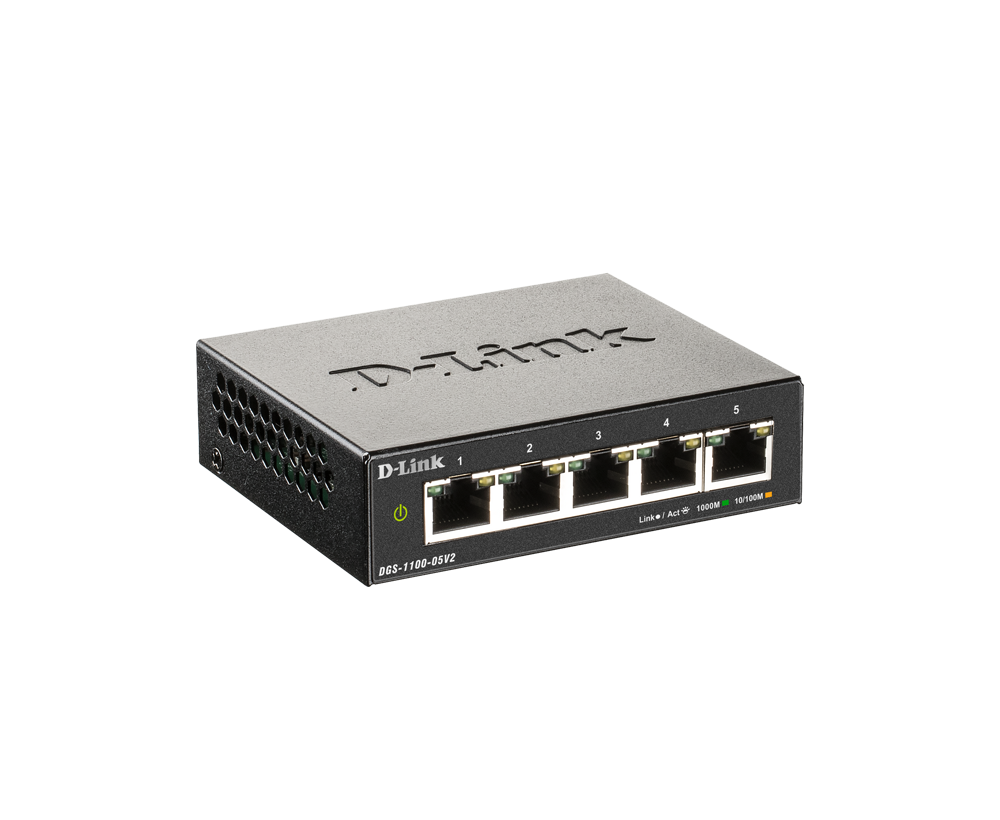

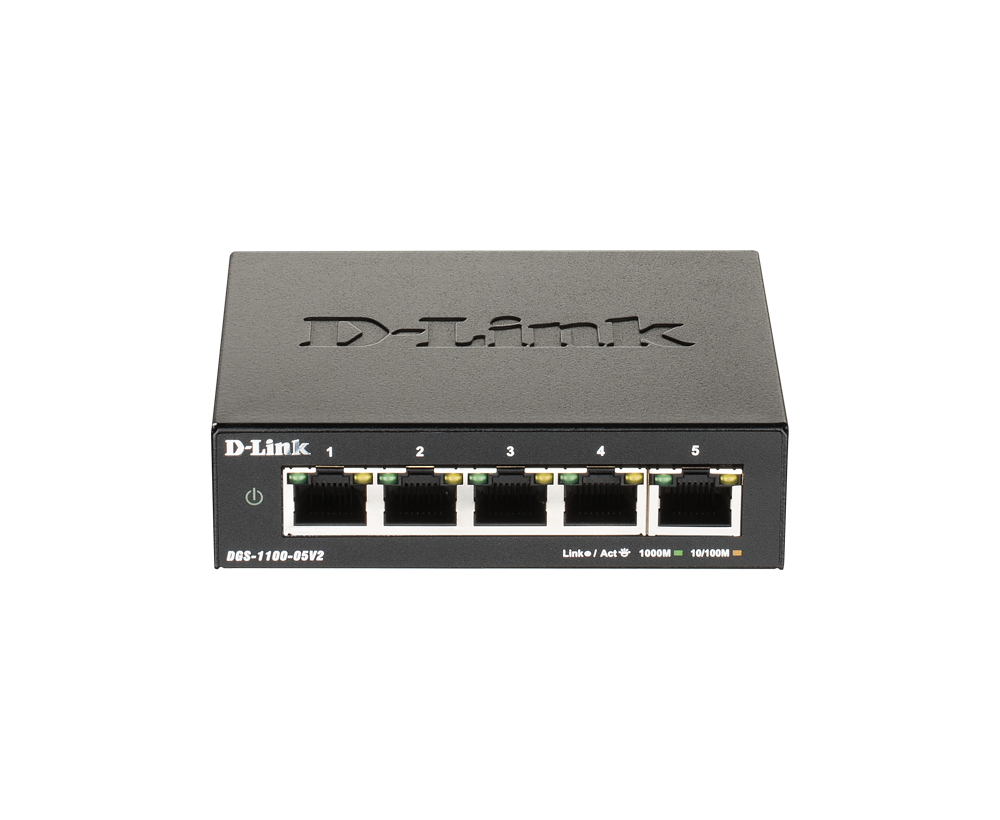

5埠 Gigabit Easy Smart簡易智慧網管交換器

DGS-1100-05V2

  • Product Status: Live
  • 5埠10/100/1000 Mbps 自動速率偵測
  • 金屬外殼 無風扇靜音設計
  • 可置放桌面、支援壁掛安裝
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
  • Innovative energy saving features are good for your budget, as well as the environment
Where to buy

Simple. Easy. Smart.

Web UI

Easy to use web interface to access management features.

Green Technology

Innovative D-Link Green power saving features

Management Software

Supports DNA and D-View for remote setup and management

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

DGS-1100 Series

Product
DGS-1100-05V2
DGS-1100-05V2

5-Port Gigabit Smart Managed Switch

DGS-1100-05PDV2
DGS-1100-05PDV2

5-Port Gigabit PoE Smart Managed Switch and PoE Extender

DGS-1100-08V2
DGS-1100-08V2

8-Port Gigabit Smart Managed Switch

DGS-1100-08PV2
DGS-1100-08PV2

8-Port Gigabit PoE Smart Managed Switch

DGS-1100-16V2
DGS-1100-16V2

16-Port Gigabit Smart Managed Switch

DGS-1100-24V2
DGS-1100-24V2

24-Port Gigabit Smart Managed Switch

DGS-1100-24PV2
DGS-1100-24PV2

24-Port Gigabit PoE Smart Managed Switch

Interface
16 x
10/100/1000BASE-T ports
24 x
10/100/1000BASE-T ports
12 x
10/100/1000BASE-T PoE ports
12 x
10/100/1000BASE-T ports
Performance
Switching Capacity
48 Gbps
Max. Packet Forwarding Rate
35.71 Mpps
PoE
PoE Budget
100 W
(30 W max. per PoE port)
Read More
Read More
Read More
Read More
Read More
Read More
Read More

產品規格

Interfaces
3 x 1000Base-T Interface ( with 1 PD Port)
2 x 1000Base-T PoE
Auto MDI/MDIX
Switching Capacity
10 Gbps
Maximum Forwarding Rate
7.4 Mpps
Dimensions
150 × 97 × 28 mm
Weight
0.38kg
Temperature
Operating: 0 ~ 40 °C
Storage: - 40 ~ 70 °C
Humidity
Operation 0%-90% RH
Storage: 0% - 95% RH
Operating Altitude
2000 m
Max Power Consumption
23.922W (PoE on)
2.322W (PoE off)
Power Input
802.3af/at PoE input only
Packet Buffer Size
1 Mbits
FAN
Fanless
PoE Power Budget
18W max with 802.3at
8W max with 802.3af input power

實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。
