The DWL-8710AP is an outdoor dual-band Wireless AC1200 Access Point designed specifically for deployment in business and campus environments. Highly manageable and capable of blazing speeds, the DWL-8710AP integrates seamlessly into an existing network infrastructure and can be easily scaled to meet future demands.
![](/pt/pt/-/media/product-pages/dwl/8710ap/intro.jpg)

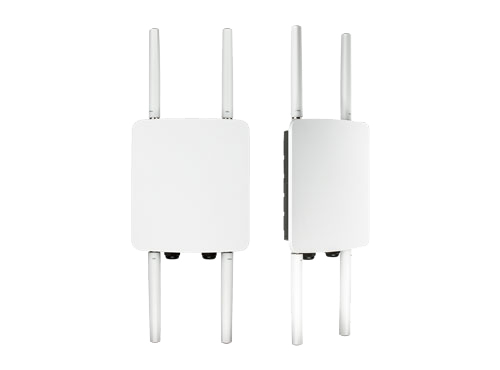

Convenient Installation

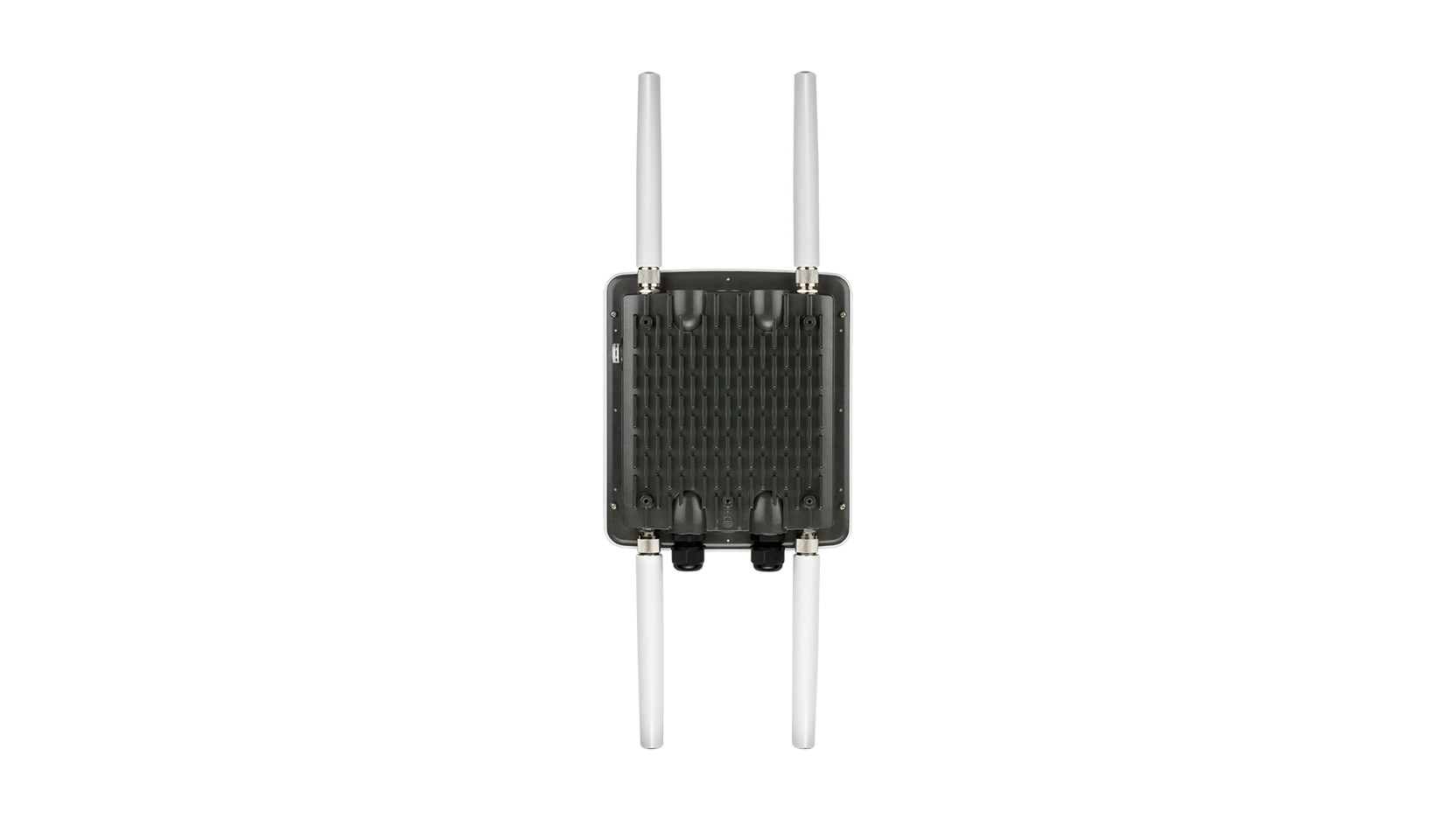

The DWL-8710AP can be installed on a wall or pole with the included mounting brackets. The DWL-8710AP is IP67-compliant and is designed to operate in harsh outdoor environments and temperatures ranging from -30 up to 60˚C. For easy installation, it has integrated 802.3at Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.
![](/pt/pt/-/media/product-pages/dwl/8710ap/design.png)

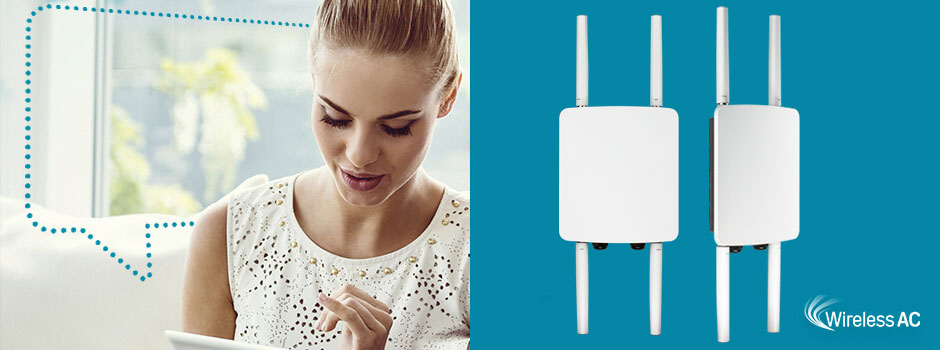

Superior Wireless AC Performance
The DWL-8710AP delivers reliable, high-speed wireless performance using the latest 802.11ac standards. Band steering ensures 5GHz-enabled clients can achieve their maximum performance without being bottle-necked by legacy 2.4 GHz 802.11b/g/n clients. AC SmartBeam™ technology enables the DWL-8710AP to have even greater reach than ever before.
![](/pt/pt/-/media/product-pages/dwl/8710ap/wireless_ac.jpg)

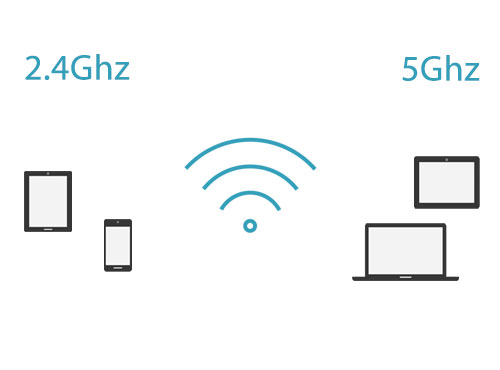

Simultaneous Dual-Band Wireless
Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps over the 2.4 GHz band, and 867 Mbps over the 5 GHz band
![](/pt/pt/-/media/product-pages/dwl/8710ap/bandsteering2.jpg)
Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including Station Isolation
![](/pt/pt/-/media/product-pages/dwl/8710ap/32ssids.jpg)

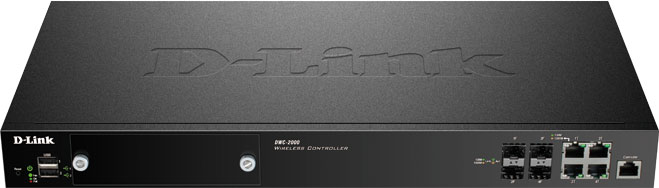

Centrally Manage your Wireless Network
When working in conjunction with a D-Link Unified Switch or Wireless Controller, the DWL-8710AP, like other D-Link Unified Access Points, may be centrally managed. This allows up to 1,024 D-Link Unified Access Points to be deployed and managed easily and efficiently3. This managed wireless solution offers self-organising, self-optimising and self-healing network capabilities to increase the stability of the entire wireless network.
![](/pt/pt/-/media/product-pages/dwl/8710ap/wireless_controller.jpg)
Related Products
![](/pt/pt/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=pt-PT&hash=C2127F0C4A40BAF7A1E6533540F69EAC)
![DWC 1000 Front](/pt/pt/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=pt-PT&hash=CE24CCD8CB83336302009B7750AE6026)
![](/pt/pt/-/media/product-pages/dwl/6610ap/b1/dwl6610apb1image-lfront.png?h=100&w=178&la=pt-PT&hash=DDA91E6B4AAB79DA09E99C809A09DC63)
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
4 detachable omni-directional antennas |
Antenna gain
|
5 dBi for 2.4 GHz 7 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
2 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Outdoor |
Type of housing
|
Metal Plastic |
IP rating
|
IP67 |
Wireless modes
|
Access Point (AP) WDS bridge |
Advanced features
|
Fast Roaming MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-3160 DWS-4026 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
FAQ
- What do the modes mean on my AP? Read Answer
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 0.46mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual 6.61 Revision A1 | Product Manual | 11/09/2018 | - | - | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
QIG | - | 12/06/2016 | - | - | Download |
