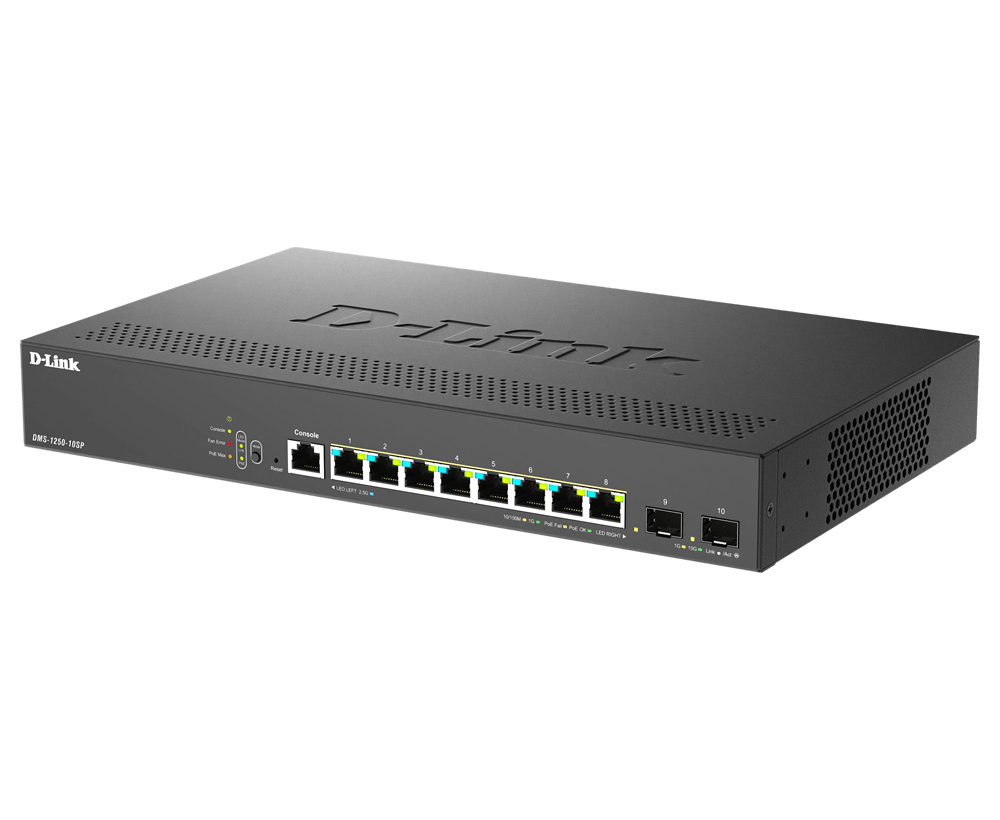

10-Port 2.5G Smart Managed PoE Switch
DMS-1250-10SP
- Product Status (A1 v1.06): Live
- 8 Ports 2.5GE PoE for downlink
- 2 Ports 10G SFP+ for uplink
- PoE IEEE802.3af/at options, power budget 240W
- 6kV surge protection on all 2.5G ethernet ports
- Support LACP 802.3ad Link Aggregation
- Support Static Routing & Loopback Detection
- Support Spanning Tree Protocol(STP/RSTP/MSTP)
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Where to buy
User Benefits
Conectividade flexível
Suporta uma vasta gama de interfaces físicas para ligações de rede abrangentes.
Fácil de operar
A Web UI fácil de usar que permite um controlo de rede eficiente e personalizado
Segurança melhorada
Suporta funções versáteis para aumentar a segurança da rede
Relação custo-benefício
Oferece funcionalidades avançadas e alimentação de rede a um preço acessível.
2.5G Speeds: Built for Wi-Fi 6 and Beyond
6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
Support L2+ Features
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
- GVRP
- ISM VLAN
- VLAN Translation
- Double VLAN (Q-in-Q)
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping
Power and Data over One Cable
Nuclias Network Controller
Related Products
Startup Office (Enterprise)
User benefits :
- Simplify network deployment and management
- Power devices with PoE+ for flexible deployment
- Enables future-proof network upgrades
- Increases bandwidth and redundancy with link aggregation
Learn more :
- Business Router : DBR-700
- Standard Smart Switch : DMS-1250 Series
- Smart Access Point : DBR-X3000-AP
Dormitory (Building)
- Power devices with PoE+ for flexible deployment
- Smooth 4K streaming and online gaming
- Prevents network disruption with loopback detection
- Simplify network management with intuitive tools
Learn more :
- Aggregation Swtich : DXS-3130-32S ( Coming Soon )
- Network Controller : DNH-1000
- Unmanaged Switch : DMS-108P
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Transnational University (Education)
User benefits :
- Enhances network stability with STP and secure access via AAA
- Power all classroom devices efficiently with PoE+
- Simplify network expansion with 10G uplinks
- Centralized management for efficient control
Learn more :
- Network Controller : DNH-3000
- Core Switch : DXS-3610-54S
- Aggregation Switch : DXS-3130-32S ( Coming Soon )
Standard Smart Switch : DMS-1250 Series
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Specs
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 Layer 2+ |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GbE SFP+ |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
8 |
|
PoE power budget
|
See datasheet |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
|
IP interfaces
|
8 |
|
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 64 |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
Encryption protocol supported
|
SSH |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
