AC5300 MU-MIMO Ultra Wi-Fi Router

DIR-895L

  • Product Status: End of Life


The Ultimate Router for
HD Streaming and Gaming

The D-Link AC5300 MU-MIMO Ultra Wi-Fi Router (DIR-895L) delivers the ultimate performance for the most demanding tasks, like 4K video streaming, gaming and multiple device usage.

DIR-895L AC5300 MU-MIMO Ultra Wi-Fi Router

Key Features

  • Dual core

    1.4GHz Dual Core Processor

    Faster processing powerfor supporting apps

  • Data streams

    4x4 Data Streams

    Supports 4 simultaneous data streams for increased throughput.

  • MU-MIMO

    MU-MIMO Technology

    High-bandwidth Wi-Fi signal to multiple devices at the same time.

  • Smart connect

    SmartConnect

    Allocates the best possible band for optimal performance.

  • smartbeam

    Advanced AC SmartBeam

    Focused Wi-Fi signals for faster more reliable connections.

  • Tri-band

    Tri-Band

    Two 5GHz and one 2.4GHz bands.



Tri-Band performance &
Smart Connect Technology

The DIR-895L delivers tri-band Wi-Fi AC technology with combined wireless speeds of up to 5332Mbps thanks to 4x4 data streams.
Combined smart beam forming and MU-MIMO technology increase reliability and range.

With Smart Connect Technology, the ULTRA Wi-Fi Router chooses from the three Wi-Fi bands and automatically connects each device on your network to the best, clearest band available for the best connection.


Smart Connect

2.4GHz
Network 1

5GHz
Network 2

5GHz
Network 3

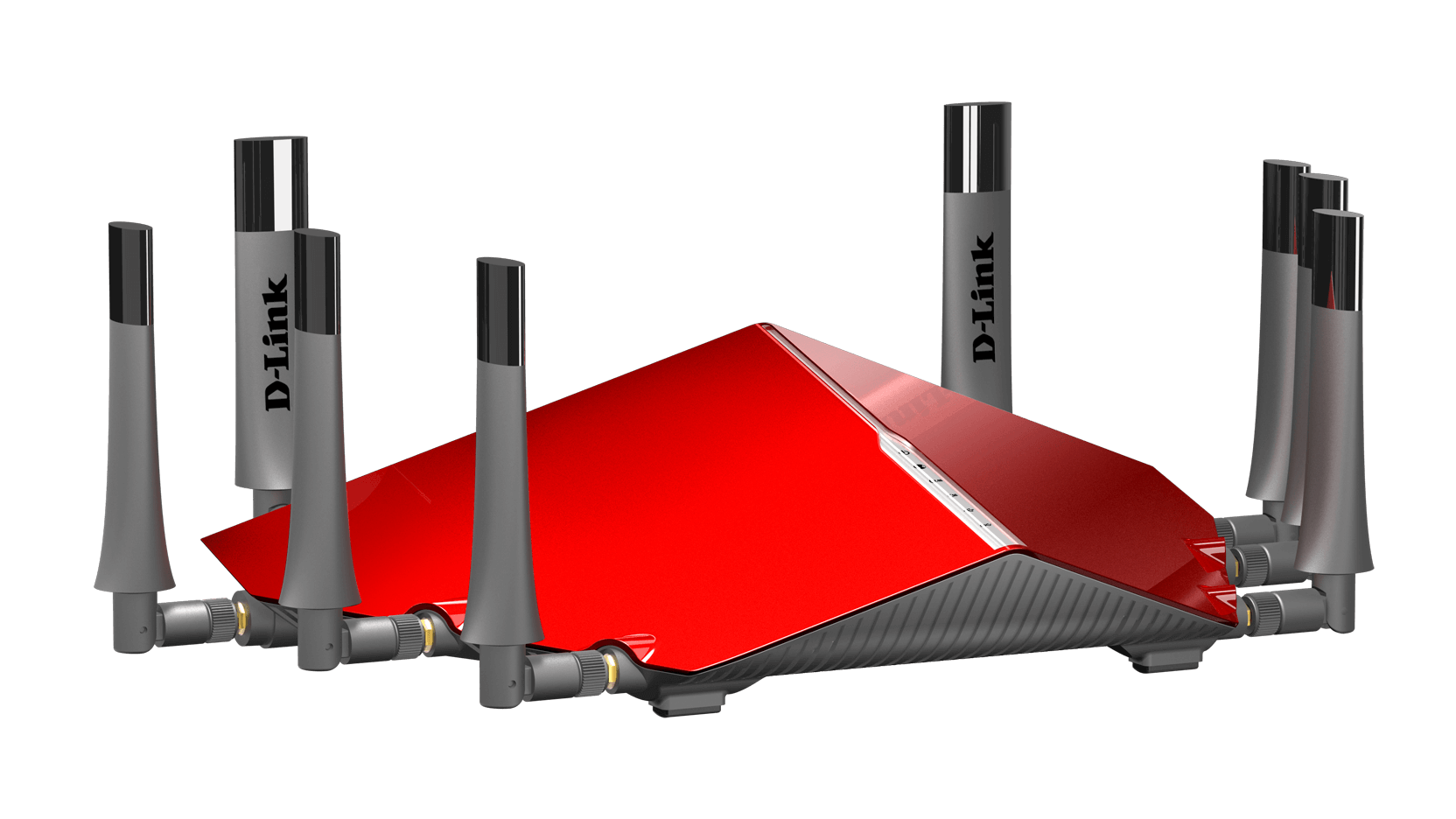

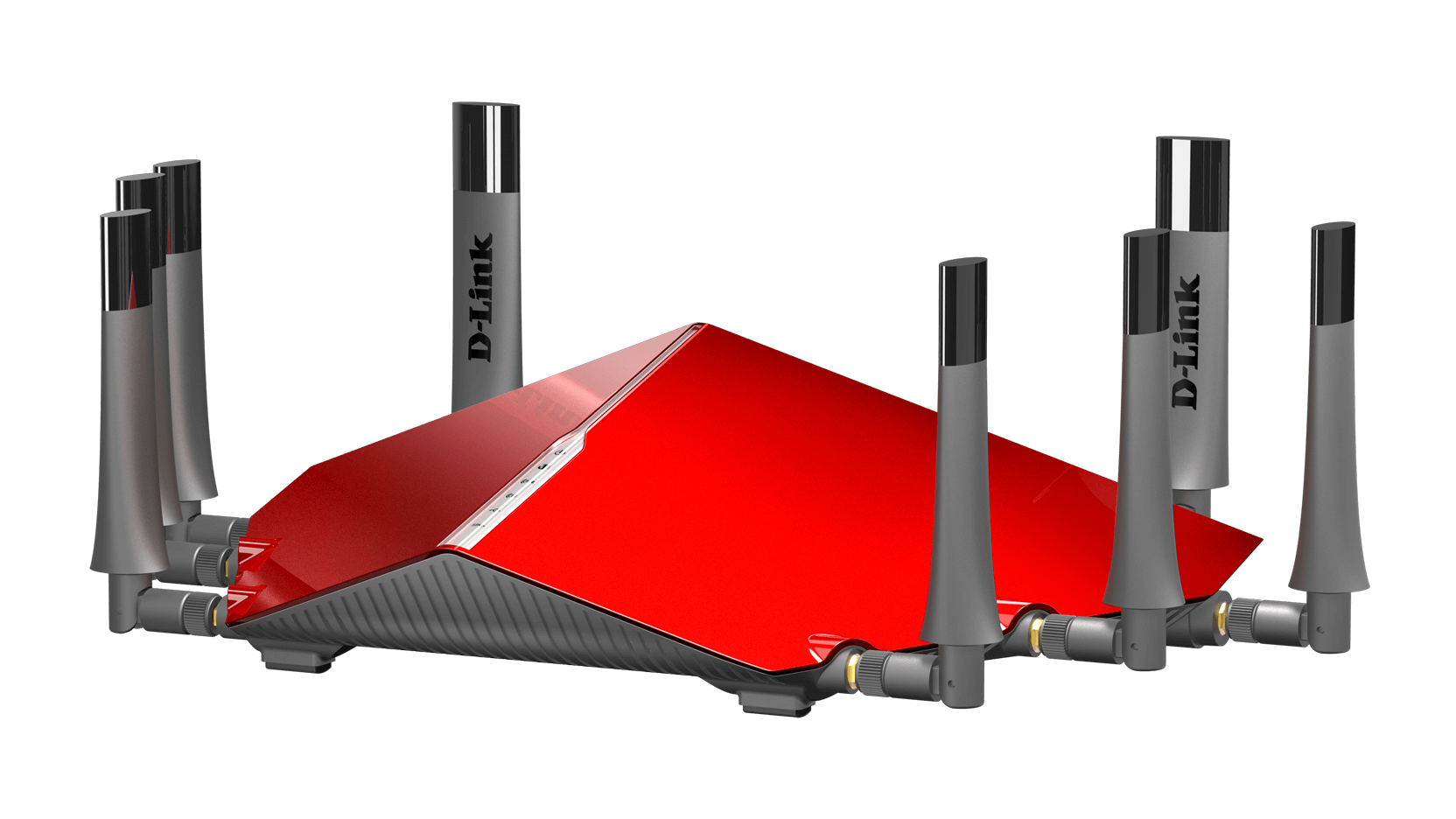

The ultimate Wi-Fi Coverage.

Eight high-performance external antennas will deliver improved Wi-Fi range and signal stability throughout your home. You’ll connect to your devices faster with fewer dead zones.



The ultimate Wi-Fi Coverage

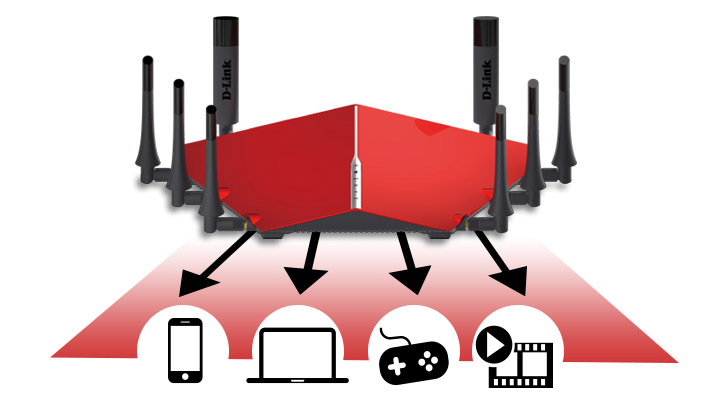

Multi-User MIMO (MU-MIMO)

MU-MIMO technology allows multiple devices to get high‑bandwidth Wi-Fi signal at the same time. Data can be distributed more efficiently, giving you the fastest Wi-Fi speeds possible. You can stream HD media faster, transfer large files really fast and enjoy lag-free gaming.

Read more >



Multi-User MIMO (MU-MIMO)


Extreme Processing Power

Want a high-performance router that can handle multiple tasks at incredible speeds?

A dual-core processor boosts multitasking computing power and improves throughput speeds for all of your applications.


More Processing Power


Smart Beam Forming

Improves coverage by directing bandwidth to your devices as you move around your home. You can stream HD video, surf the web, skype your friends and play online games from wherever you are so you’ll always get the best experience.

Smart Beam Forming


New User Interface

Controlling your network by enabling parental controls, blocking unwanted devices, monitoring internet activity and creating Wi-Fi guest networks is easier than ever with our new interface.
New User Interface

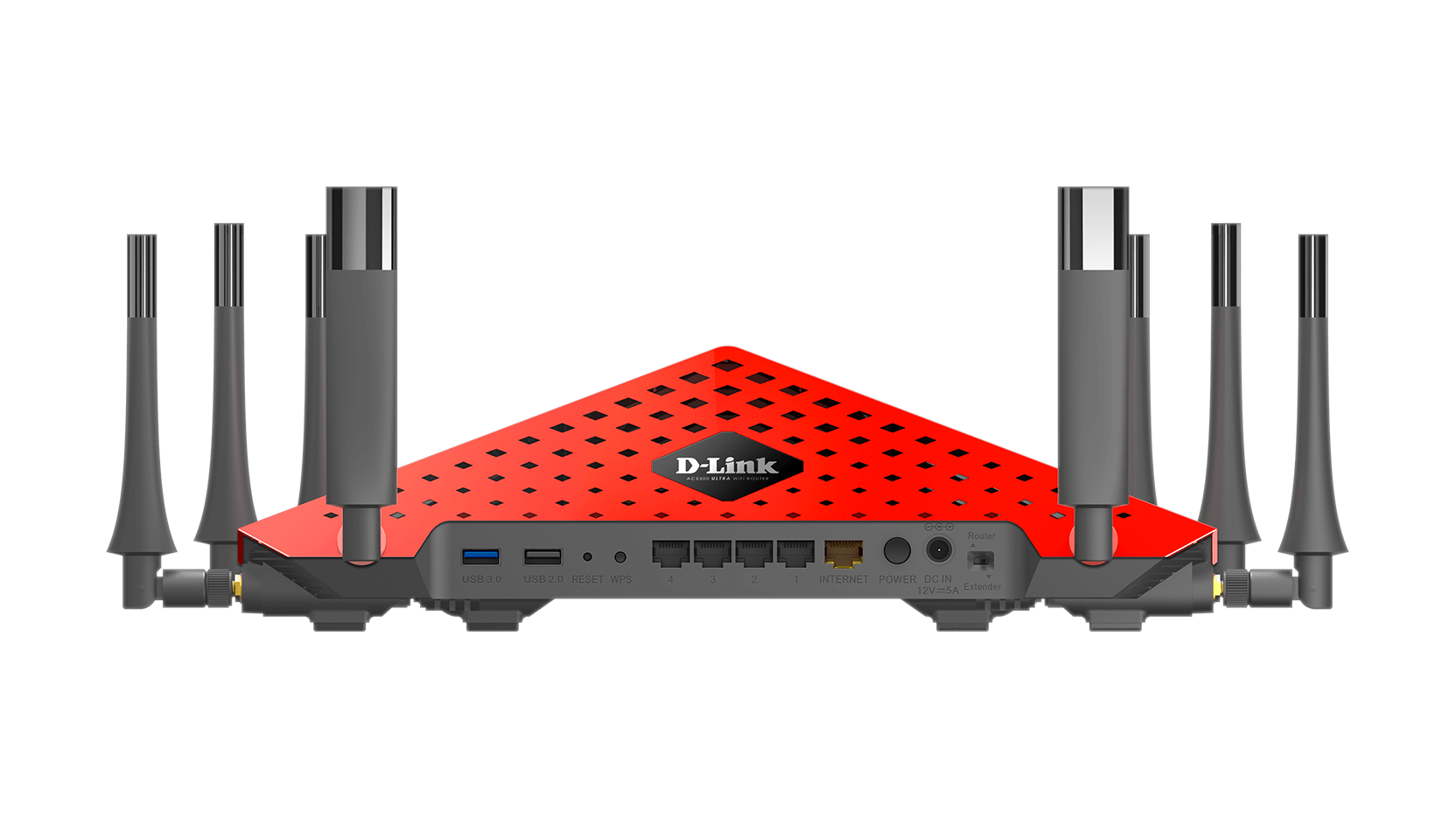

Really fast wired performance

Connect up to 4 wired devices and enjoy the best online experience for
HD Streaming and Gaming
Really fast wired performance
  • USB 3.0 Port

    Share media
    from a USB
    storage device

  • USB 2.0 Port

    Share
    a printer

  • WPS Button

    One button
    setup

  • 4 Gigabit
    LAN ports

    Connects up to 4
    wired devices

  • Internet Port

    Plug your
    internet cable
    in here

  • Router/
    Extender
    Button

    Select between
    router or
    extender mode


DD-WRT
Open Source



The DIR-895L Ultra Wi-Fi Router provides a responsive graphical user interface for an exceptional experience right out of the box. Advanced users have the option to utilise Open Source firmware to modify their router further with DD-WRT*. For more information visit – www.dd-wrt.com .

* Please note that installing custom firmware will void the product warranty and is done so at your own risk.



DD-WRT Open Source


Additional Features


Speed



Speed

11AC Wi-Fi - Fast Wi-Fi speeds of up to 5332Mbps (1,000Mbps on 2.4GHz + 2,167Mbps on 5Ghz + 2,167Mbps on 5Ghz).

1.4 GHz Processor - Fast and reliable wireless, Ethernet and USB performance.

Gigabit Ethernet Ports - Ensures the best wired online experience for HD streaming and gaming.





Range



Range
Improved Home Coverage - Eight high-performance external antennas extend wireless range further than with Wireless N.







Performance



Performance
Traffic Prioritisation - Advanced QoS engine guarantees the best performance for high priority programs, games and video streaming.



Tri-Band Technology - Decreases wireless interference and congestion, allowing you to connect more devices.

Band Steering - Automatically assigns devices to the less crowded 5 GHz network to increase bandwidth efficiency and availability.

Advanced AC SmartBeam - Unique beamforming technology dramatically enhances wireless signal strength and range.

Airtime Fairness - Automatically adjusts data rates to avoid network buffering when slower devices connect.





Access



Access
DLNA Enabled (Compatible) - Play and share your media on any DLNA devices, such as TVs, gaming consoles, smartphones and more.



3.0 USB Ports - One USB 3.0 port with speeds up to 10x faster than 2.0.

mydlink SharePort App - Remotely stream and share movies, music, pictures and more from your connected USB hard drive.

SharePort Utility - Access and share a USB printer, scanner or storage device over your home network.





Management



Management
Easy To Install - Installation wizard manually walks you through setup in minutes.



Quick Router Setup (QRS) App - Easy setup app for smartphones and tablets.

mydlink Lite App - Free mobile app with ability to monitor, control & troubleshoot your home network.

WPS Push Button Setup - Quickest method of connecting devices with the push of a button.

Zero Configuration - Once router is setup, other D-Link Zero Configuration devices can easily and instantly connect.





Security



Security
L2TP Over IPSec VPN Server Support - Transmit data securely when connected remotely.



Parental Controls - Create online access schedules and block/allow specific websites and/or devices.

Guest Wi-Fi Network - Enable a public or encrypted wireless guest network to secure and control access to local network devices.

Secure Wi-Fi Encryption - WPA/WPA2 provides highest level of wireless security.



Related Products

AC1300 Wi-Fi Range Extender
DAP-1620
Find out more
Wireless AC1300 MU-MIMO Wi-Fi USB Adapter
DWA-182
Find out more
Wireless AC1200 Dual Band PCI Express Adapter
DWA-582
Find out more
Wireless standard
Wireless AC Wave 2
Frequency band mode
Tri-band simultaneous
Wireless speed
1000 Mbps 2.4 GHz
2 x 2167 Mbps 5 GHz
Antenna type
8 detachable omni-directional antennas
Wired interface
1 x Gigabit Ethernet WAN
4 x Gigabit Ethernet LAN
USB ports
1 x USB 2.0
1 x USB 3.0
Wireless modes
Wireless extender
Advanced features
MU-MIMO
mydlink-enabled
SmartBeam
DLNA
Supported
This product was phased out on: 15/04/2019
This product's last date of support is on: 14/04/2021
Version Date Type File Size
Datasheet - PDF 0.56mb Download
Version Description Date Type File Size
1.20 Product Manual 24/01/2018 - - Download
Manual Manual - PDF 10.07mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 1.85mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.21 Firmware 01/02/2018 - Download
1.20b02 To upgrade the firmware to v1.20b02, you must first upgrade to the transitional firmware v1.15b02. Both firmwares are included in the download file and follow the instructions included. 03/10/2017 - Download
Frimware Release notes included 1.13

Frimware
Release notes included

13/01/2017 - Download
Version Description Date
CE doc 1.00 Revision A1 CE document 08/12/2017 Download
CE doc 1.02 Revision A4 CE document 08/12/2017 Download
