Wireless AC1200 Concurrent Dual-Band Outdoor PoE Access Point

DAP-3662

Product Status: End of Sale

Gestão Unificada gratuita

Nuclias Connect (DNC-100) é o software gratuito de gestão unificada de Pontos de Acesso Wi-Fi das famílias DAP e Switches Smart Managed da gama DGS-1210*

Gestão centralizada de Pontos de Acesso e Switches desde a web e/ou app gratuita, sem custos nem licenças.
Wireless: Análise de tráfego, gestão de RF e canais, portal cativo, SSIDs, etc.
Switching: Gestão de portas, segmentação com VLANs, listas de controle de acesso, Spanning Tree, etc.
Instalável em Windows ou Linux. Opção controladora física com custo (DNH-100)
Fácil descobrimento em layer 2/3 de Pontos Acesso e Switches.
Aprovisionamento em bloco de múltiplos pontos de acesso com móvel desde a app (iOS/Android)

*Requer instalar a última versão de Nuclias Connect (1.2.0.5). Switches compatíveis (após atualizar o seu firmware)

DGS-1210-10, DGS-1210-10P, DGS-1210MP, DGS-1210-20, DGS-1210-26, DGS-1219-28, DGS-1210P, DGS-1210-28MP, DGS-1210-52, DGS-1210-52MP.

Download

Cutting Edge Performance

Incorporating industry leading Wireless AC Chipset, the DAP-3662 delivers up to 4 times* the performance of Wireless N by supporting simultaneous dual-band operation

16 Wireless SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band, including Station Isolation

Functionality with Design

The DAP-3662 is a robust, Gore-Tex® coated, versatile high power outdoor Wireless AC1200 Access Point. Built to withstand the harshest of conditions, it's the ideal solution for extending a wireless network or for creating hot spots outdoors.

Simultaneous Dual-Band Wireless

Supports up to 900Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

Smart Design

The DAP-3662 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Manage up to 1000 APs

Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

Scalable, flexible, centralised AP management

Manage up to 1000 APs from a central location, regardless of geography.

* When compared to Wireless N300

Specs

Download the datasheet.

Management platform	Central WiFiManager (CWM-100)
Type	Software Managed AP
Wireless standard	Wireless AC
Frequency band mode	Dual-band simultaneous
Wireless speed	300 Mbps 2.4 GHz 867 Mbps 5 GHz
Advanced features	MIMO
Antenna type	Embedded omni-directional antennas
Antenna gain	6 dBi for 2.4 GHz 6 dBi for 5 GHz
Power-over-Ethernet	Yes

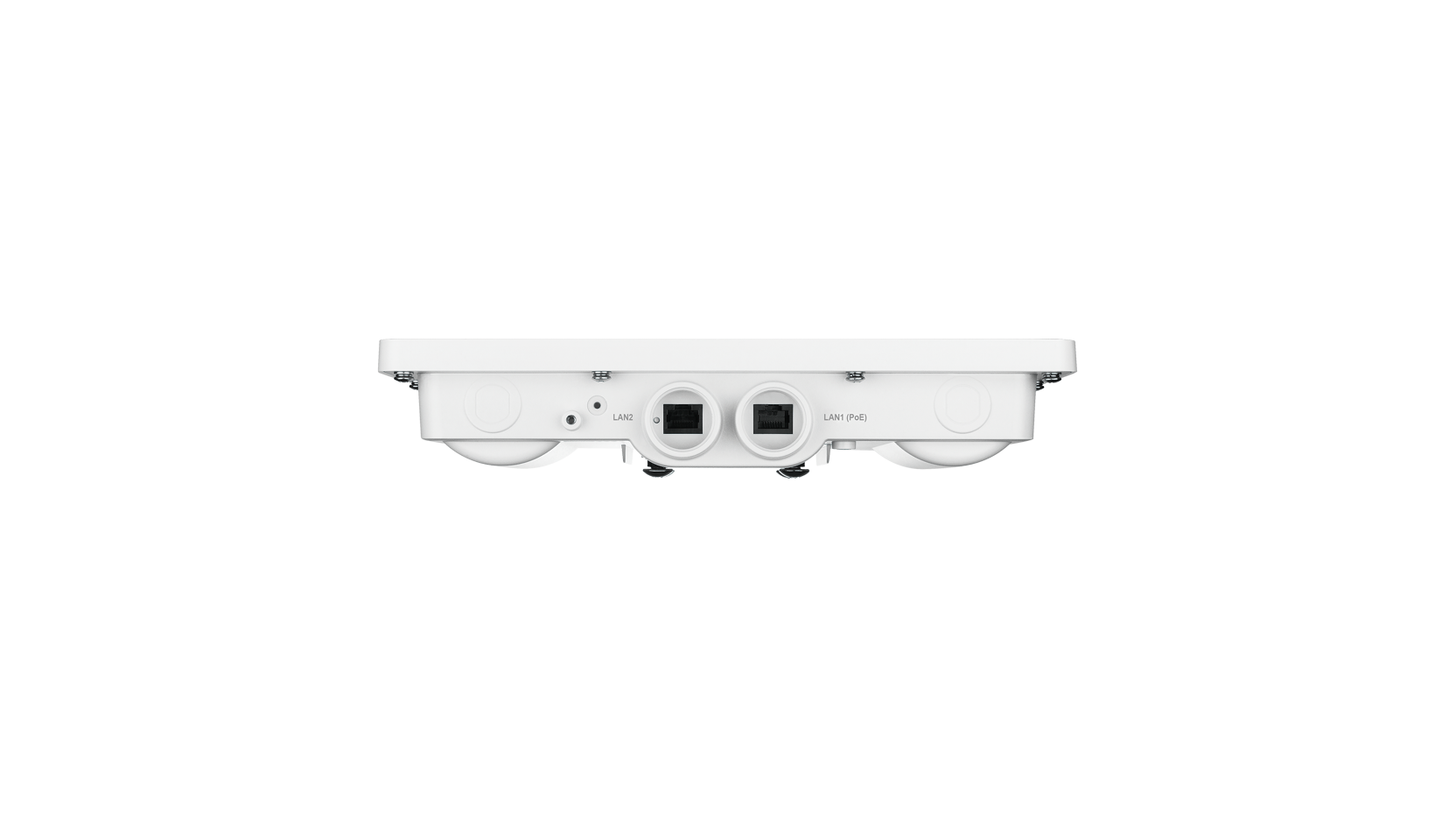

Wired interface	2 x Gigabit Ethernet LAN
Indoor/outdoor	Outdoor
Type of housing	Plastic
IP rating	IP67
Wireless modes	Access Point (AP) WDS bridge WDS with AP Wireless client
Maximum number of SSIDs	8 per radio
Auto channel selection	Supported
WMM-PS/802.11e (U-APSD)	Supported
Wi-Fi scheduler	Supported
AP traffic load balance	Supported
L2 roaming	Supported
WEP 64/128 bit	Supported
WPA/WPA2-Personal/Enterprise	Supported
TKIP/AES encryption	Supported
WPA_WPA2_PSK over WDS	Supported
WLAN partition	Supported
SSID broadcast disable	Supported
Rogue AP detection	Supported
Station isolation	Supported
MAC address filtering	Supported
802.1X authentication	Supported
DHCP server	Supported
802.1D STP	Supported
IGMP snooping	Supported
ARP spoofing	Supported
NTP	Supported
IPv6	Supported
WEB	Supported
SNMP (v1, v2c, v3)	Supported
CLI	Supported
Telnet	Supported
SSH	Supported
Syslog	Supported
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio.
Download the datasheet.

Support

This product was phased out on: 07/05/2021

Version	Date	Type	File Size
Datasheet	-	PDF	1.11mb	Download

Version	Description	Date	Type	File Size
Product manual	Product manual	11/05/2015	PDF	7.86mb	Download

Version	Description	Date	Type	File Size
1.00	Quick installation guide	11/05/2015	PDF	0.86mb	Download

This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.

Version	Description	Date	Type
FW 2.01 RevA2	Firmware	03/03/2020	-	Download
FW 2.00 RevA2	Firmware	03/12/2019	-	Download
1.05rc47	Firmware	08/11/2016	-	Download
1.05	Firmware	02/11/2016	-	Download
1.02rc032	Firmware	23/05/2016	-	Download
Release notes included 1.02rc031	Release notes included	14/04/2016	-	Download
Firmware Release notes included 1.01eu rc023	Firmware Release notes included	17/08/2015	-	Download
MIB file 1.01eu	MIB file	17/08/2015	-	Download
Firmware Release notes included 1.00eu rc016	Firmware Release notes included	11/05/2015	-	Download

Version	Description	Date
AP Array Tool 2.01r10	AP Array Tool	17/08/2015	Download
AP Array Tool 1.00.rc07	AP Array Tool	11/05/2015	Download
AP Manager II 1.00	AP Manager II	11/05/2015	Download

Version	Description	Date
CE doc 4.00 RevA2	CE declaration	24/12/2019	Download
CE doc 3.00 RevA2	CE declaration	28/10/2019	Download
CE doc 2.00 RevA2	CE declaration	23/07/2019	Download
CE doc 1.12 Revision A2	CE declaration	16/04/2018	Download
CE Document A2	CE declaration	14/11/2017	Download
DEU_CE_Doc_RevA	CE declaration	11/05/2015	Download
