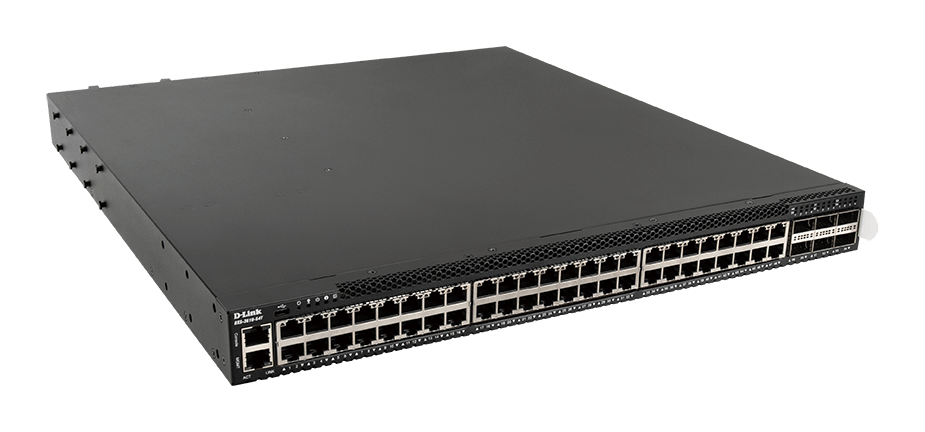

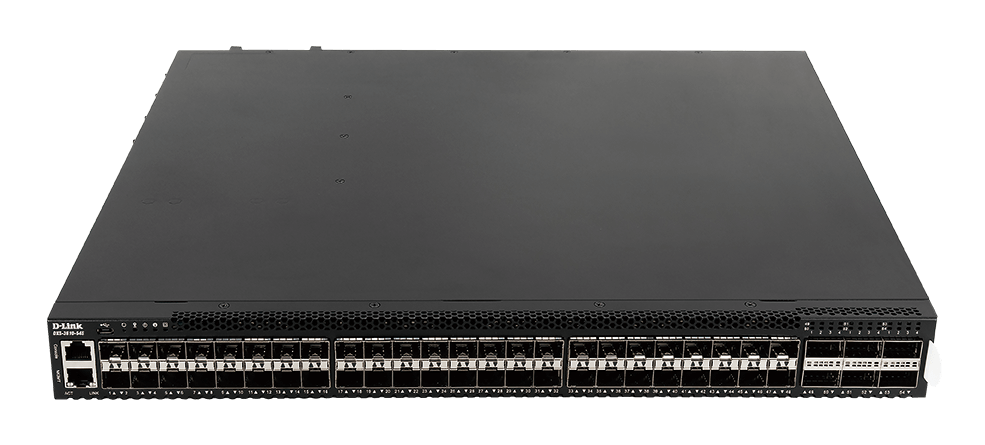

Layer 3 Stackable 10G Managed Switches

DXS-3610-54S, DXS-3610-54T

  • Product Status (Revision A1): Live
  • Available as 48 x 10G SFP+ or 10GbE Base-T ports and 6 x 40G/100G QSFP+/QSFP28 ports
  • Wire-speed, ultra-low latency switching
  • Supports OpenFlow 1.3
  • Dual AC hot-swappable power supply modules
  • Modular hot-swappable fan design


Download the datasheet.

Where to buy
Highly Scalable

License upgradable to MPLS, supports Switch Resource Management

High Performance

Powerful 100G uplink speed, 48 x 10G ports and MAC Table up to 288K

Hot-Swappable Redundancy

Multiple Fan Modules with Load-Sharing PSUs

SDN Compatible

OpenFlow v1.3 compliance for SDN environments

Switches that stack above the competition

The DXS-3610 series are the ideal choice for future-proofing your aggregation/core network in high-performance data centres, enterprise and campus applications.

Stack up to x12 switches for high-density Gigabit aggregation

Switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps

x48 1/10GbE ports and x6 40/100GbE QSFP+/QSFP28 ports

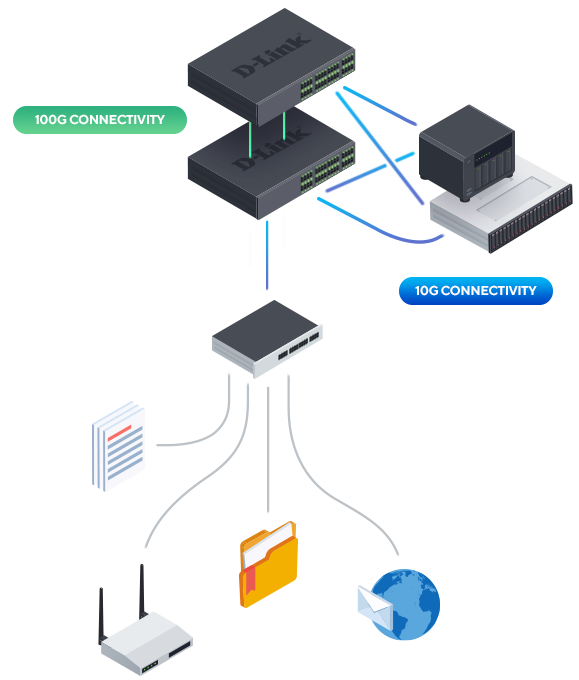

High availability, less downtime

DXS-3610 switches offer high availability capabilities such as ring stacking (with DEM-CB100Q28), ERPS, and link aggregation to provide reliable uptime for your business network.

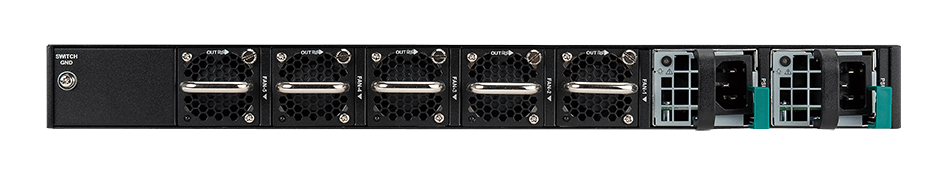

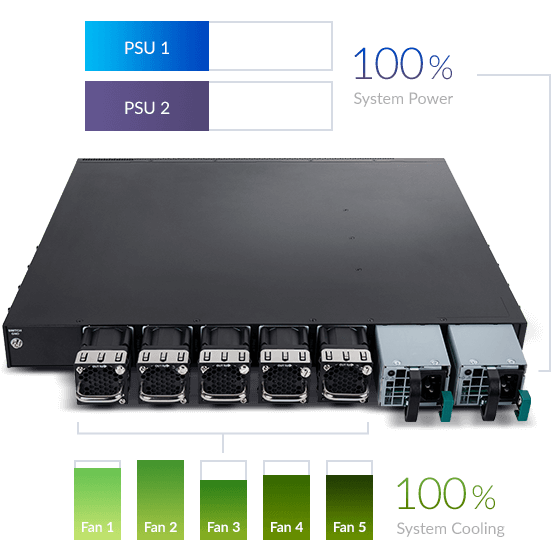

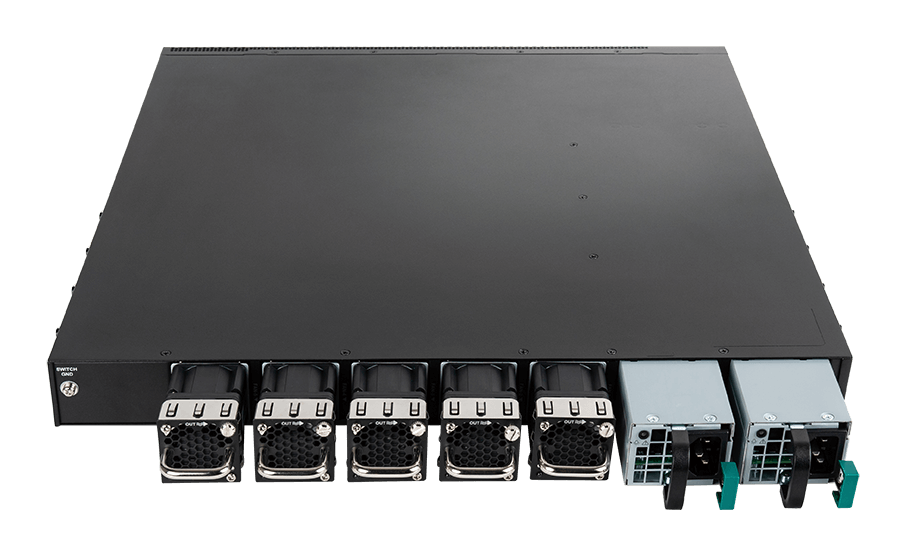

Hot-Swappable Redundancy

The DXS-3610 Series features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows AC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.

Load Sharing
Enables both power supplies to evenly distribute load to increase reliability and lifetime.

1+1 redundancy
Minimizes downtime in case of a single power supply failure.

Upgradable Software

Standard Image
Features a wide range of Layer 2, VLAN, multicasting, Quality of Service (QoS), security, data centre, and static routing protocols including RIP, VRRP and OSPF.

Enhanced Image
Features comprehensive IPv4/v6 routing, including BGP and L3 multicasting features such as IGMP, MLD, PIM-DM, SM, SDM, SSM, and DVMRP. The Enhanced Image also supports L2/L3 MPLS VPN, which enables the DXS-3610 Series to be deployed as the core router of an enterprise environment, or as an aggregation switch in an MPLS environment.

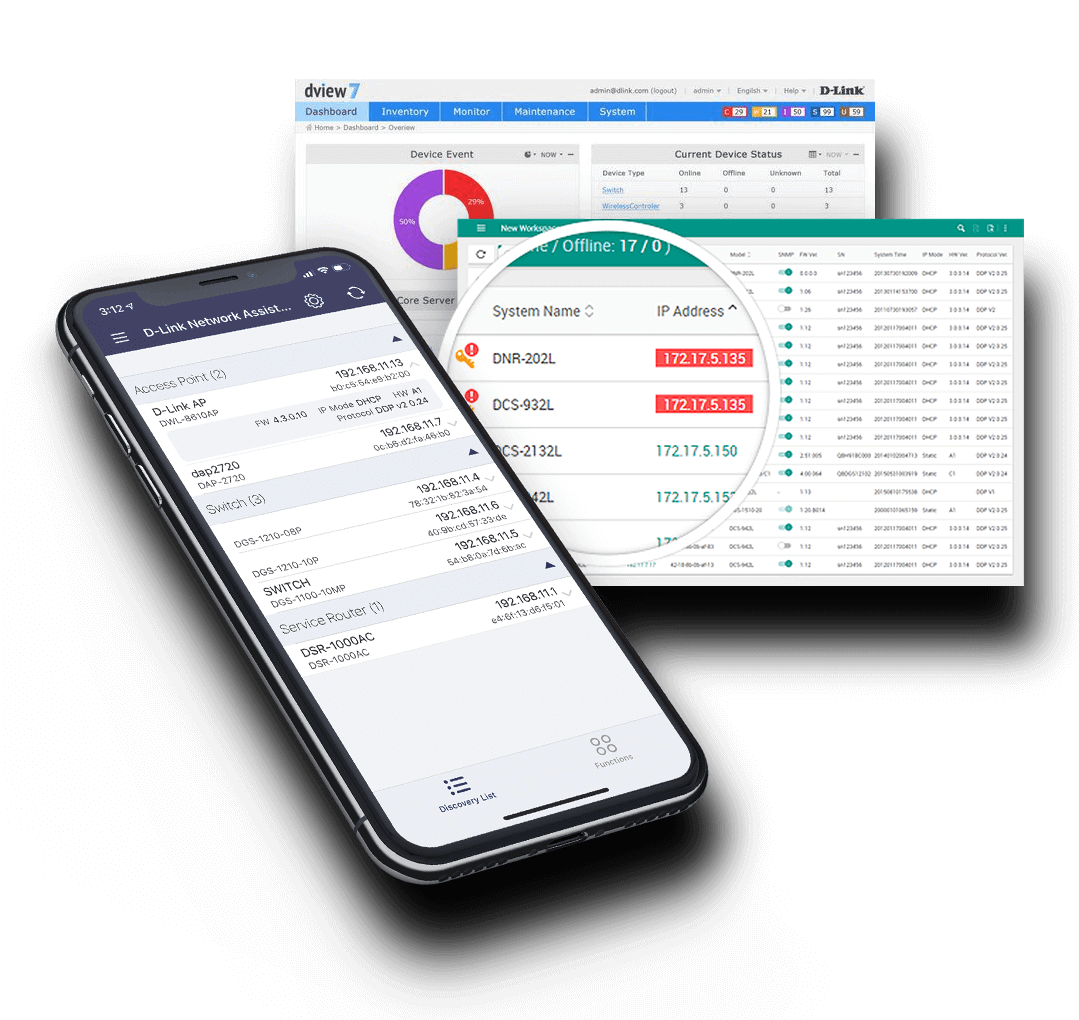

Simplified Management

Manage multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance. D-Link Network Assistant (DNA) is also available to easily set up and manage smaller networks.

Flexibility and Versatility

The DXS-3610 is available in two configurations; 48 x 10G Base-T or 10G SFP+ ports with 6 x 100G QSFP28 and can be used either in uplink or stacking (with DEM-CB100Q28) configurations to accommodate the scale and requirements of data centres.

The switch also supports OpenFlow 1.3 for SDN-enabled network compatibility and Switch Resource Management (SRM) for flexible system resource manageability.

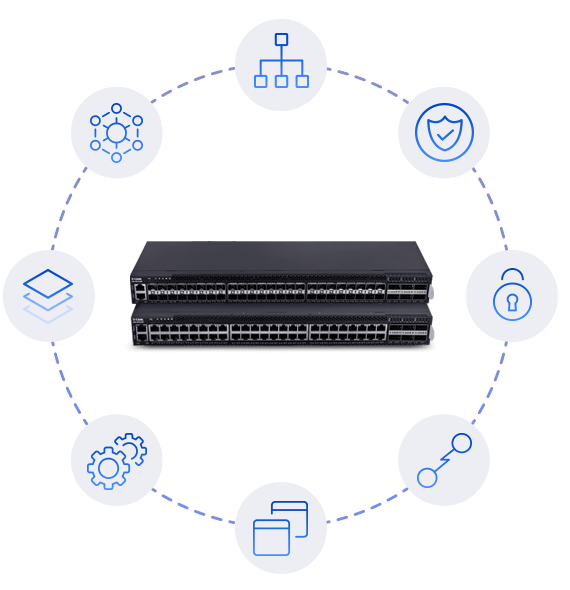

Complete Layer 2/3 Functionality

The DXS-3610 has a complete L2 and L3 feature set to meet the demands of data centre applications. Layer 2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features. Advanced L3 features include routing for enterprise integration, such as OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.

Application Scenario

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

100G QSFP28 to QSFP28 1 m Direct Attach Stacking Cable
DEM-CB100Q28
Find out more
54-Port 10G/40G Enterprise Aggregation Switch
DXS-5000-54S
Find out more
Top of Rack 10 Gigabit Stackable Managed Switches
DXS-3400-24TC, DXS-3400-24SC
Find out more
Gigabit L3 Stackable Managed Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Find out more
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Find out more
Type
Managed
Number of ports
48 to 54 ports
Layer
Layer 2+
Layer 3
Stacking
Physical
Virtual
Main type of ports
10GBASE-T 10 Gigabit Ethernet
10GbE SFP+
Type of uplink ports
100GbE QSFP28
40GbE QSFP+
Switching capacity
2.16 Tbps
Form Factor
Rackmountable
Physical stacking
Up to 12 devices
Up to 1200 Gbps bidirectional bandwidth
Virtual stacking (up to 32 devices)
Supported
MAC address
288K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
VLAN group (max static)
4K
VLAN type
GVRP
MAC-based
Port-based
Protocol-based
Advanced VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Super VLAN
IPv4/IPv6 routing table
IPv4 - 32K
IPv6 - 16K
IPv4/IPv6 forwarding table
IPv4 - 144K
IPv6 - 72K
IP interfaces
256
Static route for IPv4/IPv6
IPv4 - 1K
IPv6 - 512
IPv6 tunneling
Supported
Multicasting
Supported
PIM-SM
Supported
DVMRP v3
Supported
RIP v1/v2
Supported
RIPng
Supported
OSPF
Supported
BGP
Supported
OSPFv3
Supported
MPLS
Supported
VPLS
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
8 Kbps minimum granularity
ACL type
Egress
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
External user databae - POP3 and LDAP
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP
Supported
LLDP-MED
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
