Gigabit Managed Switches

DGS-2000

  • Product Status (Revision A1): Live
  • Wide range of port and media types
  • Effortless multi-site deployment
  • PoE options up to 370W power budget
  • Easy management with web UI
  • Available in PoE and non-PoE variations

Download the datasheet.

Where to buy

Cost-Effective and Flexible Networking for Your Business

The DGS-2000 series are cost-effective, high-performance fully-managed Gigabit Access Switches with a comprehensive set of features, making them the perfect solution for small offices or large multi-site enterprise businesses.

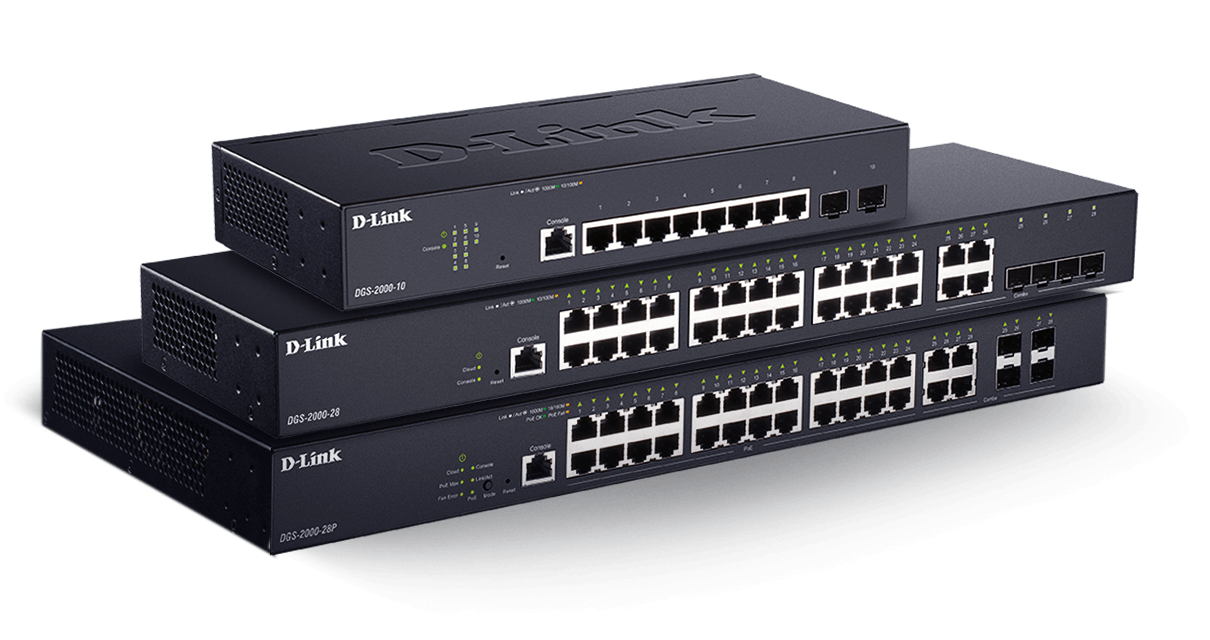

Flexible Hardware Design

Wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports.

Effortless multi-site deployment

Have a DGS-2000 switch delivered to any site to be up and running in minutes with automatic configuration download thanks to Zero-Touch provisioning.

High Switching Capacity and PoE Budget

Up to 104 Gbps switching capacity with a maximum PoE budget up to 370W.

Prioritised traffic with network optimisation

The DGS-2000 series auto-detect important traffic to give you uninterrupted surveillance video and jitter-free VoIP calls.

Layer 2 with Layer 3 Lite features

Equipped with a complete lineup of L2 features, and supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing.

Network Security

D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.

Simplified Management

Simple management through user-friendly web configuration or command line interface (CLI) via Telnet or SSH for ease-of-use.

Limited Lifetime Warranty & Next Day Service

Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Learn more

Seamless Integration

The DGS-2000 Series includes a wide range of port density and media types, from 10 to 52 ports, including Gigabit copper, fibre and combo ports. All PoE switches within the series support PoE+ and provide high power budgets of up to 370W, allowing more PoE devices to be connected and powered.

Efficient and Resilient Networking

The DGS-2000 Series supports 802.3ad Link Aggregation, which allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments. Additionally, these switches also support 802.3ah OAM Ethernet link-layer remote loopback and discovery as well as D-Link’s Unidirectional Link Detection (DULD). These two Layer 2 protocols combined ensure the reliability of data transmission in your network.

Network Optimisation

The DGS-2000 Series supports Auto Voice VLAN and Auto Surveillance VLAN, which allows voice and video traffic to be automatically identified and prioritised, even during peak hours of traffic.

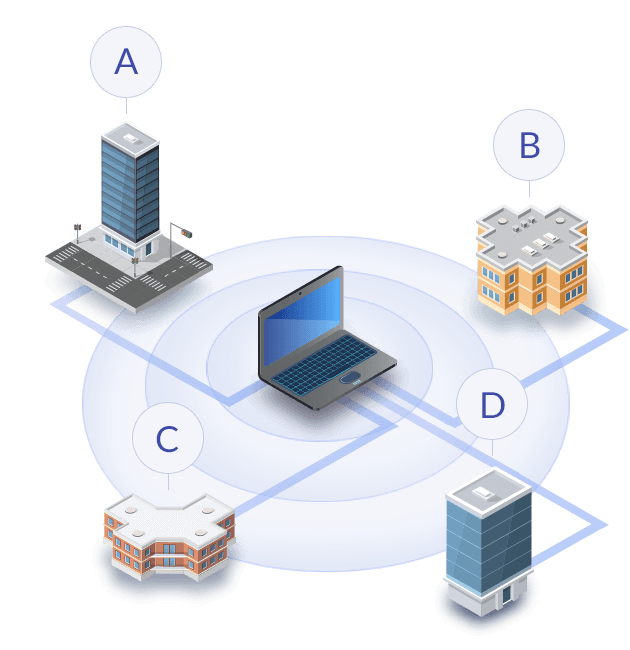

Zero Touch Provisioning

Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralised location, then install the DGS-2000 switches for effortless deployments.

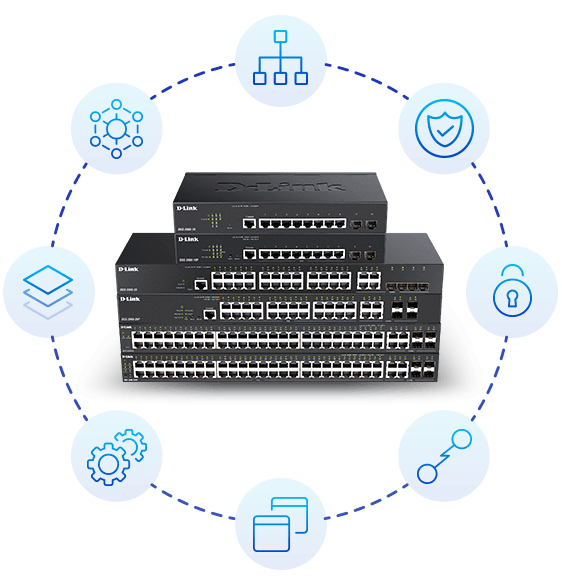

Advanced features with ultra-high availability

For mission critical environments, the DGS-2000 series supports IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

Troubleshooting made easy

The DGS-2000 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Protect your network with comprehensive security

The DGS-2000 Series provides users with the latest security features such as Packet Content Access Control Lists (ACL), Storm Control, and Smart IP-MAC-Port Binding (Smart IMPB) with DHCP Snooping. D-Link’s innovative Safeguard Engine helps to protect the switches against traffic flooding caused by malicious attacks.

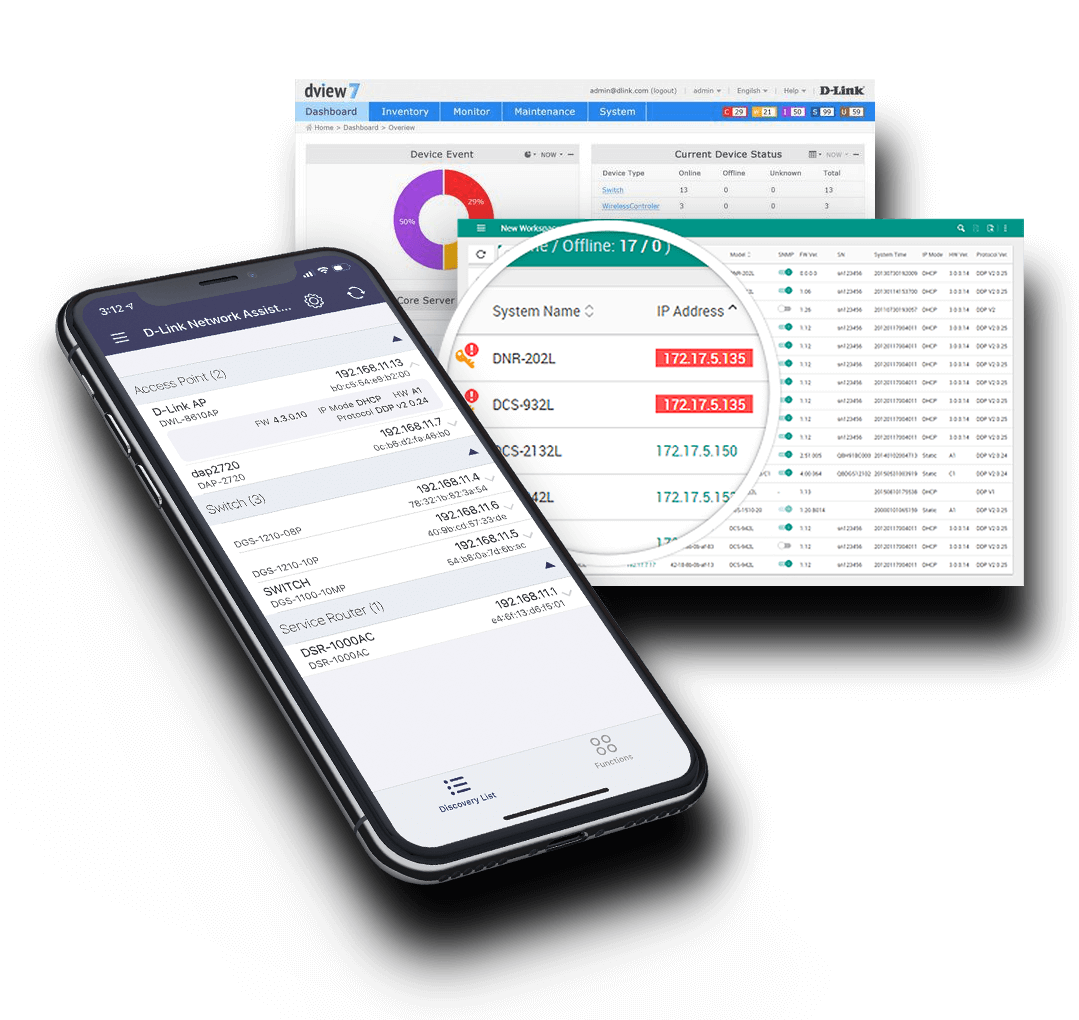

Manage your network from anywhere

D-Link Network Assistant (DNA) is our latest software for admins to easily discover, configure and control their network down to the port level. We also provide an additional legacy software that authorises them to configure multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance.

The DGS-2000 Series also supports full Command Line Interface (CLI) through Telnet, SSH and the console port.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Gigabit Smart Managed Switches with 10G Uplinks
DGS-1250-28X, DGS-1250-28XMP, DGS-1250-52X, DGS-1250-52XMP
Find out more
Layer 3 Stackable Smart Managed Switches
DGS-1520-28, DGS-1520-28MP, DGS-1520-52, DGS-1520-52MP
Find out more
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Find out more
Type
Managed
Number of ports
16 to 30 ports
48 to 54 ports
5 to 14 ports
Layer
Layer 2
Layer 3
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP
SFP
Switching capacity
104 Gbps
20 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
24
48
PoE power budget
See datasheet
See datasheet
Form Factor
Rackmountable
Housing
Metal
Jumbo frame
Supported
MAC address
16K
8K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Link aggregation
802.3ad
VLAN group (max static)
256
VLAN type
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Voice VLAN
IP interfaces
4
Static route for IPv4/IPv6
IPv4 - 128
IPv6 - 128
Number of QoS queues per port
8
Bandwidth control
16 Kbps minimum granularity
ACL type
Ingress
ACL based on packet contents
Supported
Encryption protocol supported
SSH
IP-MAC-port binding (IMPB) / Smart Binding
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1
Supported
LLDP
Supported
LLDP-MED
Supported
802.3ah
Supported
Version Date Type File Size
Datasheet EN - PDF 0.73mb Download
Version Description Date Type File Size
Manual 1.00 RevA1 Product Manual 17.11.2020 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.02.004 RevA1 Firmware 17.6.2022 - Download
MiB 1.02.004 RevA1 MiB file 17.6.2022 - Download
FW 1.00.012 RevA1 Firmware 14.12.2020 - Download
FW 1.00.012 RevA1 Firmware 14.12.2020 - Download
Version Description Date
CE doc UKCA DGS-2000-28P 1.03 RevA2 CE document 09.11.2022 Download
CE doc UKCA DGS-2000-10MP 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-10P 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-10 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-20 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-26 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-28MP 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-28P 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-28 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-52MP 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-52 1.02 RevA1 CE document 17.12.2021 Download
CE doc UKCA DGS-2000-10P 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-10 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-20 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-26 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-28MP 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-28P 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-28 1.01 RevA1 CE document 12.8.2021 Download
CE doc UKCA DGS-2000-52 1.01 RevA1 CE document 12.8.2021 Download
CE doc DGS-2000-10MP 1.01 RevA1 CE document 02.3.2021 Download
CE doc DGS-2000-10 1.00 RevA1 CE document 24.2.2021 Download
CE doc DGS-2000-10P 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-28P 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-28 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-52MP 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-52 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-10MP 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-20 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-26 1.00 RevA1 CE document 09.2.2021 Download
CE doc DGS-2000-28MP 1.00 RevA1 CE document 09.2.2021 Download
