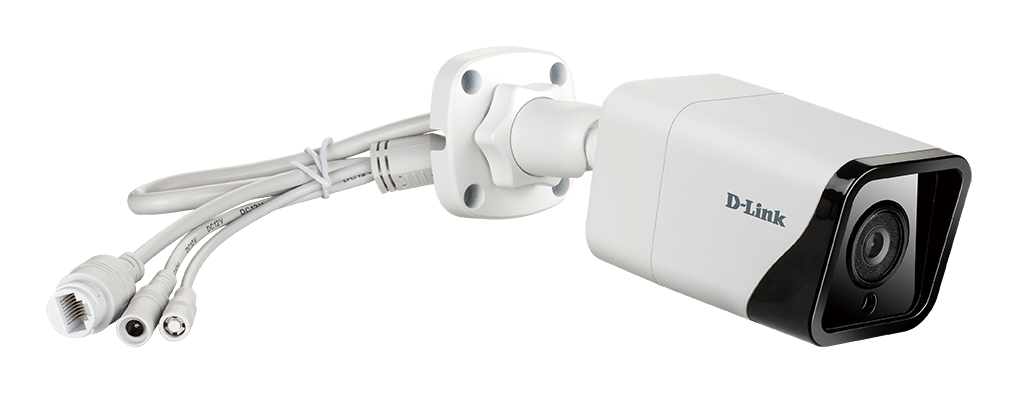

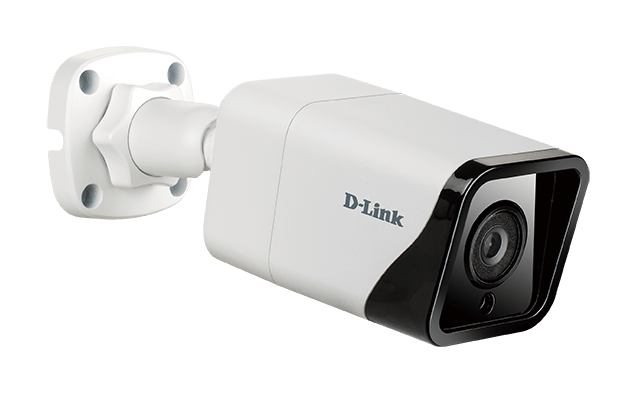

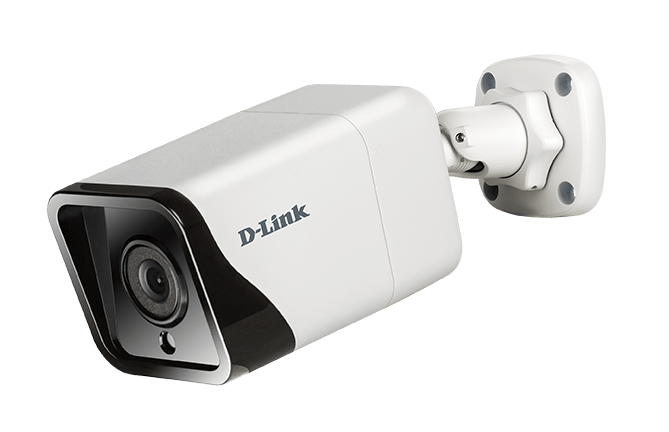

Vigilance 4 Megapixel H.265 Outdoor Bullet Camera

DCS-4714E

  • Product Status (Revision A1): End of Sale

Professional Surveillance in High Definition

A 4 Megapixel lens and state-of-the-art image enhancement features are packed into a compact form factor that’s ready to face the outdoors.

4MP HD Resolution

4-megapixel sensor with High Definition resolution up to 2592 x 1520 for detailed footage

Weather-Resistant

IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C

Day & night surveillance

Built-in IR LED illuminators with 30-meter range for pitch-black areas

Wide Dynamic Range

Improved image quality in high-contrast conditions with WDR

PoE Capable

Supports 802.3af PoE for flexible and simple installation

Storage options

Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.

LowLight+

Optimised for increased image quality in low-light environments

Free Video Management Software

Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive

High quality videos, whatever the lighting

Video resolutions of up to 2592 x 1520 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions.

Viewing Angles
(H) 100°
(V) 58°
(D) 126°

18x Digital Zoom
Zoom in to see more details in areas of interest

Versatile Monitoring in All Environments.

The IP66-rated water and dust-resistant design make this camera ideal for deployment in all weather conditions. The adjustable mount allows the camera to be quickly and easily positioned to get the best field of view.

Weather-resistant
Withstands rain and moisture, with a wide operating temperature range of -30°C to 50°C.

Optimising Bandwidth and Storage

To maximise bandwidth efficiency and improve image quality, the DCS-4714E provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.

Flexible Connectivity

Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.

Optional recording to an NVR, VMS or NAS system

Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.

Free Surveillance Management Software

D-Link Network Cameras include D-Viewcam; a complete surveillance software package to view, manage and record up to 64 cameras on a single computer from a central location.

Learn more

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

2‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

Indoor/outdoor
Outdoor
Type
Bullet
Connectivity
Wired PoE
Resolution
4 megapixel
Image sensor
1/2.8" 4 megapixel WDR progressive scan CMOS
Maximum Video Resolution
2592 x 1520 (16:9)
Advanced Light features
Corridor Mode
LowLight+
Wide Dynamic Range
Lens
2.8 mm
F2.0
Fixed
Angle of View (H/V/D)
100° / 58° / 126°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
30 m
Wide Dynamic Range(WDR)
Supported
LowLight+
Supported
Privacy Masks
3 zones
External Card Slot
MicroSD SDHC SDXC (max 256 GB)
Power Consumption
8 W
App Support
JustConnect+
Features
ONVIF
Video Format
H.264
H.265
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
18x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
