Vigilance Full HD Panoramic PoE Camera

DCS-4622

  • Product Status: End of Sale

Professional.
Simple.
Affordable.

The all-seeing-eye that gives you 360° coverage that captures it all.

Fisheye lens · Hhigh-resolution 3-megapixel sensor · Distortion correction

The Vigilance Camera Range offers professional video surveillance that is easy to install and highly affordable.

Features

D-Link DCS-4622 Vigilance Full HD Panoramic PoE Camera
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
D-Link DCS-4622 Vigilance Full HD Panoramic PoE Camera
2 Way audio
2-way audio with built-in microphone and speaker
D-Link DCS-4622 Vigilance Full HD Panoramic PoE Camera
Night Vision
IR LEDs guarantee bright & clear images, even in total darkness
D-Link DCS-4622 Vigilance Full HD Panoramic PoE Camera
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
D-Link DCS-4622 Vigilance Full HD Panoramic PoE Camera
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancemen
D-Link DCS-4622 Vigilance Full HD Panoramic PoE Camera
Onboard SD Recording
Record snapshots and video to a microSD card without requiring a PC or network storage device

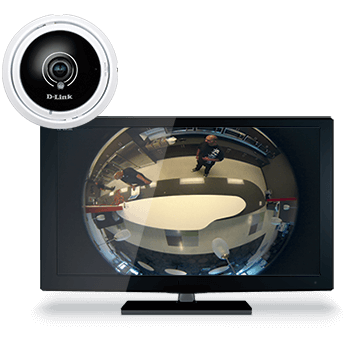

360° Surveillance

360° Surveillance

The DCS-4622 uses a fisheye lens to provide incredible wide angle coverage; simply place it on a wall for panoramic 180° wall-to-wall coverage of a room, or place it on a ceiling for a full 360° view without blind spots. Distortion correction fixes the camera video so you can use ePTZ to zoom in, zoom out and pan across your camera’s video to survey a large area with ease.



Security in High Definition

Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4622 Ideal for small, medium and large enterprise installations.

Security in High Definition

*Screen images simulated


Continuous Monitoring with Night Vision

Continuous Monitoring with Night Vision

Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.

Combined with the IR-Cut filter, the DCS-4622 can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.

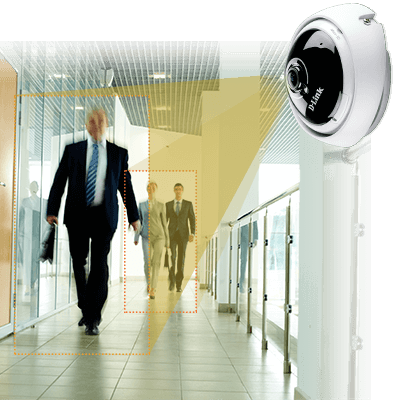

Motion Detection

Motion Detection

Motion detection lets you record events with ease and can even save snapshots and video before the event even happens so you can get the whole picture.

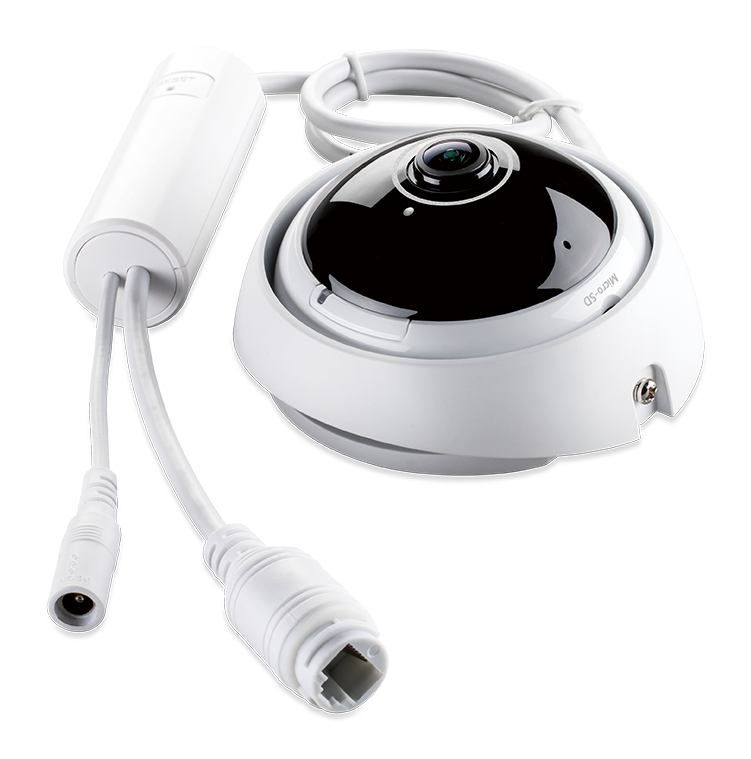

PoE = Convenience

PoE = Convenience

Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4622 has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4622 can also be powered by a standard 12V DC, 1.5A power adapter (not included).



Video Management Software (VMS)

Manage your cameras with the free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4622 is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.

Video Management Software (VMS)

Related Products

D-ViewCam
DCS-100
Find out more
Indoor/outdoor
Indoor
Connectivity
Wired PoE
Resolution
3 megapixel
Image sensor
1/3.2" 3 megapixel progressive scan CMOS
Maximum Video Resolution
2048 x 1536 (other)
Lens
1.1 mm
F2.0
Fisheye
Angle of View (H/V/D)
180° / 180° / 180°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
8 m
Wide Dynamic Range(WDR)
Supported
2-way audio
Supported
Built-in Microphone
Supported
Built-in Speaker
Supported
External Card Slot
MicroSD SDHC SDXC (max 128 GB)
Power Consumption
4.6 W
Features
ONVIF
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 03/10/2021
Version Date Type File Size
Datasheet - PDF 0.74mb Download
Version Description Date Type File Size
Manual Manual 02.3.2017 - - Download
Version Description Date Type File Size
QIG 1.03 Revision A1 Quick Installation Guide 05.11.2018 - - Download
Quick Installation Guide Quick Installation Guide 06.4.2017 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.00.09 Firmware 1.00.09 09.2.2017 - Download
Version Description Date
Setup Wizard Setup Wizard 09.2.2017 Download
Version Description Date
DEU_CE_Declaration DCS-4622 CE DoC - Download
