Professional Surveillance in Vandal-proof 2MP High Definition
A 2 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_01_billboard.jpg?h=830&w=2600&la=mk-MK&hash=AB01595A8785A3B6C20F8B6683C12C8F)
![](/mk/mk/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_02_hd.png)
2MP HD Resolution
2-megapixel sensor with High Definition resolution up to 1920 x 1080 for detailed footage
![](/mk/mk/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_02_vandalproof.png)
Vandal-proof
IK10-rated housing for protection against physical impacts
![](/mk/mk/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_ip66.png)
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
![](/mk/mk/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_nightvision.png)
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
![](/mk/mk/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_poe.png)
PoE Capable
Supports 802.3af PoE for flexible and simple installation
![](/mk/mk/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_sd.png)
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
![](/mk/mk/-/media/product-pages/dcs/4618ek/assets/dcs4618ek_02_wdr.png)
Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments
![](/mk/mk/-/media/product-pages/dcs/4718e/assets/dcs4718e_02_easyremotemanagement.png)
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 1920 x 1080 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4612EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.
Viewing Angles
(H) 106.8°
(V) 58°
(D) 126°
High Quality Lens
2.8 mm lens with an F2.0 aperture
![](/mk/mk/-/media/product-pages/dcs/4614ek/assets/dcs4614ek_03_angles.jpg?h=630&w=605&la=mk-MK&hash=9B13C0CD9AB8A4A1A041F9EF55745042)
Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_04_environment.png?h=630&w=580&la=mk-MK&hash=8F3B5603330377AC3C7C87ADCA9B55C7)

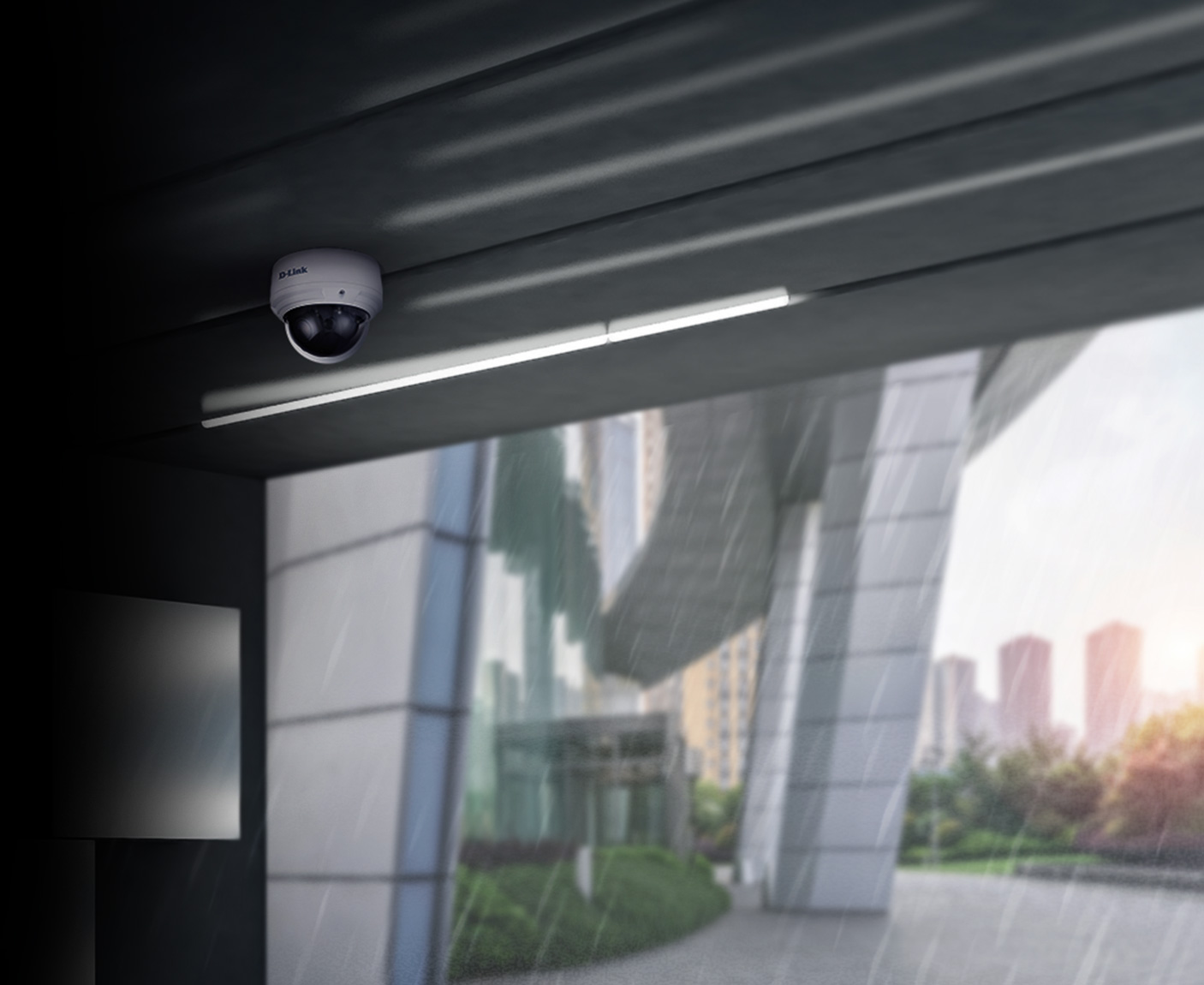

Vandal-proof
The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_05_vandalproof.jpg?h=1150&w=1406&la=mk-MK&hash=AA14A9C6FD219A7079F598B2E8EFC0ED)

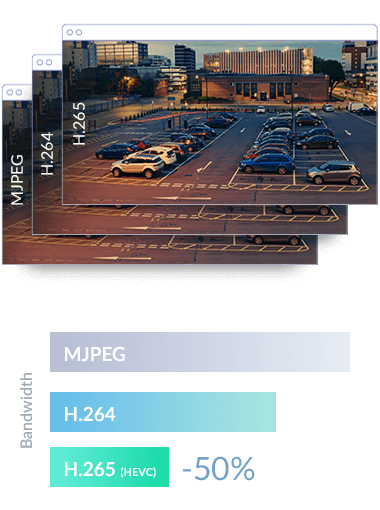

Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4612EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_06_bandwidth.png?h=510&w=380&la=mk-MK&hash=09408382D35DBF80AC4F85CA5067212A)

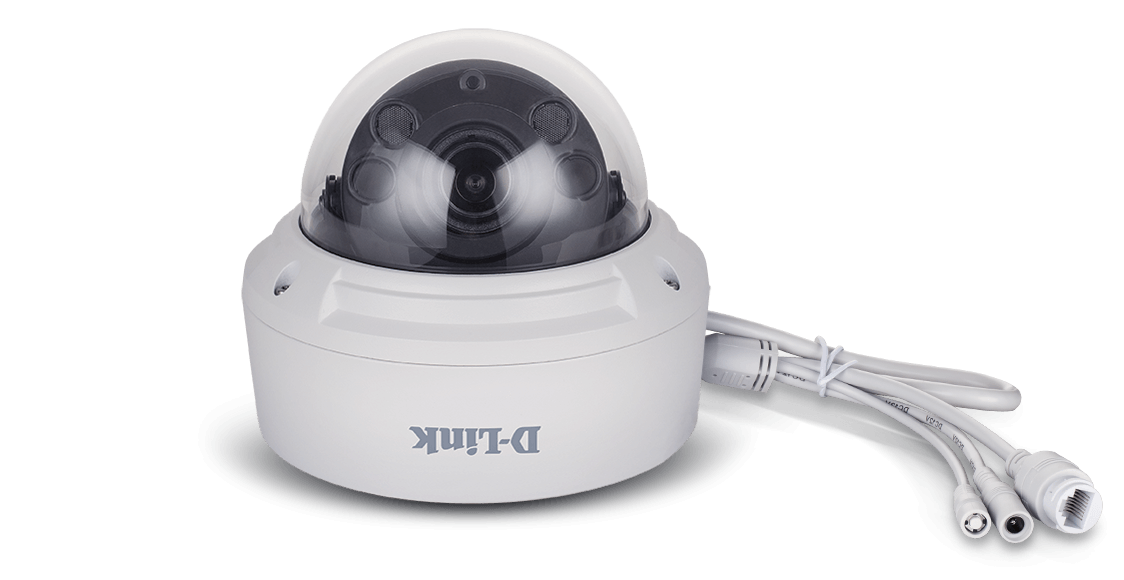

Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_07_connectivity.png?h=580&w=1124&la=mk-MK&hash=9A19F2A17C176F847944600566E62E20)

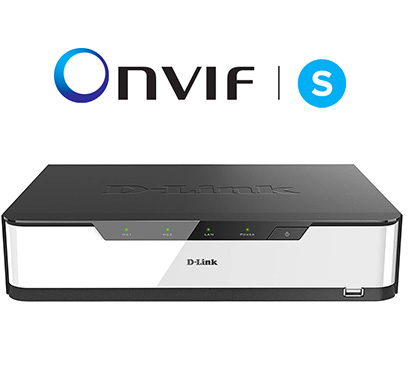

Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_08_onvif.jpg?h=380&w=412&la=mk-MK&hash=A63455ED369AF7DE9C1338F8A20476D4)
Free Surveillance Management Software
D-Link Network Cameras include D-Viewcam - a complete surveillance software package to view, manage and record up to x64 cameras on a single computer from a central location.
![](/mk/mk/-/media/product-pages/dcs/4612ek/assets/dcs4612ek_09_software.png?h=560&w=1460&la=mk-MK&hash=806A1038A45156F4B612D7417EBCF978)
We're here to help.
![](/mk/mk/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=mk-MK&hash=C350B2D2BE4C529D6FB2DC6FEB542B3C)
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
![](/mk/mk/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=mk-MK&hash=6625AD99E85FB8F94B7FC6D5548D3F25)
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
![](/mk/mk/-/media/product-pages/common/callouts/icon_2years.png?h=113&w=145&la=mk-MK&hash=9CA3B6AB36C8CA7C6D126413EB4BC2A0)
2‑Year D‑Link Warranty
You're protected by one of the global leaders in the industry.
Related Products
![](/mk/mk/-/media/product-pages/dcs/100/dviewcam.png?h=100&w=178&la=mk-MK&hash=D6BDCA188121A2A1CB6F838717410C0D)
Specs
Indoor/outdoor
|
Outdoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
Full HD 2 megapixel |
Image sensor
|
1/2.8" 2 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) |
Advanced Light features
|
Corridor Mode LowLight+ Wide Dynamic Range |
Lens
|
2.8 mm F2.0 Fixed |
Angle of View (H/V/D)
|
106.8° / 58° / 126° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
30 m |
Wide Dynamic Range(WDR)
|
Supported
|
LowLight+
|
Supported
|
Privacy Masks
|
3 zones |
Vandal Proof
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 256 GB) |
Power Consumption
|
5 W |
App Support
|
JustConnect+ |
Features
|
ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
18x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
