Business Router
DBR-700
- Stato del prodotto: Live
- 1 x 2.5G WAN port delivers high-speed connections
- Up to 7 x 2.5G LAN ports to connect multiple devices
- 1 x 2.5G SFP port supports long-distance connections
- Multi-WAN enables steady and balancing connectivity
- Advanced firewall protect the network against threats
- Complete network functionality fits diverse setups
- Manage up to 15 D-Link Smart Access Points
- Bandwidth management optimizes service priority
- Easy Web GUI for central monitoring and management
- Made In Taiwan
Powerful Business VPN Router for Small Office Connectivity
The DBR-700 is a high-performance business router featuring 2.5G interfaces, including SFP ports, providing flexible and stable wired connectivity, particularly for long-distance transmission. Multi-WAN functionality ensures uninterrupted network services by automatically switching to a backup WAN connection and load-sharing internet access. With a powerful firewall and supports IPsec VPN tunnels, your remote access is always secured and encrypted. Enhanced AP management simplifies centralized control of multiple access points, making the DBR-700 an excellent choice for businesses seeking reliable, secure, and high-speed networking.
Invia file di grandi dimensioni in un istante
Goditi trasferimenti dati ultra-rapidi a 2.5 Gbps, risparmiando tempo e riducendo le attese.
Connettività multi-WAN affidabile
fino a 3 porte WAN per connettività ininterrotta e traffico ottimizzato
Built-in Fiber Port for Long-distance
Offers degradation-free signals for long-distance data transmission
VPN completa e robusta
Una VPN potente garantisce accesso sicuro per sedi aziendali e lavoratori da remoto.
Accesso protetto
La protezione firewall protegge la rete da accessi non autorizzati e minacce informatiche
Gestione Centralizzata degli Access Point
Monitora e controlla facilmente gli access point smart con la piattaforma di gestione integrata
Intelligent Network Optimization
Prioritizing critical applications, balances traffic to avoid congestion, and efficiently use the resources
User-friendly Web UI Platform
Intuitive web UI streamlines management, enhances operational efficiency and minimizes errors

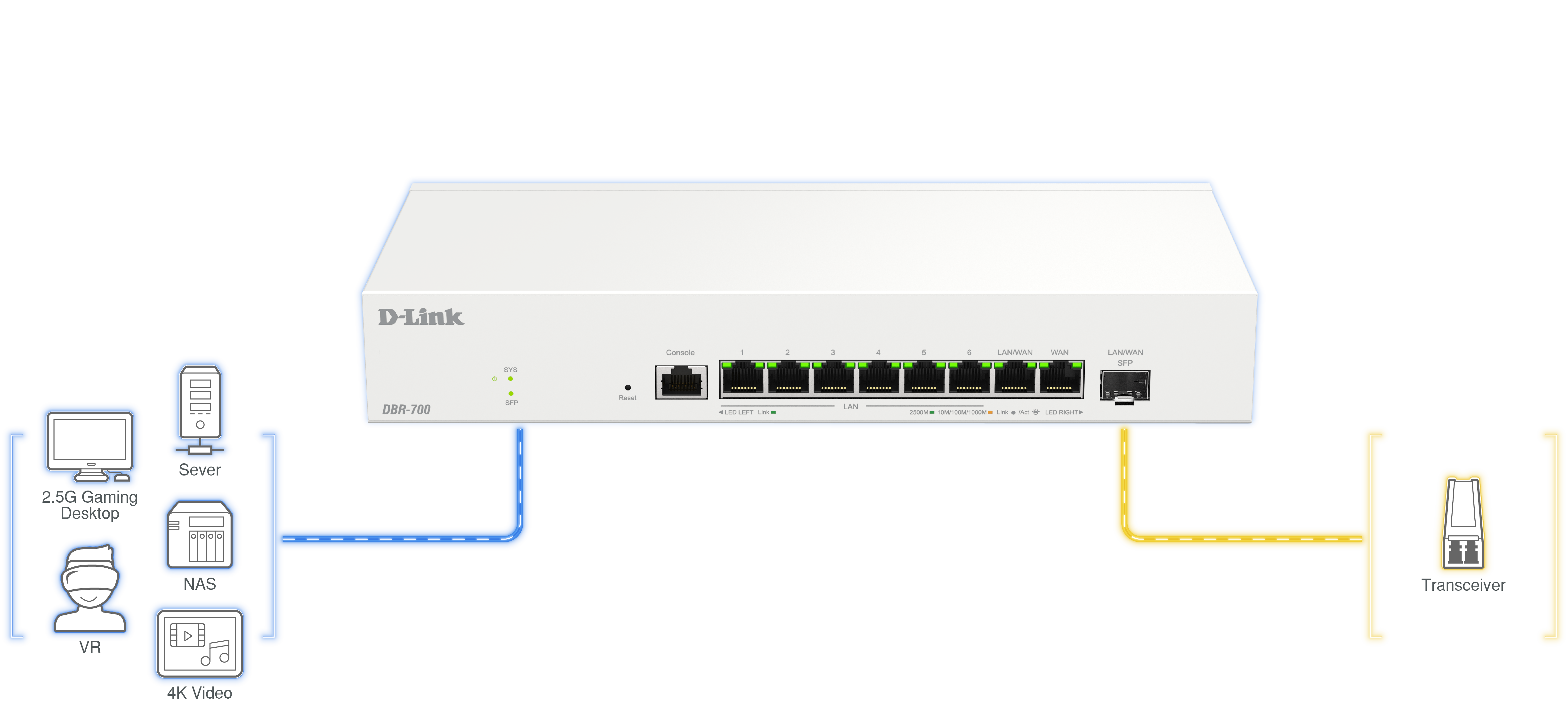

2.5G Connectivity
Maximize Efficiency and Growth with a Powerful Interface
Maximize Efficiency and Growth with a Powerful Interface
The DBR-700 features a 2.5G interface, providing higher bandwidth to support faster file transfers and lag-free, high-quality 4K/8K video streaming, enhancing daily productivity with more stable and reliable connectivity. The SFP (Small Form-Factor Pluggable) port enables long-distance data transmission, offering greater flexibility and scalability in network design. With the fiber port, businesses can easily scale their network without zone limitations.

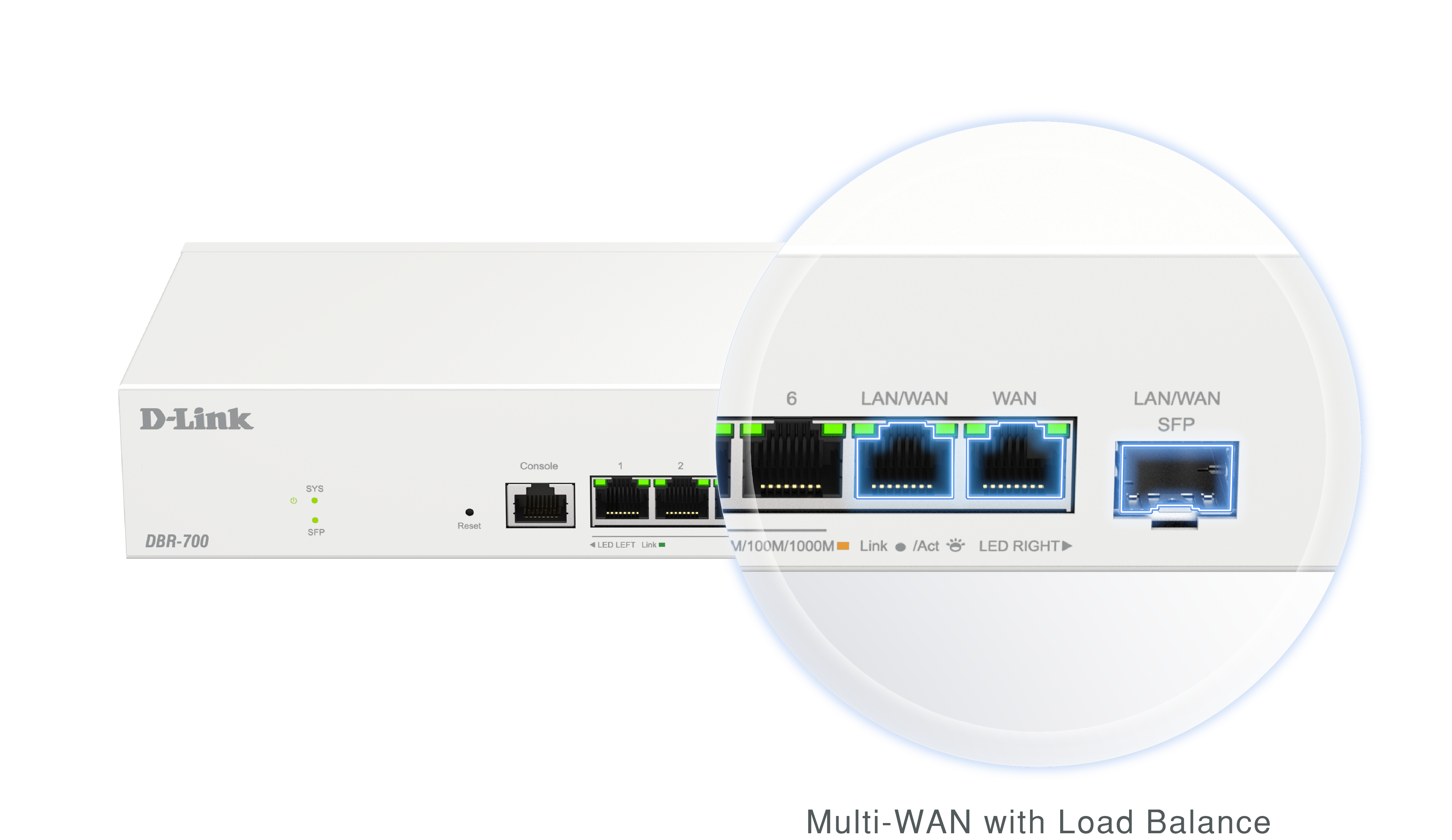

Multi-WAN
Always Online, Always Reliable
Always Online, Always Reliable
In addition to a WAN/LAN port that can be configured as a secondary WAN, the SFP port can also serve as a 3rd WAN connection. Multi-WAN functionality enhances network reliability and ensures consistent service.
With up to 3 WAN ports, the DBR-700 keeps your business always connected. Load balancing distributes network traffic across multiple WAN connections, preventing any single connection from being overwhelmed, averaging overall internet usage, and ensuring continuity with backup connections in case of failures.

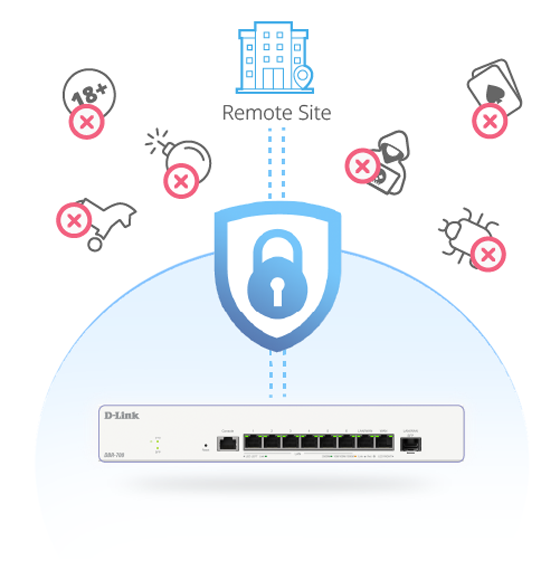

Robust Security
Always Secure Your Network and Access
Always Secure Your Network and Access
Comprehensive built-in advanced security features, such as a firewall, IPS and web filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improve secure connection establishment with any device, deeply protecting data from unauthorized access and maintaining privacy across all network interactions.
One-stop APs Management
Through an intuitive web UI, the DBR-700 centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 15 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.
Prodotti correlati
Funzioni L2+ supportate
Gli switch della serie DMS-1250 offrono una serie completa di funzionalità Layer 2+, tra cui:
- Route statica
- IPv4/IPv6
- DHCP Relay
- DiffServ QoS
- Mirroring delle porte
- Protocollo Spanning Tree (STP)
- Protocollo di controllo dell'aggregazione dei collegamenti (LACP)
- Snooping IGMP e MLD
La scelta migliore per SOHO, PMI e MDU
Gli switch della serie DMS-1250 sono versatili, adatti per ambienti SOHO, SMB e MDU. Forniscono una trasmissione dati ad alta velocità con 2.5 GE e un uplink di velocità 10G fondamentale per la connettività esterna. Questo uplink ad alta velocità garantisce che l'intera MDU possa accedere a servizi esterni senza incontrare colli di bottiglia dei dati. Inoltre, questi switch implementano efficacemente IEEE 802.3at o IEEE 802.3bt in DMS-1250-10SP, 10SPL e 12TP per consentire ai dispositivi di connettersi e ricevere alimentazione.
Villa Resort (Building)
Confronto tra gli interruttori della serie DMS-1250
 DMS-1250-10S |  DMS-1250-10SPL |  DMS-1250-10SP |  DMS-1250-12TP | |
|---|---|---|---|---|
| Interfaccia | 8 x 2.5GE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10GE
2 x 10GE SFP+ |
| Prestazioni | ||||
| Capacità degli switch | 80 Gbps | 80 Gbps | 80 Gbps | 120 Gbps |
| Massima velocità di inoltro pacchetti | 59.53 Mpps | 59.53 Mpps | 59.53 Mpps | 89.29 Gbps |
| PoE | ||||
| Standard PoE | N/A | IEEE802.3bt + IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| Porte POE | N/A |
Porta 1 ~ 2 (IEEE802.3bt) Porta 3 ~ 8 (IEEE802.3af/at) | Porte da 1 a 8 | Porte da 1 a 8 |
| Alimentazione PoE totale a disposizione | N/A | 120 W | 240 W | 240 W |
| Specifiche tecniche | ||||
| Protezione da sovraccarichi | ・Conformità alla protezione da sovratensioni IEEE61000-4-5 ・Protezione da sovratensioni da 6 kV su tutte le porte Ethernet da 2,5 Gigabit | |||
| Massimo assorbimento elettrico | 13.58 W | 147 W (PoE on) | 287.58 W (PoE on) | 289.74 W (PoE on) |
| Ventilatore | Senza ventola | Senza ventola | 2 ventole interne | 2 ventole interne |
| Porta console | Sì | No | Sì | Sì |
| Tipo di alimentazione | Interna | Esterna | Interna | Interna |
Specifiche tecniche
|
Interfaces
|
1 x 2.5GE WAN 1 x 2.5GE WAN/LAN 6 x 2.5GE LAN 1 x 2.5 Gigabit SFP WAN/LAN |
|---|---|
|
WAN load balance
|
Yes |
|
Firewall throughput
|
2Gbps |
|
IPsec Tunnel
|
100 |
|
Firewall
|
IPS/IDS SPI Firewall MAC/IP Filtering URL Blocking |
|
VPN tunnels
|
IPSec PPTP OpenVPN L2TP WireGuard |
|
IPS/DoS/DDoS
|
Yes |
|
AP Management
|
Up to 15 DBR-X3000-AP |
|
Captive Portal
|
Yes |
|
Dimensions
|
120 x 280 x 45 mm |
|
Temperature
|
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F) |
|
Humidity
|
Operating: 10% to 90% non-condensing Storage: 0% to 95% non-condensing |
