Dome Type Network Camera Enclosure w/ Built-in power supply, heater, blower

DCS-70

  • Product Status: End of Life

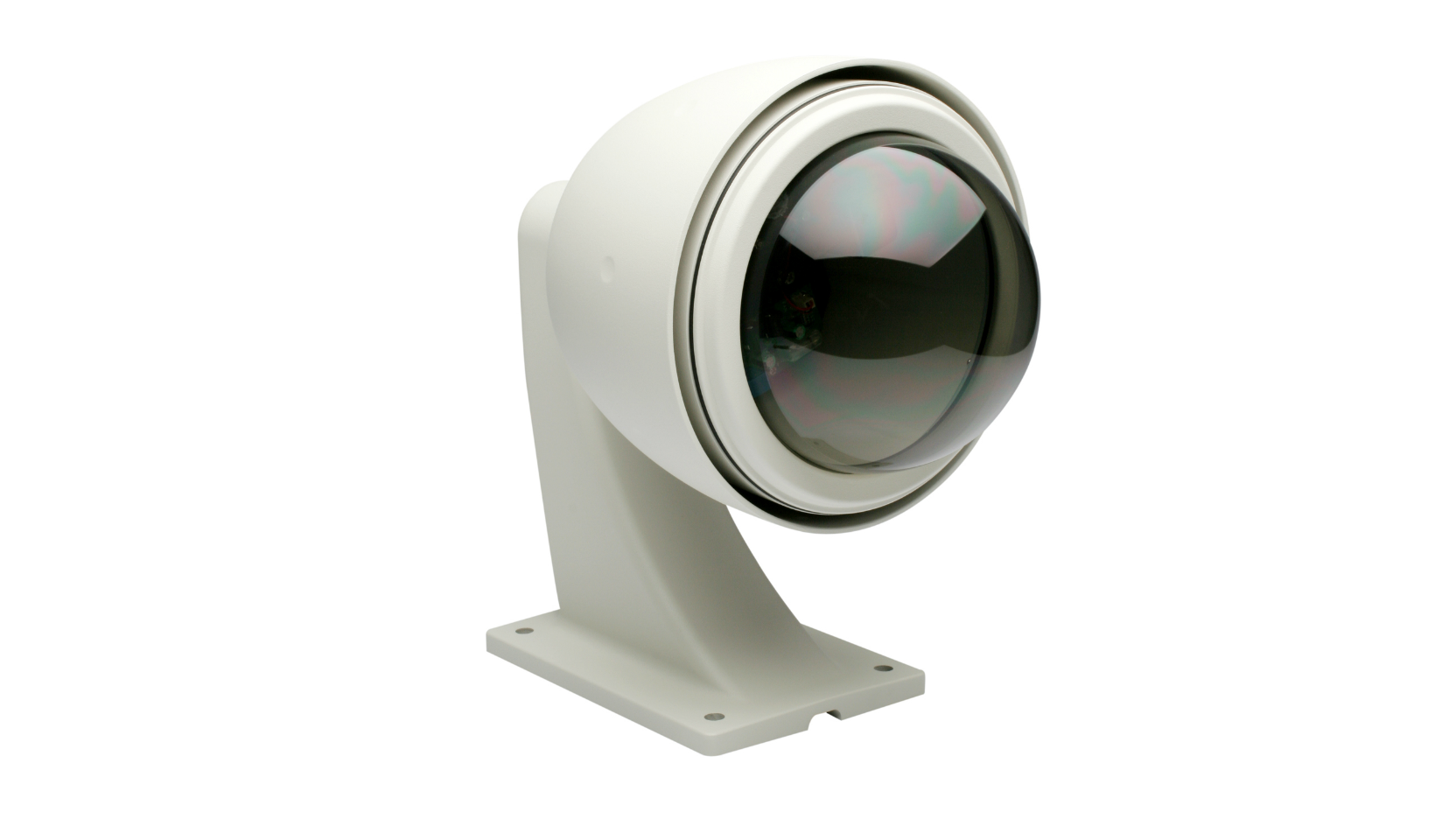

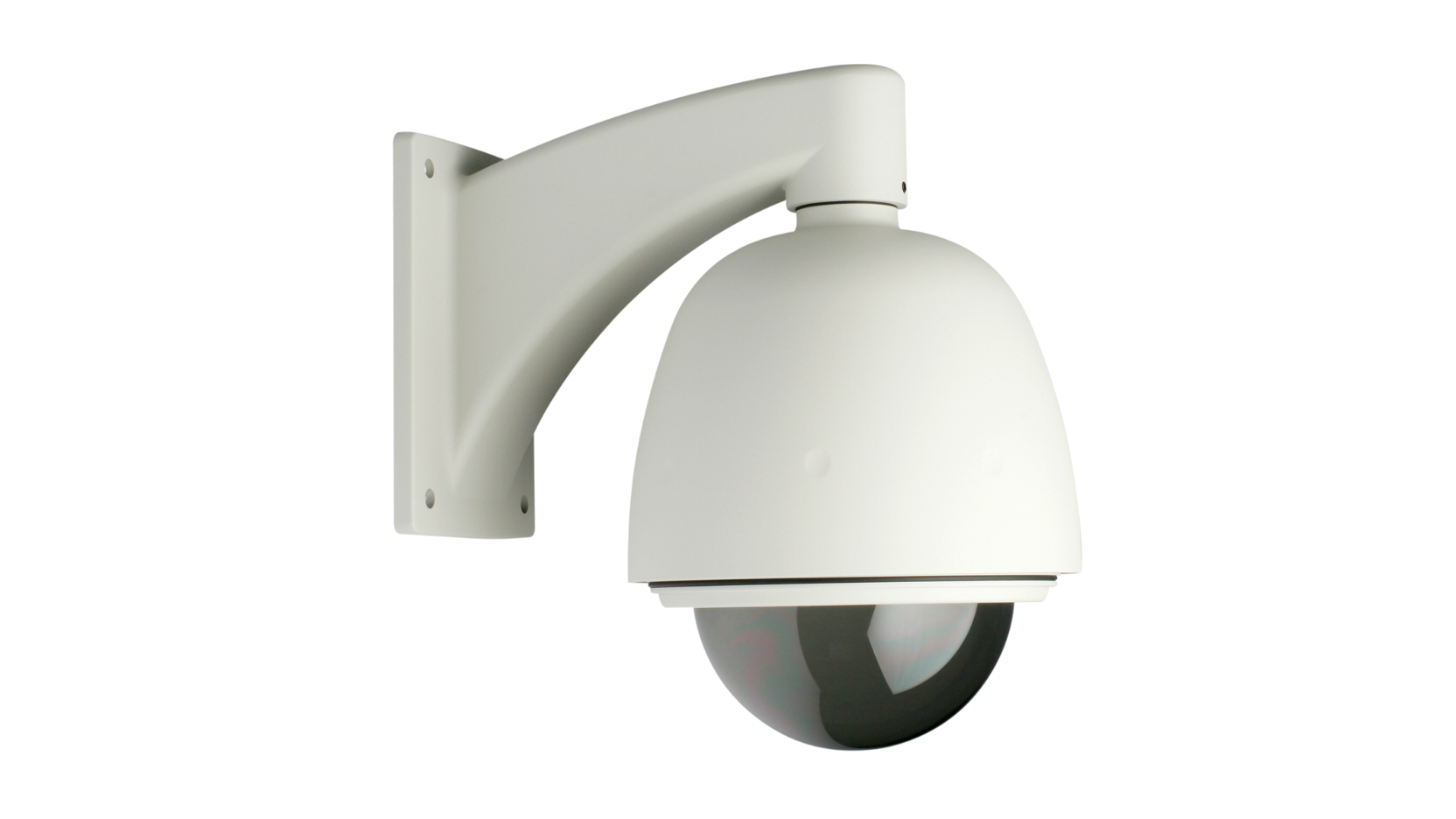

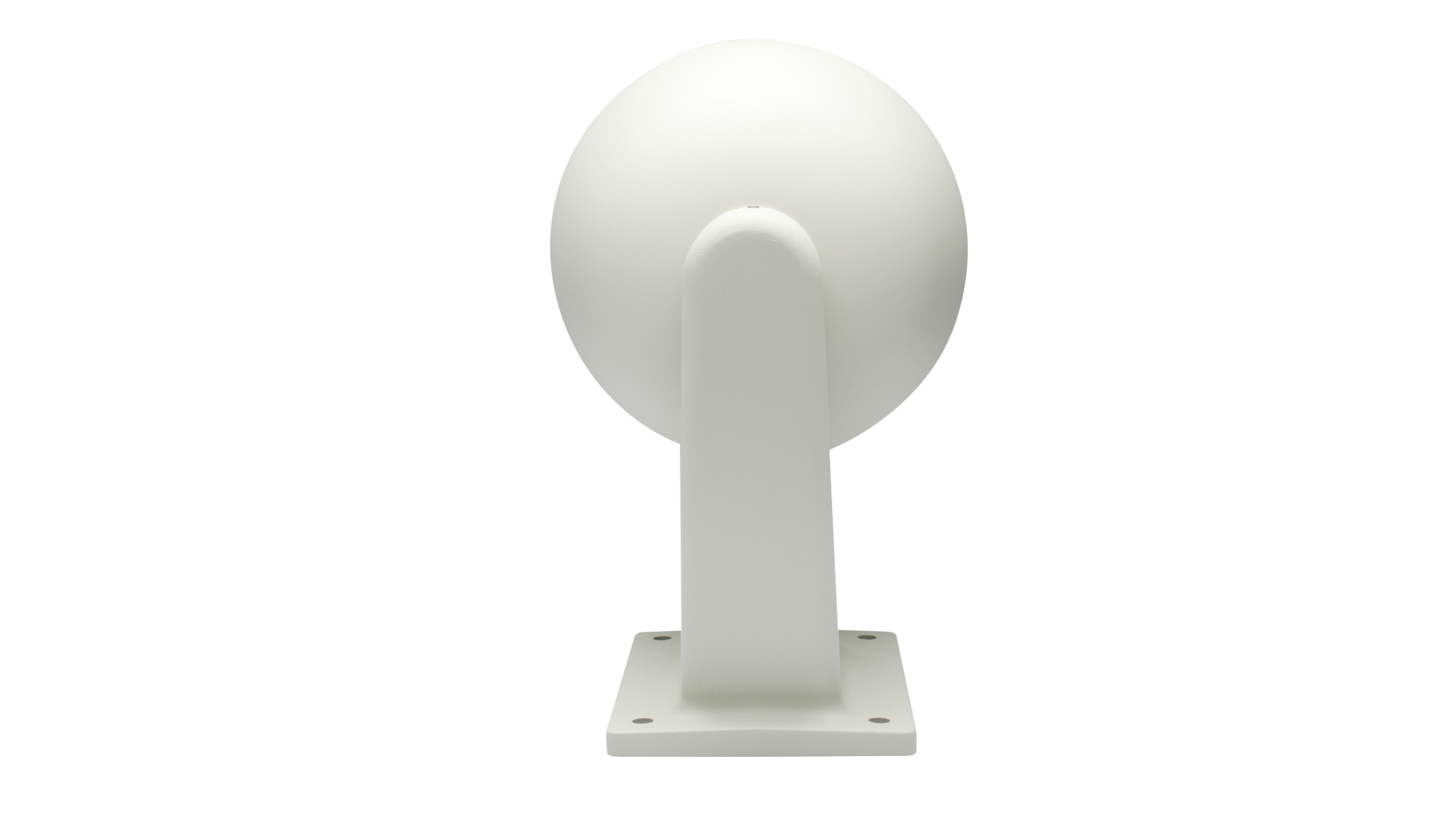

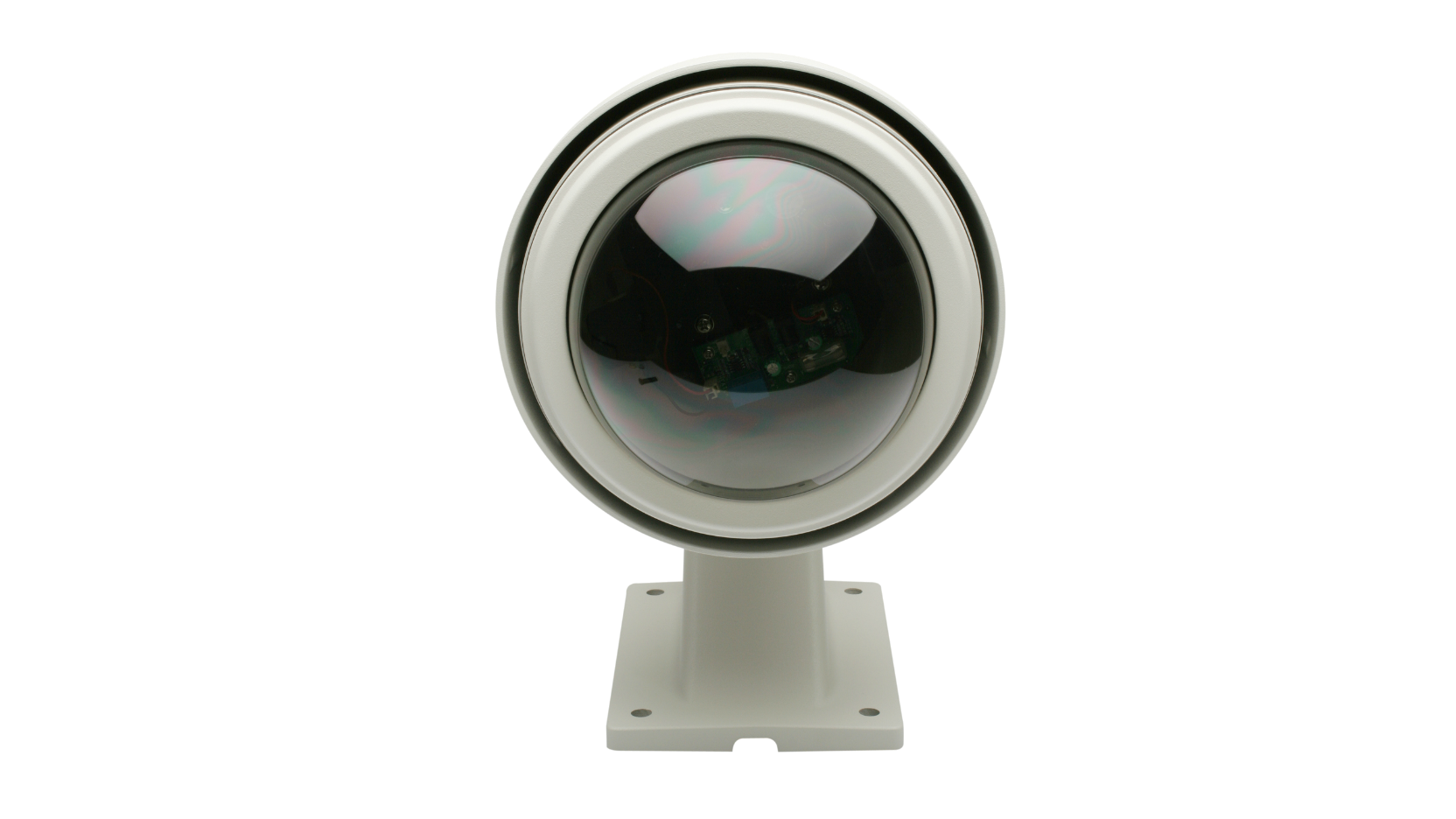

The D-Link® Dome Camera Enclosure DCS-70 provides a cost-effective solution for protecting your D-Link Network Camera from the rigors of outdoor use. The fixed-type dome enclosure includes a heavy duty, angle-adjustable mounting bracket that can be used to secure the camera on a vertical or horizontal surface. Maximize the full potential of your D-Link Network Cameras to secure and protect your business.

The DCS-70 is a dome-type enclosure and is designed for use with D-Link's motorized pan and tilt cameras. This IP66 certified enclosure protects your camera against dust and heavy jets of water. Camera installation is simplified with the built-in power supply, while the heater and blower keeps your camera in proper operating temperatures.
Supported Devices
  • DCS-6620, DCS-6620G, DCS-5610, DCS-5300, DCS-5300G, DCS-5220

IP Rating
  • IP66

Power Supply
  • 90 to 264V AC Input, 12V DC, 3A Output

Heater
  • On at 32°F (0°C), Off at 50°F (10°C)

Blower
  • On at 104°F (40°C), Off at 86°F (30°C)

Dimensions (H x D)
  • 8.86” x 8.58” (225mm x 218mm)

Weight
  • 7.27lb (3.4kg)

Material
  • Aluminum Housing with Smoked Acrylic Cover

Color
  • Beige

Operation Temperature
  • -4° to 113°F (-20° to 45°C) (Enclosure)

Humidity
  • 5% to 95% RH non-condensing (Enclosure)
This product was phased out on: 29/04/2014
This product's last date of support is on: 28/04/2016
Version Date Type File Size
Datasheet - PDF 0.43mb Download
Version Description Date Type File Size
2.00 Quick Installation Guide (multilingual) 7/10/2008 PDF 1.53mb Download
